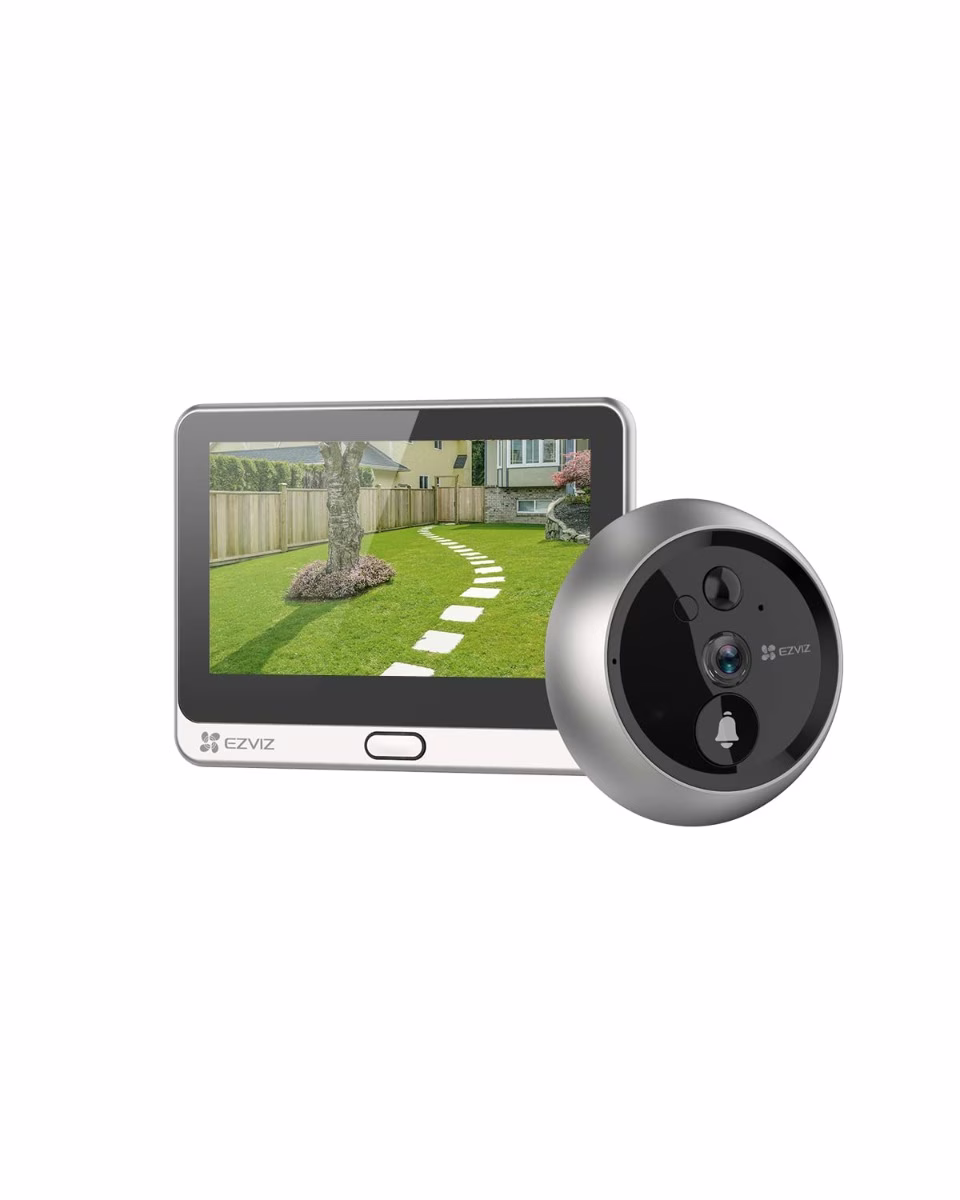

EZVIZ DP2C 1080p Video Door Viewer Peephole Camera with 4.3" Color Screen Display, Built in Chime, Rechargable Battery, APP Viewing, Two Way Audio, PIR Motion Detection, Metal Housing, Cloud/SD
Model :
SKU : EZVIZ DP2C DOORBELL
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
EZVIZ DP2C 1080p Video Door Viewer Peephole Camera with 4.3" Color Screen Display, Built in Chime, Rechargable Battery, APP Viewing, Two Way Audio, PIR Motion Detection, Metal Housing, Cloud/SD
| Model | CS-DP2C |
| Installation Parameters | |
| Supported Hole Diameter | 16.5 to 50 mm (0.65 to 1.97 inch) |
| Supported Door Diameter | 35 to 105 mm (1.38 to 4.13 inch) |
| Camera Parameters | |
| Sensor | 1/3" Progressive Scan CMOS |

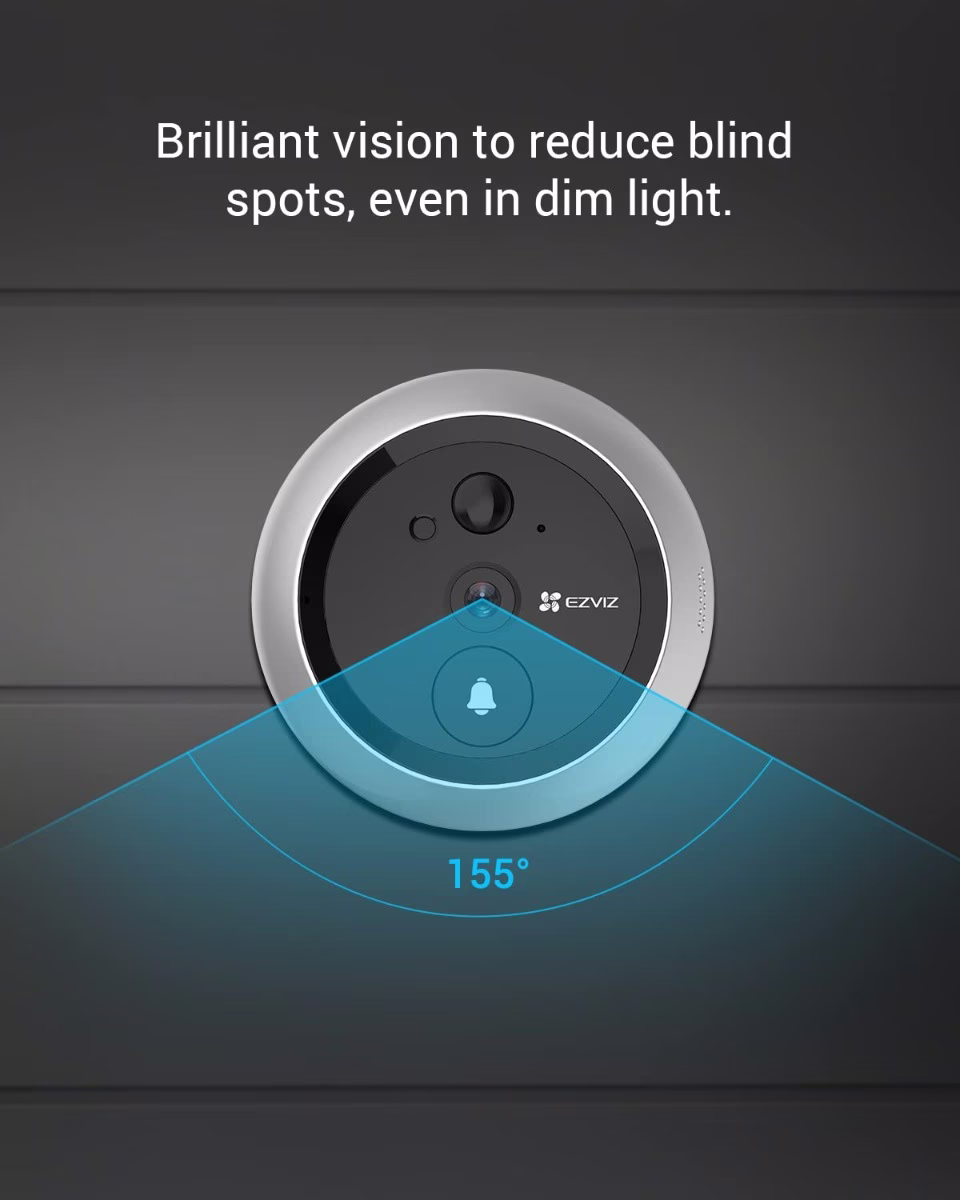

| Lens | 2.0 mm @ F2.2, visual angle (diagonal):155?? |
| Day/Night Switch | ICR infrared filter |
| IR Distance | Max. 5m |
| Max. Resolution | 1080p / 2MP |
| Video Frame Rate | 15fps |
| PIR Detection | |
| Angle | 110?? |
| Distance | Max. 6m (20 ft) |
| Sensitivity | Adjustable |
| Interface | |
| Storage Interface | MicroSD card slot (max. 256 GB) |
| Audio Input | Built-in high sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Buttons | Doorbell button, power button, Screen wake up button |
| Network | |
| Face Detection | Does not support |
| Intelligence Alarm | PIR motion detection |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Video Intercom | Local and remote video intercom |
| General Function | Cloud video encryption and image encryption |
| Wireless | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| General | |

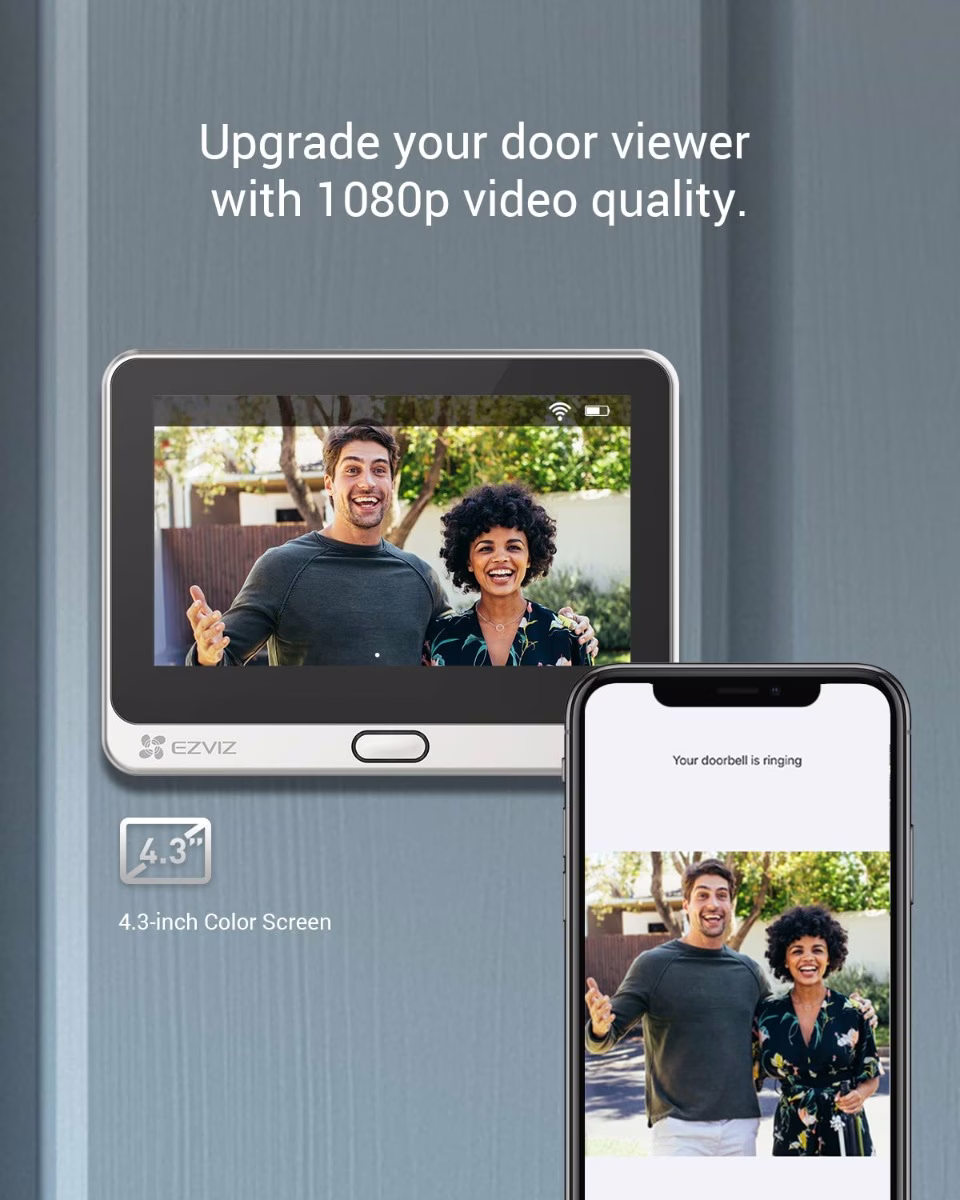

| Screen | 4.3-inch color screen |
| Color | Silver |
| Operating Conditions | -10??C to 45??C (14??F to 113 ??F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V (??10%) |
| Power Consumption | Max. 2.2W |

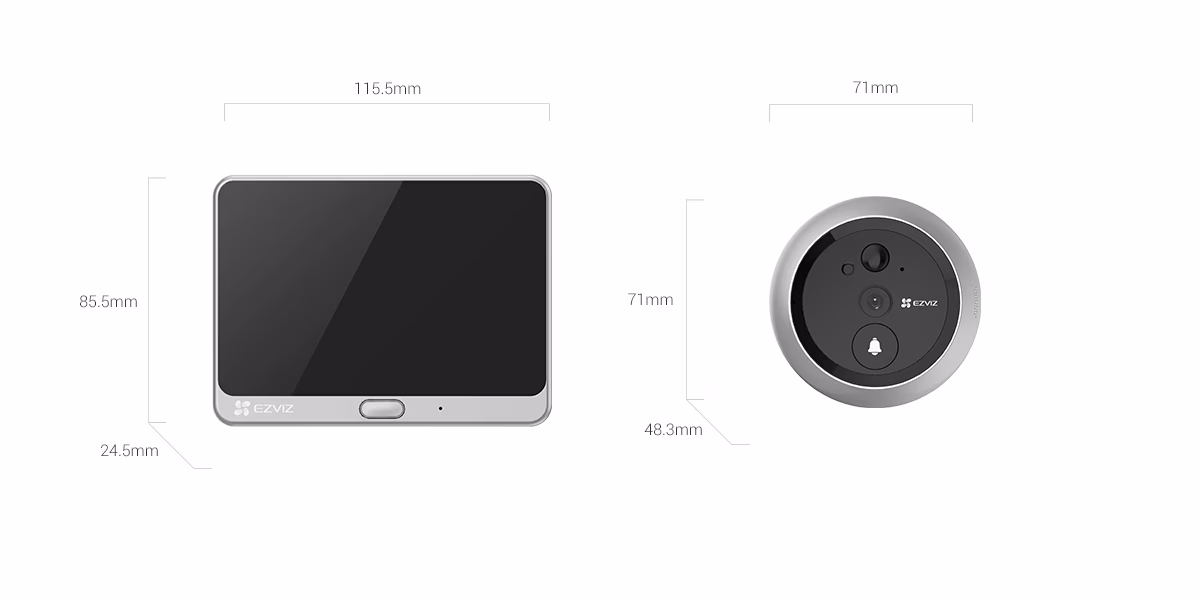

| Dimension | Screen and Base: 115.5 x 85.5 x 24.5 mm (4.55 x 3.37 x 0.96 inch) Peephole Doorbell: 71 x 71 x 48.3 mm (2.80 x 2.80 x 1.90 inch) |
| Weight | 302 g (10.65 oz) |
| In the box | |
| Items Included | - DP2C Peephole Doorbell - Panel - Mounting Base - Power Cable - Screws ?? 6 - Quick Start Guide |
| Certifications | UL / FCC / CE / WEEE / REACH / RoHS |
Specification
EZVIZ DP2C 1080p Video Door Viewer Peephole Camera with 4.3" Color Screen Display, Built in Chime, Rechargable Battery, APP Viewing, Two Way Audio, PIR Motion Detection, Metal Housing, Cloud/SD
| Model | CS-DP2C |
| Installation Parameters | |
| Supported Hole Diameter | 16.5 to 50 mm (0.65 to 1.97 inch) |
| Supported Door Diameter | 35 to 105 mm (1.38 to 4.13 inch) |
| Camera Parameters | |
| Sensor | 1/3" Progressive Scan CMOS |
| Lens | 2.0 mm @ F2.2, visual angle (diagonal):155?? |
| Day/Night Switch | ICR infrared filter |
| IR Distance | Max. 5m |
| Max. Resolution | 1080p / 2MP |
| Video Frame Rate | 15fps |
| PIR Detection | |
| Angle | 110?? |
| Distance | Max. 6m (20 ft) |
| Sensitivity | Adjustable |
| Interface | |
| Storage Interface | MicroSD card slot (max. 256 GB) |
| Audio Input | Built-in high sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Buttons | Doorbell button, power button, Screen wake up button |
| Network | |
| Face Detection | Does not support |
| Intelligence Alarm | PIR motion detection |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Video Intercom | Local and remote video intercom |
| General Function | Cloud video encryption and image encryption |
| Wireless | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| General | |
| Screen | 4.3-inch color screen |
| Color | Silver |
| Operating Conditions | -10??C to 45??C (14??F to 113 ??F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V (??10%) |
| Power Consumption | Max. 2.2W |
| Dimension | Screen and Base: 115.5 x 85.5 x 24.5 mm (4.55 x 3.37 x 0.96 inch) Peephole Doorbell: 71 x 71 x 48.3 mm (2.80 x 2.80 x 1.90 inch) |
| Weight | 302 g (10.65 oz) |
| In the box | |
| Items Included | - DP2C Peephole Doorbell - Panel - Mounting Base - Power Cable - Screws ?? 6 - Quick Start Guide |
| Certifications | UL / FCC / CE / WEEE / REACH / RoHS |
