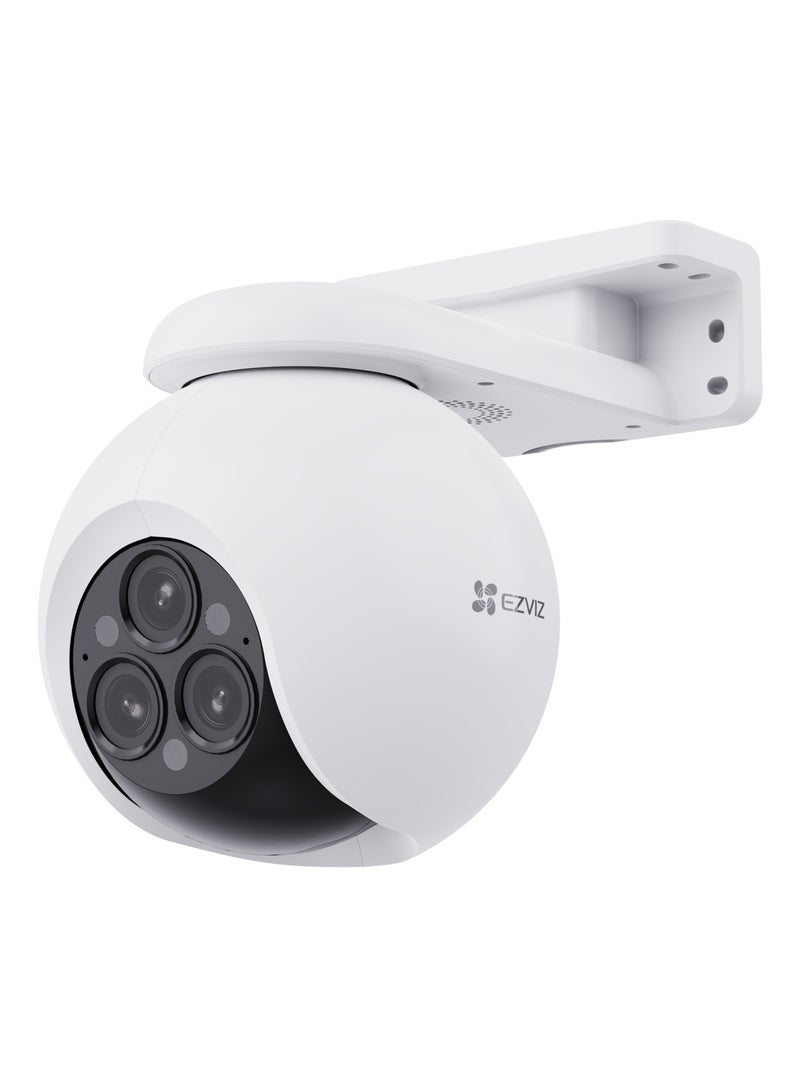

The EZVIZ H80f (CS-H80f) redefines the standard for smart home monitoring through its innovative "Triple Lens" architecture. By utilizing three independent 4MP sensors, this camera provides a panoramic and multi-layered view of your surroundings, effectively acting as a multi-camera system in a single housing. This 12MP total resolution powerhouse is engineered for those who require comprehensive situational awareness in high-value areas like large living rooms, commercial hallways, or expansive entryways.
Key Features
The standout feature of the H80f is its Triple-Vision technology, which allows the camera to simultaneously monitor a wide-angle overview while focusing on specific areas with higher detail. The camera is equipped with on-device AI algorithms that can distinguish between humans and pets, sending intelligent, real-time notifications to your smartphone. It also features "Auto-Zoom Tracking," where the lenses work in tandem to follow a moving subject, ensuring you capture every critical second of activity from multiple angles.
Performance / Technology
Connectivity is powered by a high-performance Dual-Band Wi-Fi (2.4 / 5 GHz) system, ensuring a stable, high-speed stream for the triple 2K video feeds. For nighttime security, it utilizes advanced infrared sensors and smart color night vision to maintain high-fidelity imaging in total darkness. The system supports H.265 video compression, maximizing storage efficiency on its industry-leading 512GB MicroSD card slot. The integrated two-way talk system provides crisp communication, allowing you to interact with visitors or pets effortlessly.
Design & Ergonomics
The H80f features a modern, professional aesthetic with a clean white finish that integrates seamlessly into any upscale interior. Its multi-lens array is organized in a compact form factor that remains non-intrusive while providing maximum visual reach. The flexible mounting base allows for precise positioning, and the intuitive EZVIZ app interface lets you view all three lens feeds in a synchronized display, giving you a futuristic "command center" feel for your home security.
Compatibility / Use Cases
This triple-lens camera is the ideal solution for open-plan villas, retail stores, and large warehouses where blind spots are a major concern. It is fully compatible with the EZVIZ smart ecosystem and supports voice control via Amazon Alexa and Google Assistant. With support for a massive 512GB storage capacity and secure CloudPlay encrypted backups, your high-resolution security data is always protected and easily retrievable for review.
Why This Product Stands Out
The EZVIZ H80f stands out by delivering a "Multi-Camera" experience in one easy-to-install device. While traditional cameras limit you to a single field of view, the H80f's 4MP+4MP+4MP configuration provides a 12MP total visual field that captures everything from broad context to fine detail simultaneously. Its combination of AI intelligence, massive storage support, and triple-lens innovation makes it one of the most powerful and advanced indoor security solutions available in 2026.
| Image Sensor | 1/3” Progressive Scan CMOS × 3 |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm @ F1.6, 54° (Vertical), 96° (Horizontal), 110° (Diagonal) 6mm @ F1.6, 28° (Vertical), 52° (Horizontal), 60° (Diagonal) 12mm @ F1.6, 14° (Vertical), 25° (Horizontal), 29° (Diagonal) |
| PT Angle | Pan: 340°, Tilt: 70° |
| Minimum Illumination | 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Night Vision | 30 m / 98 ft |
| Max. Resolution | 2560 × 1440 |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD; Full HD; HD adaptive bit rate |
| Audio Bit Rate | Self-adaptive |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Smart Alarm | AI-Powered Human Shape Detection / Vehicle |
| Customized Alert Area | Detection |
| Two-Way Talk | Supports |
| Auto Zoom Tracking | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Local Storage | Supports microSD card (Max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| Operating Conditions | -30°C to 50°C, Humidity 95% or less (non-condensing) |
| IP Grade | IP67 |
| Power Supply | DC 12 V / 1.5 A |
| Power Consumption | Max. 18 W |
| Dimensions | 168 × 112 × 156 mm (6.61 × 4.41 × 6.14 inch) |
| Packaging Dimensions | 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch) |
| Weight | Product: 575.7 g (20.31oz) | With package: 979.89 g (34.56oz) |
| In the Box | - Camera - Drill Template - Waterproof Kit - Screw Kit - Power Adapter - Regulatory Information × 2 - Quick Start Guide |
| Certifications | CE / UL / WEEE / RoHS / REACH |
