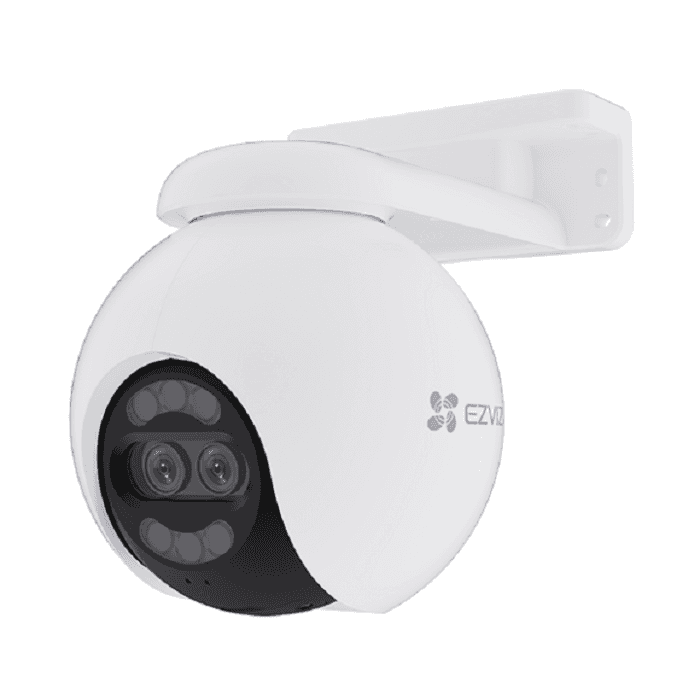

The EZVIZ H80x (CS-H80x) represents the next frontier in smart monitoring, blending 4K Ultra HD precision with a versatile dual-lens architecture. By utilizing an 8MP primary sensor paired with a 2MP specialized lens, this camera captures your environment with clinical accuracy, ensuring no detail is lost to distance or poor lighting. Engineered for power users in Abu Dhabi and beyond, it acts as a comprehensive security hub for high-value residential or commercial properties.
Key Features
The standout feature of the H80x is its Dual-Lens Co-linking technology. The 8MP lens provides a wide-angle 4K master view, while the secondary 2MP lens focuses on capturing specific movements with enhanced depth. This system is bolstered by advanced AI-powered human and vehicle shape detection, which filters out irrelevant motion to provide only the most critical alerts. Additionally, the camera supports NVR (Network Video Recorder) integration via ONVIF protocols, allowing it to become a seamless part of a larger professional security grid.
Performance / Technology
Connectivity is powered by a high-bandwidth Wi-Fi system designed to handle the data-heavy 4K stream without latency. For nighttime security, the H80x features "Colorful Night Vision," utilizing high-sensitivity sensors and integrated spotlights to render vivid colors in near-total darkness. The camera supports H.265 video compression, which optimizes storage efficiency on its industry-leading 512GB MicroSD card slot, allowing for weeks of high-resolution footage to be saved locally.
Design & Ergonomics
The H80x features a professional, weather-resistant housing designed for long-term durability in various climates. Its flexible mounting base allows for precise positioning on walls or ceilings to achieve the optimal viewing angle. The dual-lens array is organized in a compact, non-intrusive form factor that maintains a clean aesthetic while providing maximum visual reach. The integrated high-fidelity two-way talk system ensures clear communication through the EZVIZ app.
Compatibility / Use Cases
This 4K dual-lens camera is the ideal solution for large villas, commercial retail stores, and warehouse perimeters where high-detail tracking is essential. It is fully compatible with the EZVIZ smart ecosystem and supports voice control via Amazon Alexa and Google Assistant. Whether you are monitoring an expansive driveway or a busy shop floor, the H80x provides the visual depth, storage capacity, and professional NVR support required for mission-critical security.
Why This Product Stands Out
The EZVIZ H80x stands out by bridging the gap between consumer ease-of-use and professional-grade performance. While standard 4K cameras provide a single view, the H80x’s 8MP+2MP configuration offers a multi-layered perspective that is far more effective for identifying specific threats. Its rare combination of massive 512GB local storage and professional NVR compatibility makes it one of the most versatile and robust security tools available in 2026.
| Camera | Image Sensor: 1/2.7??? + 1/2.9??? Progressive Scan CMOS Shutter Speed: Self-adaptive shutter Lens: 4mm @ F1.0, viewing angle: 46?? (Vertical), 87?? (Horizontal), 103?? (Diagonal) (1080p); 4mm @ F1.6, viewing angle: 46?? (Vertical), 87?? (Horizontal), 103?? (Diagonal) (4K) PT Angle: Pan: 340??, Tilt: 70?? Minimum Illumination: 0.01 Lux @ (F1.0, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) Lens Mount: M12 Day / Night Switch: IR-cut filter with auto switch DNR: 3D DNR WDR: Digital WDR BLC: Supports Black & White Night: 30m / 98ft |
| Video & Audio | Max Resolution: 3840 ?? 2160 Frame Rate: Self-Adaptive during network transmission Video Compression: H.265 / H.264 H.265 Type: Main Profile Video Bit Rate: Ultra HD; Quad HD; Full HD; HD. Adaptive bit rate. Audio Bit Rate: Self-Adaptive |
| Network | Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n Frequency Range: 2.4 GHz ~ 2.4835 GHz Channel Bandwidth: Supports 20MHz Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps Wi-Fi Pairing: AP pairing Protocol: EZVIZ Cloud Proprietary Protocol Interface Protocol: EZVIZ Cloud Proprietary Protocol Wired Network: RJ45 ?? 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | Smart Alarm: AI-powered human shape detection; AI-powered vehicle shape detection Customized Alert Area: Supports Two-way Talk: Supports Auto Tracking: Supports General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | Local Storage: Supports microSD Card (Up to 512 GB) Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required) |
| General | Operating Conditions: -30??C ~ 50??C, Humidity 95% or less (non-condensing) IP Grade: IP65 Power Supply: DC 12V/1A Power Consumption: MAX. 12W Dimensions: 170 ?? 112 ?? 154 mm (6.69 ?? 4.41 ?? 6.06 inch) Packaging Dimensions: 205 ?? 176 ?? 194 mm (8.07 ?? 6.93 ?? 7.64 inch) Weight: Product: 630 g (22.22 oz); Weight with package: 1035 g (36.5 oz) |
| In the Box | - H80x Dual 4K Camera - Drill Template - Waterproof Kit - Screw Kit - Power Adapter - Regulatory Information ?? 2 - Quick Start Guide |
| Certifications | CE / UL / WEEE / RoHS / REACH |
