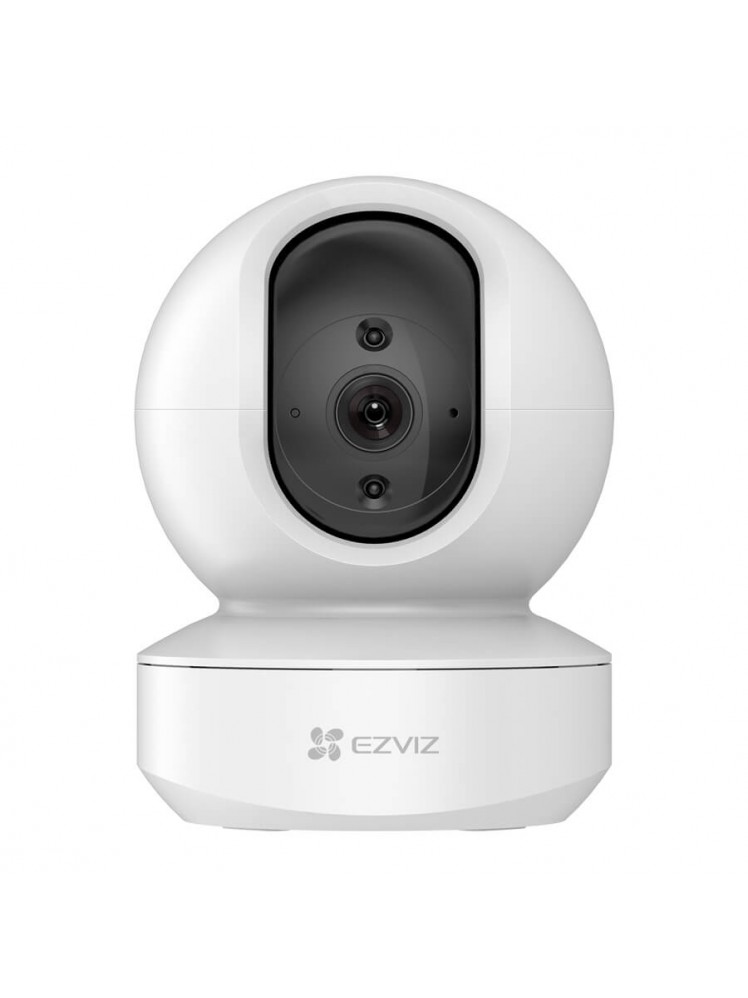

EZVIZ TY1 Pro 2K Type-C Pan & Tilt Smart Home Camera, Panoramic View | CS-TY1 PRO

Model :

SKU : EZVIZ CS-TY1 PRO 4MP,W1

About this item

EZVIZ TY1 Pro 2K Type-C ??Pan & Tilt Smart Home Camera, Panoramic View, Smart Color Night Vision, Two-Way Calling with Touch Button, Smart Human Shape Detection, Auto-Tracking, Sleep Mode | CS-TY1 PRO

About this item

Description

EZVIZ TY1 Pro 2K Type-C Pan & Tilt Smart Home Camera, Panoramic View, Smart Color Night Vision, Two-Way Calling with Touch Button, Smart Human Shape Detection, Auto-Tracking, Sleep Mode | CS-TY1 PRO Specifications

Model CS-TY1-R105-1L3WF
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm @ F1.6; Viewing angle: 82?? (Horizontal), 48?? (Vertical), 98?? (Diagonal)
Lens Mount M12
Day & Night IR-cut filter with auto switch
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.264/H.265
Video Bit Rate Adaptive bit rate
Max. Resolution 2304 ?? 1296
Frame Rate Self-Adaptive during network transmission
Network
Smart Alarm Motion Detection, Human Shape Detection, Human Shape Tracking, Loud Noise Detection, Patrol Mode
Wi-Fi Pairing AP pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Interface
Storage Micro SD card slot (Max. 512G)
Power Type-C
Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Output Power (EIRP) 19 dBm
Antenna Gain 1.9 dBi
General
Operating Conditions -10??C to 45??C (14??F to 113 ??F ), Humidity 95% or less (non-condensing)
Power Supply DC 5V/1A
Power Consumption MAX. 5W
IR Range MAX. 10 meters (33ft)
Dimensions 88mm x 88.2 mm x 119mm (3.46??? x 3.47??? x 4.69???)
Packaging Dimensions 103mm x 103mm x 168mm (4.06??? x 4.06??? x 6.61???)
Bare Weight 218g (0.48lb)
In the box
  • Camera
  • Power Adapter
  • Power Cable
  • Drill Template
  • Mounting Plate
  • EZVIZ Screw Kit
  • Regulatory Information
  • Quick Start Guide
Certifications CE / UL / WEEE / REACH / RoHS

Specification

EZVIZ TY1 Pro 2K Type-C Pan & Tilt Smart Home Camera, Panoramic View, Smart Color Night Vision, Two-Way Calling with Touch Button, Smart Human Shape Detection, Auto-Tracking, Sleep Mode | CS-TY1 PRO Specifications

Model CS-TY1-R105-1L3WF
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm @ F1.6; Viewing angle: 82?? (Horizontal), 48?? (Vertical), 98?? (Diagonal)
Lens Mount M12
Day & Night IR-cut filter with auto switch
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.264/H.265
Video Bit Rate Adaptive bit rate
Max. Resolution 2304 ?? 1296
Frame Rate Self-Adaptive during network transmission
Network
Smart Alarm Motion Detection, Human Shape Detection, Human Shape Tracking, Loud Noise Detection, Patrol Mode
Wi-Fi Pairing AP pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Interface
Storage Micro SD card slot (Max. 512G)
Power Type-C
Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Output Power (EIRP) 19 dBm
Antenna Gain 1.9 dBi
General
Operating Conditions -10??C to 45??C (14??F to 113 ??F ), Humidity 95% or less (non-condensing)
Power Supply DC 5V/1A
Power Consumption MAX. 5W
IR Range MAX. 10 meters (33ft)
Dimensions 88mm x 88.2 mm x 119mm (3.46??? x 3.47??? x 4.69???)
Packaging Dimensions 103mm x 103mm x 168mm (4.06??? x 4.06??? x 6.61???)
Bare Weight 218g (0.48lb)
In the box
  • Camera
  • Power Adapter
  • Power Cable
  • Drill Template
  • Mounting Plate
  • EZVIZ Screw Kit
  • Regulatory Information
  • Quick Start Guide
Certifications CE / UL / WEEE / REACH / RoHS
