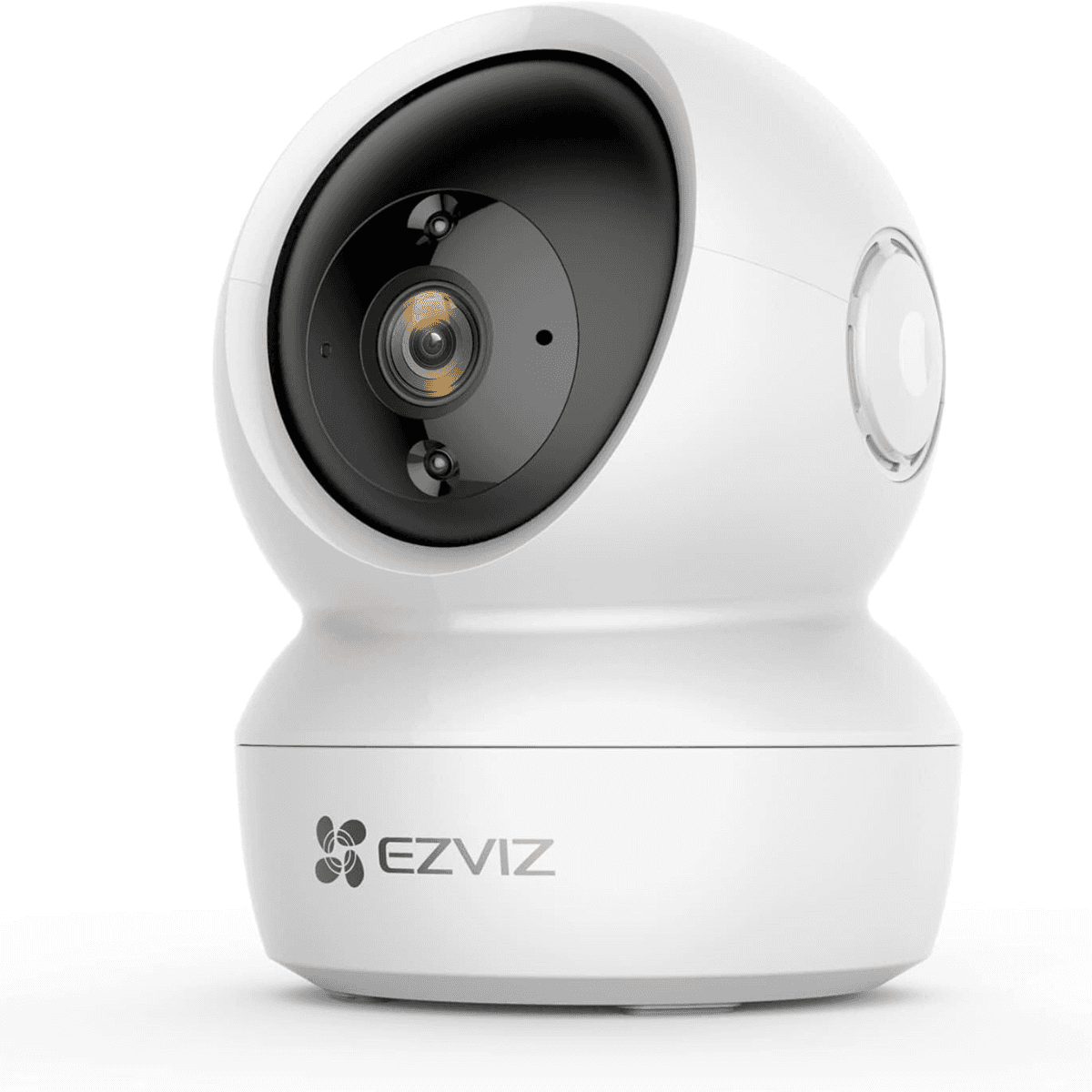

EZVIZ TY1 Pro 4K 8MP Type-C Pan & Tilt Smart Home Camera, 360?? Panoramic View, Two-Way Calling, Up to 512 GB | CS-TY1-R105-8G8WF
Model :
SKU : EZVIZ CS-TY1 PRO 4K 8MP
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
EZVIZ TY1 Pro 4K 8MP Type-C Pan & Tilt Smart Home Camera, 360?? Panoramic View, Two-Way Calling, Up to 512 GB | CS-TY1-R105-8G8WF Specifications
| Model | |
|---|---|
| Camera | |
| Compression | |
| Image | |
| Network | |
| Interface | |
| Wi-Fi | |
| General | |
| In the Box | |
| Certifications | |
| CS-TY1-R105-8G8WF | |
| Image Sensor | F1.6@1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6, View Angle: 106?? (Diagonal), 90?? (Horizontal), 48?? (Vertical) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Video Compression | H.264 / H.265 |
| Video Bit Rate | Adaptive bit rate |
| Max. Resolution | 4K (3840 ?? 2160) |
| Frame Rate | Self-adaptive during network transmission |
| Smart Alarm | Motion Detection AI-powered Human Shape Detection Loud Noise Detection Patrol Mode Detection |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Storage | Supports microSD card (up to 512 GB) |
| Power | Type-C |
| Wired Network | RJ45 ?? 1 (10/100 Mbps self-adaptive Ethernet port) |
| Standard | IEEE 802.11a/b/g/n |
| Frequency Range | 2.4GHz: 2400~2483.5 MHz 5GHz: 5150~5250 MHz |
| Channel Bandwidth | 20 MHz |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps |
| Output Power (EIRP) | 19 dBm |
| Antenna Gain | 1.9 dBi |
| Operating Conditions | -10??C to 45??C (14??F to 113??F), Humidity ??? 95% (non-condensing) |
| Power Supply | DC 5V/2A |
| Power Consumption | Max. 8W |
| IR Range | Max. 10 meters (32.81 ft) |
| Dimensions | 88 ?? 88.2 ?? 119 mm (3.46 ?? 3.47 ?? 4.69 inch) |
| Packaging Dimensions | 103 ?? 103 ?? 168 mm (4.06 ?? 4.06 ?? 6.61 inch) |
| Net Weight | 213 g (0.47 lb) |
| - TY1 Pro 4K Camera - Power Adapter - Power Cable - Drill Template - Mounting Plate - Screw Kit - Regulatory Information ?? 2 - Quick Start Guide | |
| CE / UL / WEEE / REACH / RoHS | |
