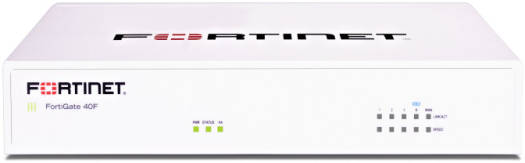

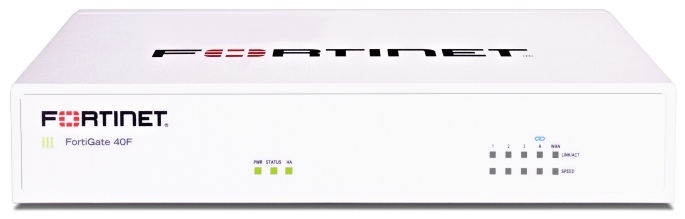

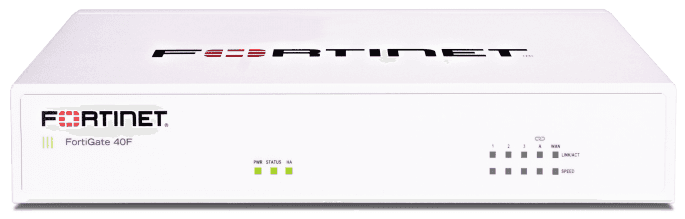

Fortinet FortiGate-40F Firewall, 3x 1000Base-T RJ-45 / FortiLink RJ-45 / 1000Base-T RJ-45 (WAN / DMZ) / Console RJ-45 / USB 3.0 Type A Interfaces, 1Gbps IPS Throughput, White with one year License | FG-40F-BDL-950-12 FORTIGATE FIREWALL (UAE ONLY )

Model :

SKU : FORTIGATE 40F

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

FortiGate 40F Specifications

System Performance ??? Enterprise Traffic Mix
  • IPS Throughput: 1 Gbps
  • NGFW Throughput: 800 Mbps
  • Threat Protection Throughput: 600 Mbps
System Performance and Capacity
  • IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 5 / 5 / 5 Gbps
  • Firewall Latency (64 byte, UDP): 2.97 ??s
  • Firewall Throughput (Packet per Second): 7.5 Mpps
  • Concurrent Sessions (TCP): 700,000
  • New Sessions/Second (TCP): 35,000
  • Firewall Policies: 5,000
  • IPsec VPN Throughput (512 byte): 4.4 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels: 200
  • Client-to-Gateway IPsec VPN Tunnels: 250
  • SSL-VPN Throughput: 490 Mbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
  • SSL Inspection Throughput (IPS, avg. HTTPS): 310 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS): 320
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS): 55,000
  • Application Control Throughput (HTTP 64K): 990 Mbps
  • CAPWAP Throughput (HTTP 64K): 3.5 Gbps
  • Virtual Domains (Default / Maximum): 10 / 10
  • Maximum Number of FortiSwitches Supported: 8
  • Maximum Number of FortiAPs (Total / Tunnel): 16 / 8
  • Maximum Number of FortiTokens: 500
  • High Availability Configurations: Active-Active, Active-Passive, Clustering
Dimensions and Power
  • Height x Width x Length (inches): 1.5 x 8.5 x 6.3
  • Height x Width x Length (mm): 38.5 x 216 x 160
  • Weight: 2.2 lbs (1 kg)
  • Form Factor (supports EIA/non-EIA standards): Desktop
  • Input Rating: 12Vdc
  • Power Required: Powered by External DC Power Adapter, 100???240V AC
  • Current (Maximum): 100V AC / 0.2A, 240V AC / 0.1A
  • Power Consumption (Average / Maximum): 7.74 W / 9.46 W
  • Heat Dissipation: 52.55 BTU/h
Operating Environment and Certifications
  • Operating Temperature: 32?????104??F (0?????40??C)
  • Storage Temperature: -31?????158??F (-35?????70??C)
  • Humidity: 10%???90% non-condensing
  • Noise Level: Fanless, 0 dBA
  • Operating Altitude: Up to 7400 ft (2250 m)
  • Compliance: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
  • Certifications: USGv6/IPv6

Specification

FortiGate 40F Specifications

System Performance ??? Enterprise Traffic Mix
  • IPS Throughput: 1 Gbps
  • NGFW Throughput: 800 Mbps
  • Threat Protection Throughput: 600 Mbps
System Performance and Capacity
  • IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 5 / 5 / 5 Gbps
  • Firewall Latency (64 byte, UDP): 2.97 ??s
  • Firewall Throughput (Packet per Second): 7.5 Mpps
  • Concurrent Sessions (TCP): 700,000
  • New Sessions/Second (TCP): 35,000
  • Firewall Policies: 5,000
  • IPsec VPN Throughput (512 byte): 4.4 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels: 200
  • Client-to-Gateway IPsec VPN Tunnels: 250
  • SSL-VPN Throughput: 490 Mbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
  • SSL Inspection Throughput (IPS, avg. HTTPS): 310 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS): 320
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS): 55,000
  • Application Control Throughput (HTTP 64K): 990 Mbps
  • CAPWAP Throughput (HTTP 64K): 3.5 Gbps
  • Virtual Domains (Default / Maximum): 10 / 10
  • Maximum Number of FortiSwitches Supported: 8
  • Maximum Number of FortiAPs (Total / Tunnel): 16 / 8
  • Maximum Number of FortiTokens: 500
  • High Availability Configurations: Active-Active, Active-Passive, Clustering
Dimensions and Power
  • Height x Width x Length (inches): 1.5 x 8.5 x 6.3
  • Height x Width x Length (mm): 38.5 x 216 x 160
  • Weight: 2.2 lbs (1 kg)
  • Form Factor (supports EIA/non-EIA standards): Desktop
  • Input Rating: 12Vdc
  • Power Required: Powered by External DC Power Adapter, 100???240V AC
  • Current (Maximum): 100V AC / 0.2A, 240V AC / 0.1A
  • Power Consumption (Average / Maximum): 7.74 W / 9.46 W
  • Heat Dissipation: 52.55 BTU/h
Operating Environment and Certifications
  • Operating Temperature: 32?????104??F (0?????40??C)
  • Storage Temperature: -31?????158??F (-35?????70??C)
  • Humidity: 10%???90% non-condensing
  • Noise Level: Fanless, 0 dBA
  • Operating Altitude: Up to 7400 ft (2250 m)
  • Compliance: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
  • Certifications: USGv6/IPv6
