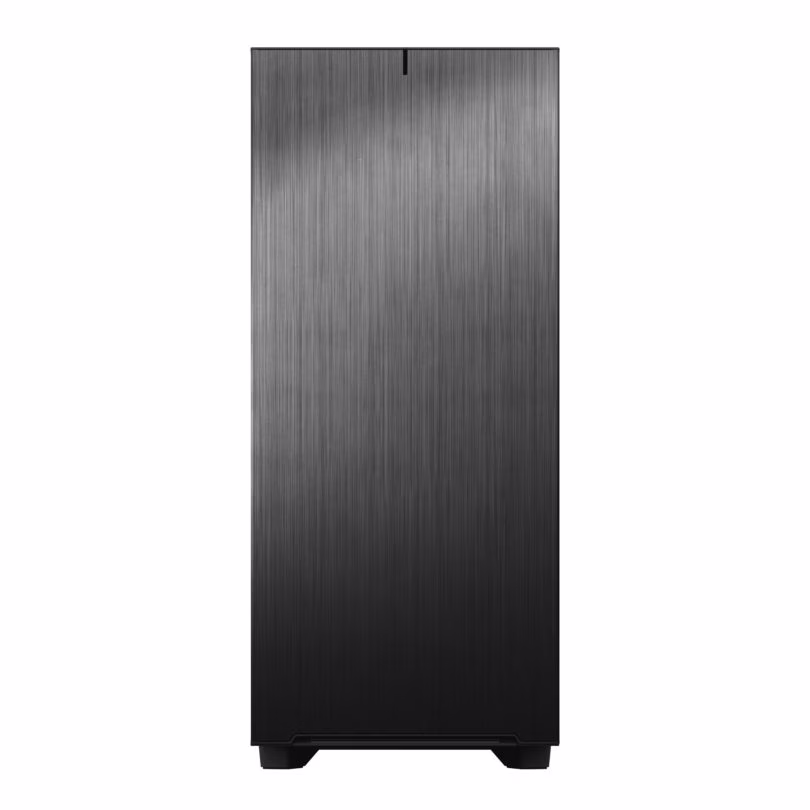

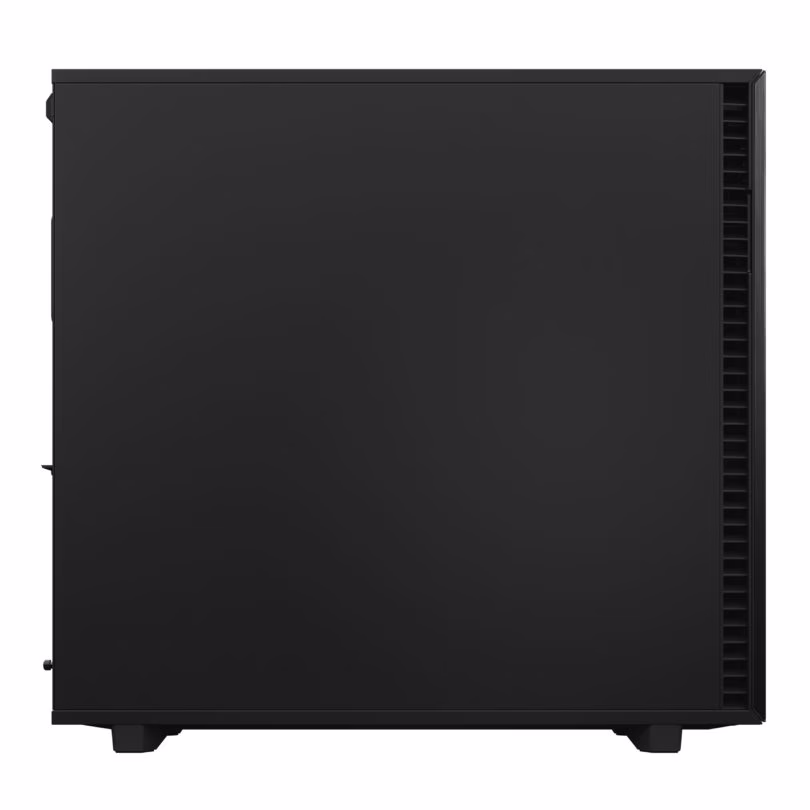

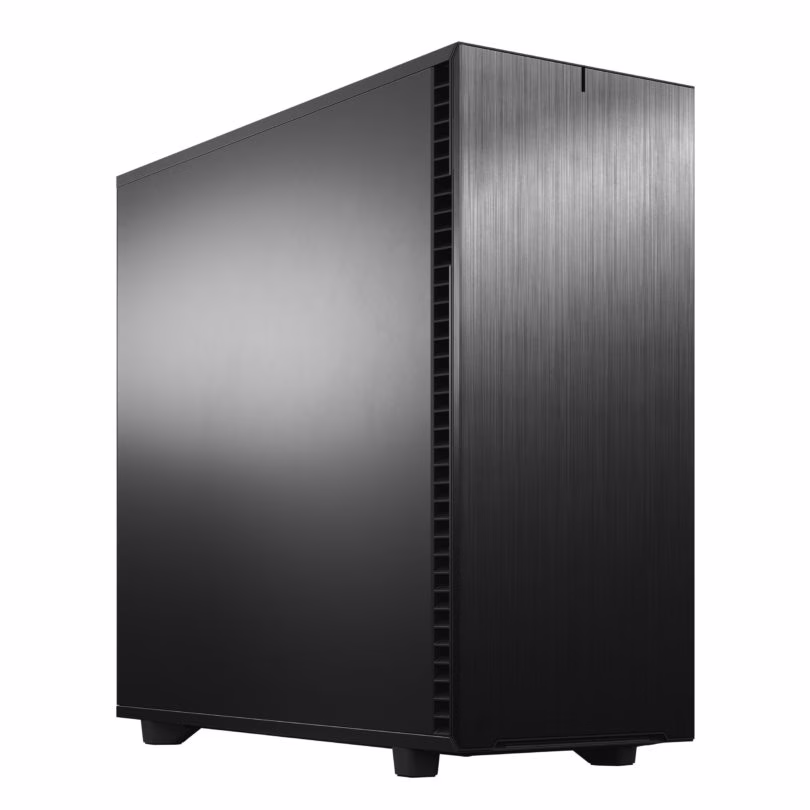

The Fractal Design Define 7 XL Black Solid (FD-C-DEF7X-01) is the larger-than-life evolution of the legendary Define series. Eschewing the trend of glass side panels in favor of complete acoustic isolation, this case is engineered for those who value performance and peace above all else. Its massive interior volume supports professional-grade hardware, making it a favorite for enterprise-level projects in Abu Dhabi and Dubai where reliability and thermal headroom are non-negotiable.
Key Features
The standout feature of the Define 7 XL Solid is its incredible modularity. Using the innovative "Storage Layout," you can configure the chassis to house up to 18 HDDs and 5 SSDs, creating a high-density storage vault for content creators or IT professionals. Alternatively, the "Open Layout" provides enough space for a full custom liquid-cooling loop with multiple radiators up to 480mm. Every panel—front, top, and sides—is lined with premium sound-absorbing material to trap mechanical noise within the chassis.
Performance / Technology
Performance is maintained through a sophisticated airflow system that utilizes three pre-installed Dynamic X2 GP-14 fans. For builders who need extra cooling, the solid top panel can be swapped for an included ventilated top cover, allowing for massive heat exhaust. The case also features the Nexus+ 2 fan hub, which allows you to control up to nine fans directly from your motherboard. The front I/O is fully modernized with a high-speed USB 3.1 Gen 2 Type-C port, supporting rapid data transfers for external professional equipment.
Design & Ergonomics
Fractal has refined the build experience with a top-down assembly approach; the entire top bracket can be removed to provide unobstructed access to the motherboard and radiator mounts. The side panels feature a secure push-to-lock tool-less mechanism, ensuring a clean exterior with no visible screws. With over 30mm of cable routing space and integrated Velcro straps, even a fully-loaded workstation with dozens of SATA cables can be kept perfectly organized and tidy.
Compatibility / Use Cases
This full tower is the ideal solution for large-scale E-ATX, SSI-EEB, and dual-processor motherboard builds. It is perfectly suited for use as a high-performance rendering node, a massive NAS/Plex server, or a discreet but powerful gaming rig. The absence of a glass window makes it an excellent choice for professional environments and recording studios where distracting lights are unwelcome and total silence is required.
Why This Product Stands Out
The Fractal Design Define 7 XL Solid stands out by offering an uncompromising "stealth" build experience. While many cases in 2026 focus on flashy aesthetics, the Define 7 XL focuses on industrial-grade build quality and functional versatility. Its combination of massive component support, incredible noise suppression, and a clean, timeless aesthetic makes it one of the most professional and durable PC chassis available today.
| 3.5"/2.5" Universal drive brackets | 6 + 2 included, 18 positions total |
| Dedicated 2.5" drive brackets | 2 included, 5 positions total |
| 5.25 drive mounts | 2 |
| Expansion slots | 9 + 3 |
| Front ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 11 x 120 mm or 9 x 140 mm |
| Front fan | 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included) |
| Top fan | 4 x 120 mm or 3 x 140 mm |
| Rear fan | 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included) |
| Bottom fan | 2 x 120/140 mm |
| Dust filters | Top, 2 x Front, Bottom + PSU |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD brackets, SSD brackets, PSU bracket |
| Left side panel | Industrial sound-damped steel or Tempered Glass |
| Right side panel | Industrial sound-damped steel |
| Motherboard compatibility | E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB |
| Power supply type | ATX |
| PSU max length | 250 mm (both HDD cages installed) |
| GPU max length | Storage layout: 340 mm - Open layout: 530 mm (505 mm w/ front fan) |
| CPU cooler max height | 185 mm |
| Front radiator | Up to 480/420 mm |
| Top radiator | Up to 480/420 mm |
| Rear radiator | 120 mm |
| Bottom radiator | Up to 240/280 mm |
| Cable routing space | 30 mm |
| Vertical GPU Support (with Flex B-20 or Flex VRC-25) | 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling |
| Case dimensions (LxWxH) | 604 x 240 x 566 mm |
| Case dimensions w/o feet/protrusions/screws | 590 x 240 x 548 mm |
| Package dimensions (LxWxH) | 646 x 357 x 708 mm |
| Net weight | Solid Version: 16.53 kg, TG Version: 16.64 kg |
| Package weight | Solid Version: 18.73 kg, TG Version: 18.84 kg |
| Volume | 77.6 liters |
| Warranty | 2 Years |
| Package contents | Define 7 XL - Accessory box - User manual - Ventilated top panel - ODD bracket - ODD bay cover - 2 x HDD/SSD trays |
| EAN | Solid: 7340172702047, TG Dark Tint: 7340172702061, TG Light Tint: 7340172702054 |
| UPC | Solid: 843276102043 TG Dark Tint: 843276102067, TG Light Tint: 843276102050 |
| JAN | Solid: 4537694274296 TG Dark Tint: 4537694275385, TG Light Tint: 4537694274302 |
| Product code | Solid: FD-C-DEF7X-01, TG Dark Tint: FD-C-DEF7X-03, TG Light Tint: FD-C-DEF7X-02 |
