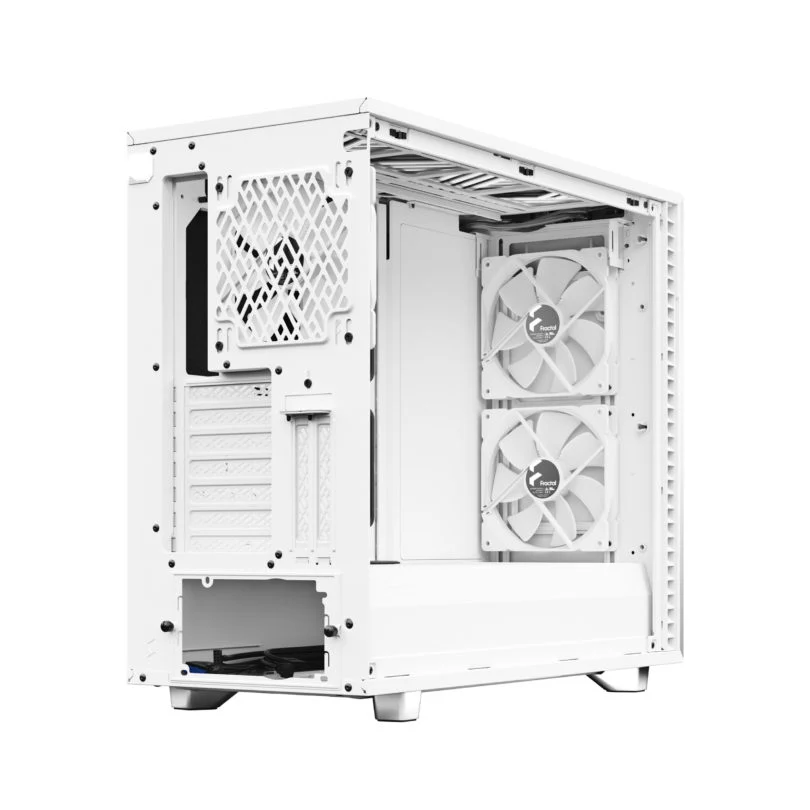

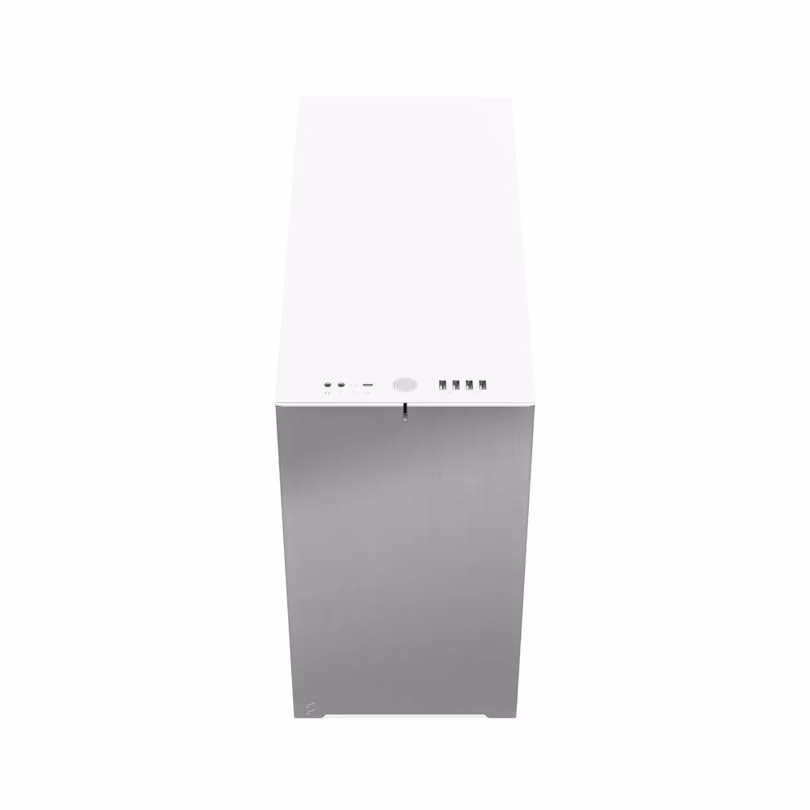

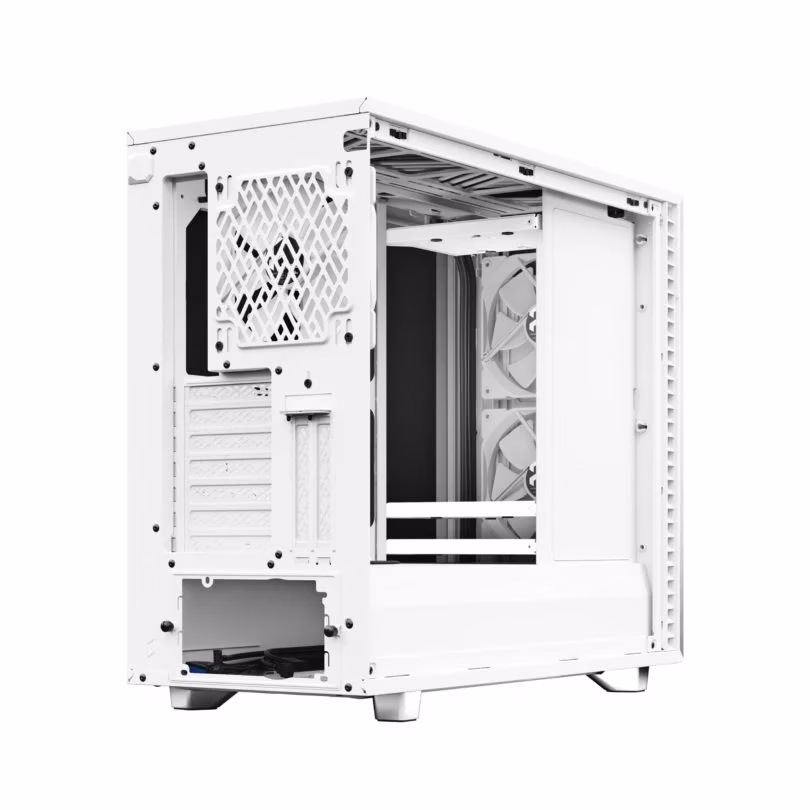

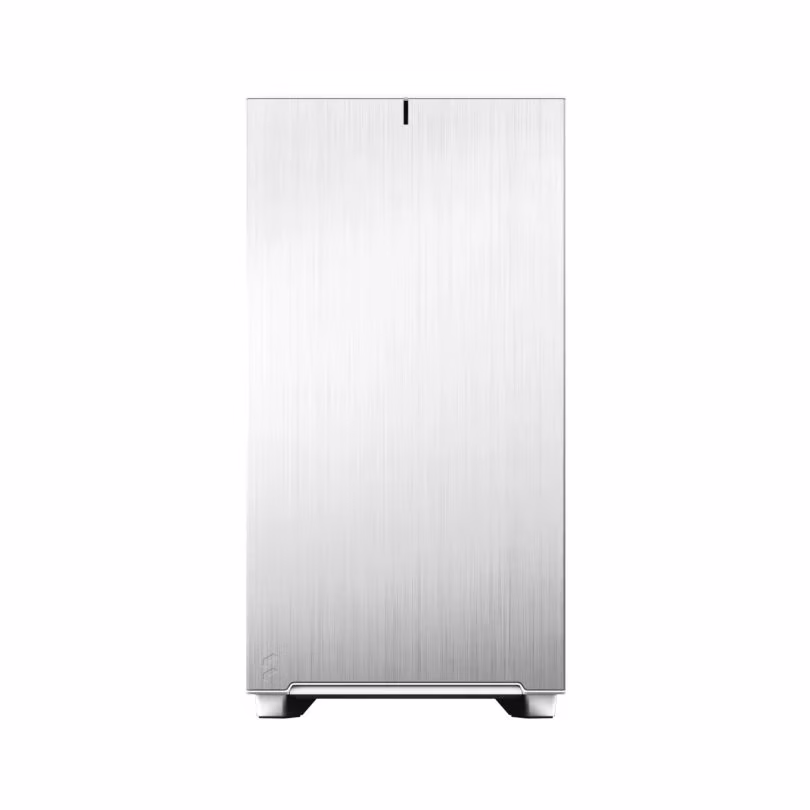

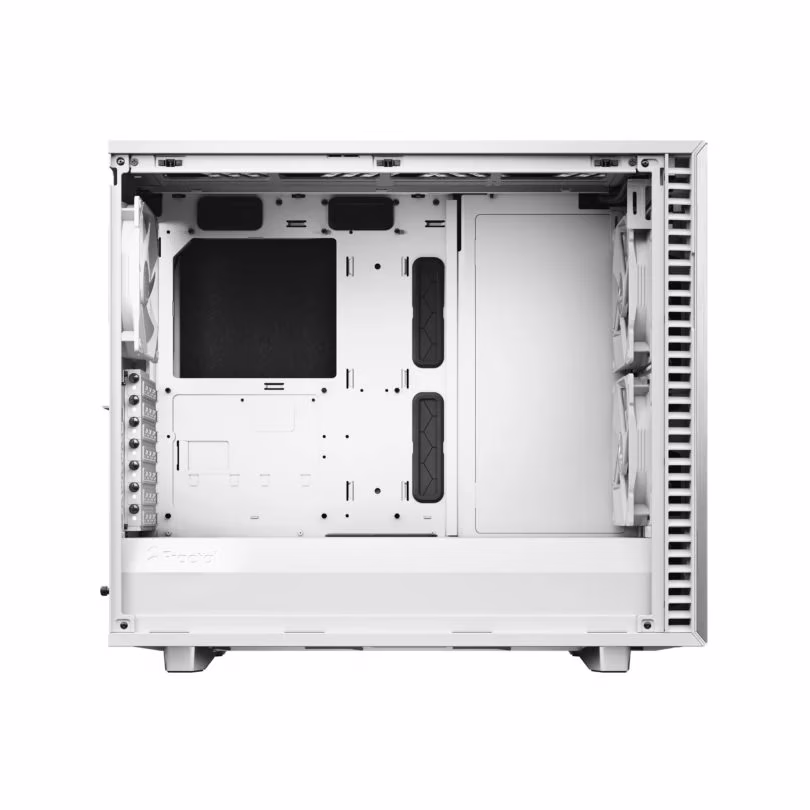

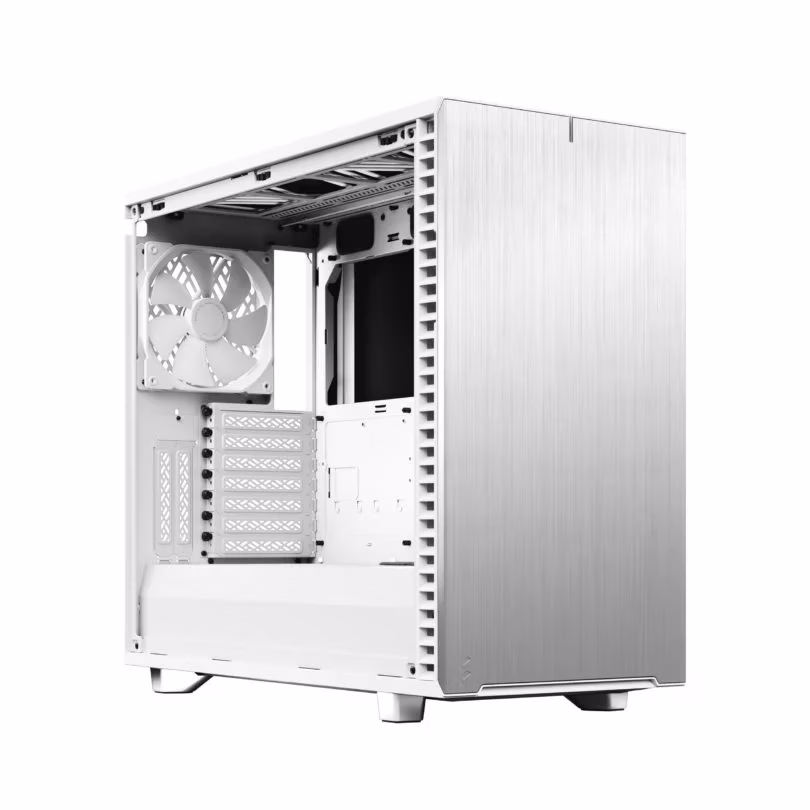

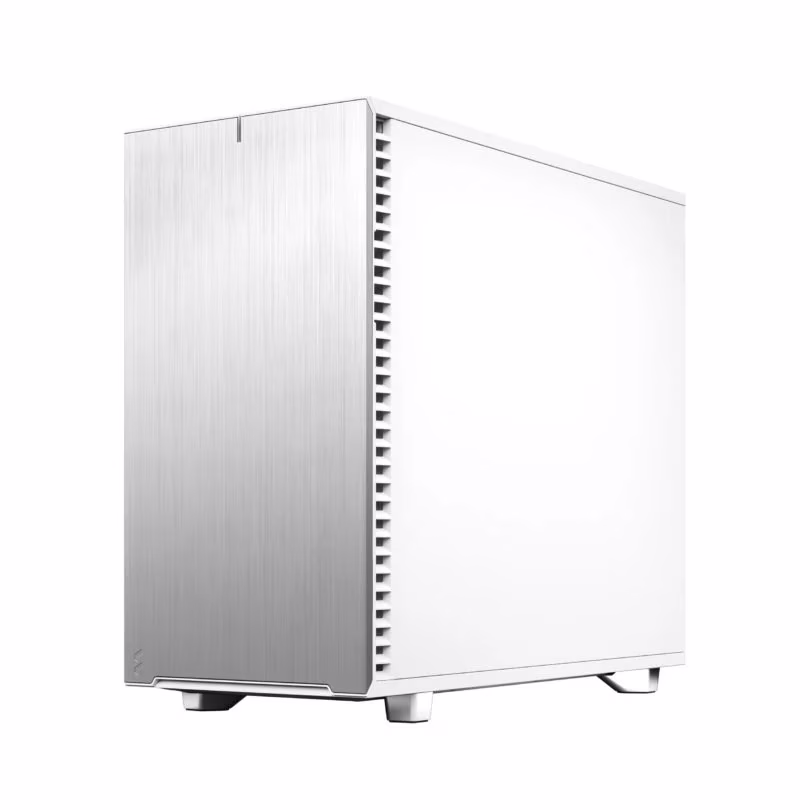

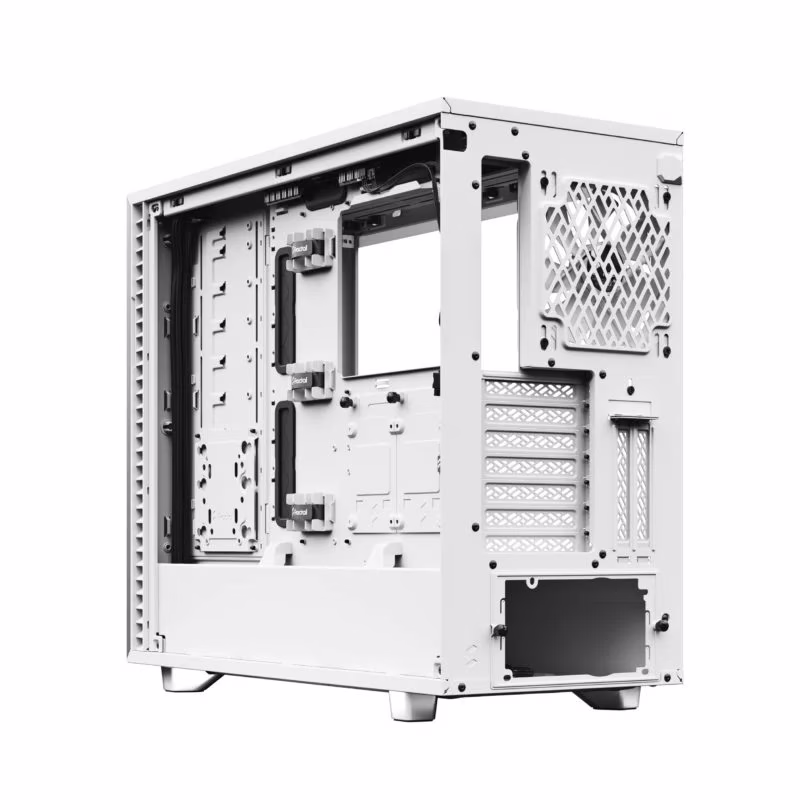

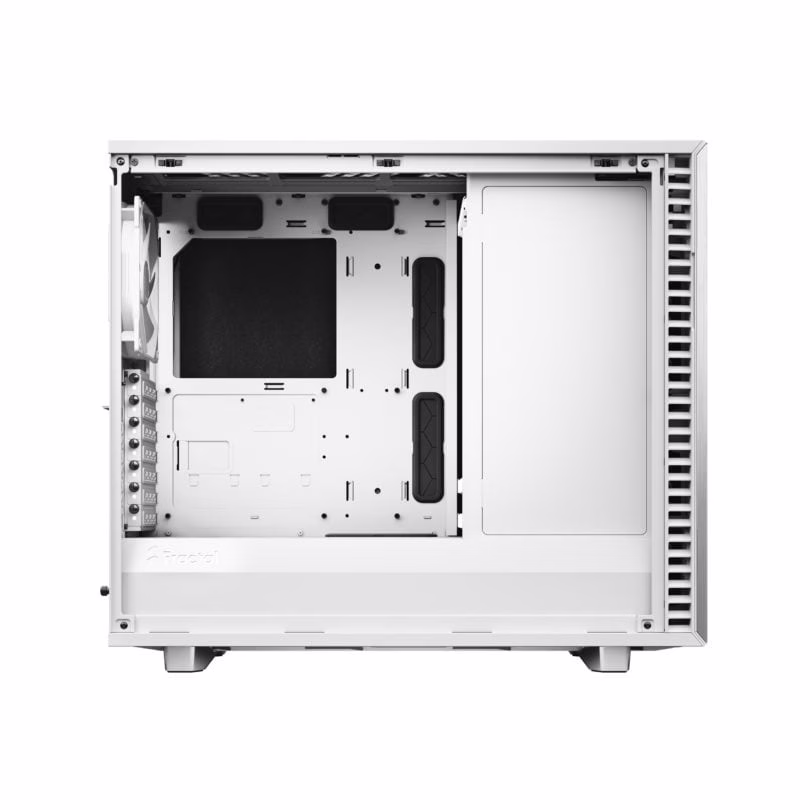

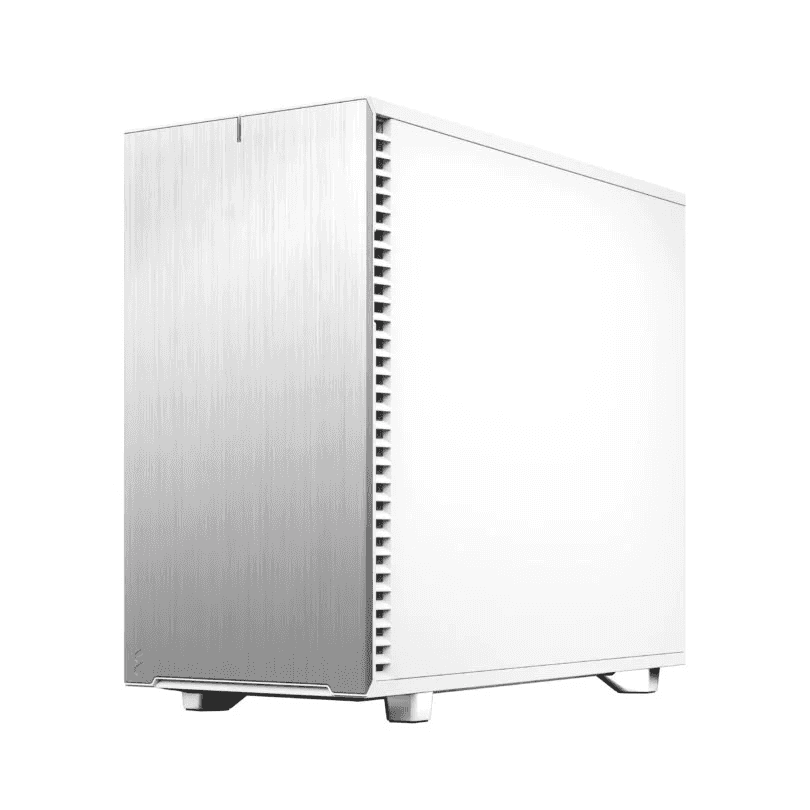

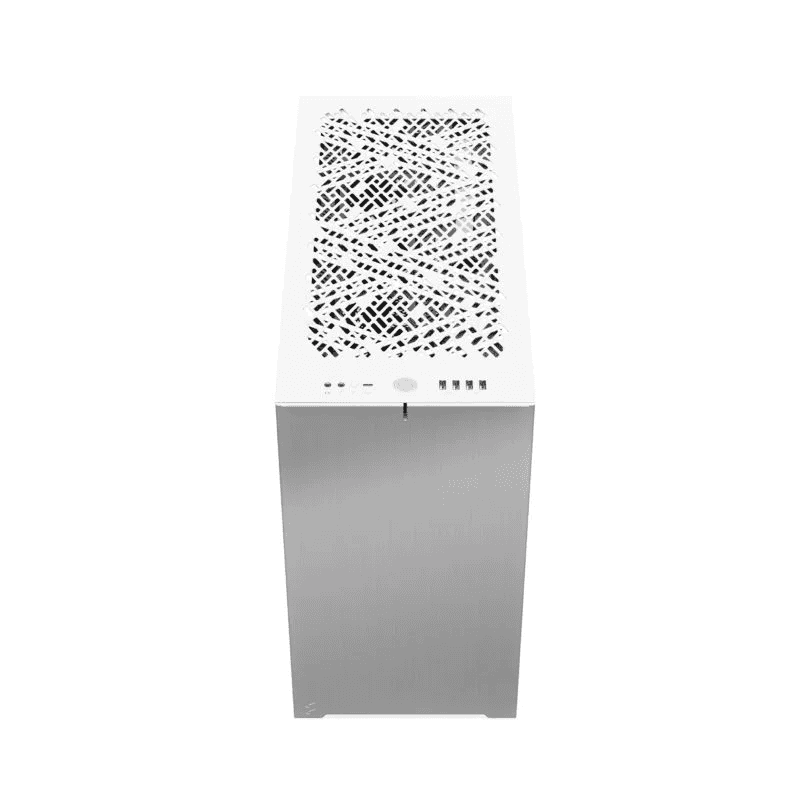

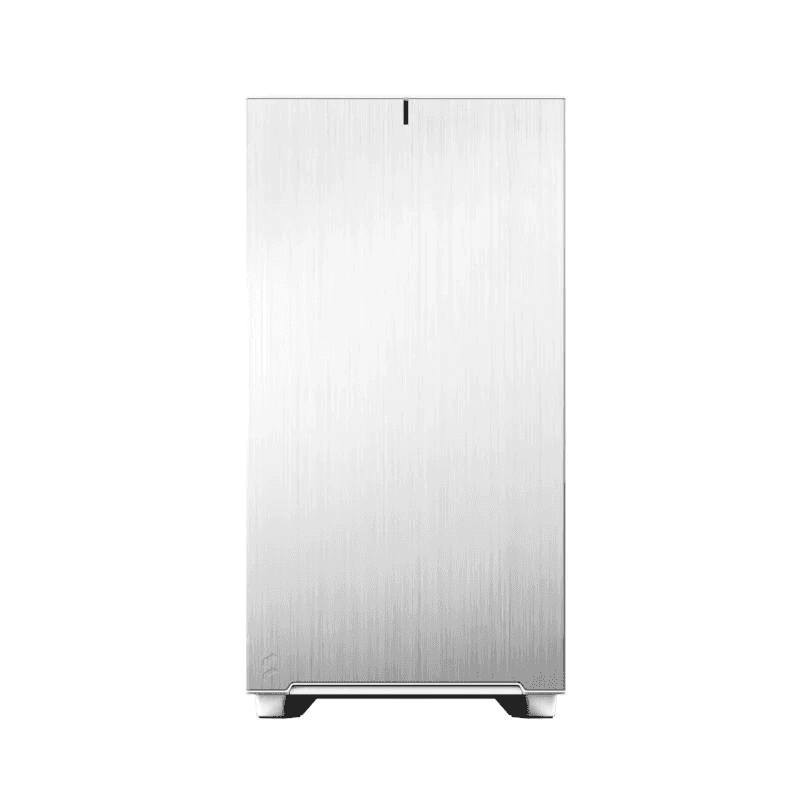

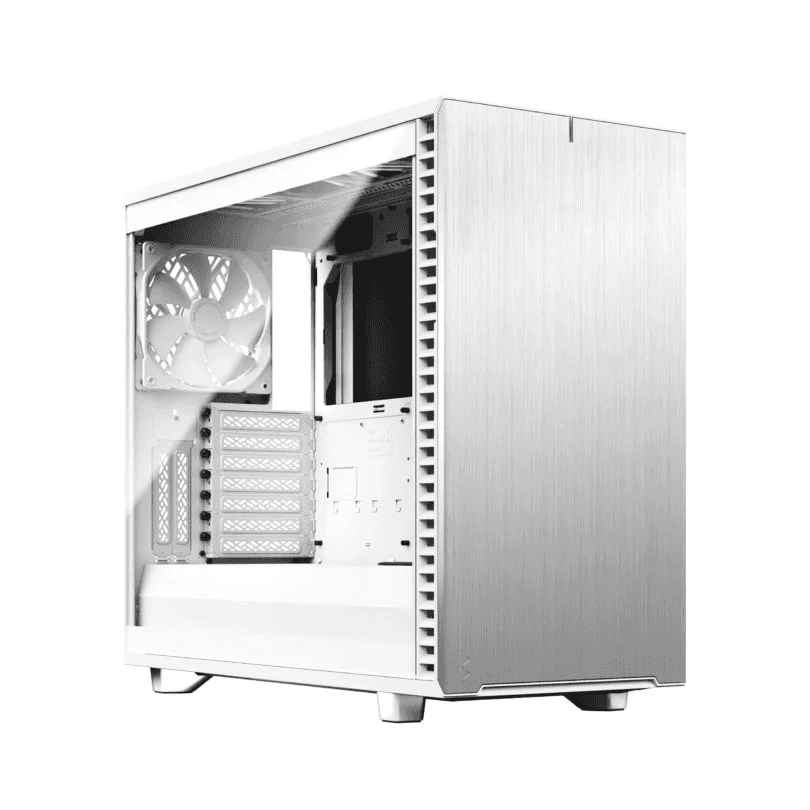

Fractal Design Define 7 White Brushed Aluminum/Steel E-ATX Silent Modular Mid Tower Computer Case, 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling, | FD-C-DEF7A-09
Model :
SKU : ATX-FRACTALDEFINE 7 WHITE
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Fractal Design Define 7 White Brushed Aluminum/Steel E-ATX Silent Modular Mid Tower Computer Case, 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling, | FD-C-DEF7A-09
| 3.5"/2.5" Universal drive brackets | 6 included, 14 positions total |
| Dedicated 2.5" drive brackets | 2 trays included, 4 positions total |
| 5.25??? drive mounts | 1 |
| Expansion slots | 7 + 2 |
| Front ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 9 x 120/140 mm |
| Front fan | 3 x 120/140 mm (2 x Dynamic X2 GP-14 included) |
| Top fan | 3 x 120/140 mm |
| Rear fan | 1 x 120/140 mm (1 x Dynamic X2 GP-14 included) |
| Bottom fan | 2 x 120/140 mm |
| Dust filters | Top, 2 x front, full length bottom |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD brackets, SSD brackets, PSU bracket |
| Left side panel | Industrial sound-damped steel or Tempered Glass |
| Right side panel | Industrial sound-damped steel |
| Motherboard compatibility | E-ATX (max 285 mm) / ATX / mATX / mITX |
| Power supply type | ATX |
| PSU max length | 250 mm (with HDD cage installed) |
| GPU max length | Storage layout: 290 mm - Open layout: 470 mm (445 mm w/ front fan) |
| CPU cooler max height | 185 mm |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 360/420 mm |
| Rear radiator | 120 mm |
| Bottom radiator | Up to 240/280 mm |
| Cable routing space | 30 mm |
| Vertical GPU Support (with Flex B-20 or Flex VRC-25) | 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling |
| Case dimensions (LxWxH) | 547 x 240 x 475 mm |
| Case dimensions w/o feet/protrusions/screws | 533 x 240 x 451 mm |
| Package dimensions (LxWxH) | 558 x 363 x 641 mm |
| Net weight | Solid Version: 13.49 kg, TG Version: 13.45 kg |
| Package weight | Solid Version: 15.98 kg, TG Version: 15.94 kg |
| Volume | 57.7 liters |
| Warranty | 2 Years |
Specification
Fractal Design Define 7 White Brushed Aluminum/Steel E-ATX Silent Modular Mid Tower Computer Case, 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling, | FD-C-DEF7A-09
| 3.5"/2.5" Universal drive brackets | 6 included, 14 positions total |
| Dedicated 2.5" drive brackets | 2 trays included, 4 positions total |
| 5.25??? drive mounts | 1 |
| Expansion slots | 7 + 2 |
| Front ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 9 x 120/140 mm |
| Front fan | 3 x 120/140 mm (2 x Dynamic X2 GP-14 included) |
| Top fan | 3 x 120/140 mm |
| Rear fan | 1 x 120/140 mm (1 x Dynamic X2 GP-14 included) |
| Bottom fan | 2 x 120/140 mm |
| Dust filters | Top, 2 x front, full length bottom |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD brackets, SSD brackets, PSU bracket |
| Left side panel | Industrial sound-damped steel or Tempered Glass |
| Right side panel | Industrial sound-damped steel |
| Motherboard compatibility | E-ATX (max 285 mm) / ATX / mATX / mITX |
| Power supply type | ATX |
| PSU max length | 250 mm (with HDD cage installed) |
| GPU max length | Storage layout: 290 mm - Open layout: 470 mm (445 mm w/ front fan) |
| CPU cooler max height | 185 mm |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 360/420 mm |
| Rear radiator | 120 mm |
| Bottom radiator | Up to 240/280 mm |
| Cable routing space | 30 mm |
| Vertical GPU Support (with Flex B-20 or Flex VRC-25) | 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling |
| Case dimensions (LxWxH) | 547 x 240 x 475 mm |
| Case dimensions w/o feet/protrusions/screws | 533 x 240 x 451 mm |
| Package dimensions (LxWxH) | 558 x 363 x 641 mm |
| Net weight | Solid Version: 13.49 kg, TG Version: 13.45 kg |
| Package weight | Solid Version: 15.98 kg, TG Version: 15.94 kg |
| Volume | 57.7 liters |
| Warranty | 2 Years |
