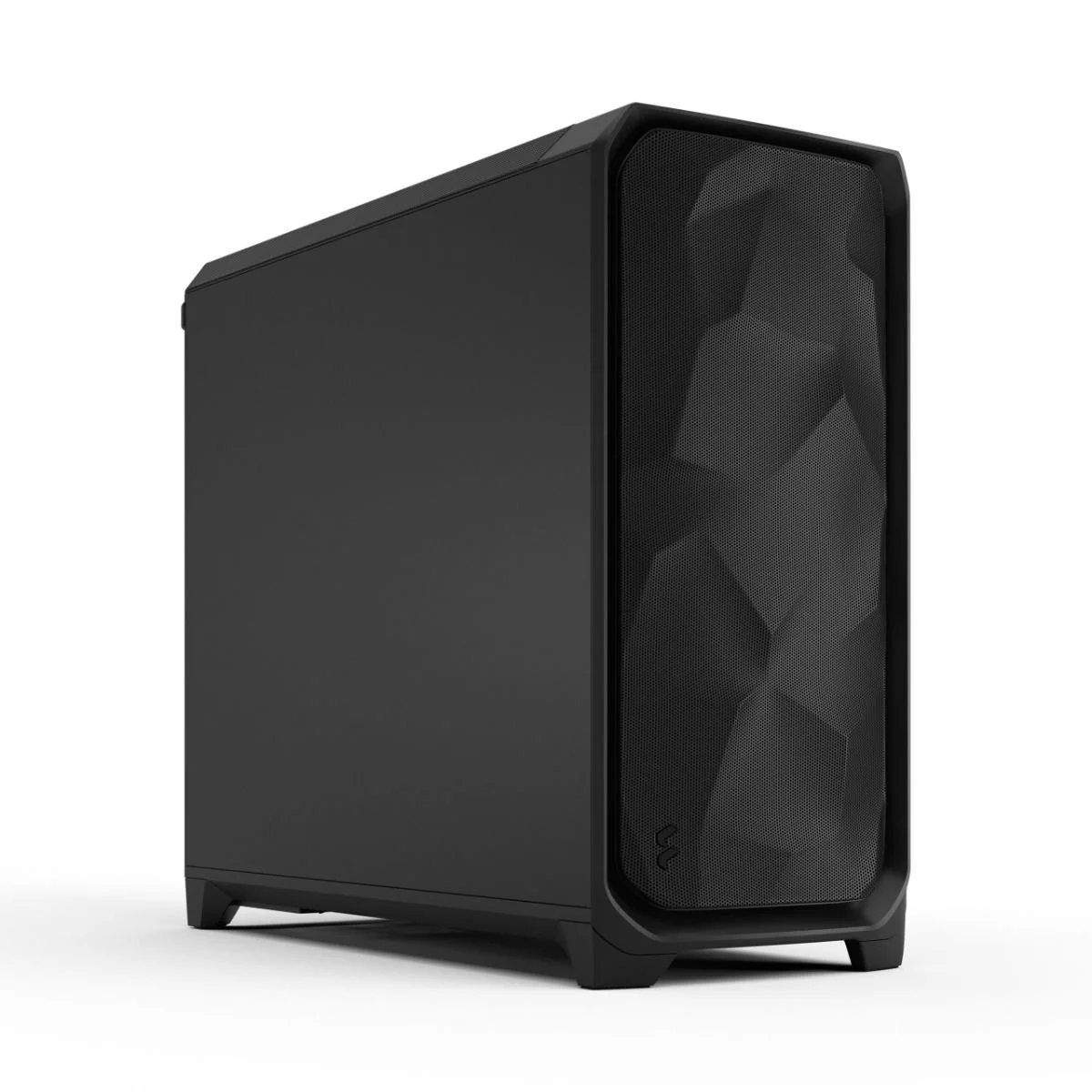

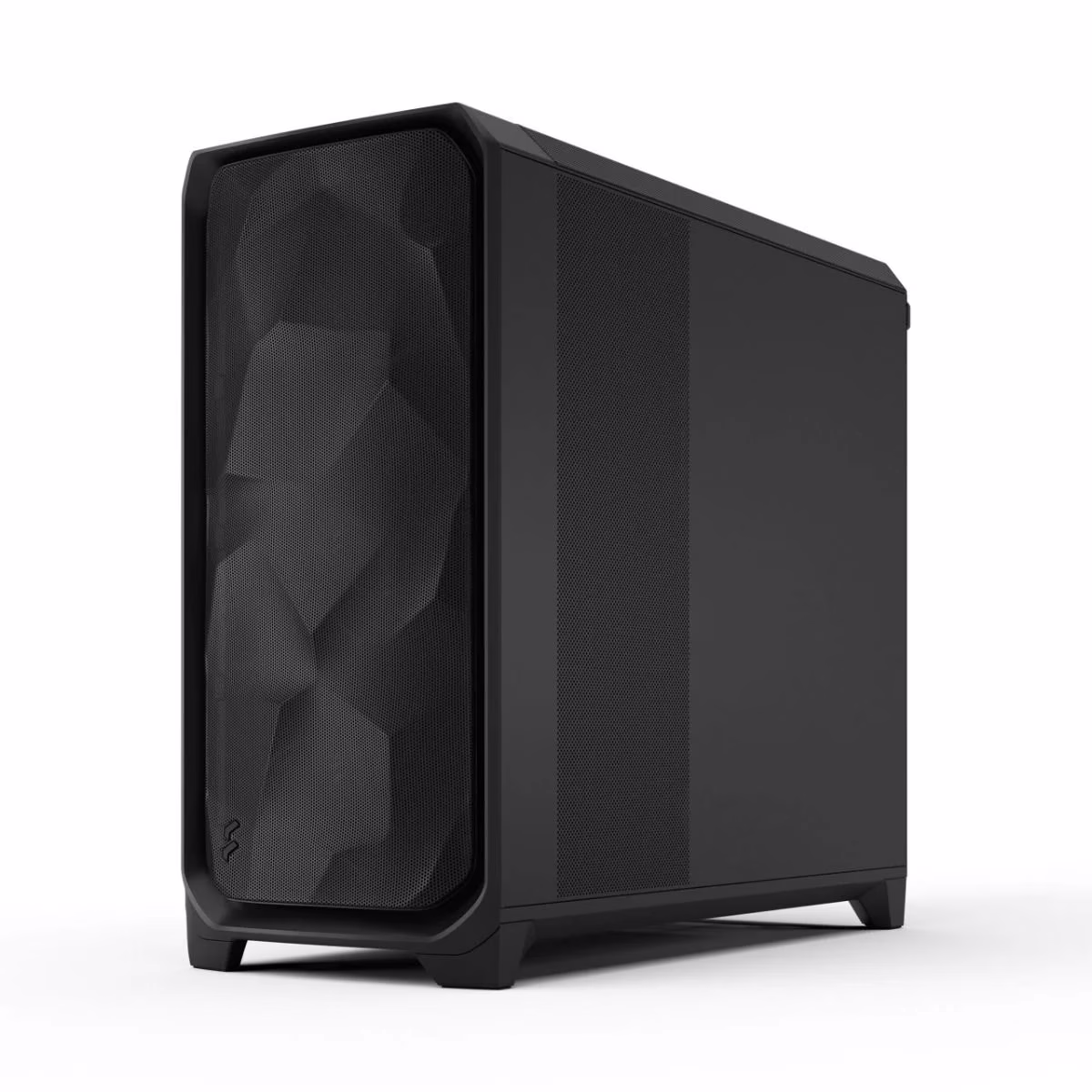

Fractal Meshify 3 XL Black Solid Computer Case, Includes 3x Fans, Supports Motherboard up to EE-ATX / SSI-EEB / SSI-CEB, Radiator 360/420mm, 20 Gbps USB Type-C, 2x USB-A | FD-C-MES3X-01

Model :

SKU : ATX-FRACTAL MESHIFY 3XL B

About this item

The Fractal Design Meshify 3 XL Black Solid is a monumental full tower chassis engineered for industrial-grade performance and absolute stealth. Featuring an iconic 3D angular mesh front and heavy-duty solid steel side panels, it is designed to house the most powerful workstation and server hardware while maintaining maximum silence. With its massive internal volume and updated 20Gbps Type-C connectivity, the Meshify 3 XL Solid is the definitive choice for professionals building high-performance rendering nodes or high-density storage arrays.

About this item

Description

The Fractal Design Meshify 3 XL Black Solid (FD-C-MES3X-01) is the ultimate choice for users who value raw power and quiet operation over internal visibility. Scaled to meet the extreme demands of 2026’s enterprise-level processors and multi-GPU configurations, this full tower provides a colossal workspace that prioritizes airflow and structural integrity. For businesses and professionals in Abu Dhabi who need a discreet yet high-performance "server-grade" desktop, the Meshify 3 XL Solid delivers a sophisticated, no-nonsense solution.



Key Features
The standout feature of the Meshify 3 XL is its incredible versatility through the Dual-Layout design. You can effortlessly switch between the "Open Layout" for extreme liquid cooling and the "Storage Layout," which transforms the case into a high-capacity vault capable of holding up to 18 HDDs and 5 SSDs. This Solid version features high-density sound-dampening material on the side panels, ensuring that mechanical noise from multiple drives or high-RPM fans is kept to a minimum, creating a whisper-quiet professional environment.

Performance / Technology
Performance is driven by the signature Aero-Flow 3D Mesh front panel, precision-engineered to provide unrestricted air intake to flagship components. The XL chassis allows for industry-leading radiator support, accommodating massive 480mm radiators in both the front and top positions simultaneously. To handle modern high-speed data needs, the front I/O features a USB 3.2 Gen 2x2 Type-C port, delivering blistering 20Gbps transfer speeds—essential for IT professionals working with local backups or high-resolution media archives.

Design & Ergonomics

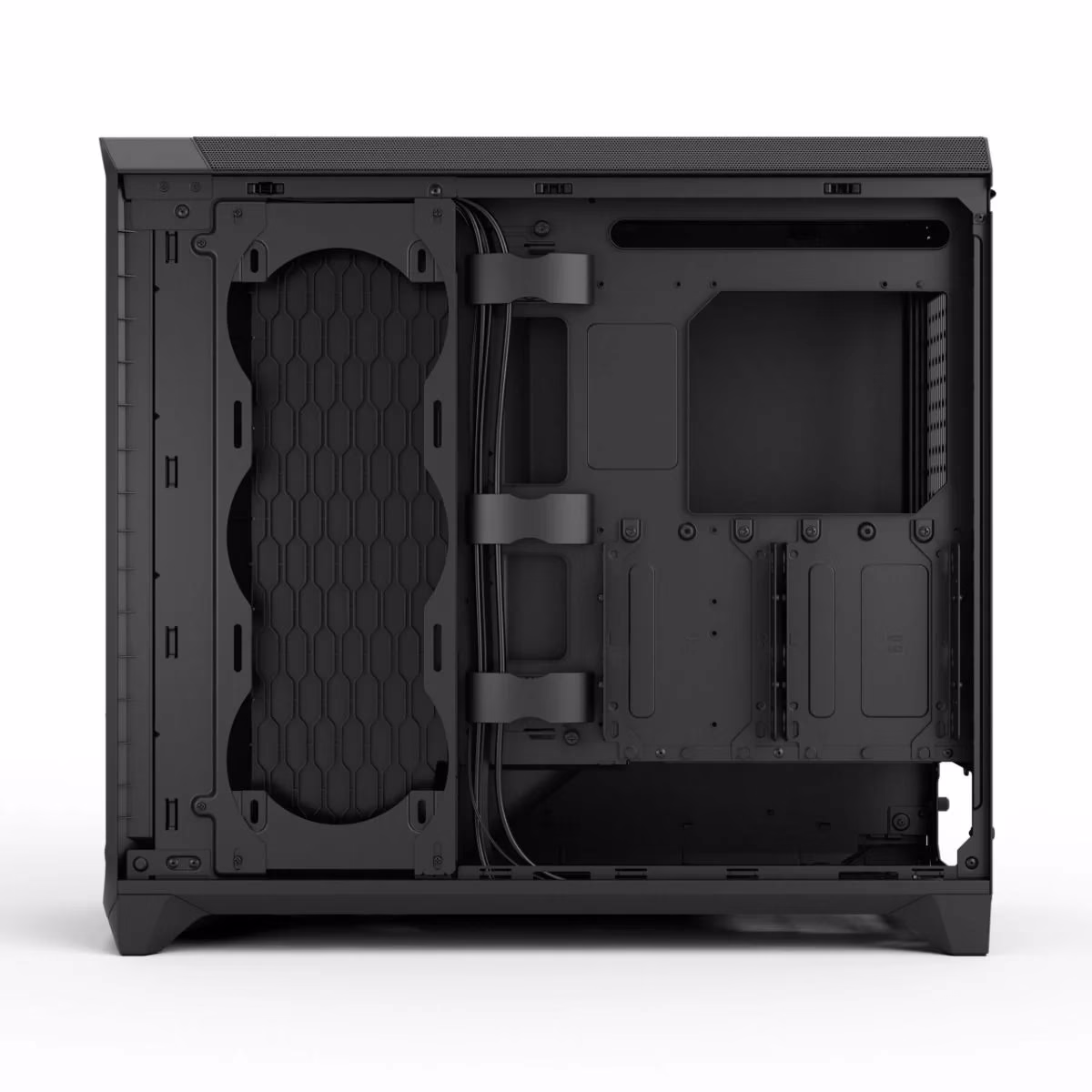

Fractal has refined the builder's experience by offering a top-down assembly approach; the entire top radiator bracket is fully removable, providing total access to the motherboard tray. The solid side panels utilize a secure, tool-less push-to-lock latching system, ensuring a clean, screw-free exterior that blends into any high-end office. Cable management is elite-tier, featuring a 35mm routing chamber and integrated cable guides with Velcro straps to keep even the most complex workstation wiring perfectly organized.

Compatibility / Use Cases
This full tower is the ideal solution for SSI-EEB and E-ATX dual-socket motherboards, making it a favorite for AI development, 3D rendering, and massive NAS/Plex servers. It easily accommodates the largest modern graphics cards (up to 549mm) without compromise. Whether you are building a high-performance deep-learning rig or a silent, high-density storage node, the Meshify 3 XL Solid provides the thermal headroom, durability, and modern connectivity required for a top-tier professional build in 2026.



Why This Product Stands Out
The Fractal Design Meshify 3 XL Solid stands out by offering uncompromising "stealth" functionality at a massive scale. While many cases focus on flashy lights, this chassis focuses on high-bandwidth airflow and 20Gbps data speed. Its combination of massive radiator support, industry-leading storage capacity, and a clean, timeless aesthetic makes it one of the most professional and future-proof full tower investments available today.

Specification

Fractal Meshify 3 XL Computer Case, Includes 3x Fans, Supports Motherboard up to EE-ATX / SSI-EEB / SSI-CEB, Radiator 360/420mm, 20 Gbps USB Type-C, 2x USB-A Specifications

3.5"/2.5" drive mounts2 / 4
Dedicated 2.5" drive mounts1
5.25” drive mounts-
Expansion slots7
Adjust Pro HubIncluded in Ambience Pro RGB version
Ambience Case LightingAmbience Pro RGB version
Front interface1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
Total fan mounts10 (140 mm) / 7 (120 mm)
Front fan3x 120/140 mm, 2x 180 mm (3 x 140 mm Momentum Included)
Top fan3x 120/140 mm
Rear fan1x 120/140 mm
Bottom fan-
Side fan3x 140 mm (no 120 support without radiator)
Dust filtersPSU (Bottom)
Cable routing space37.5 mm
Cable coverYes
Cable organizers3 Hook-and-loop straps + 3 Cable Aligners
Tool-less push-to-lockBoth Side Panels, Bottom Filter, Front Panel, Top Panel
Captive thumbscrewsTop Radiator Bracket, Air Guide, PSU Bracket
Left side panelIndustrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB)
Right side panelIndustrial steel
Power supply typeATX
Motherboard compatibilityE-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
PSU max length230 mm
GPU max length512 mm
GPU max height189 mm (7 slot) including cables
CPU cooler max height182 mm
Front radiator280 / 360 mm
Top radiator360 / 420 mm (up to 475 mm)
Rear radiatorUp to 120 / 140 mm
Side radiator360 mm (with brackets)
Case dimensions (LxWxH)575 x 245 x 515 mm
Case dimensions w/o feet/protrusions/screws565 x 245 x 515 mm
Package dimensions596 x 350 x 550 mm
Net weight10.5 kg (Solid) / 10.9 kg (TG and RGB) / 11.4 kg (Ambience Pro RGB)
Gross weight12.4 kg (Solid) / 13 kg (TG and RGB) / 13.3 kg (Ambience Pro RGB)
Package contentsCase, Accessory Box, Manual, Red Note
Accessory Box content (Solid/TG/RGB)PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8
Accessory Box content (Ambience Pro RGB)PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable
EANBlack Solid: 7340172707219
Black TG Light Tint: 7340172707226
Ambience Pro RGB Black TG Light Tint: 7340172707233
Black RGB TG Light Tint: 7340172709527
Ambience Pro RGB White TG Clear Tint: 7340172707240
White RGB TG Clear Tint: 7340172709534
UPCBlack Solid: 843276107215
Black TG Light Tint: 843276107222
Ambience Pro RGB Black TG Light Tint: 843276107239
Black RGB TG Light Tint: 843276109523
Ambience Pro RGB White TG Clear Tint: 843276107246
White RGB TG Clear Tint: 843276109530
Product CodeBlack Solid: FD-C-MES3X-01
Black TG Light Tint: FD-C-MES3X-02
Ambience Pro RGB Black TG Light Tint: FD-C-MES3X-03
Black RGB TG Light Tint: FD-C-MES3X-04
Ambience Pro RGB White TG Clear Tint: FD-C-MES3X-05
White RGB TG Clear Tint: FD-C-MES3X-06
Warranty2 Years
