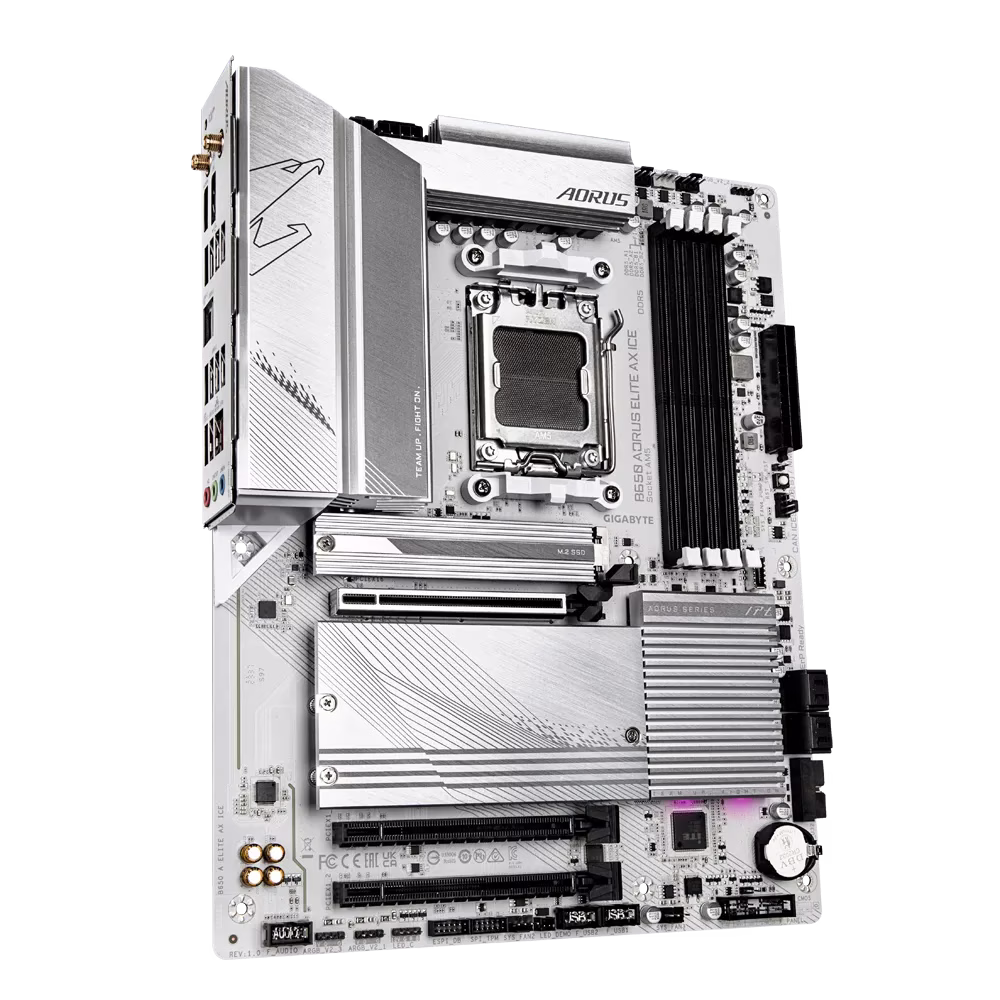

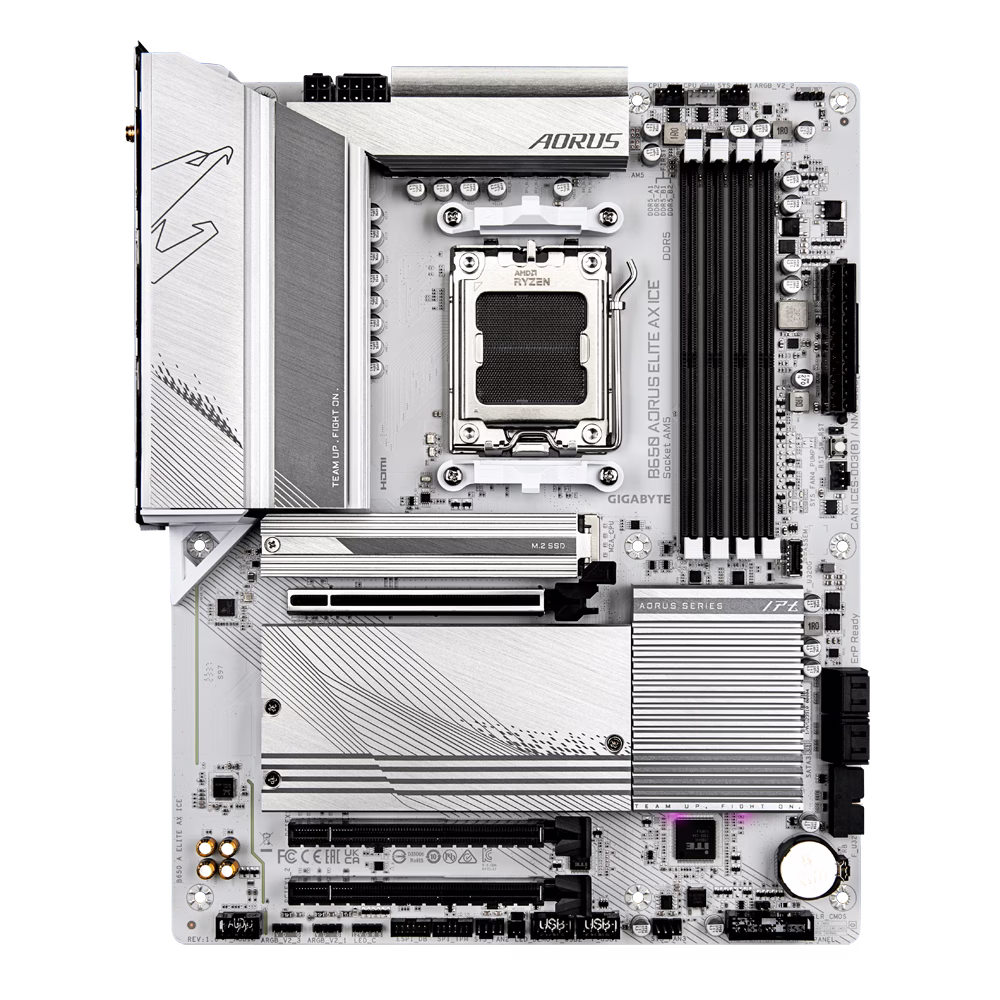

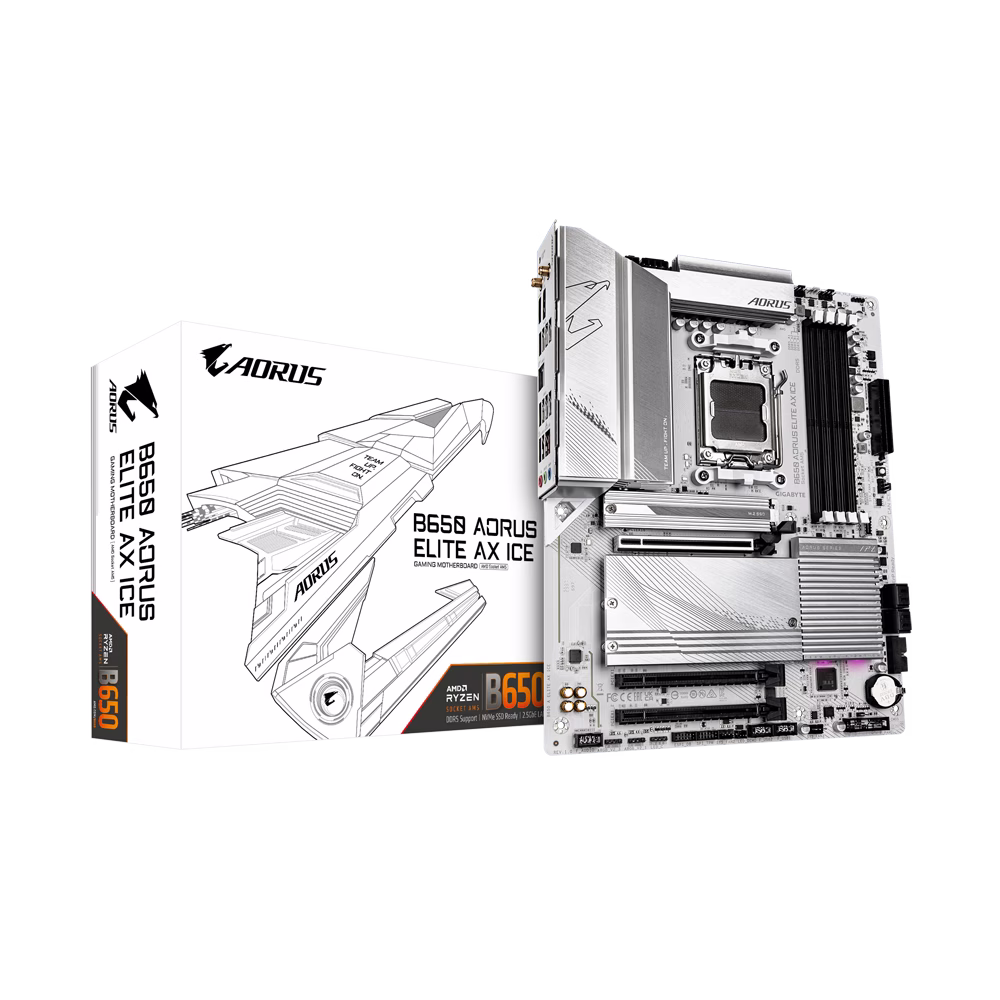

Gigabyte B650 AORUS ELITE AX ICE AM5 DDR5 Motherboard, 4x DIMMs with AMD EXPO, 1x PCIe 5.0 x4 and 2x PCIe 4.0 x4 M.2 Connectors, 2.5GbE LAN & Wi-Fi 6E, Smart Fan 6, Q-Flash Plus, Black | B650 A ELITE AX ICE
Model :
SKU : MB-AOR B650 ELITE AX ICE
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Gigabyte B650 AORUS ELITE AX ICE AM5 DDR5 Motherboard, 4x DIMMs with AMD EXPO, 1x PCIe 5.0 x4 and 2x PCIe 4.0 x4 M.2 Connectors, 2.5GbE LAN & Wi-Fi 6E, Smart Fan 6, Q-Flash Plus, Black | B650 A ELITE AX ICE Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen??? 7000 / Ryzen??? 8000 / Ryzen??? 9000 Series Processors. * Please refer to "CPU Support List" for more information. |
| Chipset | AMD B650 |
| Memory Support | Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules. |
| DIMM Slots | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory. |
| Memory Architecture | Dual channel memory architecture |
| Memory Types | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. |
| Overclocking Support | Support for AMD EXtended Profiles for Overclocking (AMD EXPO???) and Extreme Memory Profile (XMP) memory module. |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon??? Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. |
| Audio | Realtek?? Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel. |
| LAN | Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek?? Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. - BLUETOOTH 5.3. |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU; 2 x PCI Express x16 slots supporting PCIe 3.0 and running at x1 (PCIEX1_1/2). |
| Storage Interface | 1 x M.2 connector (M2A_CPU), 1 x M.2 connector (M2B_CPU), 1 x M.2 connector (M2C_SB), and 4 x SATA 6Gb/s connectors with RAID support. |
| USB Ports | 1 x USB Type-C?? port on the back panel, 2 x USB 3.2 Gen 2 Type-A ports, and additional USB ports as specified. |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, and various fan headers and USB headers. |
| Back Panel Connectors | 1 x Q-Flash Plus button, 2 x SMA antenna connectors, 1 x DisplayPort, 1 x HDMI port, USB ports, RJ-45 port, and audio jacks. |
| I/O Controller | iTE?? I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control. |
| BIOS | 1 x 256 Mbit flash, licensed AMI UEFI BIOS. |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus. |
| Bundled Software | Norton?? Internet Security (OEM version), LAN bandwidth management software. |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit. |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Specification
Gigabyte B650 AORUS ELITE AX ICE AM5 DDR5 Motherboard, 4x DIMMs with AMD EXPO, 1x PCIe 5.0 x4 and 2x PCIe 4.0 x4 M.2 Connectors, 2.5GbE LAN & Wi-Fi 6E, Smart Fan 6, Q-Flash Plus, Black | B650 A ELITE AX ICE Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen??? 7000 / Ryzen??? 8000 / Ryzen??? 9000 Series Processors. * Please refer to "CPU Support List" for more information. |
| Chipset | AMD B650 |
| Memory Support | Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules. |
| DIMM Slots | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory. |
| Memory Architecture | Dual channel memory architecture |
| Memory Types | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. |
| Overclocking Support | Support for AMD EXtended Profiles for Overclocking (AMD EXPO???) and Extreme Memory Profile (XMP) memory module. |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon??? Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. |
| Audio | Realtek?? Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel. |
| LAN | Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek?? Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. - BLUETOOTH 5.3. |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU; 2 x PCI Express x16 slots supporting PCIe 3.0 and running at x1 (PCIEX1_1/2). |
| Storage Interface | 1 x M.2 connector (M2A_CPU), 1 x M.2 connector (M2B_CPU), 1 x M.2 connector (M2C_SB), and 4 x SATA 6Gb/s connectors with RAID support. |
| USB Ports | 1 x USB Type-C?? port on the back panel, 2 x USB 3.2 Gen 2 Type-A ports, and additional USB ports as specified. |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, and various fan headers and USB headers. |
| Back Panel Connectors | 1 x Q-Flash Plus button, 2 x SMA antenna connectors, 1 x DisplayPort, 1 x HDMI port, USB ports, RJ-45 port, and audio jacks. |
| I/O Controller | iTE?? I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control. |
| BIOS | 1 x 256 Mbit flash, licensed AMI UEFI BIOS. |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus. |
| Bundled Software | Norton?? Internet Security (OEM version), LAN bandwidth management software. |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit. |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
