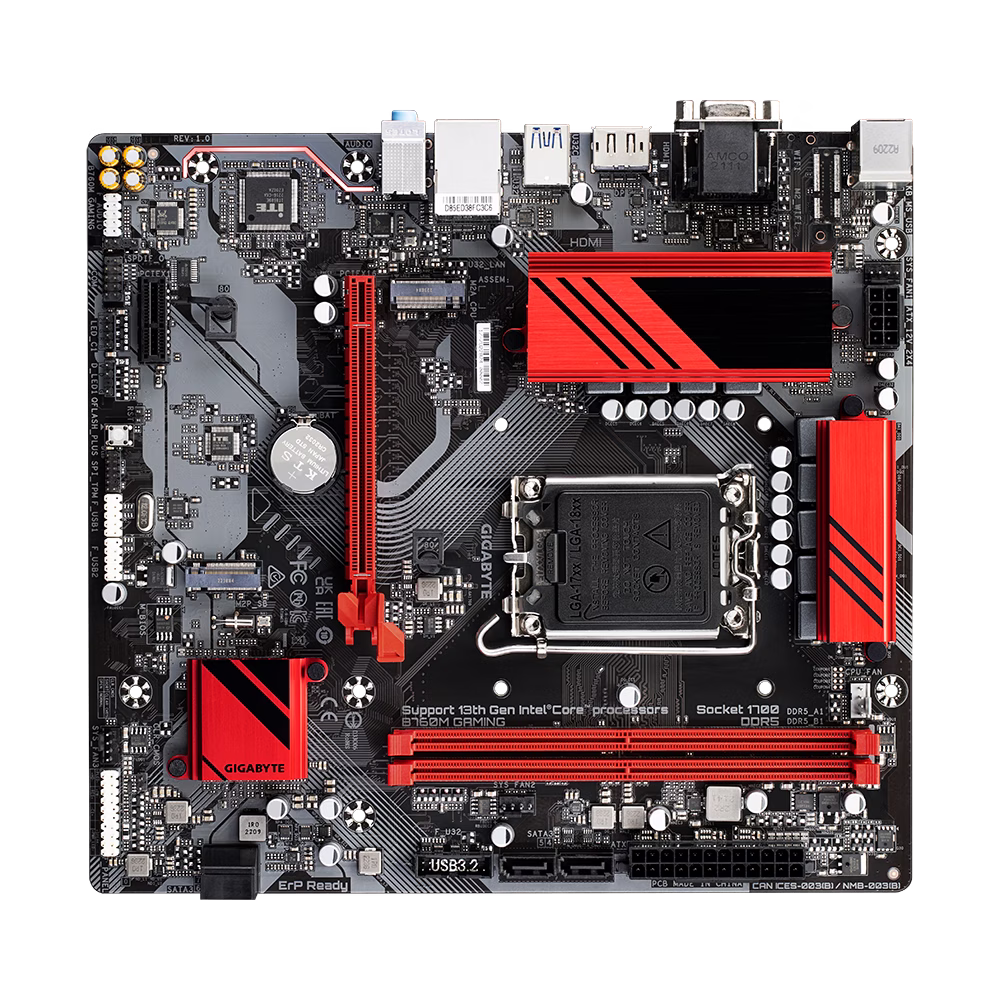

Gigabyte B760M GAMING Micro ATX Motherboard, Dual Channel DDR5, 2x DIMMs XMP Memory, 2x PCIe 4.0 x4 M.2 Connectors, 2.5GbE LAN, Rear USB-C 5Gb/s, DP, HDMI, D-Sub | 9MB76ME5-00-G10
Model :
SKU : MB-GIGABYTE B760M E D5
About this item
About this item
Description
The B760M E is part of GIGABYTE’s Ultra Durable™ series, emphasizing longevity and stability for the LGA 1700 platform. By utilizing the Intel B760 chipset, it provides native support for Intel’s hybrid architecture, ensuring efficient performance scaling across P-cores and E-cores. This motherboard is specifically designed for users who want to transition to DDR5 memory without the premium cost of flagship boards, providing a future-proof path for office productivity and mid-range gaming.
Ultra Durable™ Engineering and Cooling
Reliability is at the heart of the B760M E. It features a 6+1+1 Phase Digital VRM Design with Low RDS(on) MOSFETs to ensure clean and efficient power delivery to the CPU. To maintain optimal temperatures, GIGABYTE utilizes Smart Fan 6 technology, which incorporates multiple temperature sensors and hybrid fan headers with FAN STOP functionality. This allows the system to remain whisper-quiet during light tasks while providing aggressive cooling when the system is under heavy load.
Next-Gen Speed: DDR5 and PCIe 4.0
Experience a noticeable jump in system responsiveness with DDR5 memory. With two DIMM slots, the B760M E supports high-frequency modules and is compatible with Intel® XMP 3.0 profiles for easy performance tuning. For storage and graphics, the board leverages PCIe 4.0 technology, offering 16GT/s bandwidth for the latest graphics cards and dual M.2 slots for NVMe SSDs, ensuring your most demanding applications and games load in seconds.
Connectivity and DIY Friendly Features
The GIGABYTE B760M E is designed to make the building process and daily use as seamless as possible. It features a GbE LAN with bandwidth management to prioritize critical applications. The inclusion of the PCIe EZ-Latch allows users to easily detach graphics cards with a simple finger press. Additionally, the rear I/O is equipped with multiple USB 3.2 Gen 1 ports and high-quality audio capacitors, ensuring a premium peripheral and sound experience.
Why the GIGABYTE B760M E Stands Out
LGA 1700 Native: Fully compatible with Intel 14th, 13th, and 12th Gen Core processors.
DDR5 Optimized: Access the latest memory technology for better multitasking and speed.
Dual NVMe PCIe 4.0 M.2: High-speed storage slots for a clutter-free, fast system.
Ultra Durable Construction: Anti-Sulfur resistors and solid power connectors for a longer lifespan.
Specification
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Chipset | Intel B760 Express Chipset |
| Memory | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) /6400(O.C.) /6200(O.C.) /6000(O.C.) /5800(O.C.) /5600(O.C.) /5400(O.C.) /5200(O.C.) /4800 /4000 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (HDMI 2.1 version and HDCP 2.3) 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz (DisplayPort 1.2 version and HDCP 2.3) Support for up to 3 displays at the same time (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (only supports graphics card or NVMe SSD) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports via internal header) 2 x USB 2.0/1.1 ports on the back panel Chipset + USB 2.0 Hubs: 4 x USB 2.0/1.1 ports via internal headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (for GC-TPM2.0 SPI modules) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |

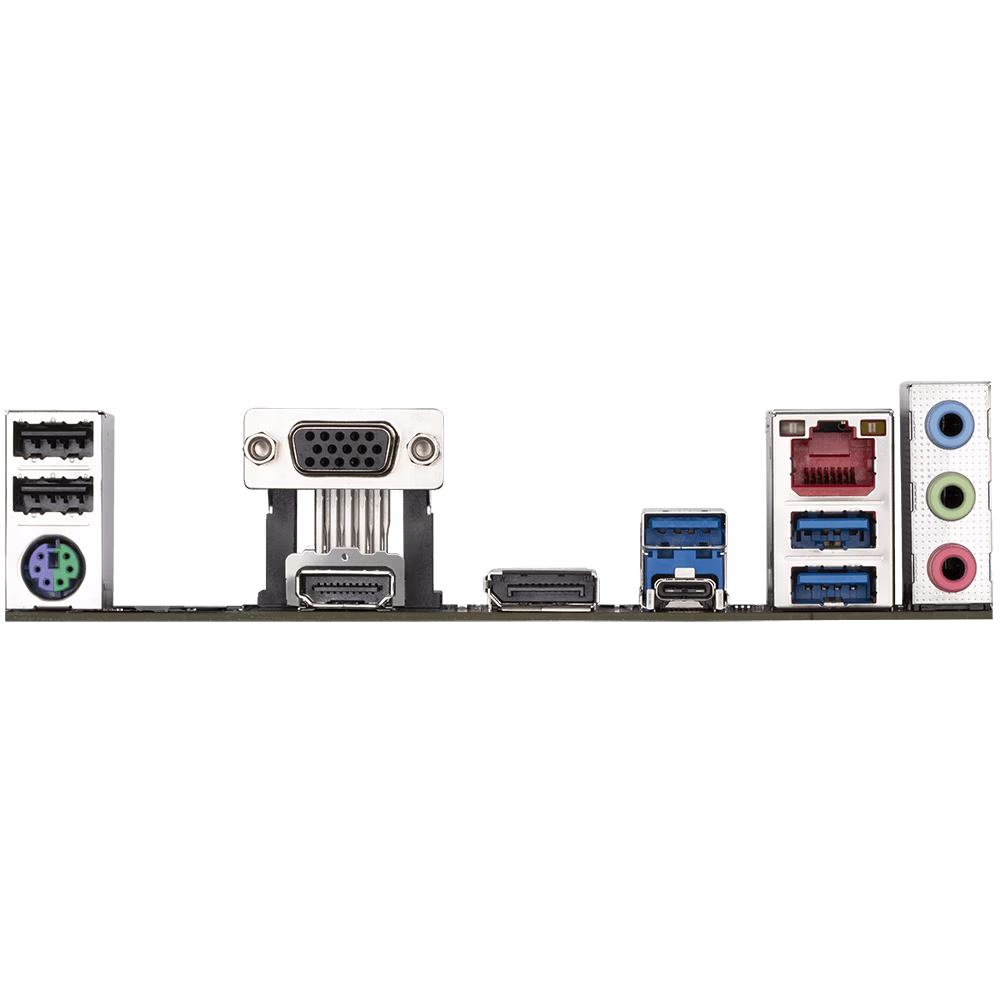

| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control (depends on fan model) |
| BIOS | 1 x 128 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) (available apps may vary) Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
