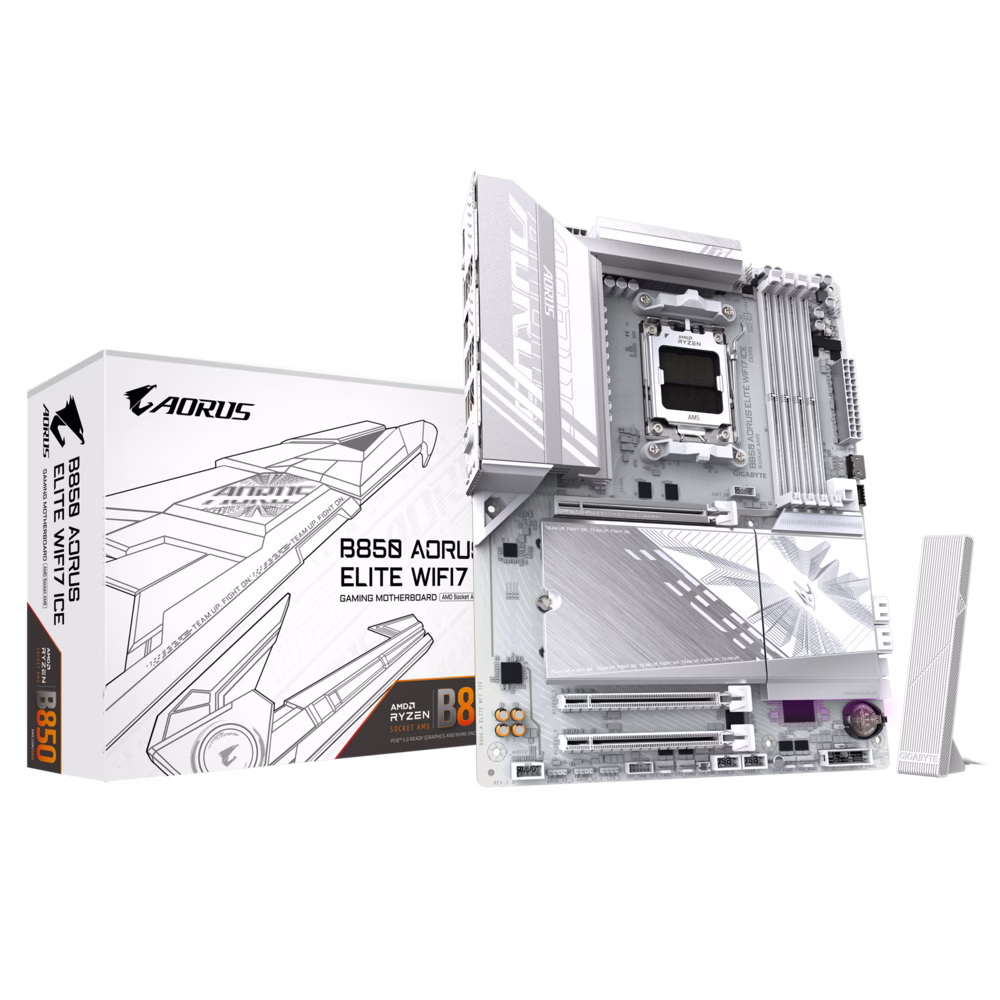

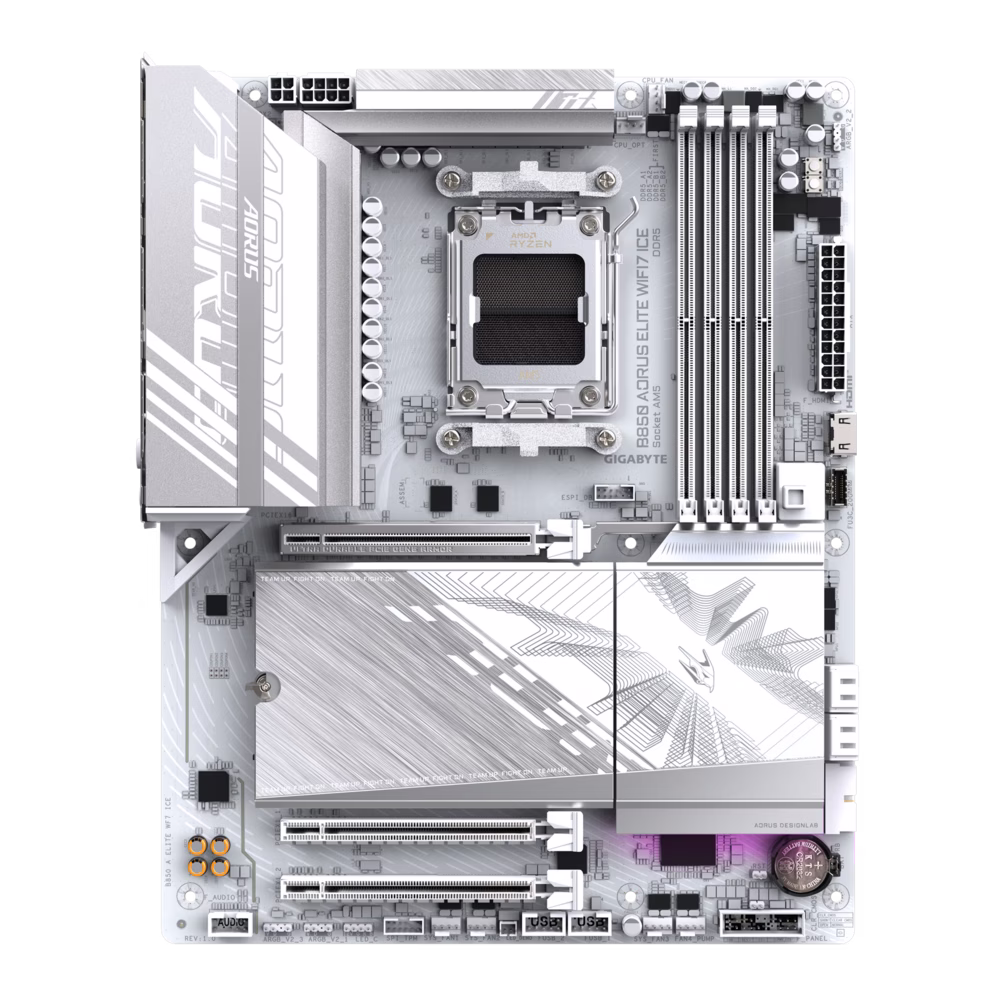

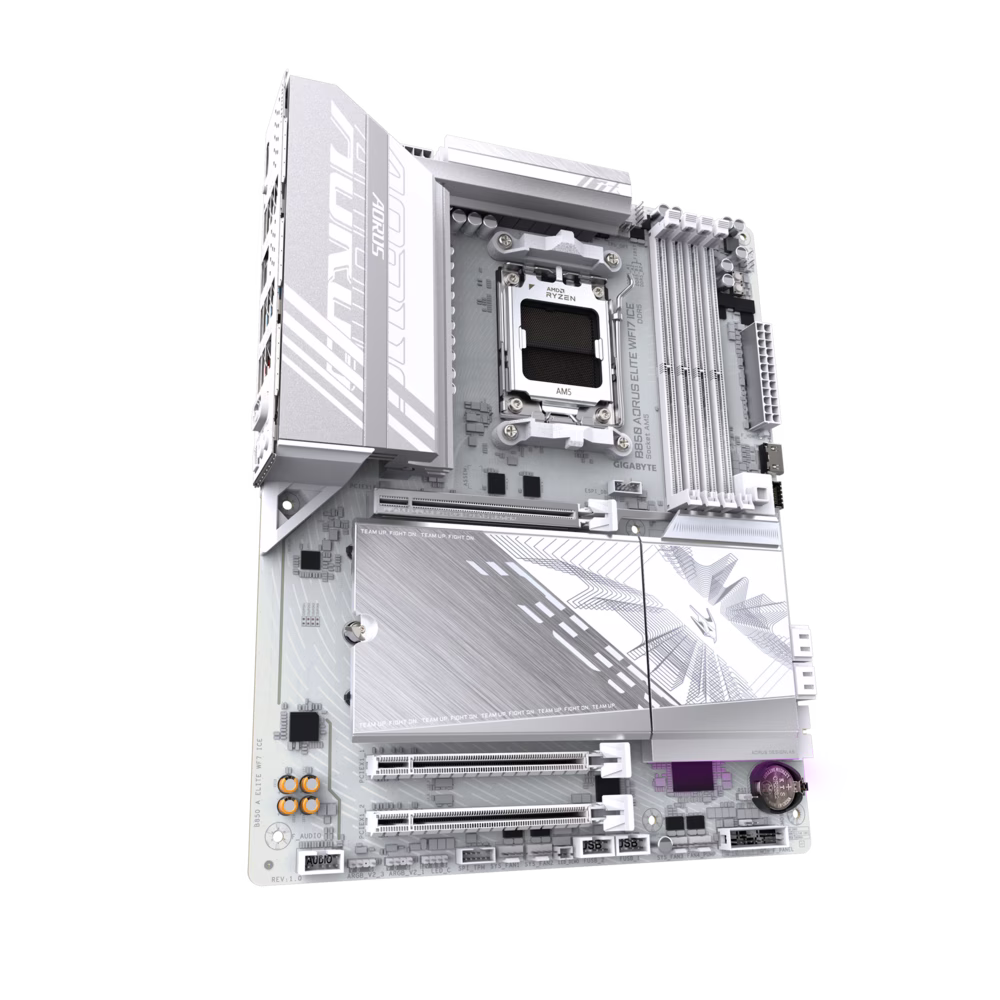

Gigabyte B850 AORUS ELITE WIFI7 ICE AM5 Motherboard, 4x DIMMs with AMD EXPO DDR5 OC up to 8200MT/s, 3x M.2 slots, PCIe 5.0 x4, 2.5GbE LAN & Wi-Fi 7, WIFI EZ-Plug, X3D Turbo Mode, White | B850 A ELITE WF7 ICE
Model :
SKU : MB-GIG B850 AOR ELI W7 IC
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Gigabyte B850 AORUS ELITE WIFI7 ICE AM5 Motherboard, 4x DIMMs with AMD EXPO DDR5 OC up to 8200MT/s, 3x M.2 slots, PCIe 5.0 x4, 2.5GbE LAN & Wi-Fi 7, WIFI EZ-Plug, X3D Turbo Mode, White | B850 A ELITE WF7 ICE Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen??? 9000 Series Processors/ AMD Ryzen??? 8000 Series Processors/ AMD Ryzen??? 7000 Series Processors (Visit GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B850 |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for AMD EXtended Profiles for Overclocking (AMD EXPO???) and Extreme Memory Profile (XMP) memory modules. |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon??? Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for DisplayPort 1.4 and HDMI 1.4 versions. |
| Audio | Realtek?? Audio CODEC, High Definition Audio. 2/4/5.1/7.1-channel support. S/PDIF Out support. |
| LAN | Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). |
| Wireless Communication | Realtek?? Wi-Fi 7 RTL8922AE: - 802.11a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz bands. - Bluetooth 5.4. |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0. |
| Storage Interface | 3 x M.2 connectors (M2A_CPU, M2B_CPU, M2C_SB). 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support. |
| USB | Multiple USB ports including USB Type-C?? with USB 3.2 Gen 2x2 support. |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 3 x M.2 Socket 3 connectors. 4 x SATA 6Gb/s connectors. RGB and fan headers included. |

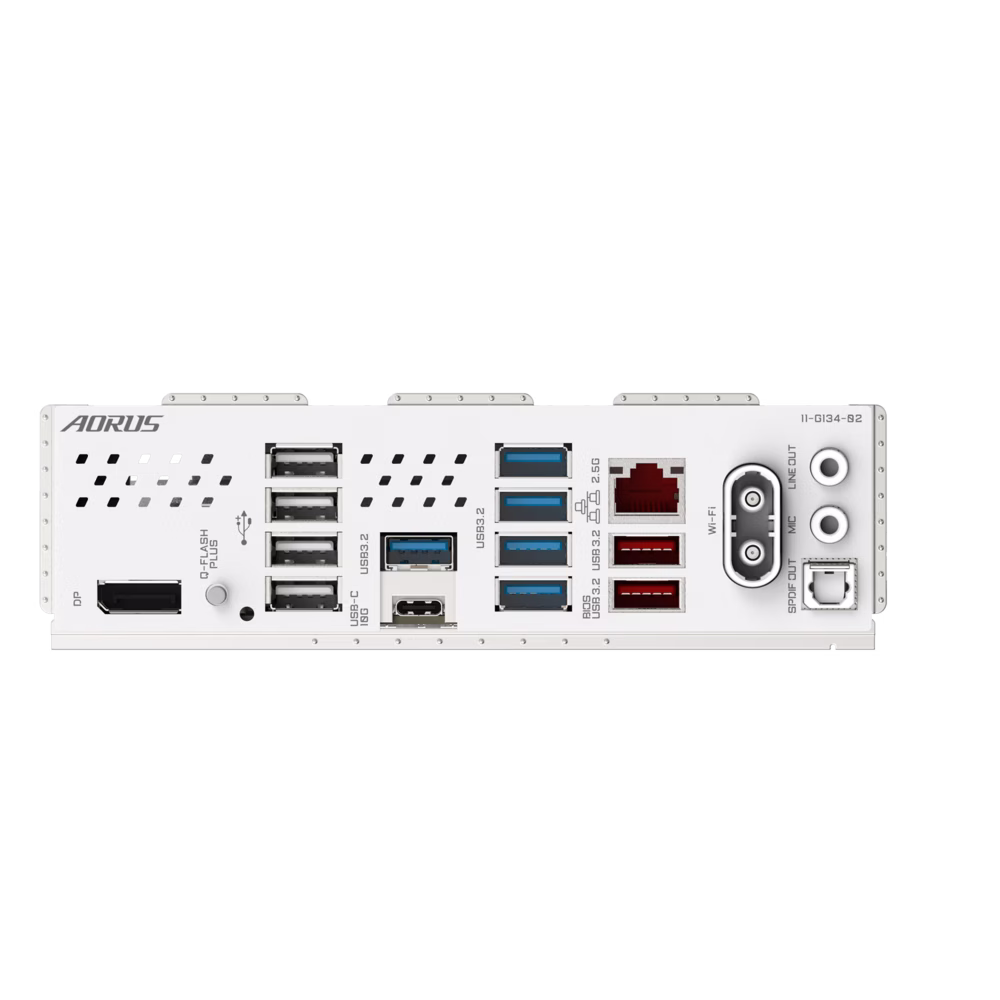

| Back Panel Connectors | 1 x DisplayPort. 1 x Q-Flash Plus button. Multiple USB ports including USB Type-C??. 2 x antenna connectors. 2 x audio jacks. |
| BIOS | 1 x 256 Mbit flash. Use of licensed AMI UEFI BIOS. Support for Q-Flash and Q-Flash Plus. |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
