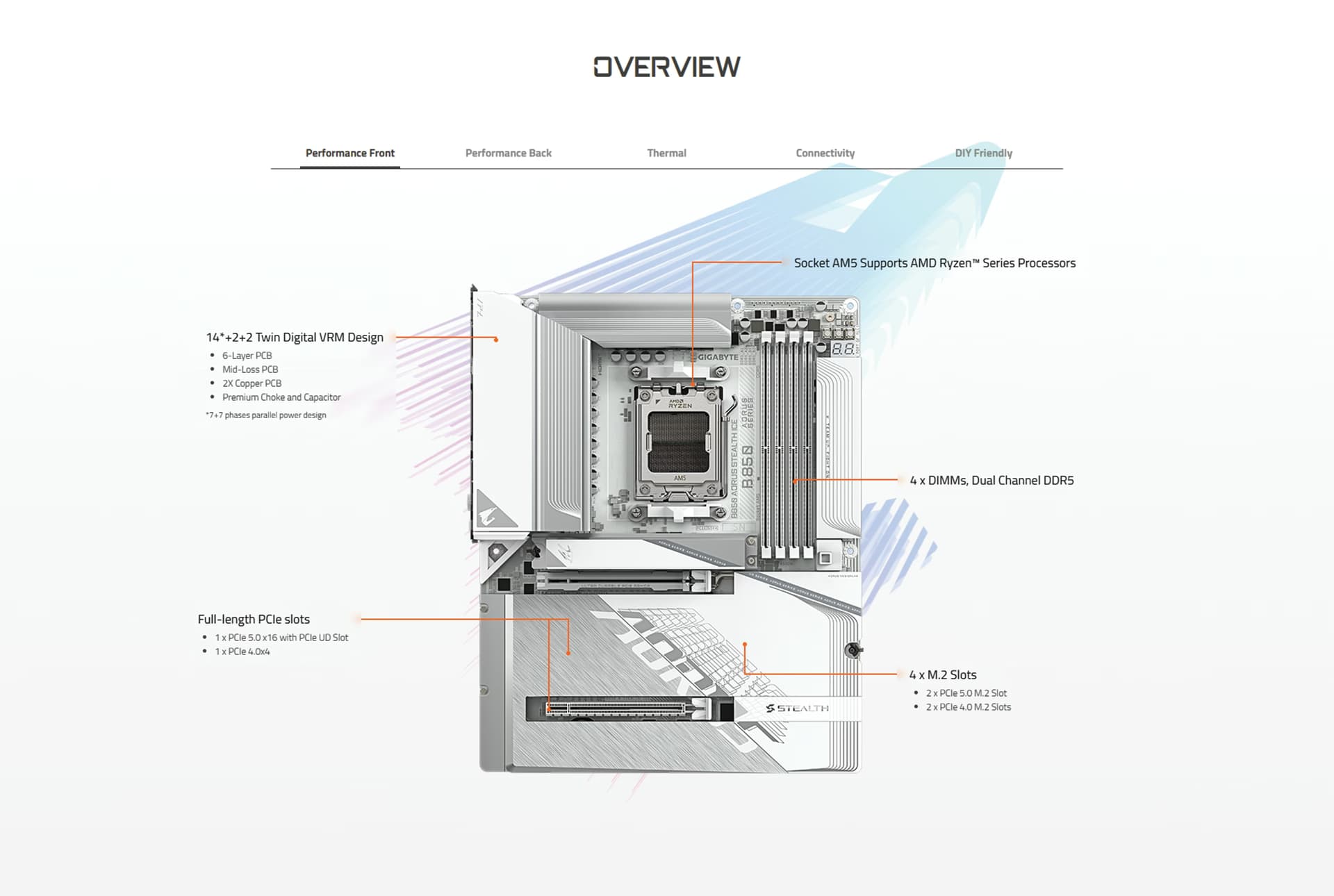

Gigabyte B850 AORUS STEALTH ICE AM5 White Motherboard, 4 x DDR5 DIMM upto 8200(O.C), X3D Turbo Mode, 5GbE LAN, Wi-Fi 7, BT 5.4 | B850 A STEALTH ICE
Model :
SKU : MB-GIGA B850 AORUS STE IC
About this item
About this item
Description

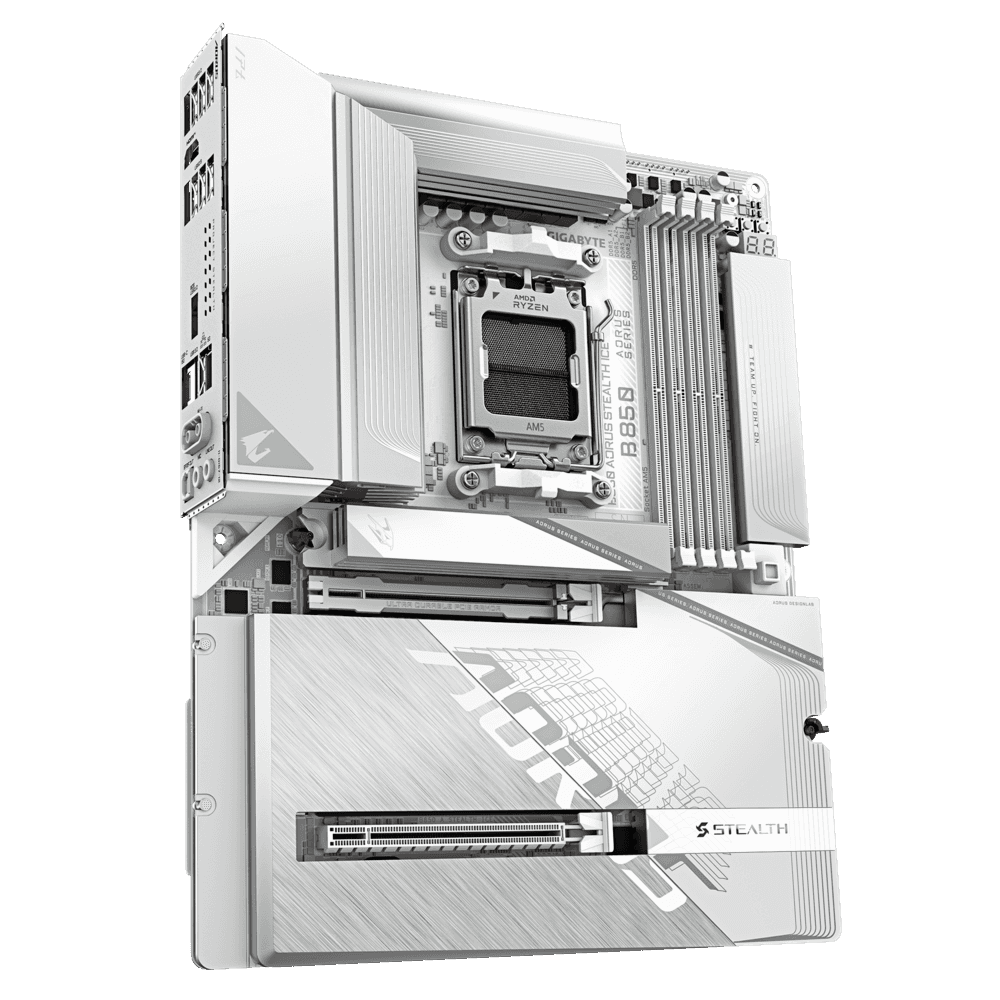

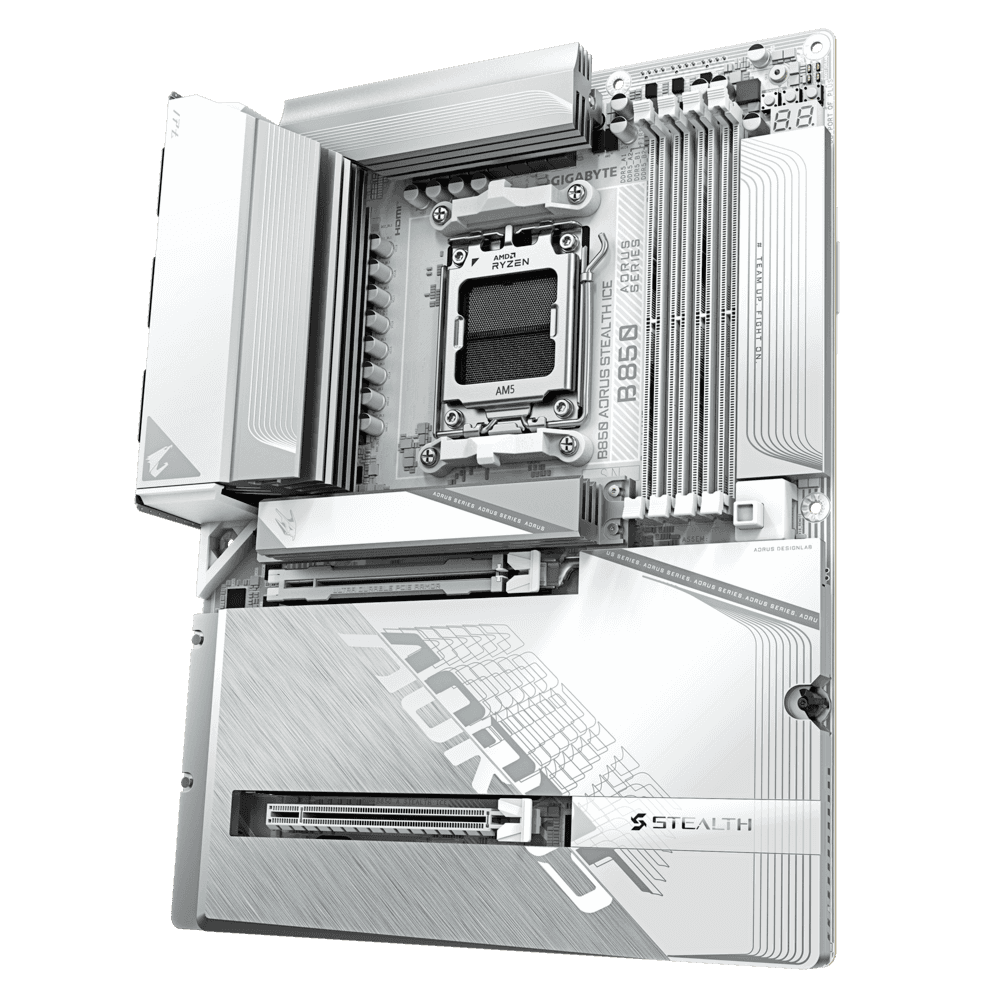

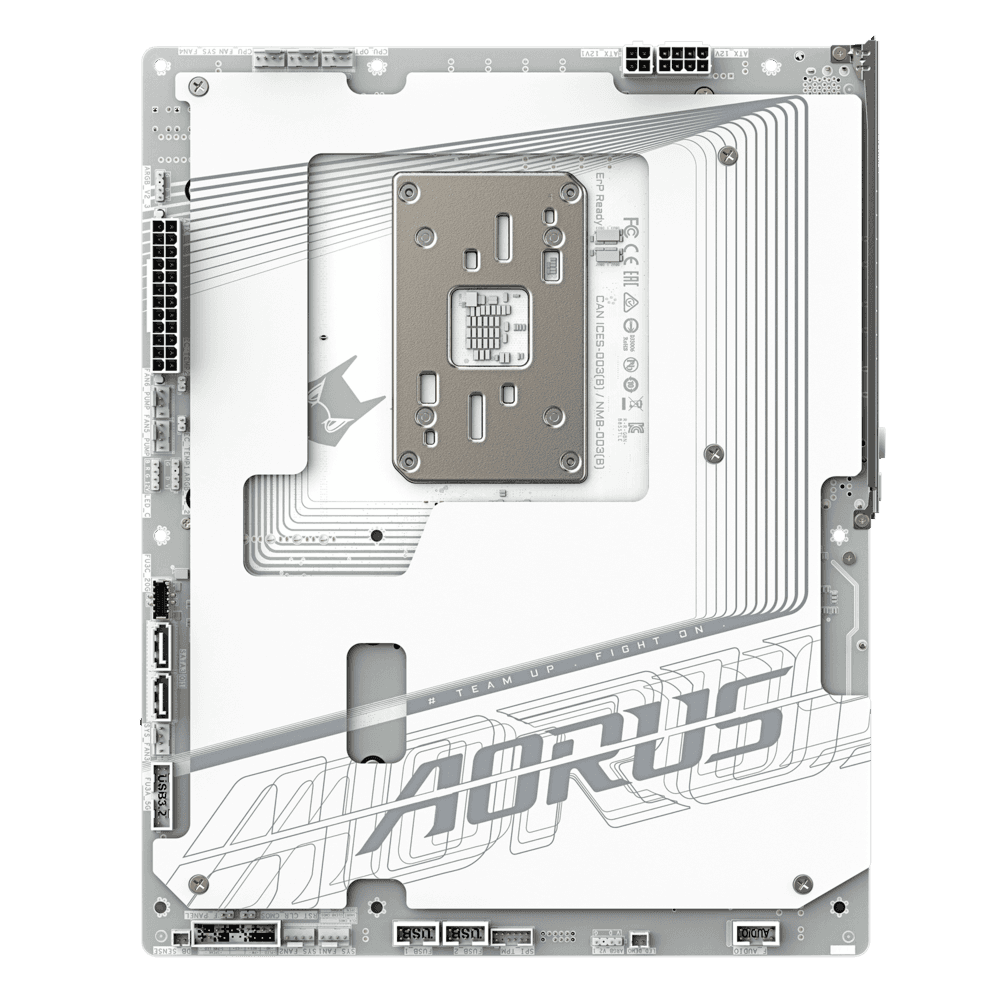

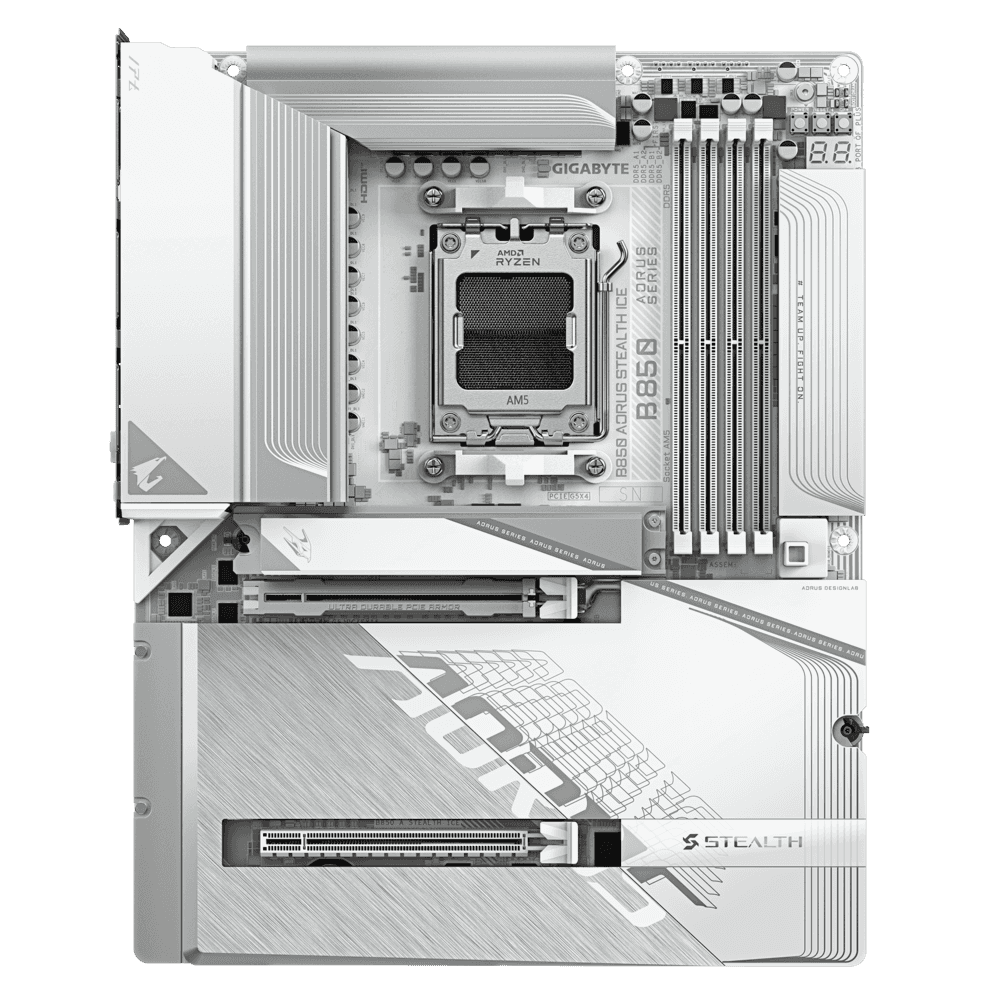

The B850 AORUS STEALTH ICE is designed for enthusiasts who demand perfection in cable management. By utilizing the AORUS Stealth architecture, almost all cables are plugged into the underside of the board, leaving the front completely unobstructed. When paired with a compatible "Stealth-ready" chassis, this creates a seamless, industrial look that highlights your CPU cooler and graphics card rather than tangled wires. The ICE designation ensures a fully white PCB and silver thermal armor for a premium, frosty appearance.
Elite Power and "X3D" Optimized Thermals
Built on the AMD B850 chipset, this board is engineered to support high-performance Ryzen chips, including the X3D series. It features a robust Digital VRM design that ensures stable voltage delivery during heavy gaming or AI workloads. The AORUS Thermal Armor covers the VRM and M.2 slots, utilizing high-conductivity thermal pads to dissipate heat efficiently, ensuring your PCIe 5.0 NVMe SSD maintains maximum read/write speeds without throttling.
Next-Gen Speed: WiFi 7, 5G LAN, and DDR5

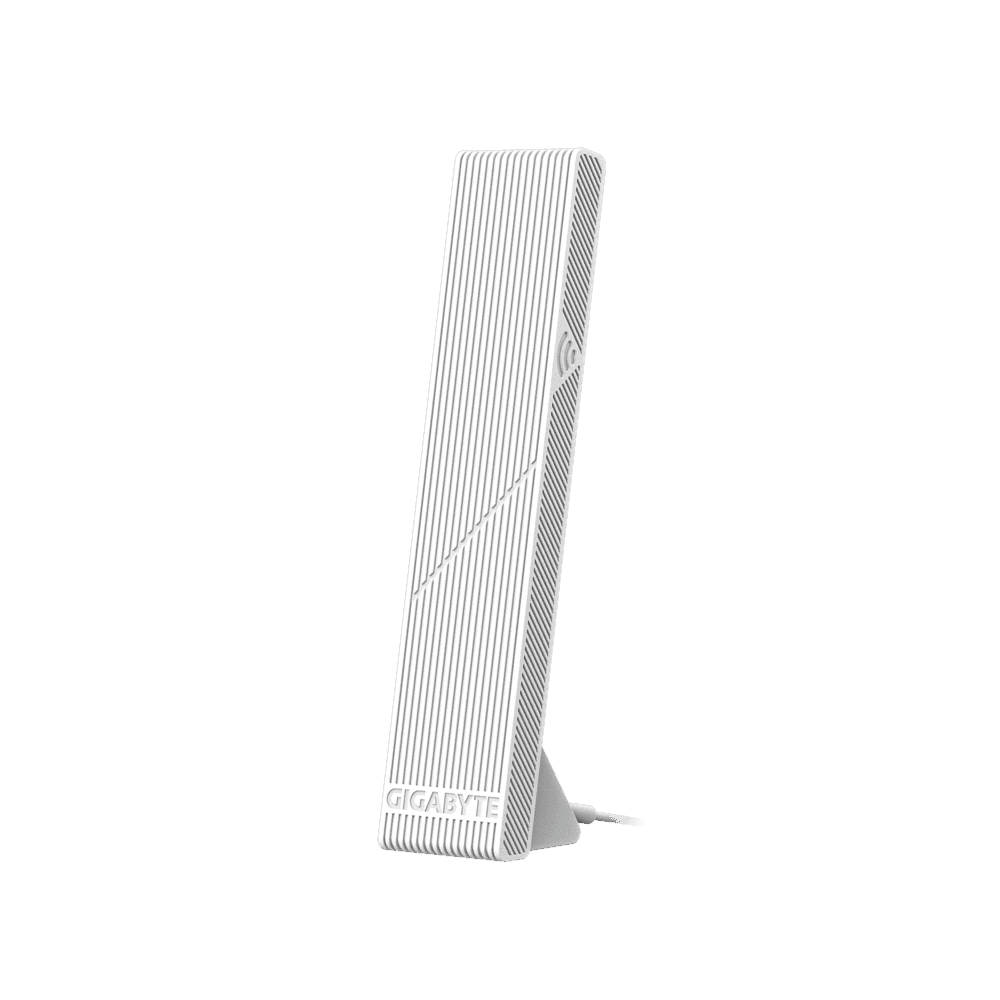

Connectivity is where this board truly leads. It features integrated WiFi 7 with a directional ultra-high gain antenna, delivering 320MHz bandwidth for staggering wireless speeds and ultra-low latency. For those who demand the fastest wired speeds, the 5GbE LAN port provides five times the bandwidth of standard Gigabit Ethernet. Supporting DDR5 memory with AMD EXPO™ profiles, it allows for extreme memory overclocking to maximize the performance of the Ryzen architecture.
DIY Friendly: EZ-Latch and Q-Flash Plus
Even with its hidden-connector design, the B850 AORUS STEALTH ICE is built for ease of use. It features the PCIe EZ-Latch Plus, allowing for the effortless removal of large, heavy GPUs. The M.2 EZ-Latch enables tool-less installation of storage drives. Furthermore, Q-Flash Plus lets you update your BIOS without the CPU, RAM, or GPU installed, making it incredibly easy to prep the board for the latest Ryzen processor launches.
Why the B850 AORUS STEALTH ICE Stands Out
Hidden Connector Design: All headers are moved to the back for a cable-free front view.
ICE Aesthetic: All-white PCB and silver-white heatsinks for a stunning theme.
Flagship Networking: Combined WiFi 7 and 5G LAN for the ultimate data pipeline.
PCIe 5.0 Support: Ready for the next generation of ultra-fast storage and GPUs.
Specification
| CPU | AMD Socket AM5, support for AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (Check GIGABYTE website for latest CPU support list) |
| Chipset | AMD B850 |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s 4 × DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) Dual channel memory architecture Non-ECC Un-buffered DIMM support Supports AMD EXPO™ & Intel XMP profiles |
| Onboard Graphics | Integrated AMD Radeon™ Graphics 1 × HDMI port (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) * Native HDMI 2.1 TMDS compatible ports * Graphics specs vary by CPU |
| Audio | Realtek® ALC1220 CODEC, HD Audio 2/4/5.1/7.1-channel (configurable via software) Supports DSD audio (back panel line out) Supports S/PDIF Out |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Realtek® Wi-Fi 7 RTL8922AE Supports 2.4/5/6 GHz bands, Wi-Fi a/b/g/n/ac/ax/be 160MHz Bluetooth 5.4 * Requires Windows 11 SV3 for Wi-Fi 7 * 6GHz band availability depends on region |
| Expansion Slots | CPU: 1 × PCIe x16 slot (PCIEX16) - Ryzen™ 9000/7000: PCIe 5.0 x16 - Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 Chipset: 1 × PCIe x16 slot (PCIEX4, PCIe 4.0 x4) * PCIEX4 shares bandwidth with M2D_SB |
| Storage | CPU: - 1 × M.2 (M2A_CPU) PCIe 5.0/4.0 x4/x2 - 1 × M.2 (M2B_CPU) PCIe 5.0/4.0 x4/x2 (*Disabled with Phoenix 2 CPUs) Chipset: - 2 × M.2 (M2C_SB, M2D_SB) PCIe 4.0 x4/x2 - 2 × SATA 6Gb/s RAID 0/1/5/10 for NVMe (RAID 5 only on Ryzen 9000) RAID 0/1 for SATA devices |
| USB | CPU: - 1 × USB Type-C® (USB 3.2 Gen 2, rear) - 4 × USB 3.2 Gen 1 (rear) - 4 × USB 2.0/1.1 (rear) Chipset: - 1 × USB Type-C® (USB 3.2 Gen 2x2, internal header) - 2 × USB 3.2 Gen 2 Type-A (rear, red) - 2 × USB 3.2 Gen 1 (internal) - 4 × USB 2.0/1.1 (internal) |
| Internal I/O | 1 × 24-pin ATX power 1 × 8-pin ATX 12V 1 × 4-pin ATX 12V 1 × CPU fan 1 × CPU fan/water pump 4 × system fan 2 × system fan/water pump 3 × ARGB Gen2 headers 1 × RGB LED header 4 × M.2 slots 2 × SATA 6Gb/s 1 × front panel 1 × front audio 1 × USB Type-C® (USB 3.2 Gen 2x2) 1 × USB 3.2 Gen 1 header 2 × USB 2.0/1.1 headers 1 × noise detection header 1 × TPM header 1 × Q-Flash Plus button 1 × power button 1 × reset button 1 × reset jumper 2 × temp sensor headers 1 × Clear CMOS jumper |

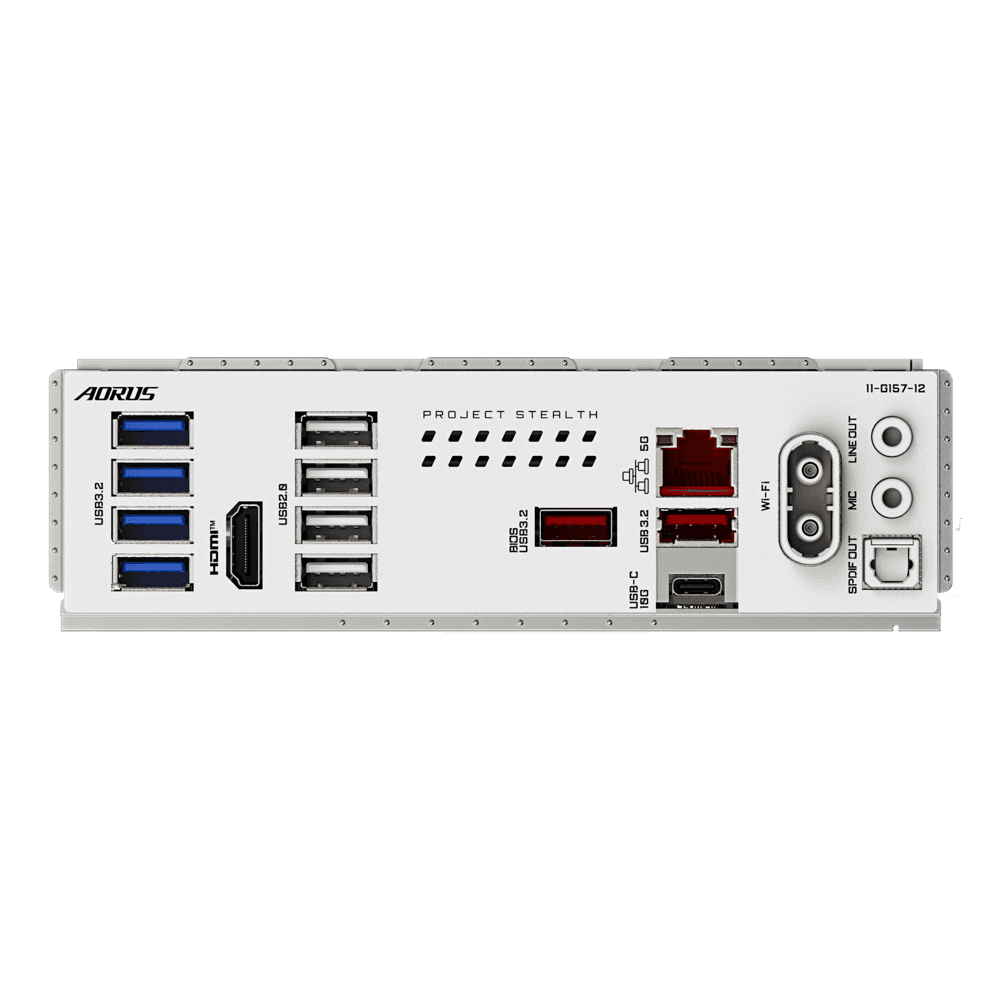

| Back Panel | 1 × HDMI port 2 × antenna connectors 1 × USB Type-C® (USB 3.2 Gen 2) 2 × USB 3.2 Gen 2 Type-A (red) 4 × USB 3.2 Gen 1 4 × USB 2.0/1.1 1 × RJ-45 (5GbE) 1 × Optical S/PDIF Out 2 × audio jacks |
| I/O Controller | iTE® Controller Chip |
| H/W Monitoring | Voltage/Temp/Fan speed detection Water cooling flow rate detection Fan fail warning & speed control |
| BIOS | 1 × 512 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX, 30.5 × 24.4 cm |
