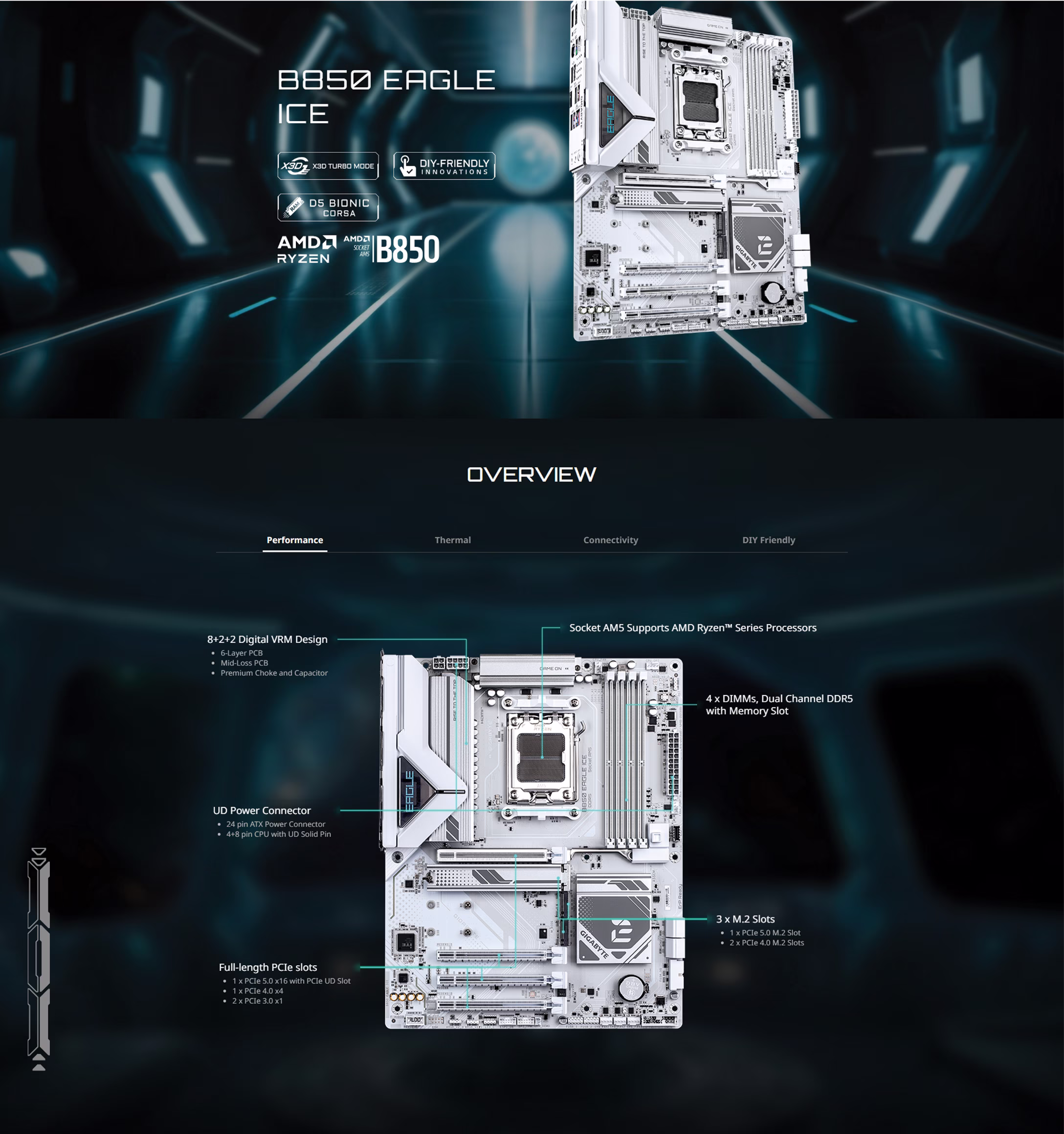

Gigabyte B850 EAGLE ICE AM5 ATX Motherboard, X3D Turbo Mode, 4x DIMMs AMD EXPO DDR5 OC up to 8200MT/s, 3x M.2 slots, including PCIe 5.0 x4, 2.5GbE LAN, UD Power Connector, White | 9MB85GLE-00-G10
Model :
SKU : MB-GIGABYTE B850 EAGLE IC
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| CPU | AMD Socket AM5, support for: AMD Ryzen??? 9000 Series Processors AMD Ryzen??? 8000 Series Processors AMD Ryzen??? 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B850 |
| Memory | Support for DDR5 8200(O.C.) / 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO???) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon??? Graphics support: 1 x DisplayPort, supporting up to 3840x2160@144 Hz (DisplayPort 1.4, HDR supported) 1 x HDMI port, supporting up to 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR supported) (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek?? Audio CODEC High Definition Audio 2/4/5.1/7.1-channel (Audio jack functionality configurable via audio software.) |
| LAN | Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot (PCIEX16) - AMD Ryzen??? 9000/7000 Series: PCIe 5.0 x16 - AMD Ryzen??? 8000 Phoenix 1: PCIe 4.0 x8 - AMD Ryzen??? 8000 Phoenix 2: PCIe 4.0 x4 (Supports graphics card or NVMe SSD) Chipset: 1 x PCIe 4.0 x4 slot (PCIEX4) 2 x PCIe 3.0 x1 slots (PCIEX1_1, PCIEX1_2) (PCIEX1_1 and PCIEX1_2 share bandwidth with SATA3 0 and SATA3 1) |
| Storage Interface | 1 x M.2 (M2A_CPU), type 22110/2280: - Ryzen??? 9000/7000: PCIe 5.0 x4/x2 - Ryzen??? 8000 Phoenix 1: PCIe 4.0 x4/x2 - Ryzen??? 8000 Phoenix 2: PCIe 4.0 x4/x2 1 x M.2 (M2B_CPU), type 22110/2280: - Ryzen??? 9000/7000: PCIe 4.0 x4/x2 - Ryzen??? 8000 Phoenix 1: PCIe 4.0 x4/x2 - Ryzen??? 8000 Phoenix 2: PCIe 4.0 x2 1 x M.2 (M2C_SB), Chipset, type 22110/2280 PCIe 4.0 x2 4 x SATA 6Gb/s connectors RAID 0, 1, 5 (only Ryzen??? 9000), 10 for NVMe SSDs RAID 0, 1, 10 for SATA storage |
| USB | CPU: 1 x USB Type-C?? (USB 3.2 Gen 1) 2 x USB 3.2 Gen 2 Type-A (red) Chipset: 1 x USB Type-C?? (USB 3.2 Gen 1, internal header) 4 x USB 3.2 Gen 1 (2 rear, 2 internal) 4 x USB 2.0/1.1 (rear) Chipset + Hub: 4 x USB 2.0/1.1 (internal headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 8-pin ATX 12V power 1 x 4-pin ATX 12V power 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED headers 1 x RGB LED strip header 3 x M.2 sockets 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C?? header (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x DisplayPort 1 x HDMI port 1 x Q-Flash Plus button 4 x USB 2.0/1.1 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A (red) 1 x USB Type-C?? (USB 3.2 Gen 1) 1 x RJ-45 port 2 x USB 3.2 Gen 1 3 x audio jacks |
| I/O Controller | iTE?? I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control (depends on fan model) |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) (Available apps may vary) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton?? Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
