Gigabyte B850 GAMING X WIFI6E AM5 ATX Motherboard, 4x DIMMs with AMD EXPO OC up to 8600MT/s, 3x M.2 slots, 2x PCIe 5.0 x4, Dual 10GbE LAN & Wi-Fi 7, Rear USB-C support up to 40Gb/s, Front USB-C 20Gb/s, HDMI | B850 AI TOP
Model :
SKU : MB-GIGABYTE B850 AI TOP
About this item
About this item
Description

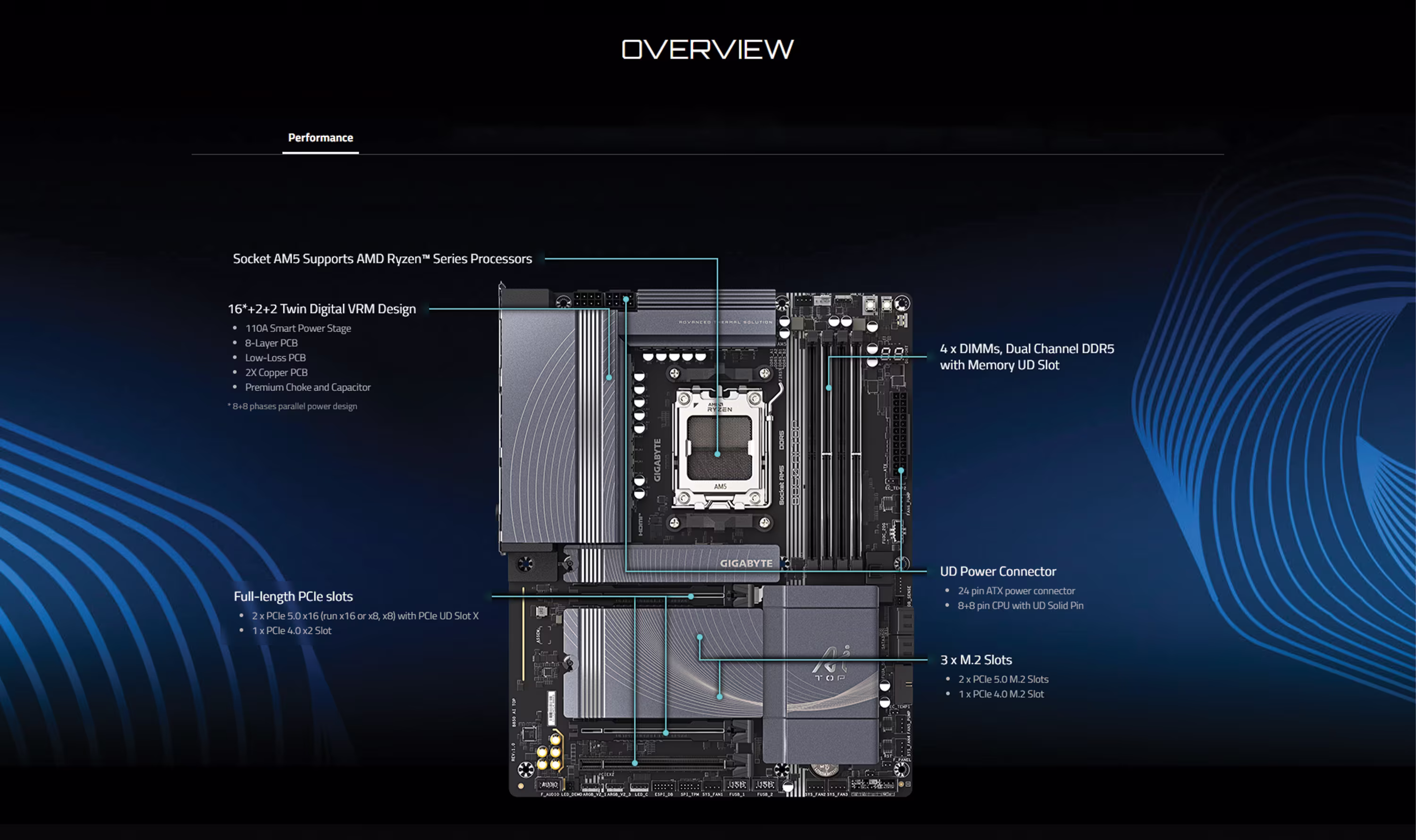

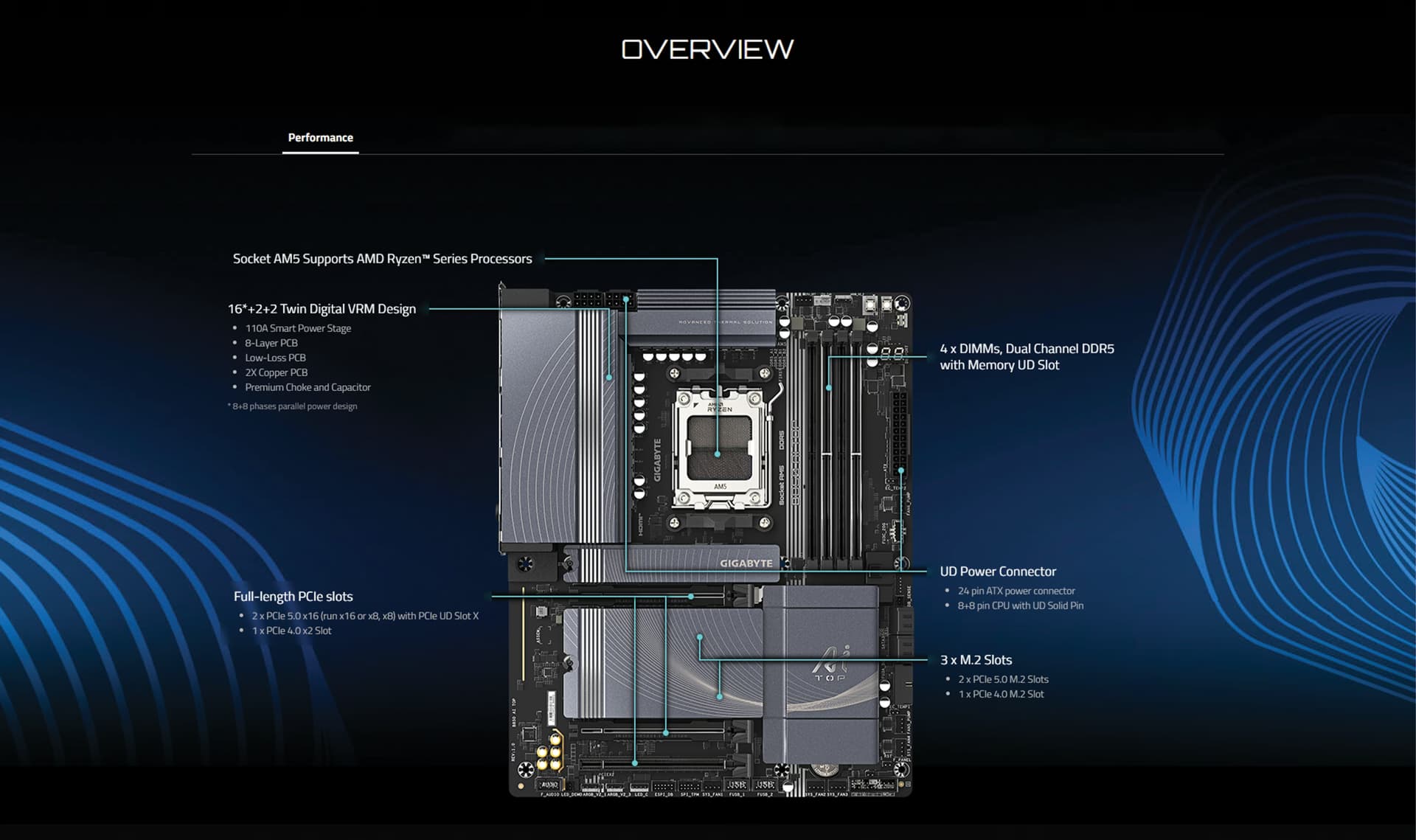

The GIGABYTE B850 AI TOP is more than just a gaming board; it is a dedicated workstation for the AI era. Designed to support the GIGABYTE AI TOP ecosystem, it allows enthusiasts and professionals to run and train AI models using their own hardware, ensuring data privacy and reducing cloud costs. By leveraging the B850 chipset, this motherboard provides a perfect balance of advanced features and efficiency for the latest AMD Ryzen™ processors.
AI TOP Utility: Simplified Local Training
The standout feature of this motherboard is its native compatibility with the AI TOP Utility. This software suite simplifies the complex process of local AI training, offering an intuitive dashboard to monitor hardware load and optimize VRAM/system memory usage. When paired with AI TOP-certified graphics cards and power supplies, the B850 AI TOP creates a cohesive environment for fine-tuning models like Llama 3 or Stable Diffusion right on your desktop.
Server-Grade Reliability & PCIe 5.0
AI workloads are notoriously intensive, often running at 100% load for days. GIGABYTE has equipped the B850 AI TOP with Ultra Durable™ components, including a robust VRM design and enhanced thermal guards to prevent throttling. It features a primary PCIe 5.0 x16 slot for the latest workstation GPUs and a PCIe 5.0 M.2 slot for ultra-fast NVMe storage, ensuring that data bottlenecks are a thing of the past.
Elite Networking and Connectivity
Data-heavy AI tasks require fast connections. The B850 AI TOP is equipped with WiFi 7, providing the highest wireless speeds and lowest latency available. For wired environments, it features Dual 2.5GbE LAN, allowing for redundant connections or dedicated lines to localized server clusters. The inclusion of high-speed USB ports ensures that external datasets can be transferred to the system at lightning speeds.
Why the GIGABYTE B850 AI TOP Stands Out
AI Ecosystem Ready: Specialized support for AI TOP hardware and software.
AM5 Longevity: Supports the newest Ryzen 9000 "Zen 5" architecture.
Enhanced Stability: Designed for long-duration, high-intensity computational tasks.
Next-Gen I/O: WiFi 7 and PCIe 5.0 support for future-proofed performance.
Specification
| CPU | AMD Socket AM5, support for: AMD Ryzen??? 9000 Series Processors, AMD Ryzen??? 8000 Series Processors, AMD Ryzen??? 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | Support for DDR5 8600(OC)/ 8400(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| Memory Slots | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Dual Channel Memory | Yes |
| ECC Support | Yes (for ECC and non-ECC Un-buffered DIMM memory modules) |
| Overclocking Support | Support for AMD EXtended Profiles for Overclocking (AMD EXPO???) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon??? Graphics support: 1 x USB Type-C?? port supporting USB 3.2 Gen 2 and DisplayPort video outputs with a maximum resolution of 3840x2160@144 Hz 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz |
| Audio | Realtek?? ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | 2 x Marvell?? AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek?? Wi-Fi 7 RTL8922AE - 802.11a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz frequency bands and Bluetooth 5.4 |
| Expansion Slots | 1 x PCIe x16 (PCIEX16) and 1 x PCIe x16 (PCIEX8) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), 1 x M.2 connector (M2B_CPU), 1 x M.2 connector (M2C_SB), 4 x SATA 6Gb/s connectors |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 support for NVMe and SATA storage devices |
| USB Ports | 3 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C?? with USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 4 x system fan headers, 3 x M.2 Socket 3 connectors |
| Back Panel Connectors | 1 x Q-Flash Plus button, 1 x HDMI, 1 x USB Type-C?? (DisplayPort), 3 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x RJ-45 ports, 1 x optical S/PDIF Out, 2 x audio jacks |
| I/O Controller | iTE?? I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Noise detection |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, Support for PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Smart Backup |
| Bundled Software | Norton?? Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
