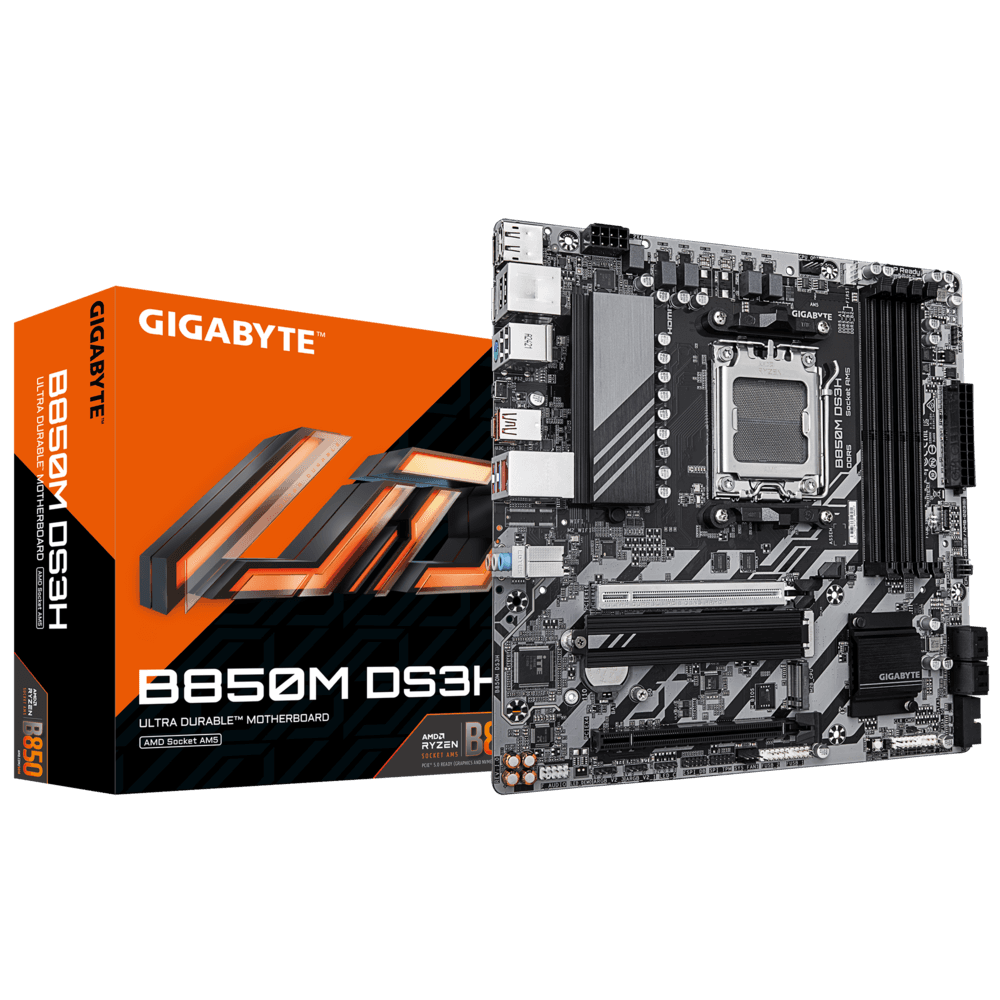

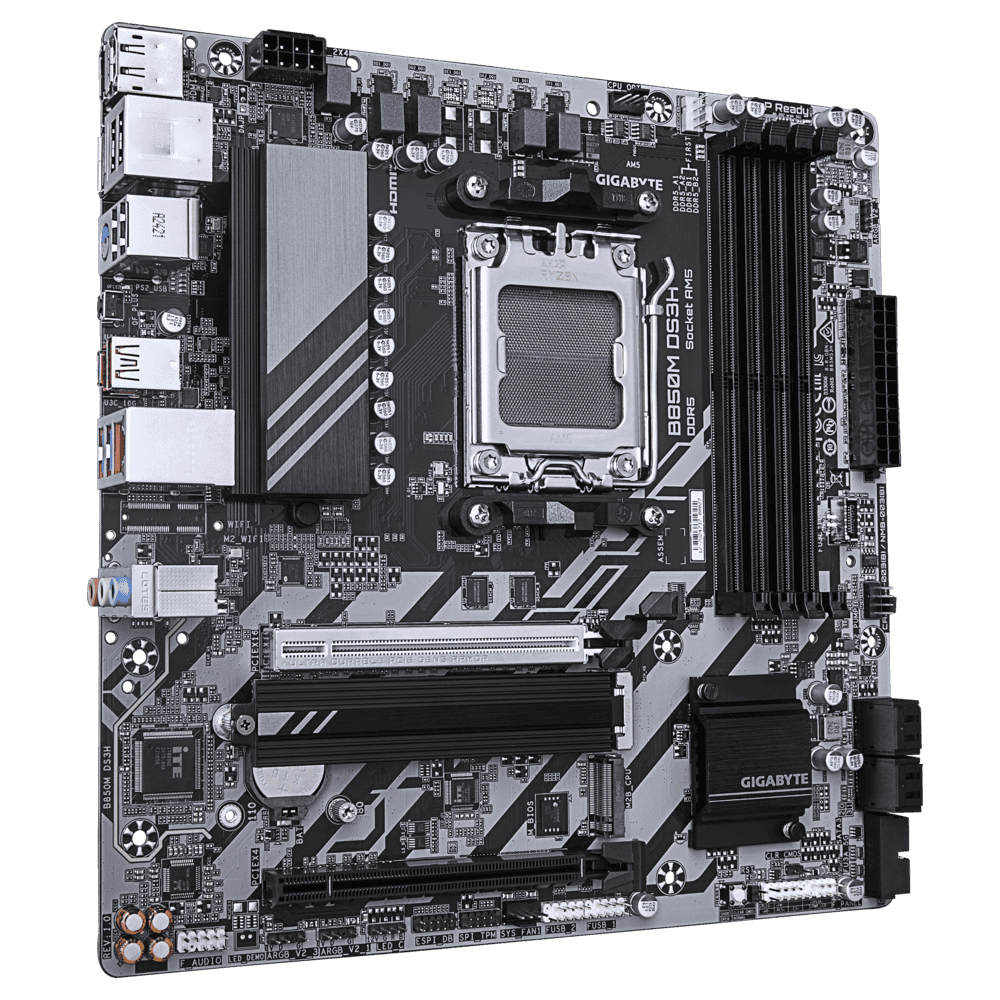

Gigabyte B850M DS3H AM5 Micro ATX DDR5 Motherboard, 4x DIMMs with AMD EXPO, 2x M.2 slots, 1x PCIe 5.0, EZ-Latch, 2.5GbE LAN | B850M DS3H

Gigabyte B850M DS3H AM5 Micro ATX DDR5 Motherboard, 4x DIMMs with AMD EXPO, 2x M.2 slots, 1x PCIe 5.0, EZ-Latch, 2.5GbE LAN | B850M DS3H

Motherboard Specifications CPU AMD Socket AM5, support for:

• AMD Ryzen??? 9000 Series Processors
• AMD Ryzen??? 8000 Series Processors
• AMD Ryzen??? 7000 Series Processors

(Visit GIGABYTE's website for the latest CPU support list.) Chipset AMD B850 Memory

• Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO???) and Extreme Memory Profile (XMP)

(The CPU and memory configuration may affect supported memory types, data rate, and number of DRAM modules. Refer to the "Memory Support List" on GIGABYTE's website.) Onboard Graphics Integrated Graphics Processor with AMD Radeon??? Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 and HDCP 2.3, HDR)
• 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 1.4)

(Graphics specifications may vary depending on CPU support. Supports up to triple-display at the same time.) Audio Realtek?? Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel audio

• Audio jack functionality can be configured via audio software.
• 7.1-channel audio requires access to the audio software for settings.

LAN Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU (supports PCIe 5.0 x16 mode with AMD Ryzen??? 9000/7000 Series Processors)
• Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
• Supports graphics card or NVMe SSD in the PCIEX16 slot.

Storage Interface

• 1 x M.2 connector (M2A_CPU), supporting PCIe 5.0 x4/x2 SSDs with AMD Ryzen??? 9000/7000 Series Processors
• 1 x M.2 connector (M2B_CPU), supporting PCIe 4.0 x4/x2 SSDs with AMD Ryzen??? 8000 Series-Phoenix 1 Processors
• 4 x SATA 6Gb/s connectors
• RAID support for NVMe and SATA storage devices

USB

• 1 x USB Type-C?? port on the back panel (USB 3.2 Gen 2)
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 4 x USB 2.0/1.1 ports on the back panel
• 4 x USB 3.2 Gen 1 ports available through internal USB headers

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x USB Type-C?? header, with USB 3.2 Gen 2 support

Back Panel Connectors

• 1 x HDMI port
• 2 x DisplayPorts
• 1 x Q-Flash Plus button
• 1 x PS/2 keyboard/mouse port
• 1 x USB 3.2 Gen 2 Type-A port
• 1 x USB Type-C?? port
• 1 x RJ-45 port
• 3 x audio jacks

BIOS 1 x 256 Mbit flash, licensed AMI UEFI BIOS Operating System Support for Windows 10 64-bit and Windows 11 64-bit Form Factor Micro ATX Form Factor (24.4cm x 24.4cm)
