Gigabyte B850M DS3H ICE Micro ATX AM5 Motherboard, 4 x DIMMs Dual Channel DDR5, 2 x M.2 Slots, Full-length PCIe slots, X3D Turbo Mode, 2.5GbE LAN, 8x +2+2 Twin Digital VRM Design, White | B850M DS3H ICE
Model :
SKU : MB-GIGABYTE B850M DS3H IC
About this item
About this item
Description

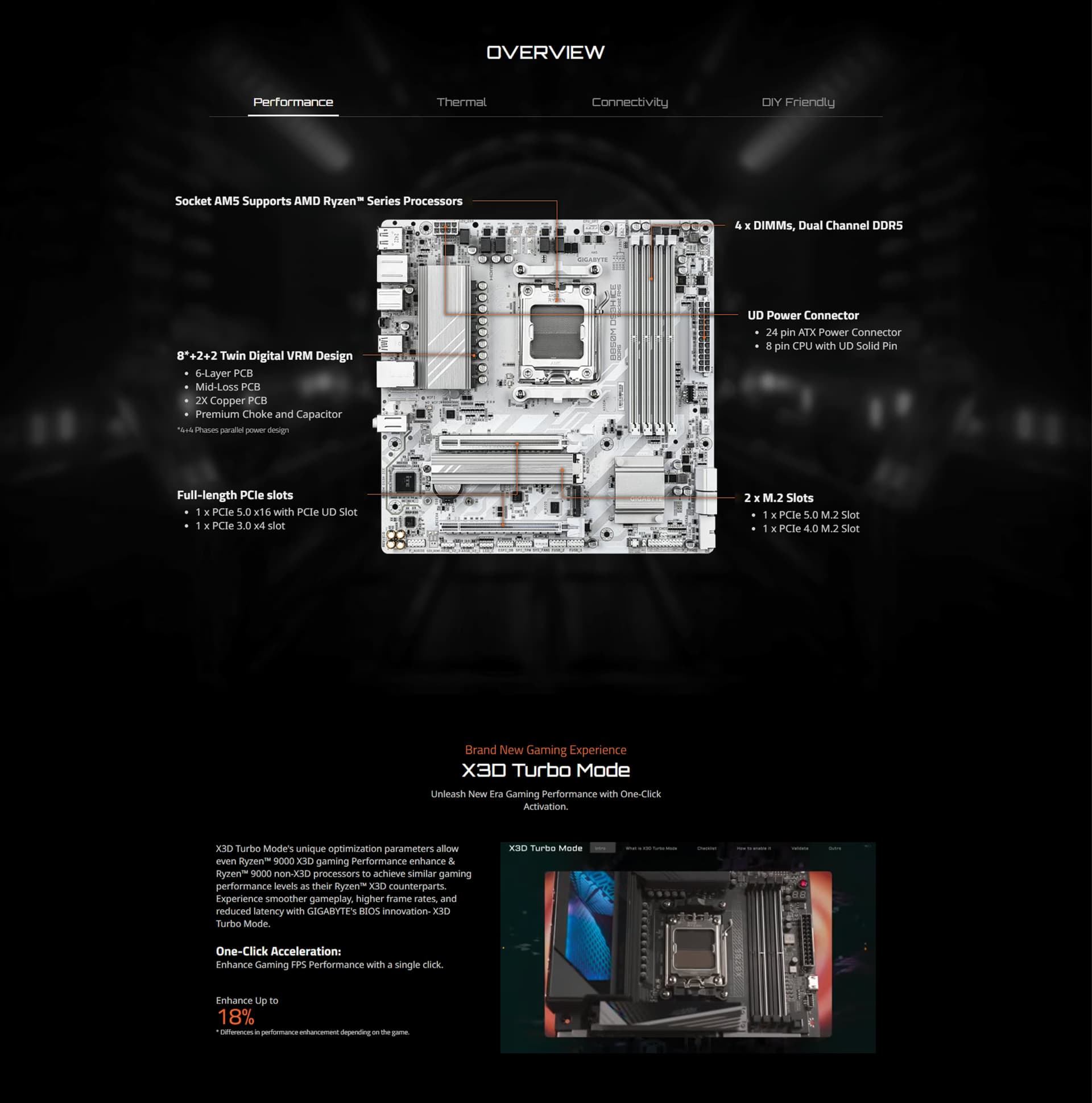

The B850M DS3H ICE is engineered for users who want the latest "Zen 5" technology without sacrificing aesthetics. The "ICE" edition stands out in a crowded market by offering a fully white PCB—a rarity that provides a premium look for modern, light-themed PC builds. Despite its sleek appearance, it is a powerhouse "AI Ready" motherboard, designed to handle the high data throughput required for modern AI applications, gaming, and professional content creation.
Ultra Durable™ Power & Thermal Design
GIGABYTE’s Ultra Durable™ philosophy ensures this board is built to last. It features a robust Digital VRM design to provide stable power to multi-core Ryzen CPUs. Thermal performance is maximized through an extended MOSFET heatsink and GIGABYTE’s M.2 Thermal Guard, which dissipates heat from high-speed NVMe SSDs to prevent thermal throttling. The 6-layer PCB design further enhances signal integrity and heat dissipation, ensuring system stability under sustained heavy workloads.
Blistering Speed: PCIe 5.0 and DDR5
Experience the pinnacle of storage performance with a dedicated PCIe 5.0 M.2 slot, supporting the latest Gen5 SSDs with speeds up to 128Gb/s. The board also features four DIMM slots supporting DDR5 memory, allowing you to reach extreme frequencies through AMD EXPO™ technology. Whether you are gaming at high refresh rates or rendering complex 3D scenes, the massive bandwidth of the B850 platform ensures your system never hits a bottleneck.
Modern Connectivity & EZ-DIY Features
The B850M DS3H ICE is equipped with 2.5GbE LAN, providing a low-latency, high-bandwidth connection that is 2.5x faster than standard Gigabit Ethernet. GIGABYTE’s EZ-DIY innovations make building a breeze, featuring the PCIe EZ-Latch for easy GPU removal and the M.2 EZ-Latch for tool-less storage installation. Additionally, Smart Fan 6 provides multiple temperature sensors and hybrid fan headers to keep your entire system running cool and quiet.
Why the GIGABYTE B850M DS3H ICE Stands Out
Stunning ICE Aesthetic: Unique all-white PCB and silver heatsinks for themed builds.
AM5 Ryzen 9000 Ready: Optimized for the latest "Zen 5" architecture.
PCIe 5.0 Storage: Future-proofed M.2 slot for the world's fastest NVMe SSDs.
Compact & Powerful: High-end features in a versatile Micro-ATX size.
Specification
| CPU Support | AMD Socket AM5, supports Ryzen 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B850 |
| Memory Support | DDR5 8200(OC) to 4400 MT/s 4 x DDR5 DIMM sockets (up to 256 GB) Dual channel architecture Non-ECC Un-buffered DIMMs, AMD EXPO & XMP support |
| Onboard Graphics | Integrated AMD Radeon Graphics 1 x HDMI (4096x2160@60Hz, HDMI 2.1) 2 x DisplayPort (3840x2160@144Hz, DP 1.4) Supports triple-display output |
| Audio | Realtek Audio CODEC, 2/4/5.1/7.1-channel HD Audio |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe x16 (CPU): - Ryzen 9000/7000: PCIe 5.0 x16 - Ryzen 8000 (Phoenix 1): PCIe 4.0 x8 - Ryzen 8000 (Phoenix 2): PCIe 4.0 x4 1 x PCIe x16 (chipset): PCIe 3.0 x4 |
| Storage Interface | 1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 (depends on CPU) 1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2 (depends on CPU) 4 x SATA 6Gb/s connectors NVMe RAID 0/1/5/10 (RAID 5 with Ryzen 9000 only) SATA RAID 0/1/10 |
| USB Ports | Rear Panel: - 1 x USB 3.2 Gen 2 Type-C - 1 x USB 3.2 Gen 2 Type-A (red) - 2 x USB 3.2 Gen 1 - 4 x USB 2.0/1.1 Internal: - 1 x USB 3.2 Gen 2 Type-C header - 2 x USB 3.2 Gen 1 - 4 x USB 2.0/1.1 |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V 1 x CPU fan, 1 x CPU/pump header 1 x system fan, 1 x system/pump header 3 x ARGB Gen2, 1 x RGB LED header 4 x SATA 6Gb/s 2 x M.2 Socket 3 Front panel, front audio, USB headers (Type-C, 3.2 Gen 1, 2.0) TPM header, reset button, reset jumper, Clear CMOS jumper |
| Back Panel Connectors | 1 x HDMI, 2 x DisplayPort 1 x Q-Flash Plus button 1 x PS/2 port 1 x USB 3.2 Gen 2 Type-A (red) 1 x USB 3.2 Gen 2 Type-C 2 x USB 3.2 Gen 1, 4 x USB 2.0 1 x RJ-45, 3 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| Hardware Monitoring | Voltage, temperature, fan speed, water cooling flow Fan fail warning, speed control (based on fan/pump compatibility) |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton Internet Security (OEM), LAN bandwidth software |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
