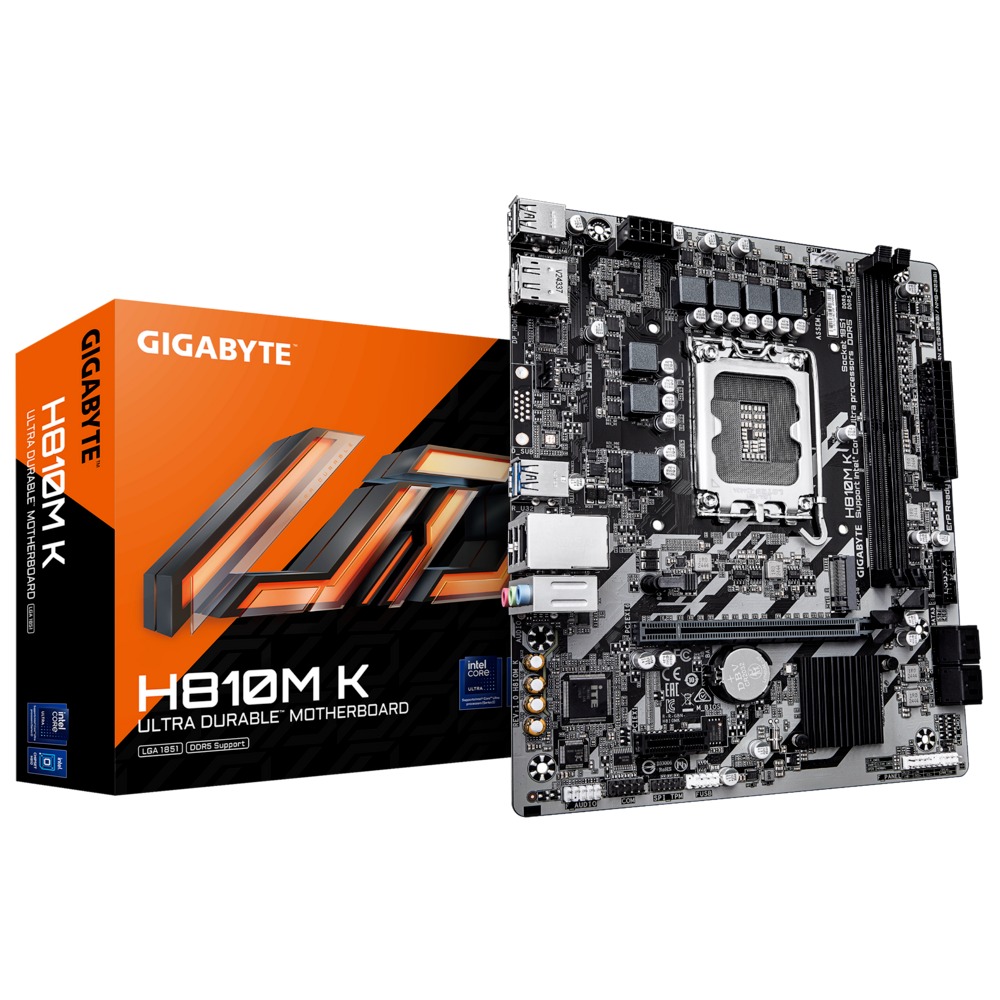

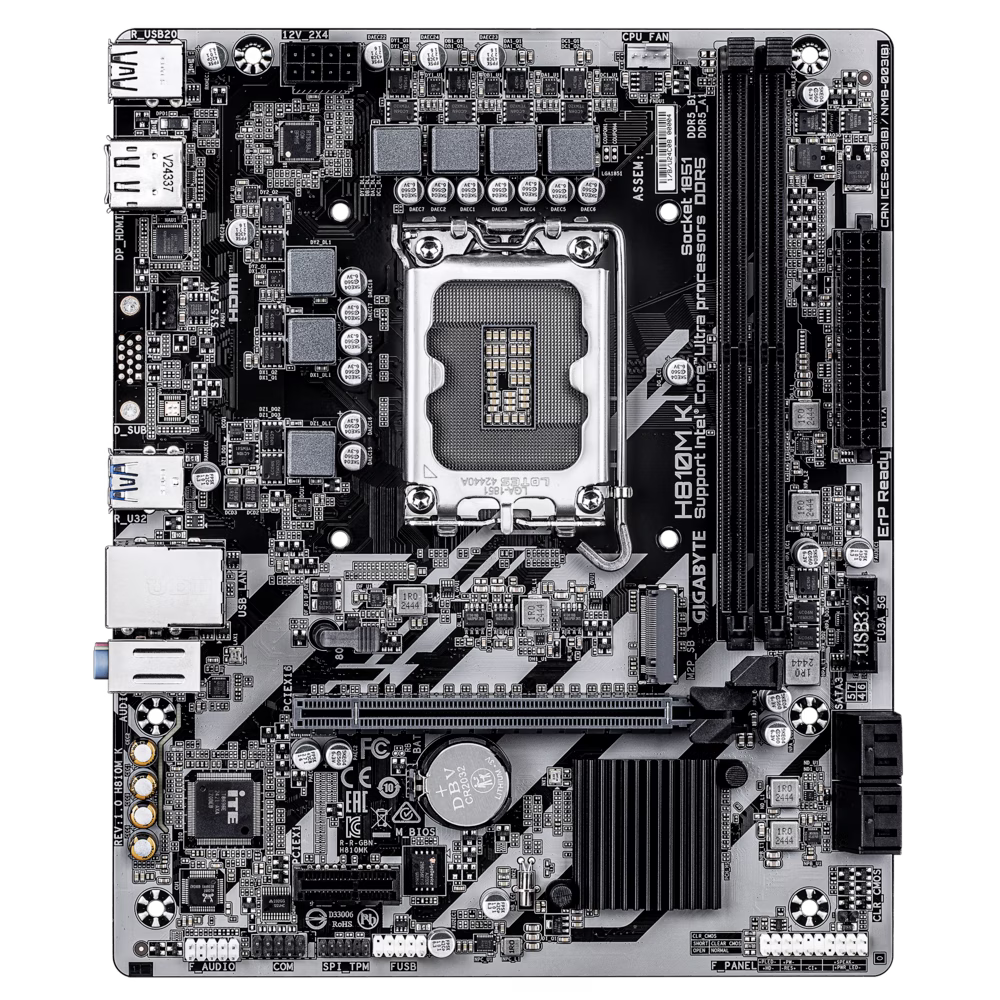

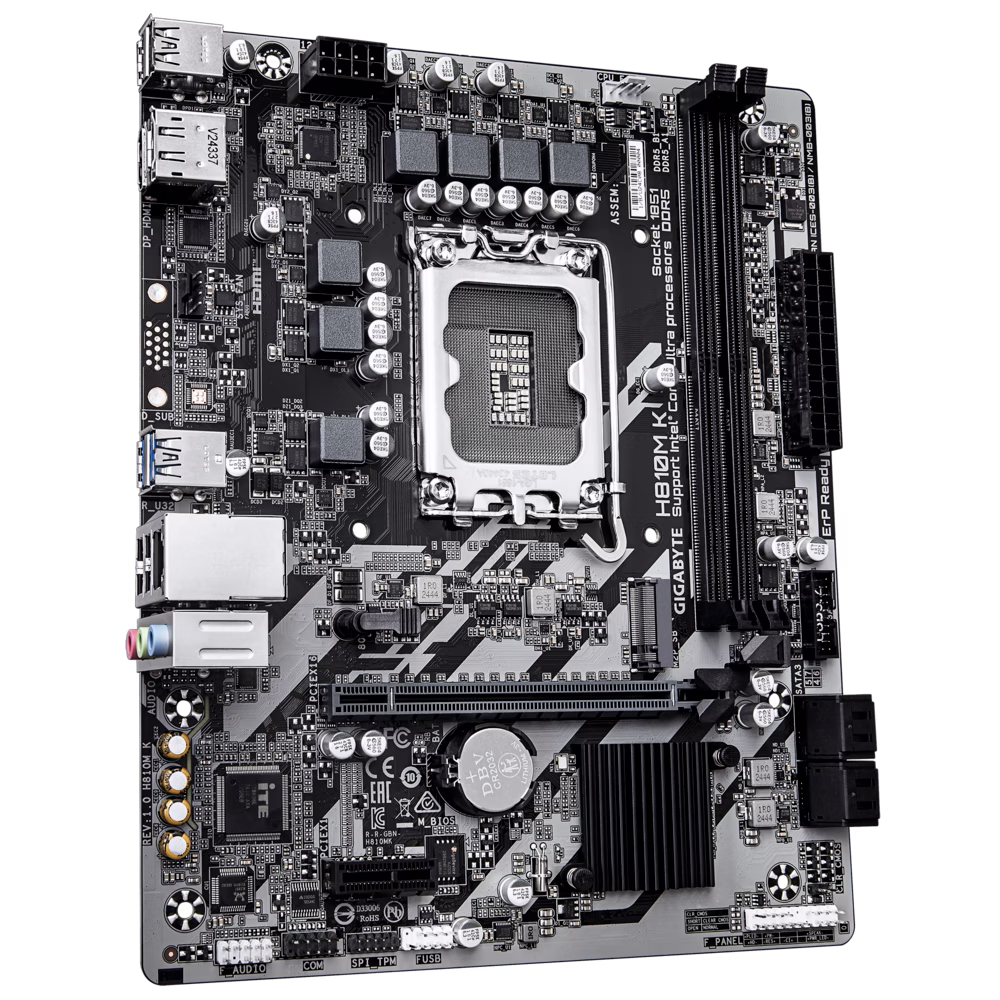

Gigabyte H810M K LGA1851 mATX Motherboard, Supports Intel Core Ultra Processors, PCIe 4.0 M.2 Slot, PCIe 4.0 x16 slot, 2x DIMMs, Dual Channel DDR5, 2 x DIMMs, GbE LAN | 9MH810MK-00-G10
Model :
SKU : MB-GIGABYTE H810M K
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Specification
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel® H810 Express Chipset |
| Memory | Support for DDR5 6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to the "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor - Intel® HD Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz (DisplayPort 2.1) - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3) (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * Audio jack functionality can be reconfigured using audio software for 7.1-channel setup. |
| LAN | Realtek® GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Storage Interface | Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280, PCIe 4.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: - 4 x USB 3.2 Gen 1 ports (2 rear, 2 internal header) - 6 x USB 2.0/1.1 ports (4 rear, 2 internal header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x DisplayPort 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 LAN port 3 x audio jacks * Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Fan speed control depends on the fan used. |
| BIOS | 1 x 256 Mbit flash Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications and supported functions may vary by model. Support for Q-Flash Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel® NPU driver is only supported on Windows 11. |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
