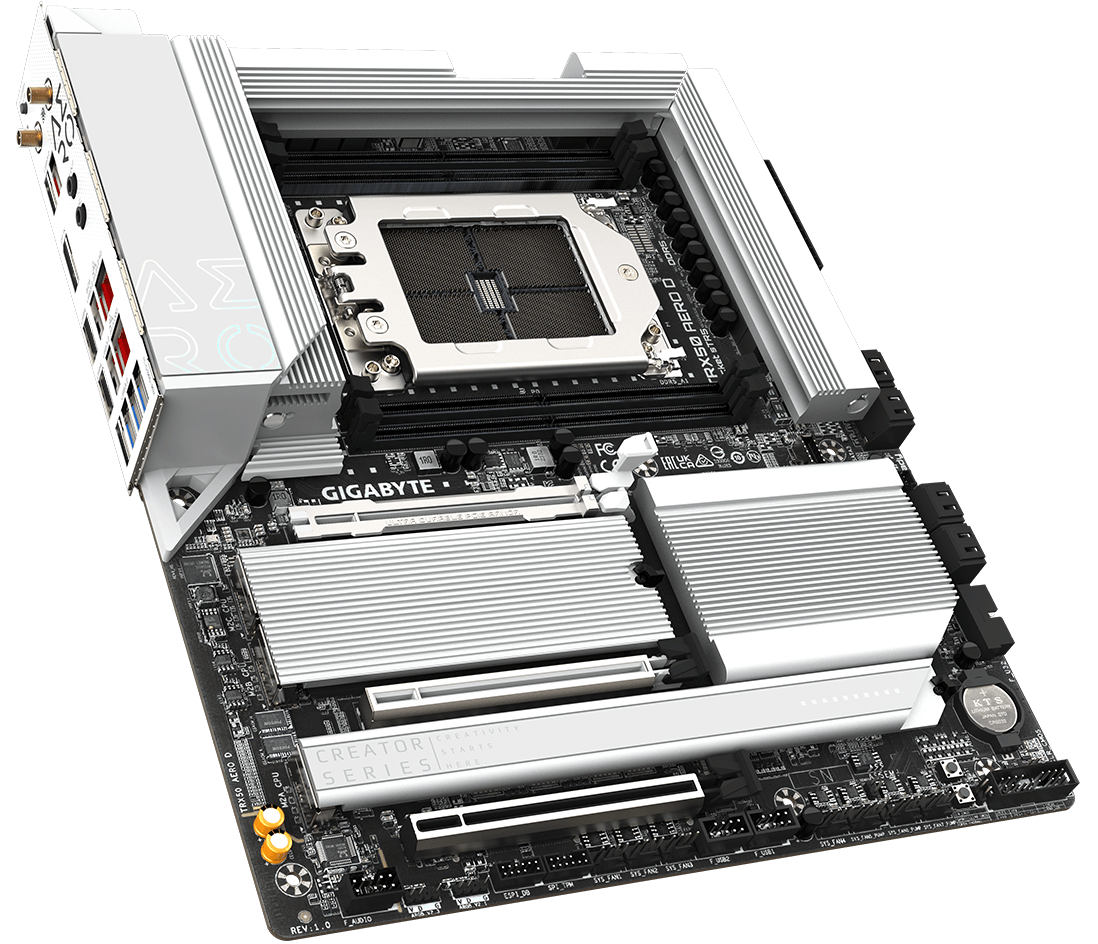

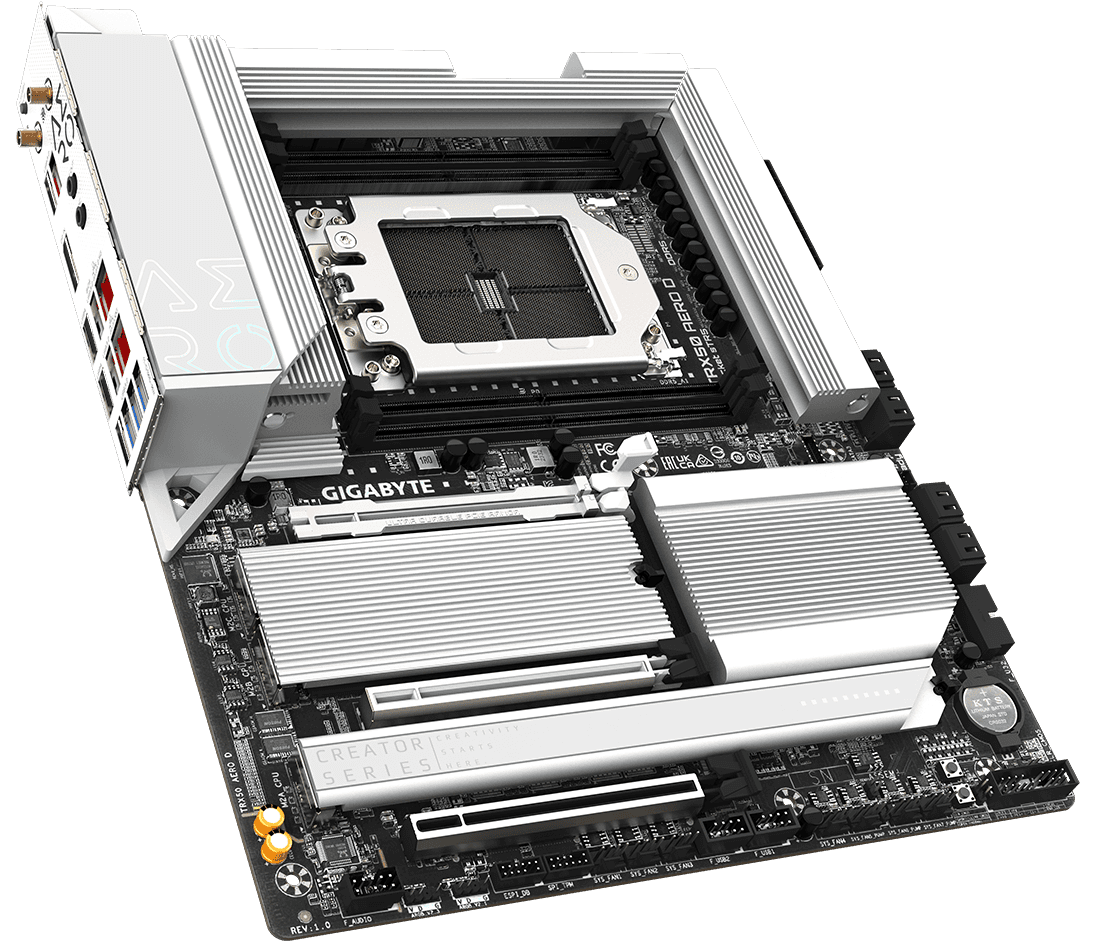

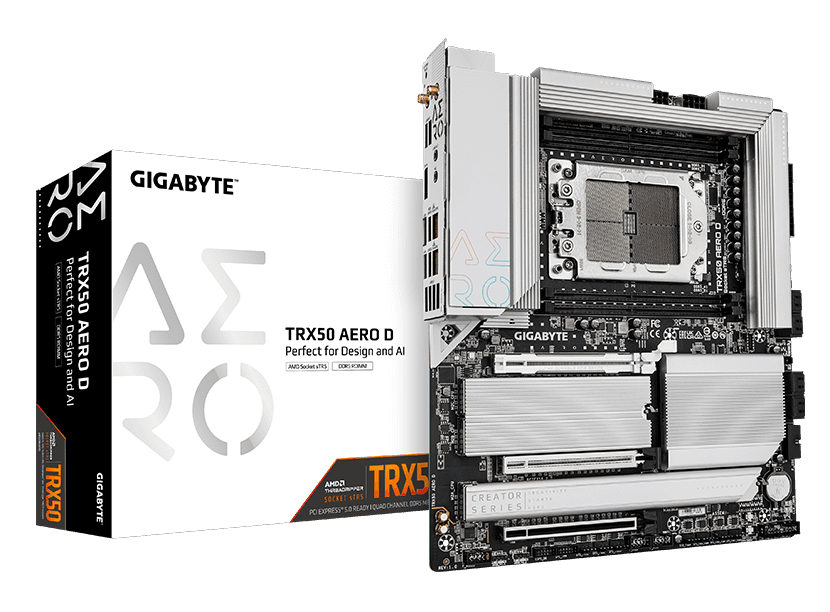

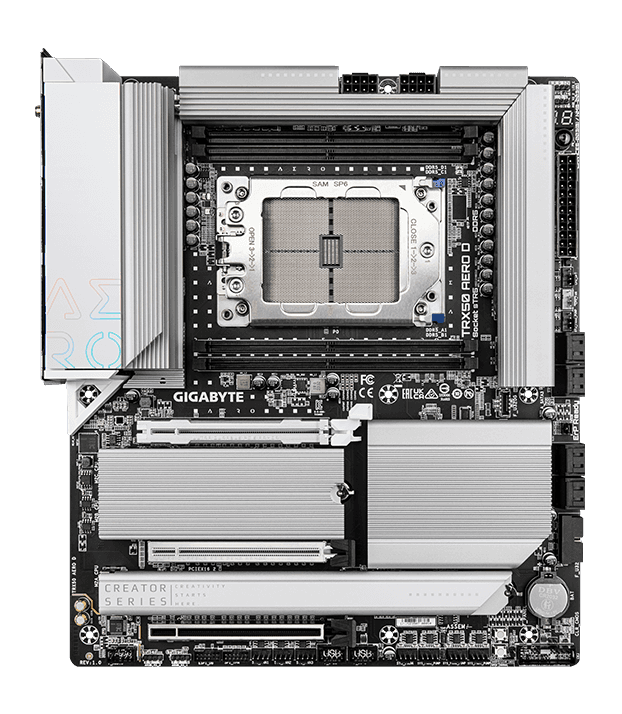

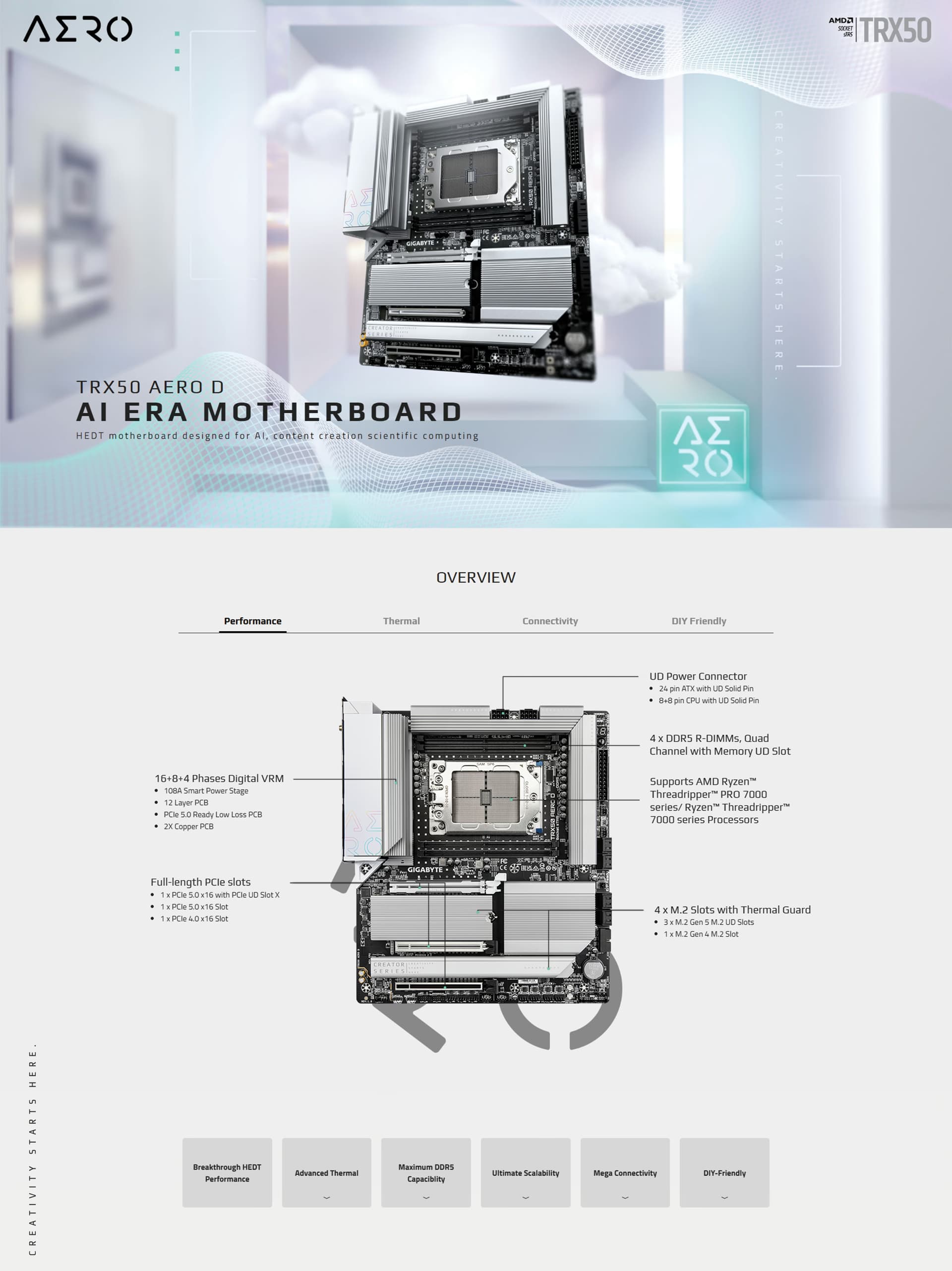

Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard, AMD TRX50 Chipset, 4x DDR5 DIMM 1TB Max, PCIe 5.0 / 2x PCIe x16, 4xM.2, USB 3.2 / USB4 Type-C, Wi-Fi 7, Marvell 10GbE, White | TRX50 AERO D

CPU

• AMD Socket sTR5, support for:
• AMD Ryzen??? Threadripper??? PRO 7000 processors / AMD Ryzen??? Threadripper??? 7000 Series processors
• (Go to GIGABYTE's website for the latest CPU support list.)

Chipset

• AMD TRX50

Memory

• Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
• 4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
• Quad channel memory architecture
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO???) and Extreme Memory Profile (XMP) memory modules
• (Refer to "Memory Support List" on GIGABYTE's website for more information.)

Audio

• Realtek?? ALC4080 CODEC (rear panel audio)
• - Support for DTS:X?? Ultra
• - High Definition Audio
• - 2-channel
• Realtek?? ALC897 CODEC (front panel audio)

LAN

• Marvell?? AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
• Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)

Wireless Communication module

• Qualcomm?? Wi-Fi 7 QCNCM865
• - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• - BLUETOOTH 5.3
• - Support for 11be 320MHz wireless standard
• (Actual data rate may vary depending on environment and equipment.)

Expansion Slots

• CPU:
• - 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
• - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)

Storage Interface

• CPU:
• - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
• - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
• - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)
• CPU+Chipset:
• - 8 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU:
• - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• Chipset+Intel?? JHL8540 USB4?? controller:
• - 2 x USB4?? USB Type-C?? ports on the back panel
• Chipset:
• - 1 x USB Type-C?? port with USB 3.2 Gen 2x2 support, available through the internal USB header
• - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• - 2 x USB 3.2 Gen 1 ports available through the internal USB header
• CPU+USB 3.2 Gen 1 Hub:
• - 4 x USB 3.2 Gen 1 ports on the back panel
• Chipset+USB 2.0 Hub:
• - 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 4 x system fan/water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 8 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C?? header, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x power button
• 1 x Clear CMOS button
• 1 x reset button
• 1 x reset jumper
• 2 x temperature sensor headers
• 1 x Clear CMOS jumper

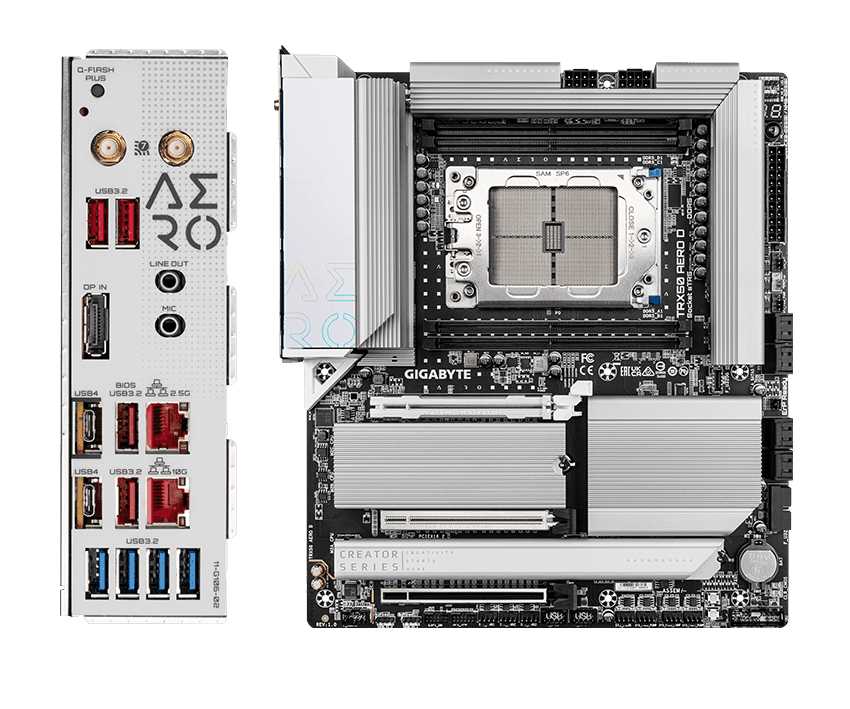

Back Panel Connectors

• 1 x Q-Flash Plus button
• 2 x SMA antenna connectors (2T2R)
• 1 x DisplayPort In port
• 1 x USB4?? USB Type-C?? port (DisplayPort)
• 1 x USB4?? USB Type-C?? port
• 4 x USB 3.2 Gen 2 Type-A ports (red)
• 4 x USB 3.2 Gen 1 ports
• 2 x RJ-45 ports
• 2 x audio jacks

I/O Controller

• iTE?? I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• Noise detection

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus

Bundled Software

• Norton?? Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit

Form Factor

• E-ATX Form Factor; 30.5cm x 26.4cm
