Support PCIe Gen 5.0 graphics card
The UD1300GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
Support Intel ATX 3.0 standard
The UD1300GM PG5 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
COMPACT DESIGN
Leveraging the engineers' excellent design capabilities, cooling technology and higher-quality materials, GIGABYTE has reduced the length of the power supply to an amazing 160mm compared to traditional design. It can be easily installed in any chassis without space constraints.
| Model | GP-UD1300GM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1300W |
| Dimension | 150 x 160 x 86 mm |
| Fan Type | 140mm double ball bearing fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |

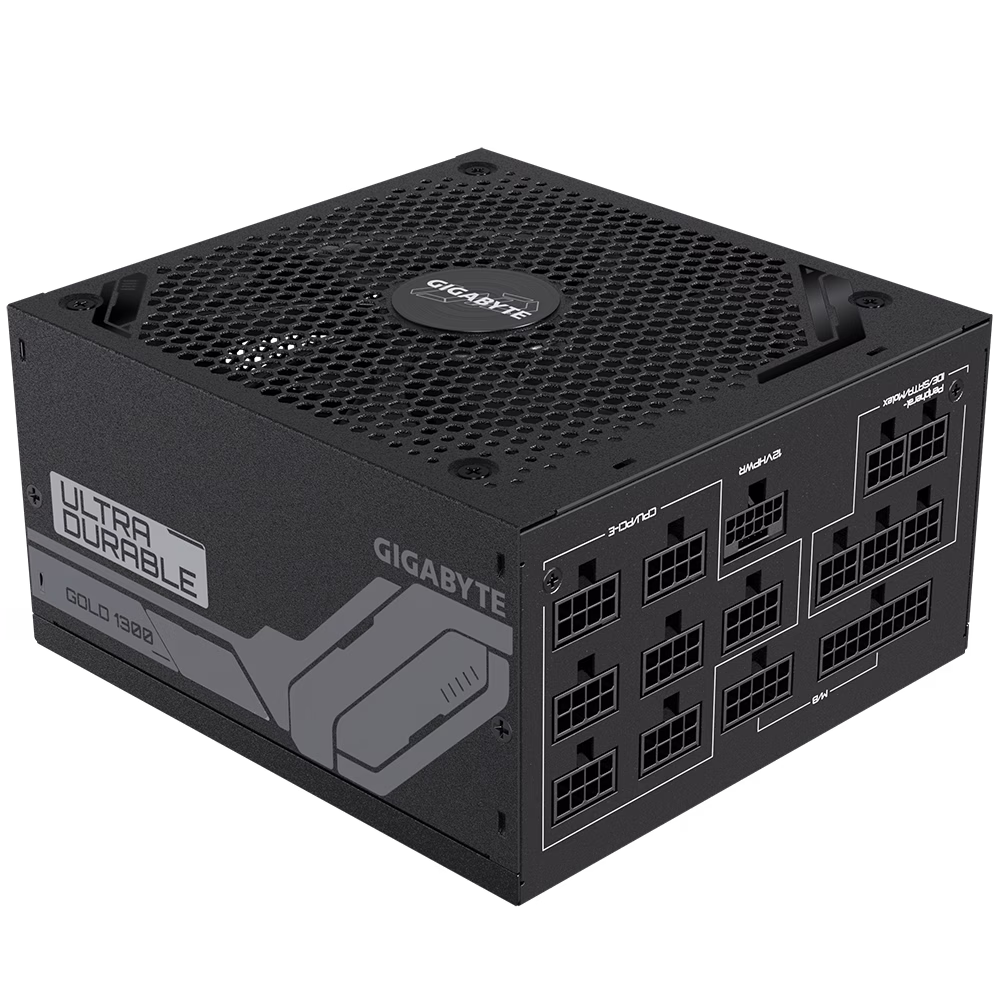

| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
