Model :
SKU : MB-GIG X870 AORUS ELI WIF
AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click：M.2 heatsinks with screwless design
Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
| Component | Specification |
|---|---|
| CPU | AMD Socket AM5, supports Ryzen 9000/8000/7000 Series |
| Chipset | AMD X870 |
| Memory | 4 x DDR5 DIMM (up to 256GB), supports DDR5 up to 8200 MT/s (OC), Dual Channel, EXPO/XMP |
| Onboard Graphics | Integrated AMD Radeon Graphics 2 x USB4 USB Type-C (3840x2160@240Hz) 1 x HDMI 2.1 (4096x2160@60Hz) 1 x Front HDMI 1.4 (1920x1080@30Hz) Quad display support |
| Audio | Realtek ALC1220 CODEC, High Definition Audio, 7.1 channel, S/PDIF Out |
| LAN | Realtek 2.5GbE |
| Wireless | Wi-Fi 7 (MT7925 or RTL8922AE), Bluetooth 5.4 |
| Expansion Slots | 1 x PCIe x16 (CPU) - PCIe 5.0 1 x PCIe x16 (Chipset) - PCIe 4.0 x4 1 x PCIe x16 (Chipset) - PCIe 3.0 x2 |
| Storage | 1 x M.2 PCIe 5.0 (M2A_CPU) 2 x M.2 PCIe 5.0 (M2B/M2C_CPU) 1 x M.2 PCIe 4.0 (M2D_SB) 4 x SATA 6Gb/s (RAID 0, 1, 5*, 10) |
| USB Ports | 2 x USB4 Type-C 4 x USB 3.2 Gen 1 (rear) 2 x USB 3.2 Gen 2 Type-A (rear) 1 x USB 3.2 Gen 2x2 Type-C (internal) 4 x USB 2.0 (rear) 4 x USB 2.0 (internal) |
| Internal I/O | ATX power, CPU fan headers, RGB headers, M.2 sockets, SATA, USB headers, TPM, HDMI, fan/water cooling headers |

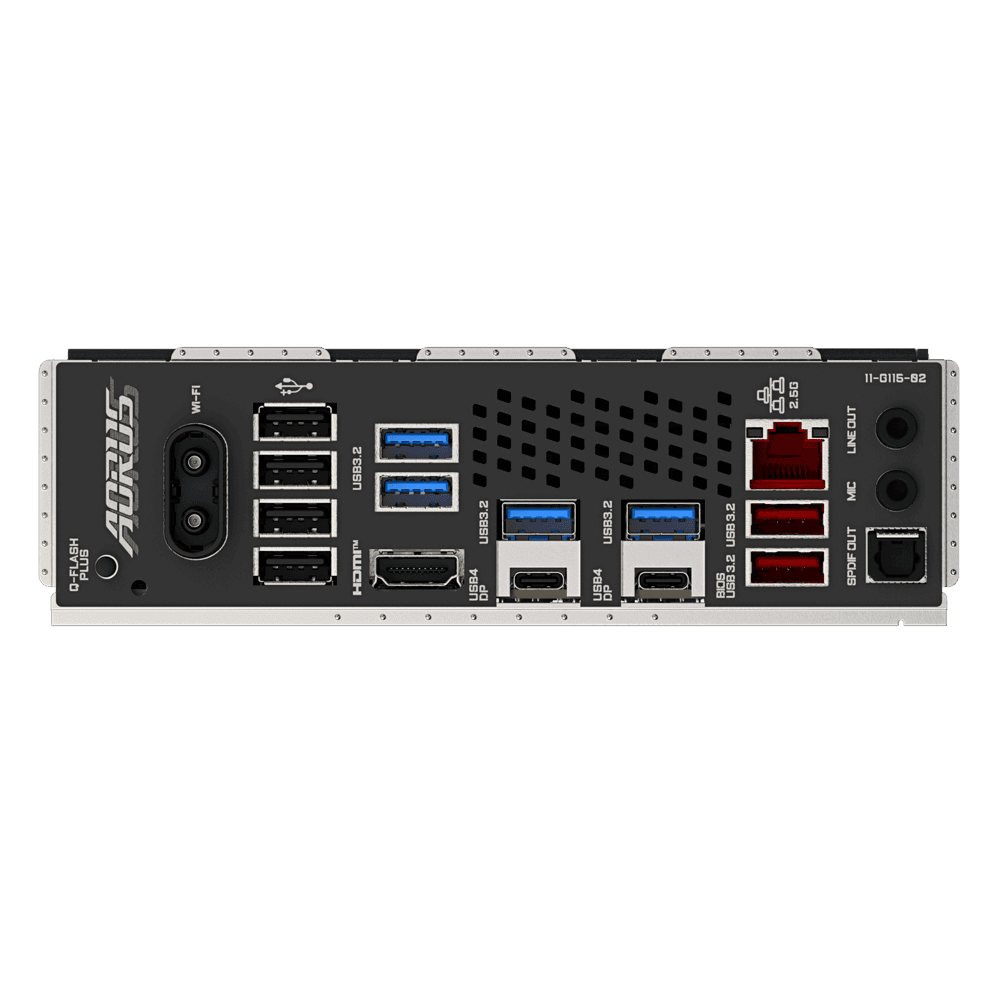

| Back Panel I/O | Q-Flash Plus button, HDMI, USB4, USB 3.2/2.0, RJ-45, Audio jacks, Optical S/PDIF, Wi-Fi antenna |
| I/O Controller | iTE I/O Controller |
| Monitoring | Voltage, Temp, Fan/Water flow rate, Noise detection |
| BIOS | 256 Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup |
| Software | GIGABYTE Control Center, Norton Internet Security, LAN bandwidth manager |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX, 30.5 x 24.4 cm |
