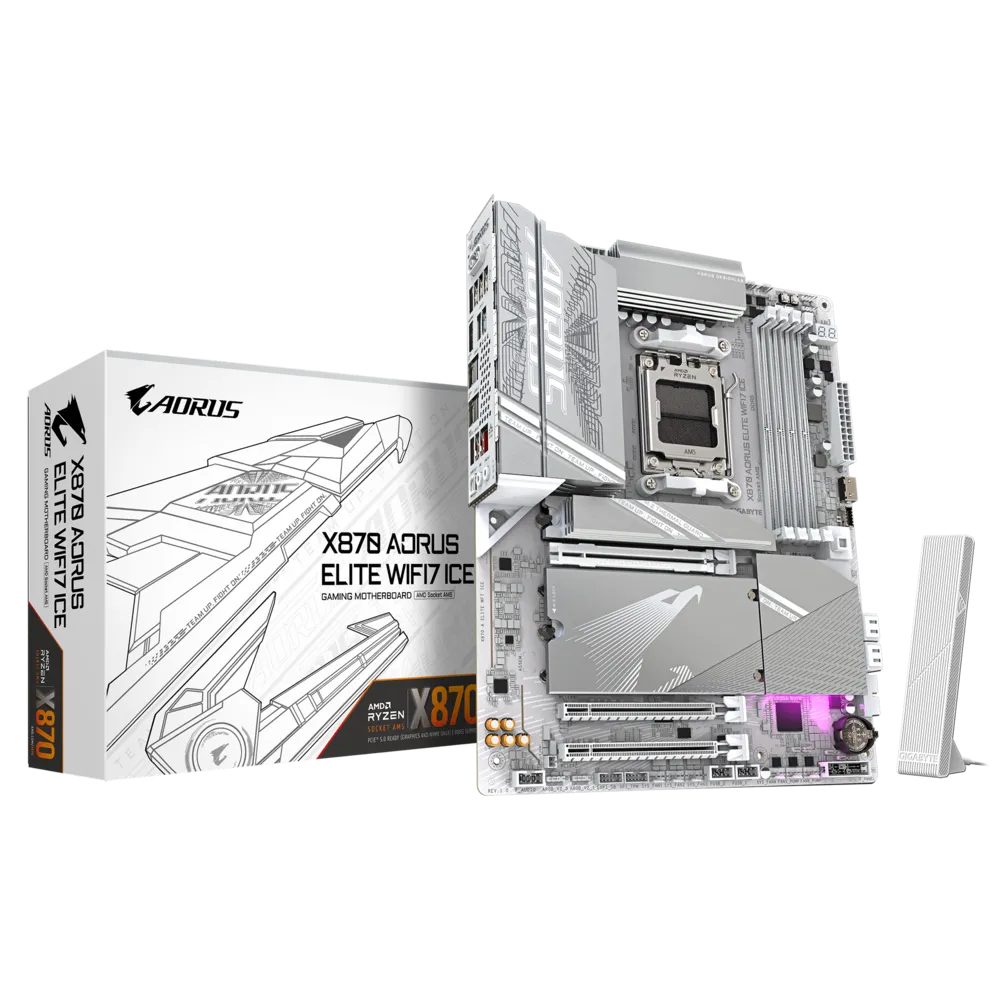

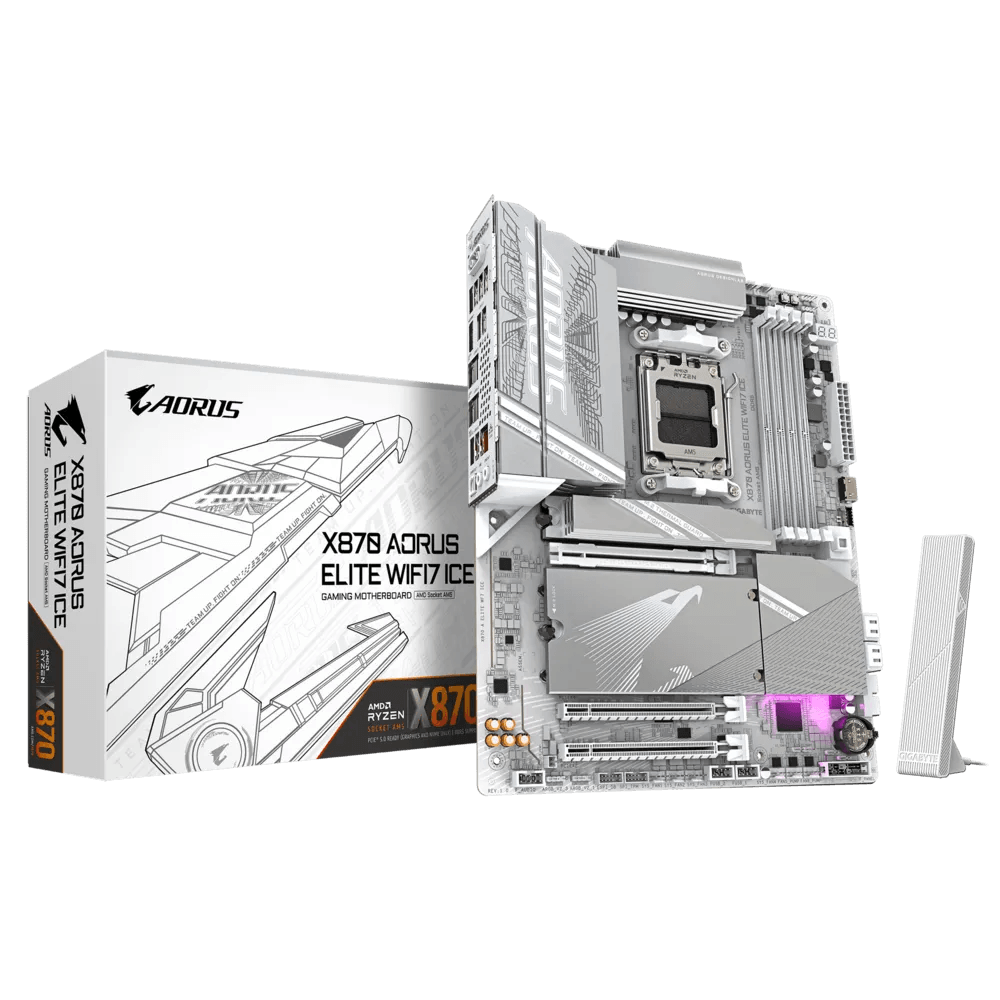

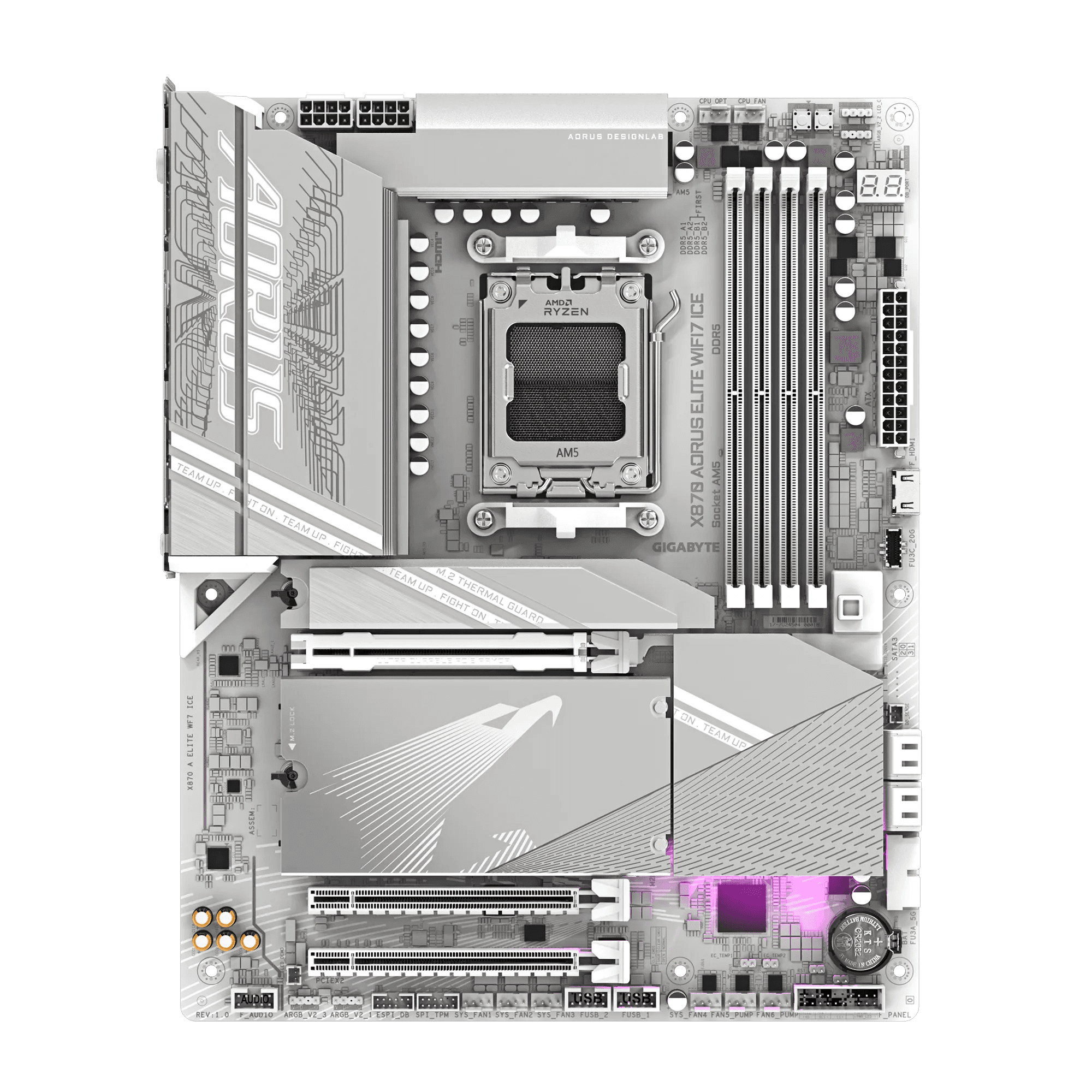

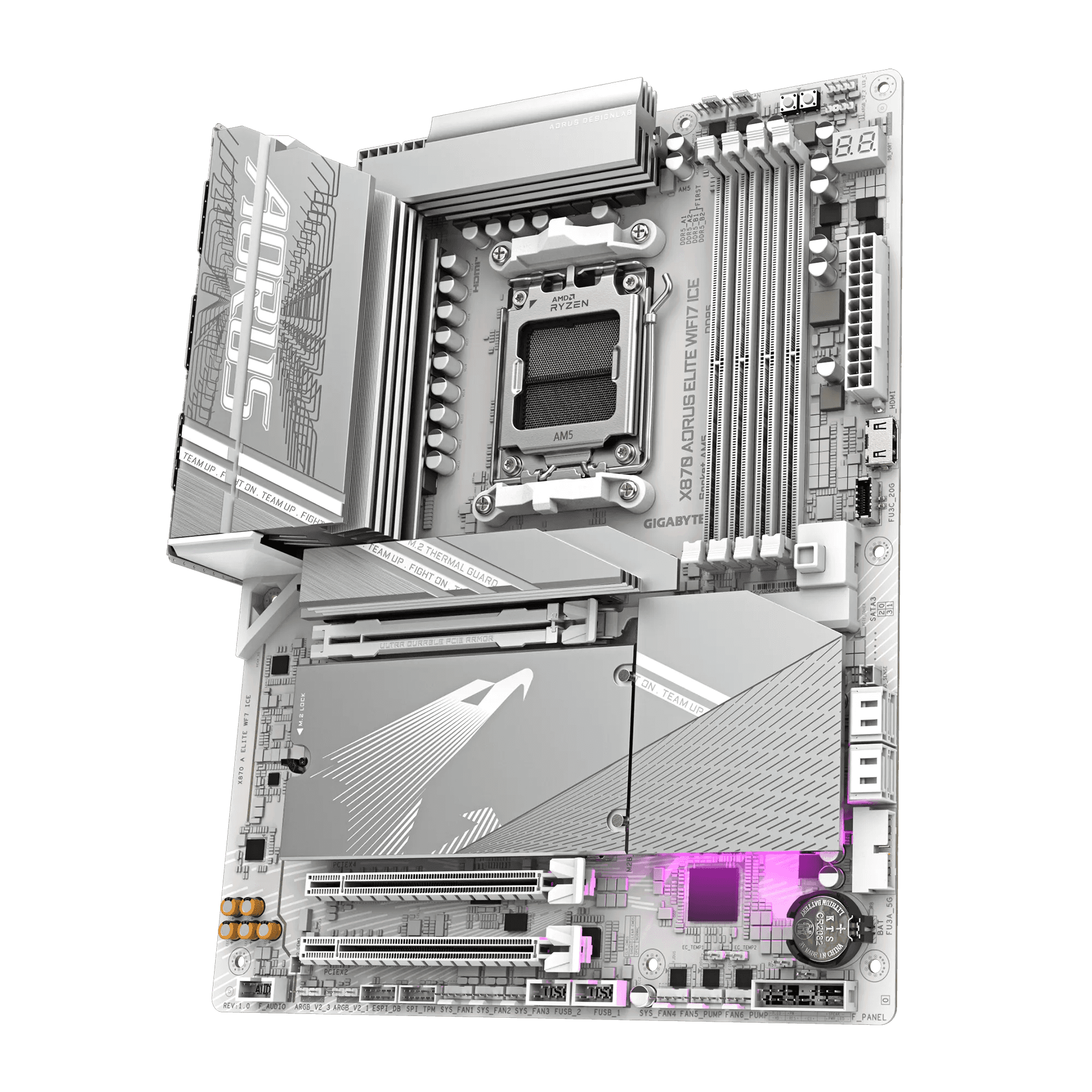

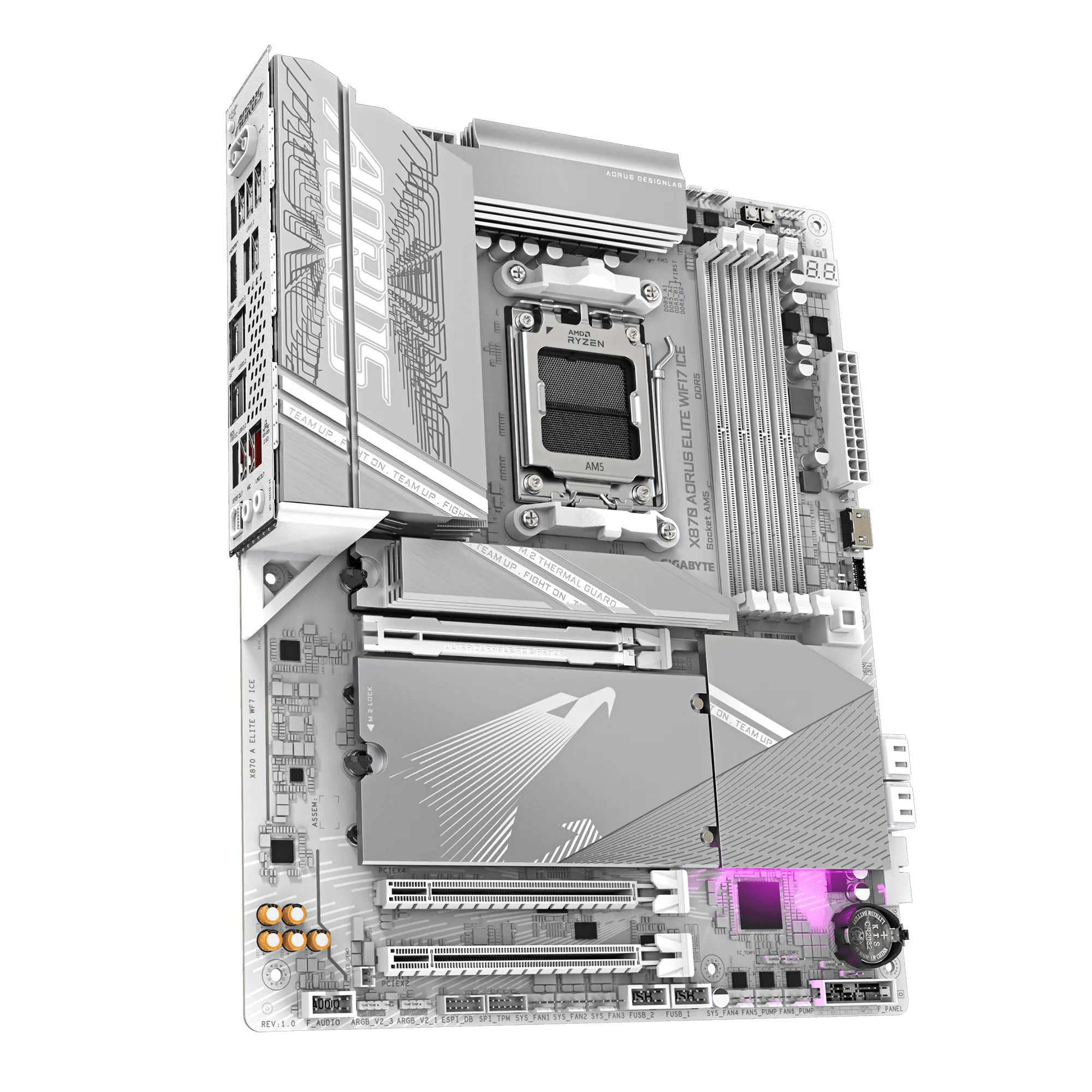

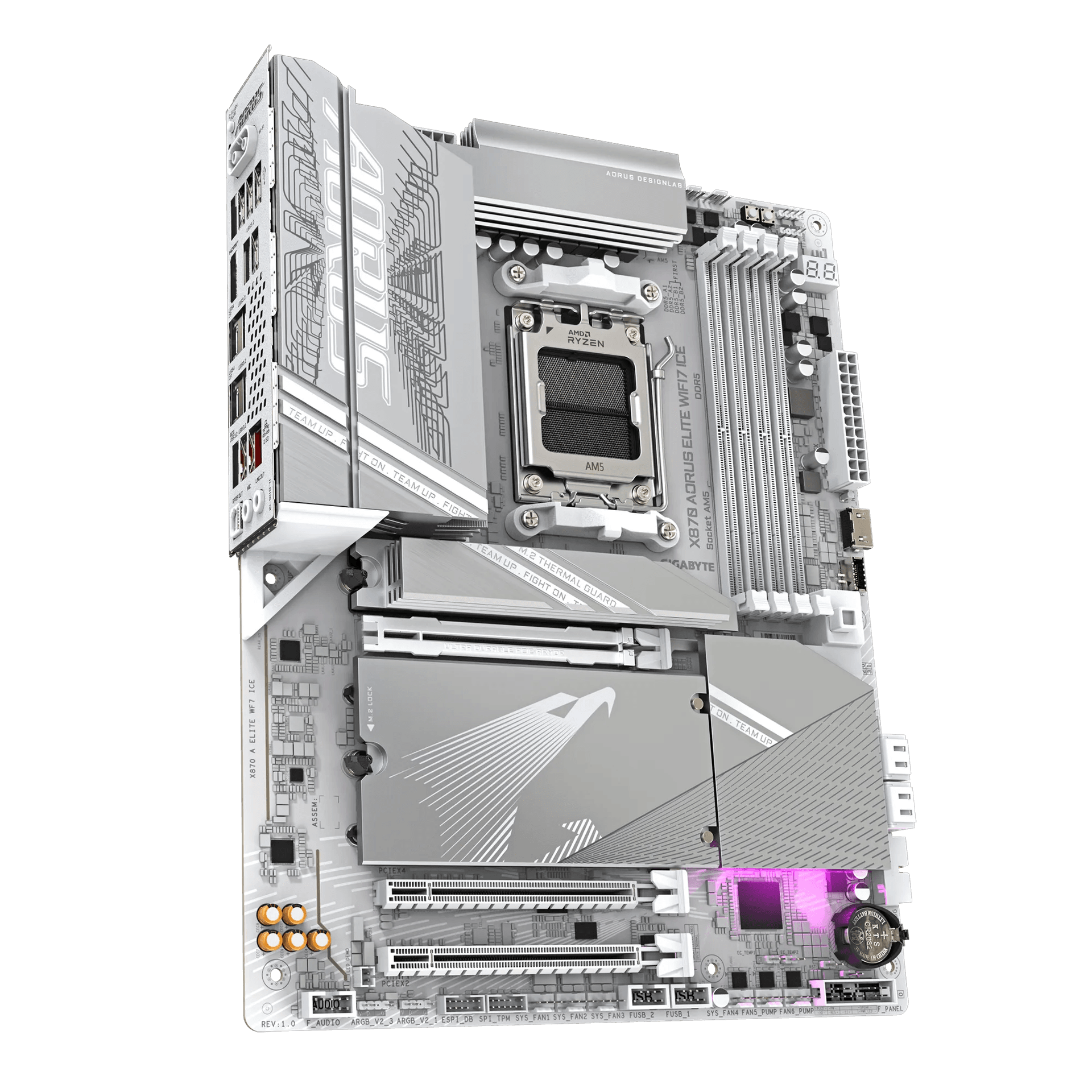

GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard, AMD AM5, PCIe 5.0, DDR5 8200(OC), Wi-Fi 7, 2.5GbE LAN, Dual USB4 | X870 A ELITE WF7 ICE

CPU SocketAMD Socket AM5 Supported CPUs AMD Ryzen™ 9000 Series
AMD Ryzen™ 8000 Series
AMD Ryzen™ 7000 Series
(Refer to GIGABYTE CPU Support List for full compatibility.) Chipset ChipsetAMD X870 Memory TypeDDR5 Supported Speeds DDR5 8200(OC), 8000(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6666(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600, 5200, 4800, 4400 MT/s Memory Slots4 × DDR5 DIMM (Dual Channel) Max Capacity256GB total (64GB per DIMM) Features Non-ECC Unbuffered DIMM support
AMD EXPO™ & Intel XMP support
*Actual speeds depend on CPU and configuration Onboard Graphics USB4 Type-C Output 2 × USB4 Type-C
DisplayPort video output
Max 3840×2160 @ 240 Hz
Supports DP 1.4 & HDR HDMI Output 1 × HDMI 2.1
Max 4096×2160 @ 60 Hz
HDCP 2.3 + HDR Front HDMI 1 × HDMI 1.4 — Max 1920×1080 @ 30 Hz Multi-DisplaySupports up to 4 displays Audio ChipsetRealtek® ALC1220 Channels2/4/5.1/7.1 S/PDIFOptical Out supported Networking LANRealtek® 2.5GbE Wireless (PCB rev.1.0) MediaTek Wi-Fi 7 MT7925
2.4/5/6 GHz, Bluetooth 5.4
11be 160MHz support Wireless (PCB rev.1.1) Realtek Wi-Fi 7 RTL8922AE
2.4/5/6 GHz, Bluetooth 5.4
11be 160MHz support Expansion Slots PCIEX16 (CPU) PCIe 5.0 x16 (Ryzen 9000/7000)
PCIe 4.0 x8 (Ryzen 8000 Phoenix 1)
PCIe 4.0 x4 (Ryzen 8000 Phoenix 2)
Switches to x8 if M2B_CPU or M2C_CPU is populated. PCIEX4 (Chipset)PCIe 4.0 x4
Disabled if M2D_SB in use PCIEX2PCIe 3.0 x2 Storage M2A_CPU PCIe 5.0 x4/x2 (Ryzen 9000/7000)
PCIe 4.0 x4/x2 (Ryzen 8000)
Supports 22110/2280/2580/25110 M2B_CPU / M2C_CPU PCIe 5.0 x4/x2
Supports 22110/2280
Disabled on Ryzen 8000 Phoenix CPUs M2D_SB PCIe 4.0 x4/x2 (Chipset), 22110/2280 SATA4 × SATA 6Gb/s RAID Support NVMe: RAID 0/1/5/10 (RAID 5: Ryzen 9000 only)
SATA: RAID 0/1/10 USB Ports Back Panel (CPU+USB4) 2 × USB4 Type-C Back Panel 4 × USB 3.2 Gen1
4 × USB 2.0
2 × USB 3.2 Gen2 (Red Type-A) Internal 1 × USB 3.2 Gen2x2 Type-C header
2 × USB 3.2 Gen1
4 × USB 2.0 Internal I/O Power Connectors24-pin ATX + 2 × 8-pin CPU Cooling Headers 1 × CPU Fan
1 × CPU Pump
4 × System Fan
2 × System Fan/Pump RGB 3 × ARGB Gen2
1 × RGB header Other 4 × M.2 Slots
4 × SATA Ports
Front Panel / Audio / TPM / Sensors
Clear CMOS Jumper

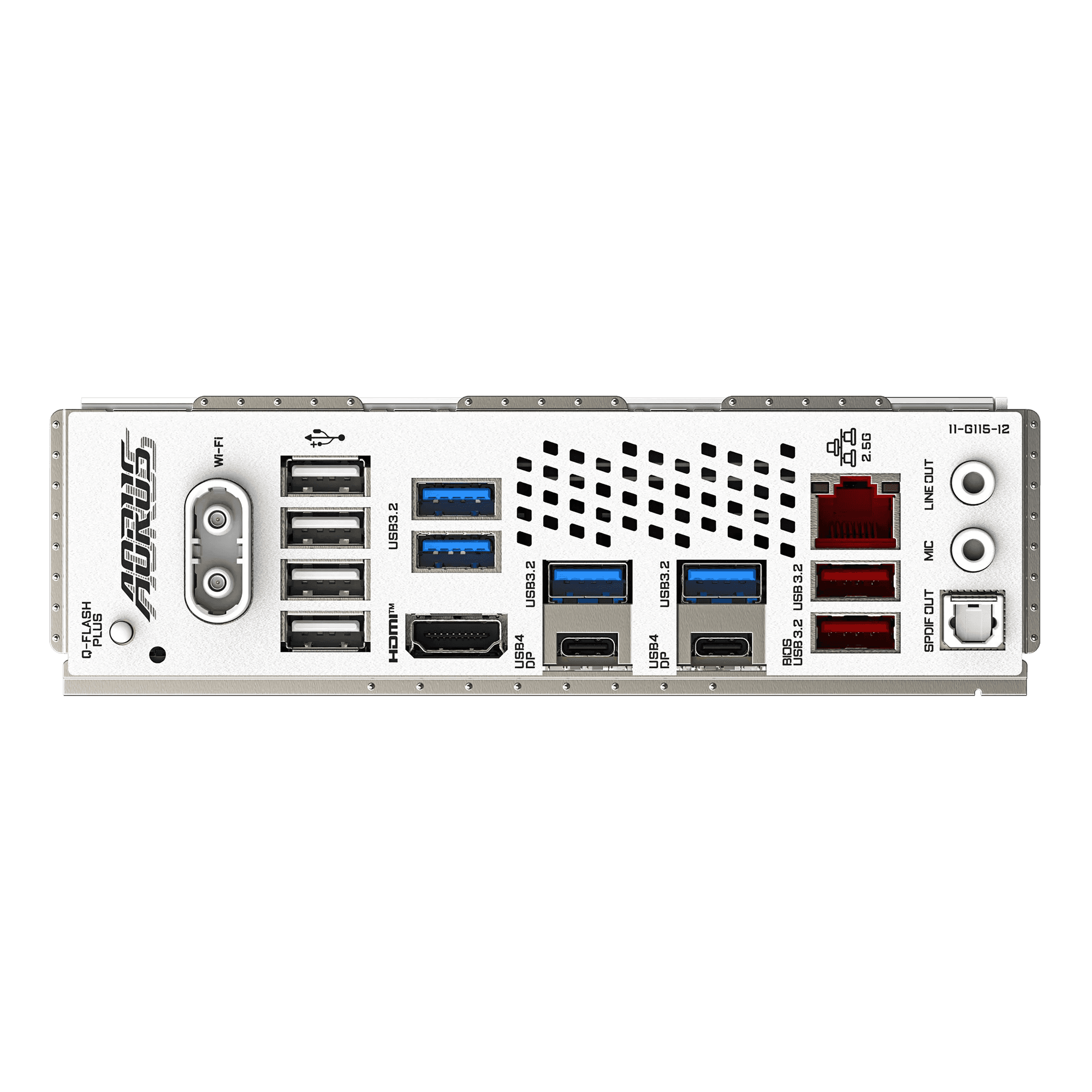

Noise Detection Header Back Panel ButtonsQ-Flash Plus Video 1 × HDMI
2 × USB4 Type-C (DP Alt) USB 2 × USB 3.2 Gen2
4 × USB 3.2 Gen1
4 × USB 2.0 Audio2 × Audio Jacks + Optical S/PDIF Other Features Monitoring Voltage, Temp, RPM, Flow Rate, Noise BIOS AMI UEFI BIOS
256 Mbit Flash
ACPI 5.0, SMBIOS 2.7 Software GIGABYTE Control Center (GCC)
Q-Flash / Q-Flash Plus
Smart Backup
Norton Internet Security (OEM) OS SupportWindows 11 64-bit Form Factor SizeATX — 30.5cm × 24.4cm
