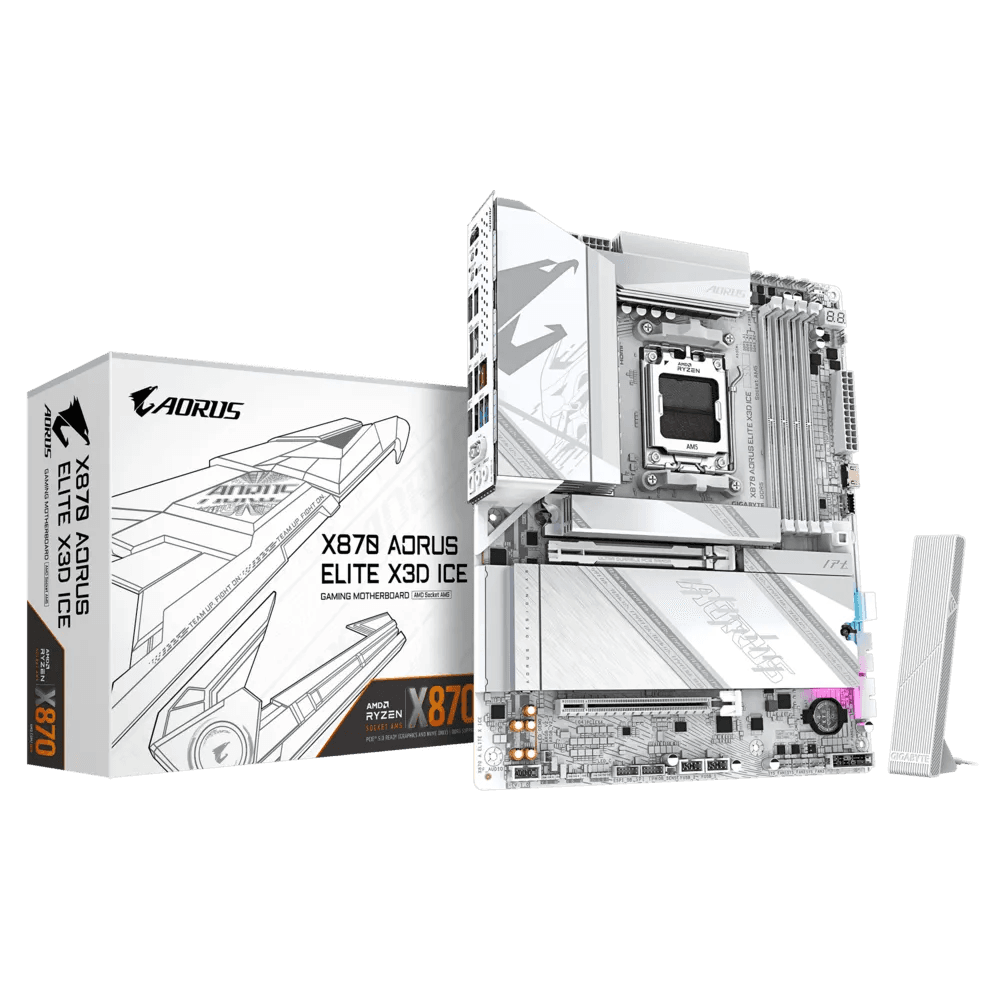

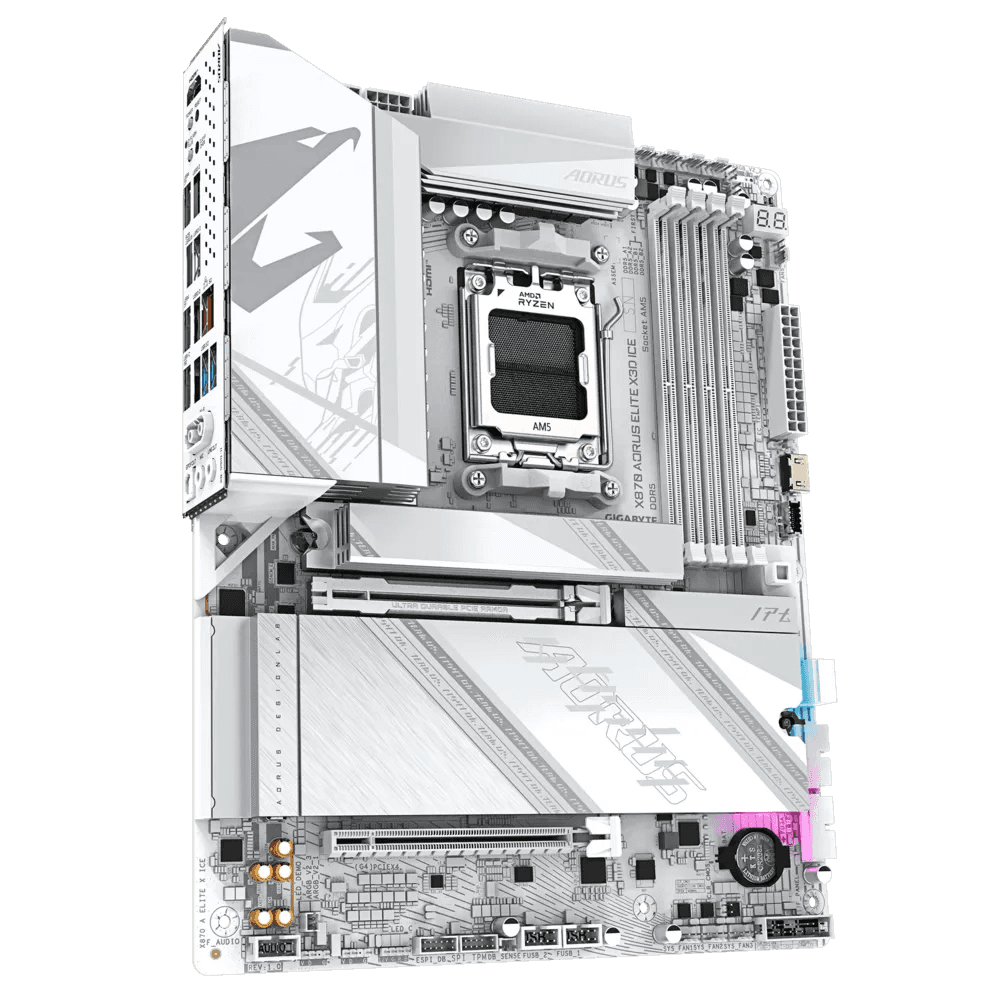

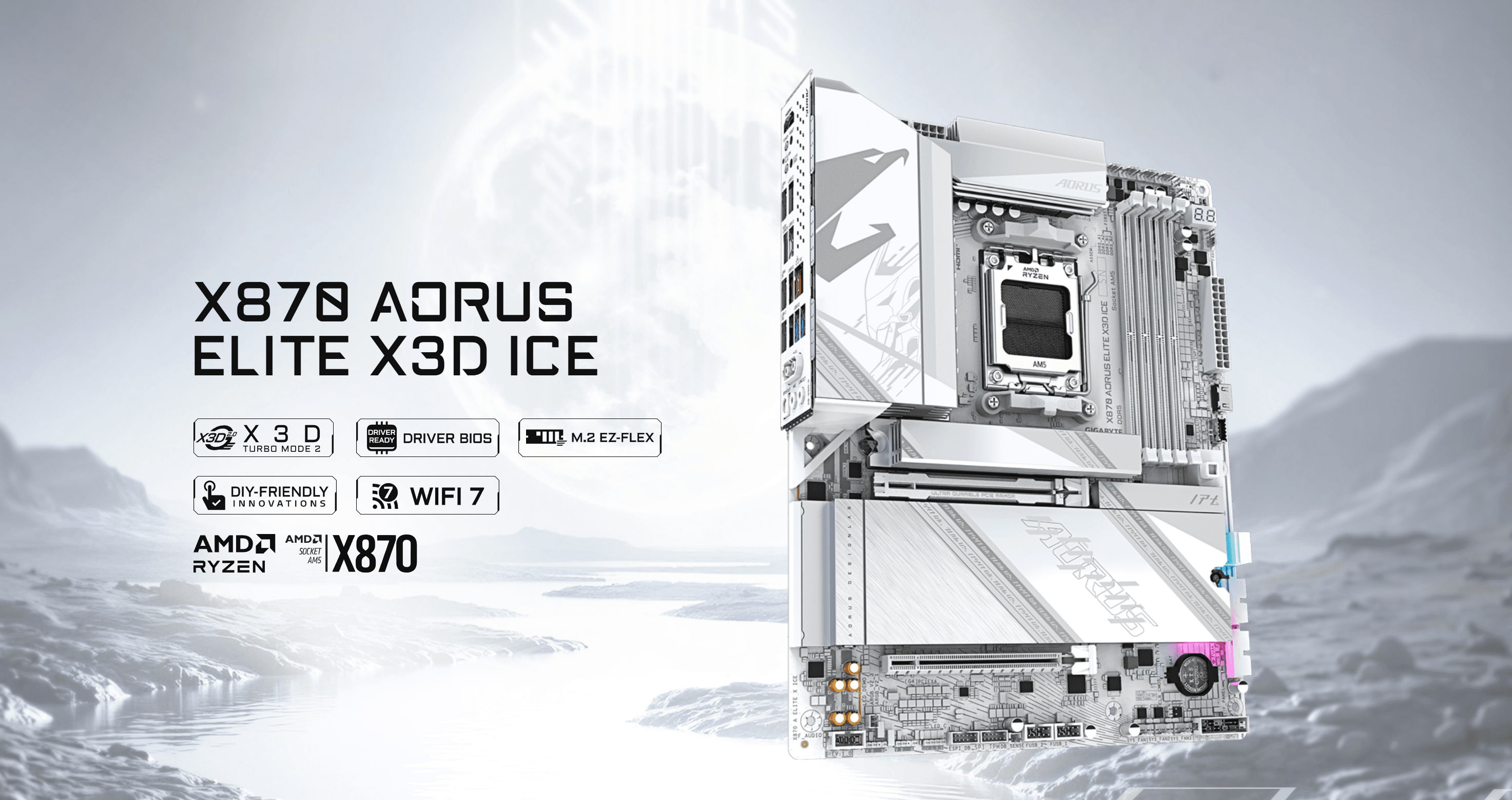

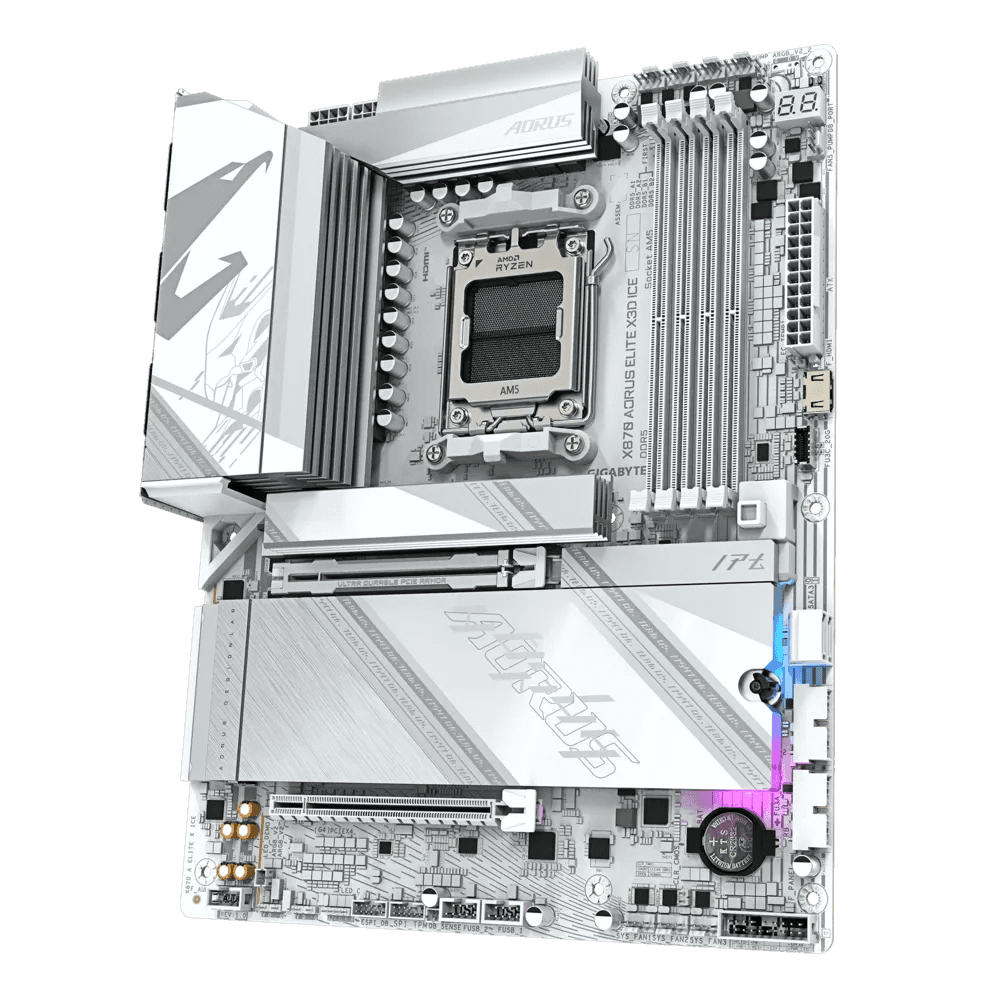

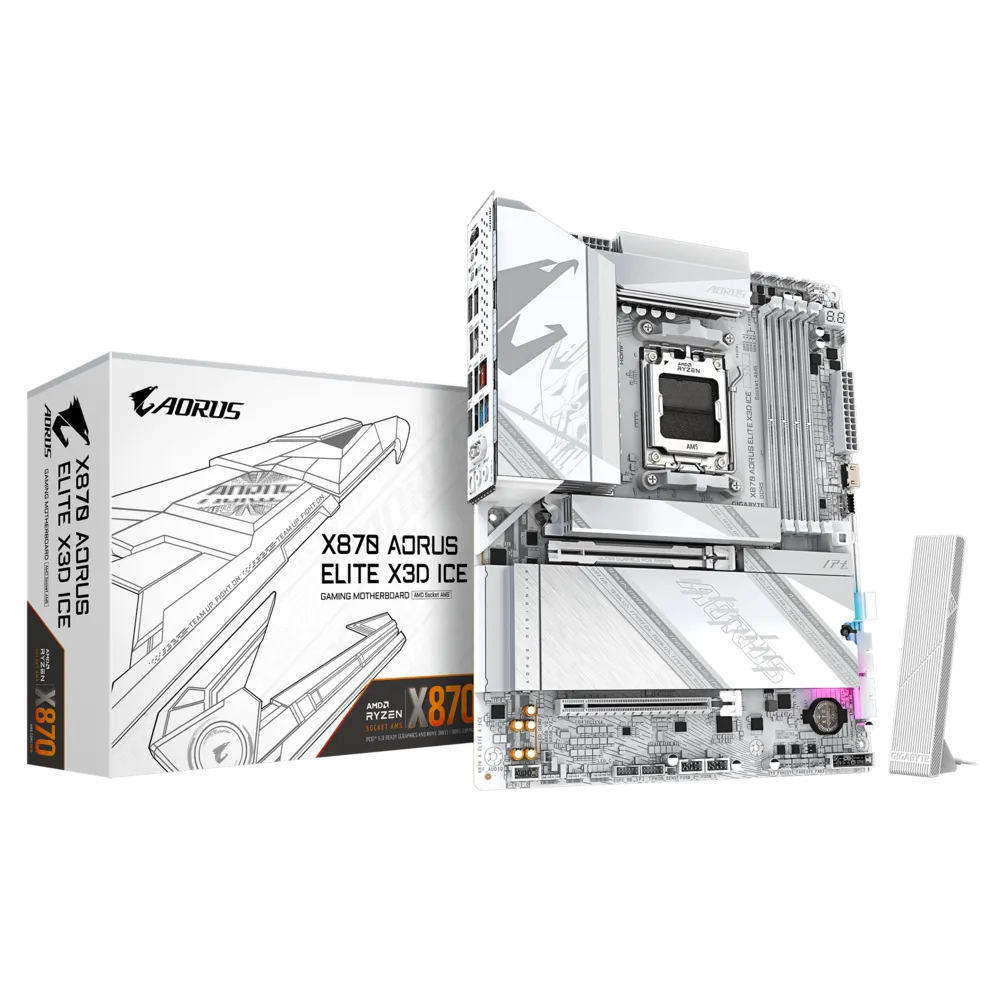

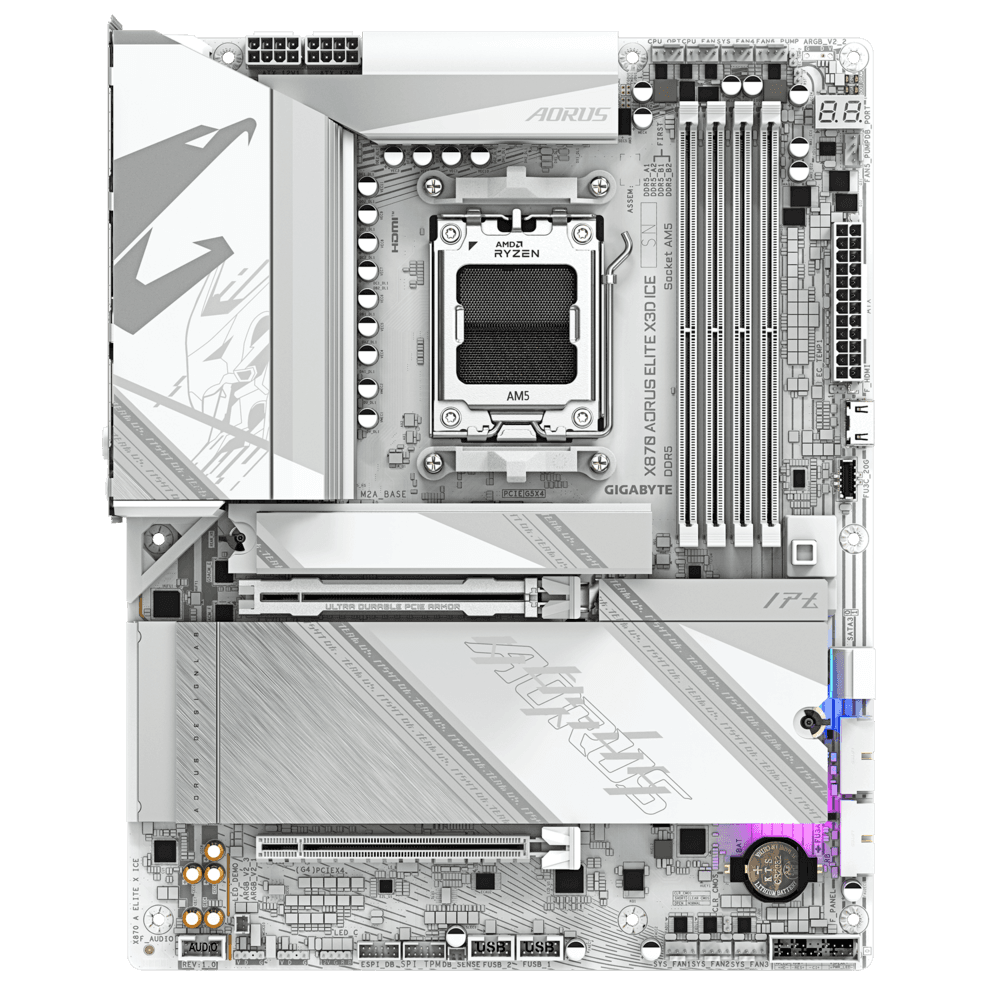

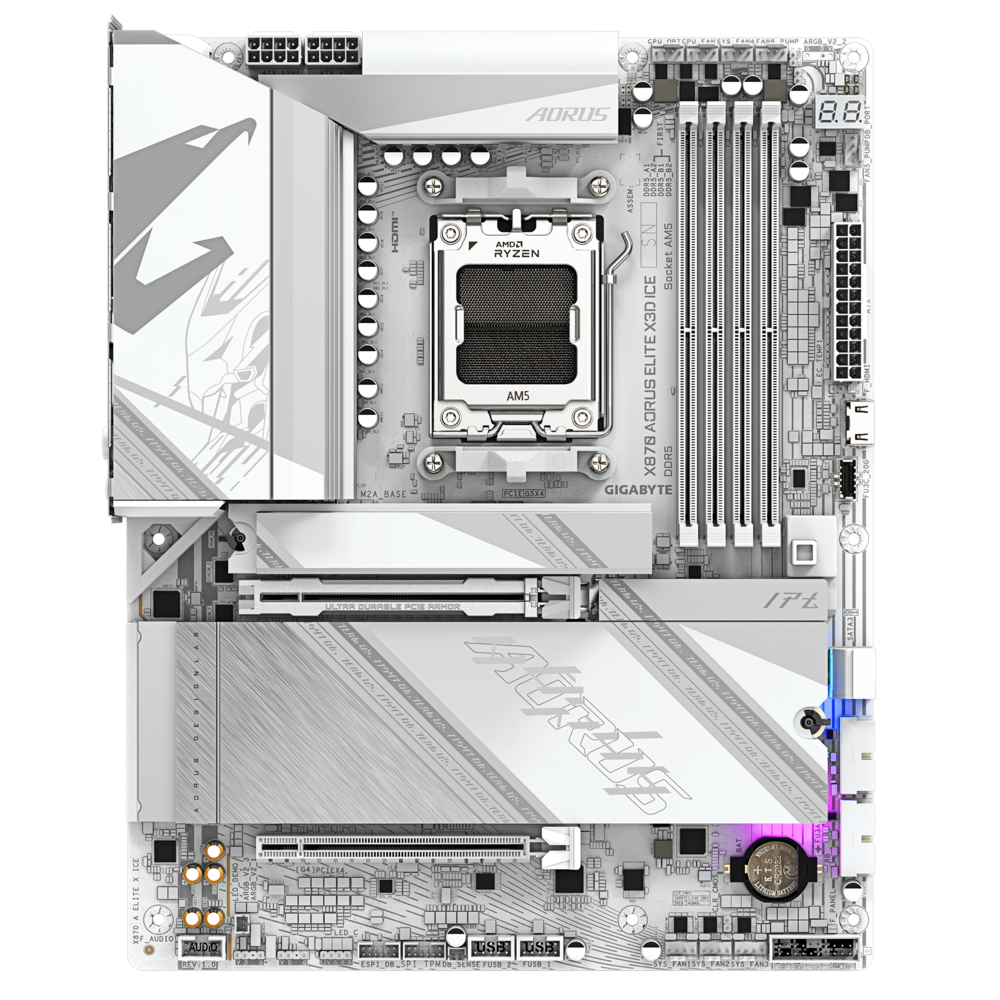

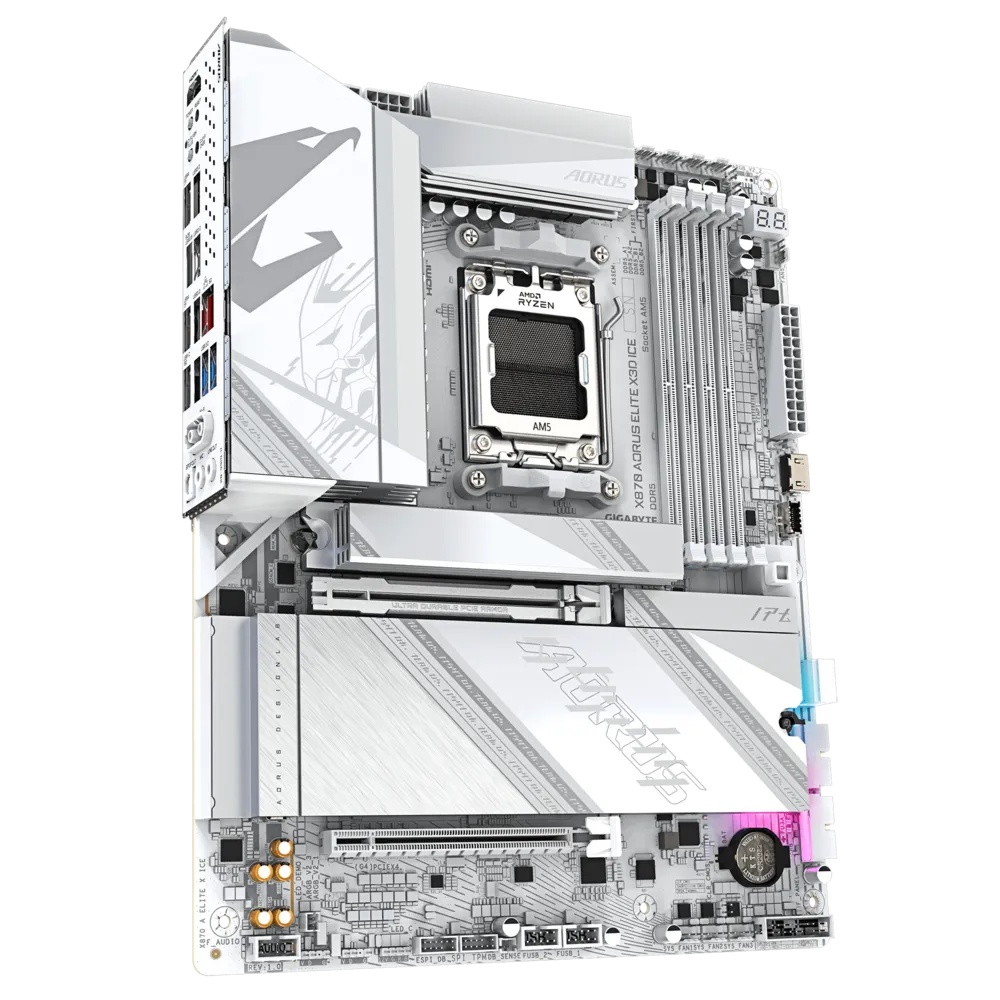

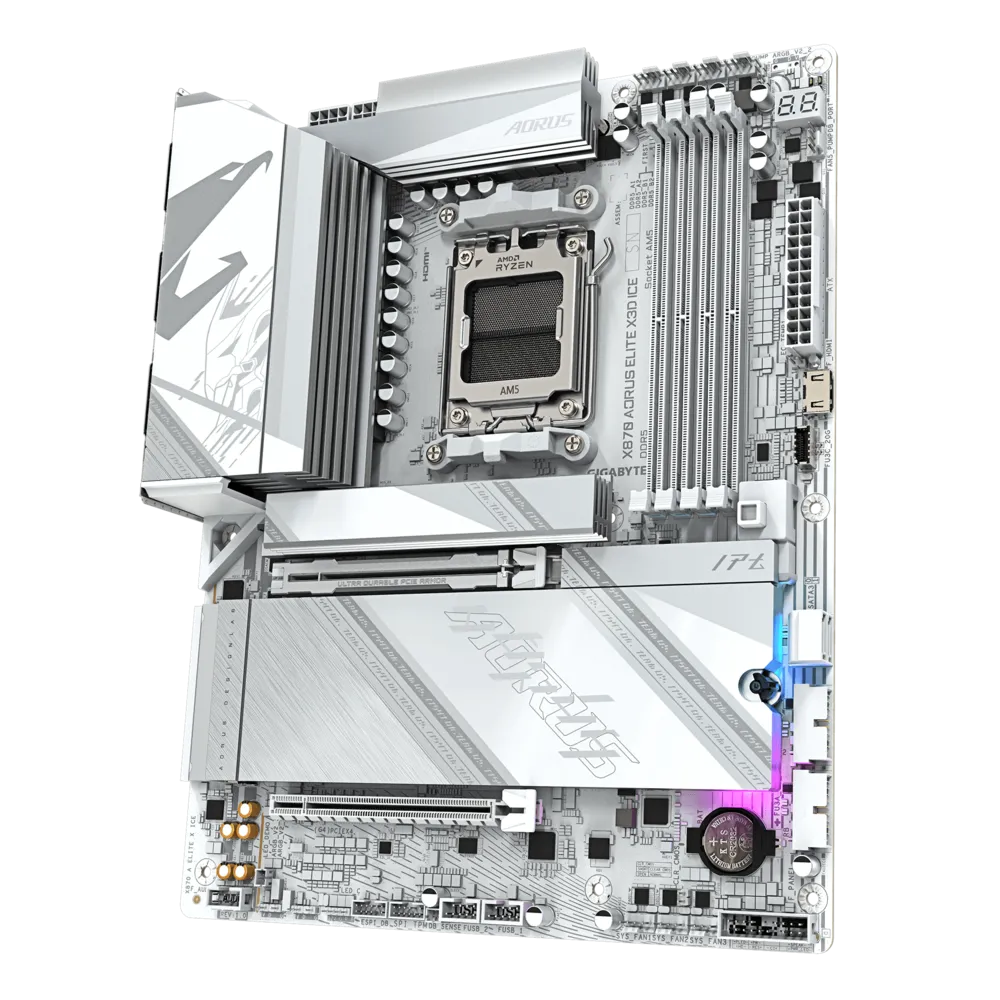

GIGABYTE X870 AORUS ELITE X3D ICE AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slot, 256GB Max Memory, 4x M.2 Slots, 1x PCIe 5.0 x16, White | 9MX87ETXE-00-G10
Model :
SKU : MB-AOR X870 ELITE X3D IC
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
The X870 AORUS ELITE X3D ICE is an ATX-form motherboard from GIGABYTE’s AORUS “X3D ICE” generation — targeted at gamers, content creators and PC builders who want a high-end AM5 board with modern features.
It supports AMD Ryzen processors using the AM5 socket — so it works with current and upcoming Ryzen 7000, 8000, and 9000-series CPUs.
Key Features
X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
DDR5 OC up to 8800MT/s
DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

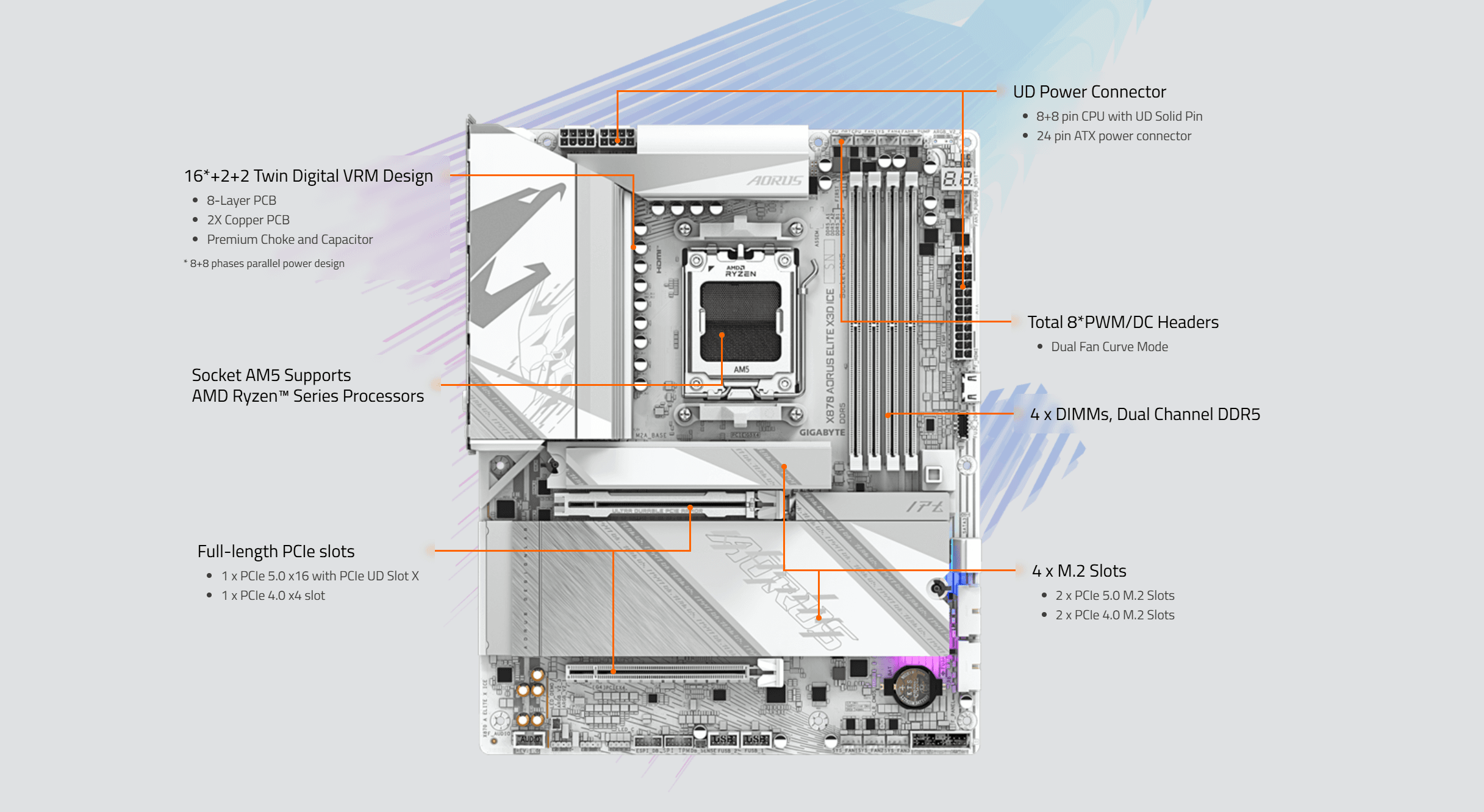

Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4

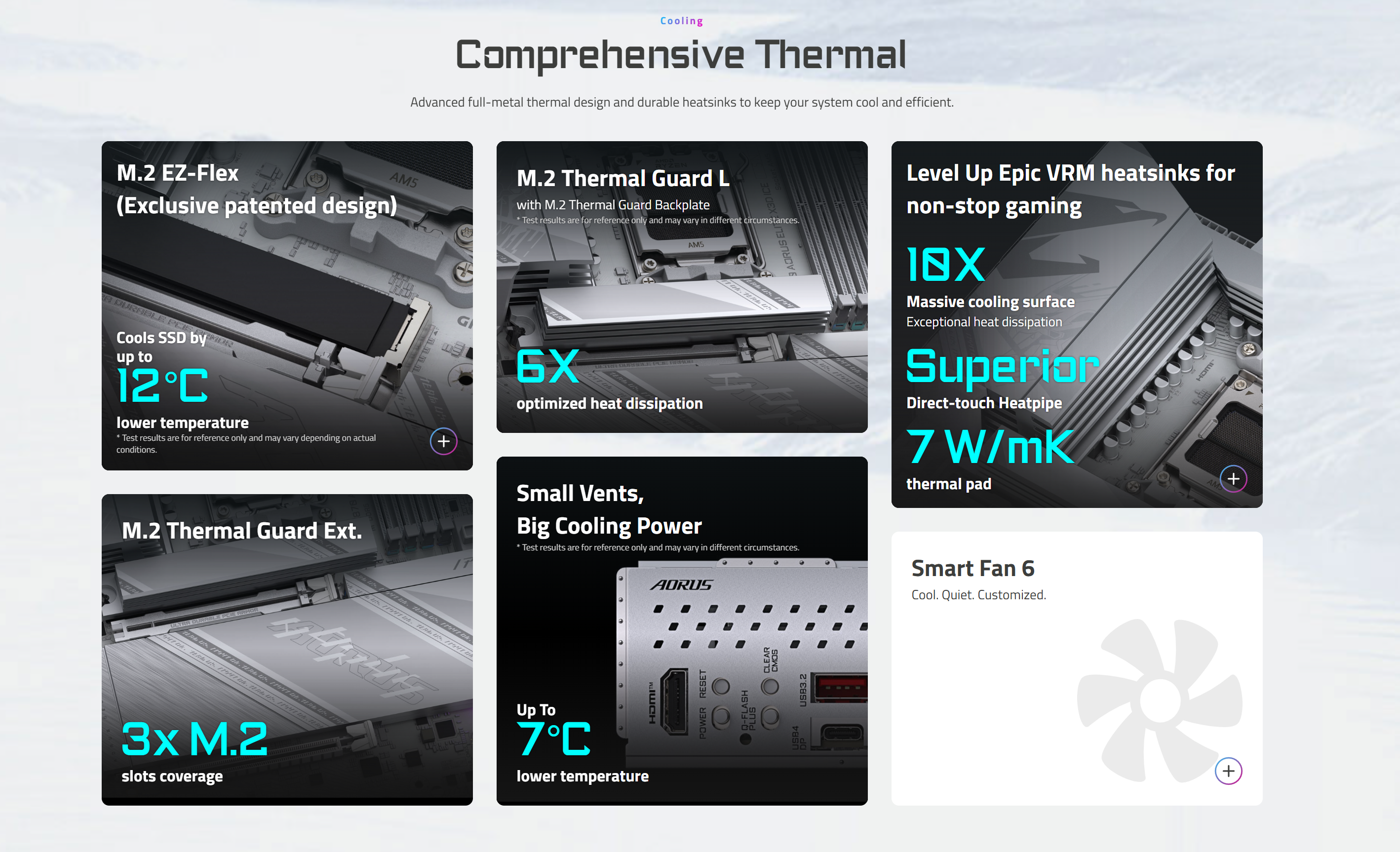

Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Specification
Technical Specifications
| Category | Details |
|---|---|
| CPU | AMD Socket AM5, supports Ryzen 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | DDR5 8800(O.C) down to 4800 MT/s support 4 × DDR5 DIMM sockets, up to 256GB Dual channel architecture Supports non-ECC unbuffered DIMM 1Rx8/2Rx8/1Rx16 Supports AMD EXPO & XMP profiles |
| Onboard Graphics | CPU + ASMedia USB4 Controller: - 2 × USB4 Type-C (DP output, 3840×2160@240Hz, DP 1.4, HDR) CPU Integrated Radeon Graphics: - 1 × HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) - 1 × Front HDMI (1920×1080@30Hz, HDMI 1.4) |
| Audio | Realtek ALC1220 CODEC 2/4/5.1/7.1-channel HD Audio S/PDIF Out supported |
| LAN | Realtek 5GbE LAN (5G / 2.5G / 1G / 100M) |
| Wireless | Qualcomm Wi-Fi 7 QCNCM865 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz) Bluetooth 5.4 Supports 320 MHz Wi-Fi 7 |
| Expansion Slots | CPU: 1 × PCIe x16 (PCIe 5.0 / 4.0 depending on CPU) Chipset: 1 × PCIe x16 slot (PCIe 4.0 x4, shared with M2D_SB) |
| Storage Interface | CPU: - 1 × M.2 (M2A_CPU) PCIe 5.0/4.0 x4/x2 - 1 × M.2 (M2B_CPU) PCIe 5.0 x4/x2 (bandwidth shared with USB4 controller) Chipset: - 2 × M.2 (M2C_SB, M2D_SB) PCIe 4.0 x4/x2 - 2 × SATA 6Gb/s RAID 0/1/5/10 for NVMe (RAID 5 only for Ryzen 9000) RAID 0/1 for SATA |
| USB | CPU + USB4 Controller: 2 × USB4 Type-C CPU: 1 × USB-C (USB 3.2 Gen 2), 1 × USB 2.0 Chipset: - 1 × USB-C (USB 3.2 Gen 2x2, internal) - 2 × USB 3.2 Gen 2 (Type-A, red) - 4 × USB 2.0 (back panel) Chipset + hubs: 8 × USB 3.2 Gen 1 |
| Internal I/O | 1 × 24-pin ATX power 2 × 8-pin CPU power 1 × CPU fan header 1 × CPU pump header 4 × system fan headers 2 × system fan/water pump headers 3 × ARGB Gen2 headers 1 × RGB header 4 × M.2 slots 2 × SATA ports 1 × USB-C 3.2 Gen 2x2 header 2 × USB 3.2 Gen 1 headers 2 × USB 2.0 headers 2 × temperature sensor headers 1 × noise detection header TPM header, Reset jumper, CMOS jumper, Front panel, F_Audio |

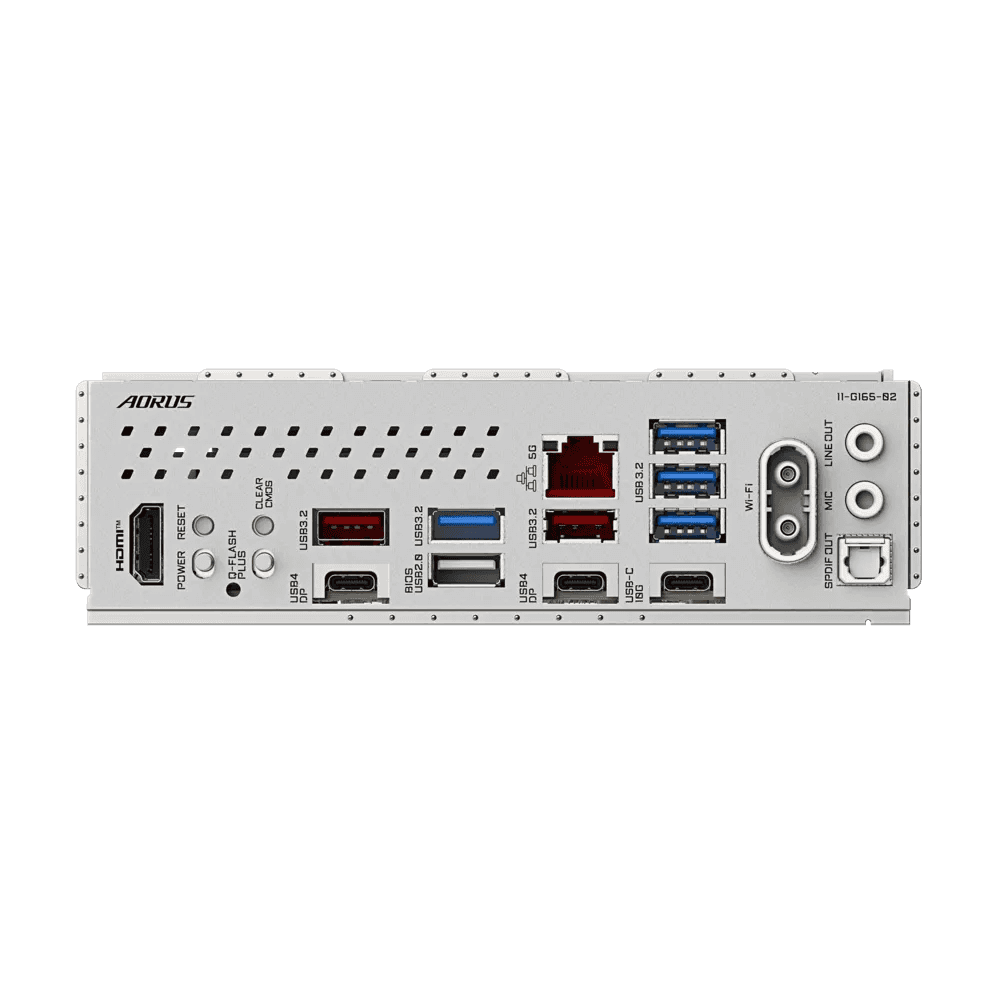

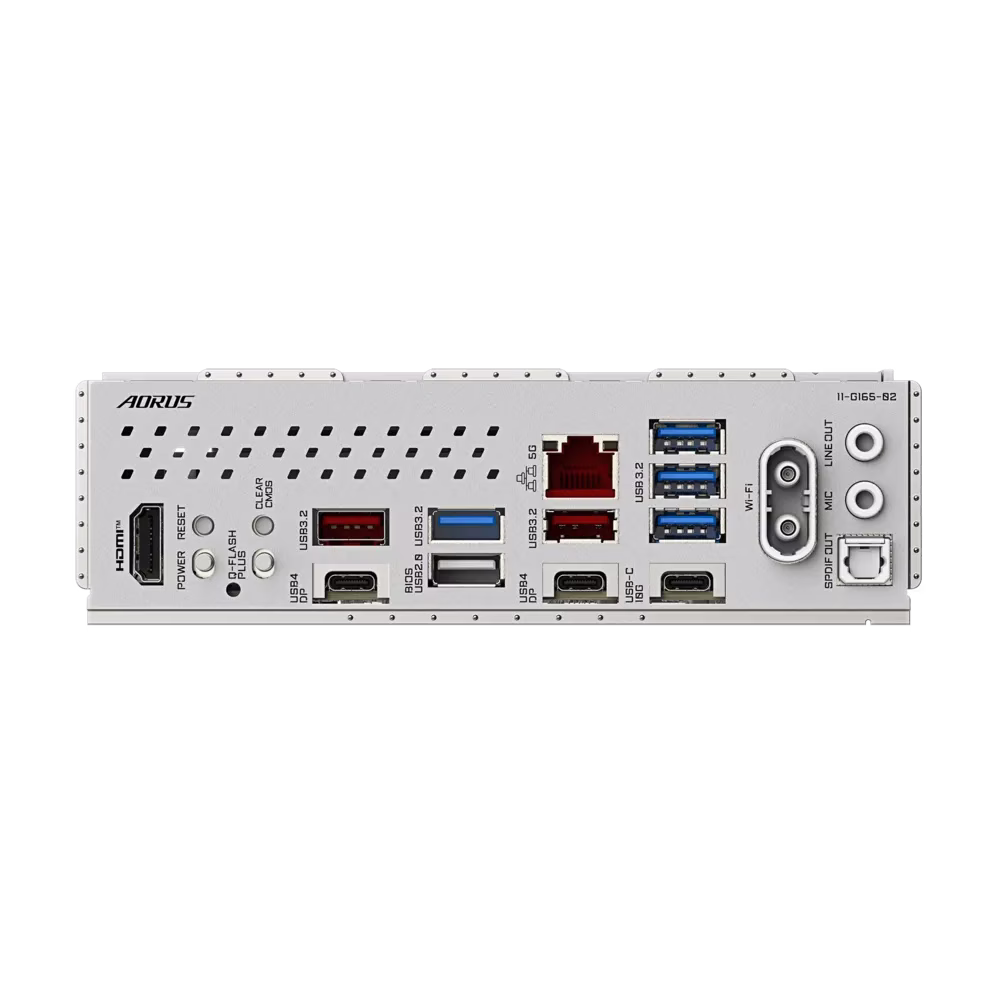

| Back Panel | 1 × HDMI Power button / Reset button Q-Flash Plus button Clear CMOS button 2 × USB4 Type-C 1 × USB-C (USB 3.2 Gen 2) 2 × USB 3.2 Gen 2 (Type-A, red) 4 × USB 3.2 Gen 1 1 × USB 2.0 1 × RJ-45 LAN 2 × Wi-Fi antenna jacks 1 × Optical S/PDIF Out 2 × audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage / Temperature / Fan speed monitoring Water flow monitoring Fan fail warning Fan speed control Noise detection |
| BIOS | 1 × 512 Mbit Flash AMI UEFI BIOS Supports PnP, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash Q-Flash Plus Smart Backup |
| Bundled Software | Norton Internet Security (OEM) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX, 30.5 cm × 24.4 cm |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
Home/PC Components/Motherboards/GIGABYTE X870 AORUS ELITE X3D ICE AM5 ATX Motherbo...
Similar Products
GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard, AMD AM5, PCIe 5.0, DDR5 8200(OC), Wi-Fi 7, 2.5GbE LAN, Dual USB4 | X870 A ELITE WF7 ICE
1299.00
GIGABYTE X870E AORUS ELITE X3D Black AM5 Motherboard, Upto 9000MT/s DDR5 OC, 5GbE/Wi-Fi 7, PCIe 5.0 | X870E AORUS ELITE X3D
1449.49
GIGABYTE X870E AORUS ELITE X3D ICE AM5 White ATX Motherboard, Upto 9000MT/s DDR5 OC, X3D Turbo Mode 2.0, 5GbE/Wi-Fi 7 | X870E A ELITE X ICE
1559.00
GIGABYTE X870 EAGLE WIFI 7 AM5 ATX Motherboard, Digital 14+2+2 VRM PCIe 5.0 M.2 2.5GbE LAN , 4x DIMMs DDR5 | X870 EAGLE WIFI7
959.00
Lian Li EDGE 1000W ATX 3.1 Black Powersupply PSU, 80 PLUS PLATINUM, Built-in USB Hub, Dual Chamber Design, 12V-2x6, PCIE5.1 | EDGE1000
699.00
AMD Ryzen 5 7500X3D Desktop Processor, 6 Cores, 12 Threads, Up to 4.5 GHz, 96MB 3D V-Cache, AM5, 65W TDP, Zen 4 (TSMC 5nm) | 100-000001904W0F
1148.99
LIAN LI SP850P 850W SFX Power Supply, 80 PLUS PLATINUM, ATX 3.1 Ready, 12V-2x6 600W Cable, Full Modular, Black | G9P.SP0850P.B000.US
548.99

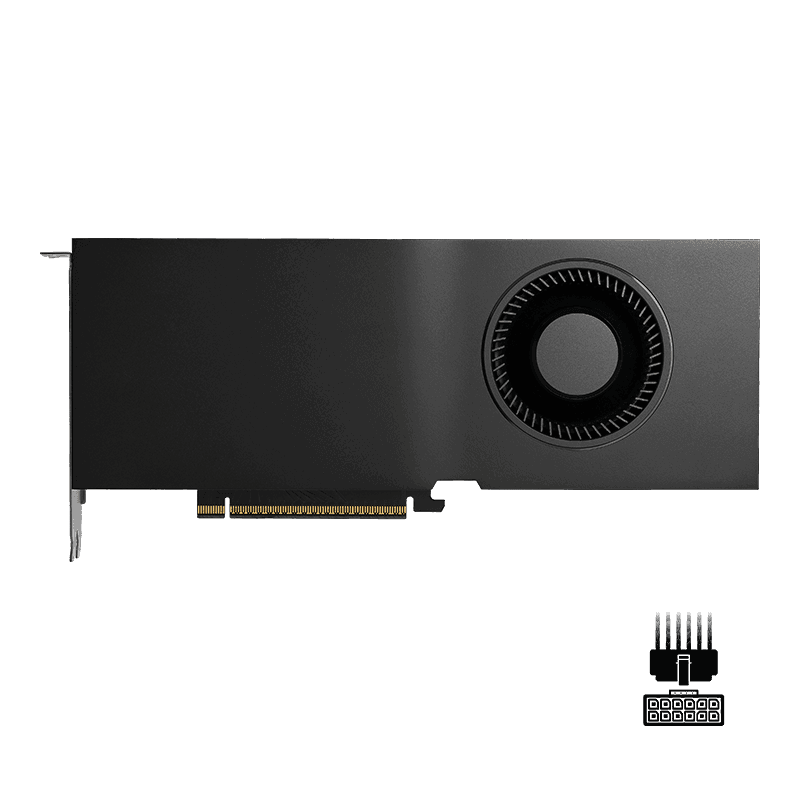

PNY NVIDIA RTX PRO 5000 Blackwell Graphics Card, 48 GB GDDR7 384-Bit Memory, 14080 CUDA Cores, 1344 GB/s Memory Bandwidth, PCI Express 5.0 x16, Black | VCNRTXPRO5000-EDU
21998.99
Toshiba MG11 Series Internbal HDD, 24TB Capacity, 7200RPM, 3.5" SATA 6Gb/s, 1GB Cache, CMR Construction, Helium-Sealed 10-Disk Design, 512e/4Kn Format | MG11ACA24TE
2457.00

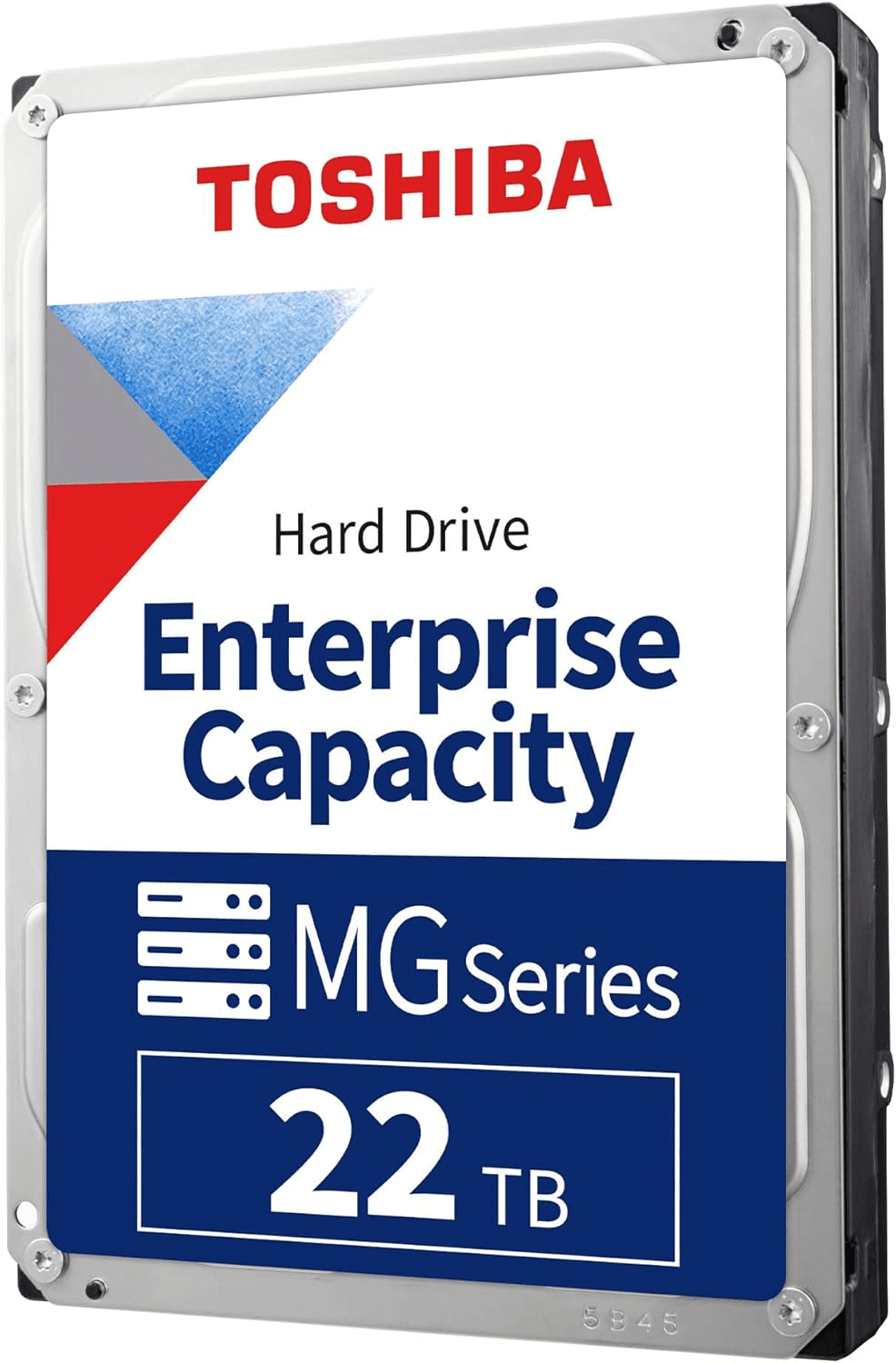

Toshiba MG10F Series Internal HDD, 22TB Capacity, 7200 RPM 3.5" SATA, Up to 271 MB/s Transfer Speed, SATA III 6 Mb/s Interface, 512MB Cache, CMR Construction | MG10AFA22TE
1932.00
APEX Gaming & Creator Workstation PC, Intel Core Ultra 9 285K, ROG RTX 5090 32GB White OC, 64GB DDR5 6400, 2TB Gen5 SSD, 1200W
26565.00

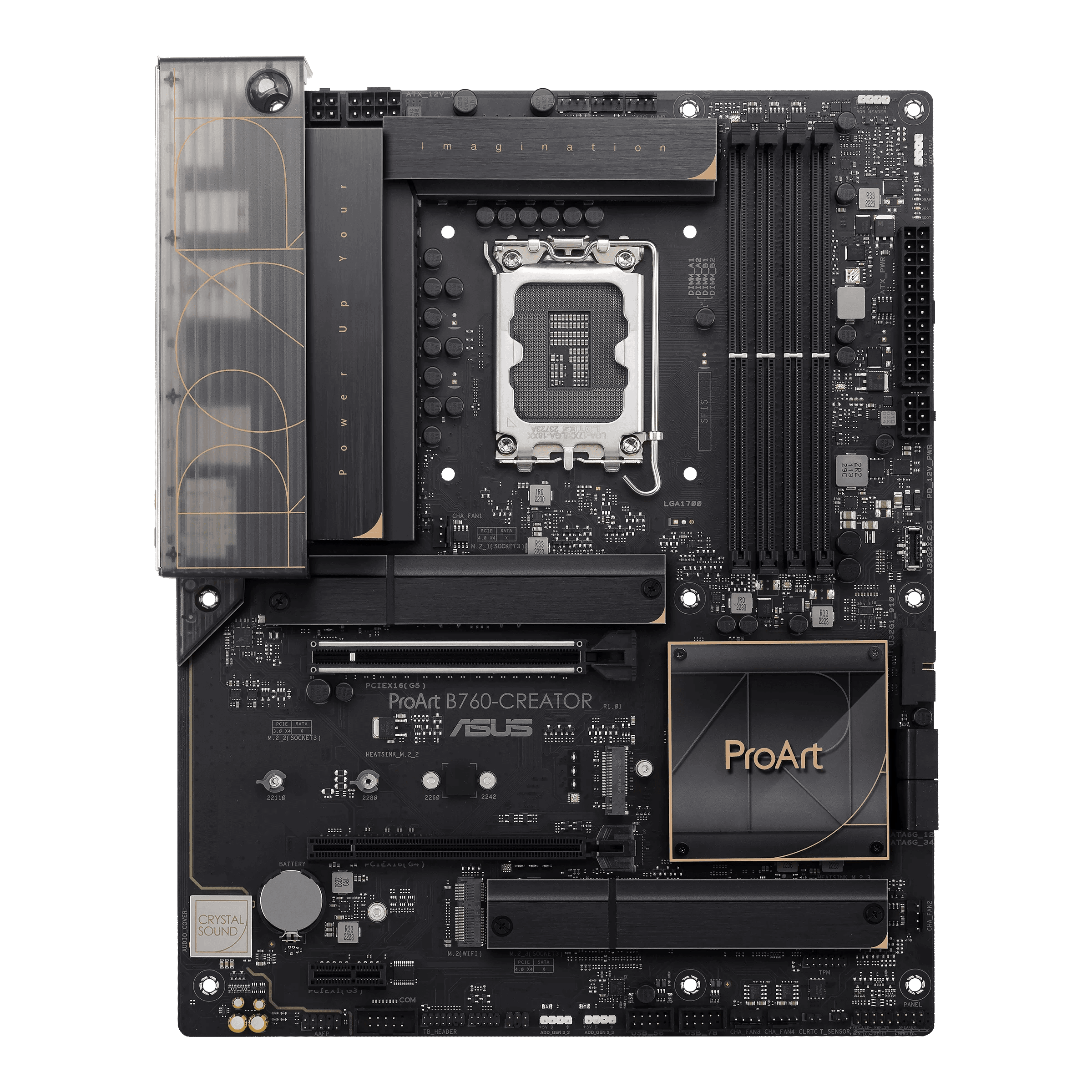

Asus ProArt B760-CREATOR DDR5 Motherboard, LGA1700 Socket, Intel B760 Chipset, M.2 Heatsink, PCIe 5.0, Thunderbolt 4 Header, 2.5G + 1G LAN, Max Memory 128GB 4xDIMM | 90MB1F20-M1EAY0
1092.00

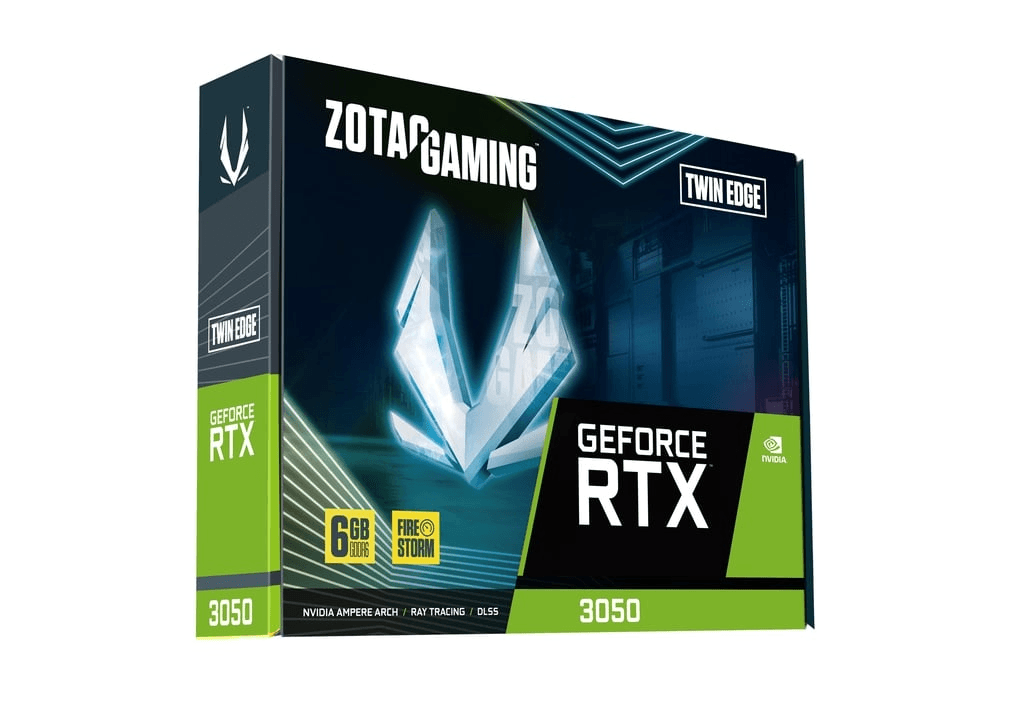

ZOTAC GAMING GeForce RTX 3050 6GB GDDR6 Twin Edge Graphics Card, ZT-A30510H-10L. 2304 Cores; Boost: 1477 MHz; 6GB GDDR6 / 14 Gbps / 96-bit.
735.00
ASUS ROG Thor 1200W Platinum III Hatsune Miku Edition ATX 3.1 Power Supply (PSU), GaN MOSFET, Magnetic OLED Display, 80 PLUS & Cybenetics Platinum certified, Etched Modular Cables | 90YE00V6-B0NA00
1929.00
ASUS ROG Astral GeForce RTX 5080 16GB GDDR7 OC HATSUNE MIKU EDITION Graphics Card (GPU), 1801 AI TOPs, PCI Express 5.0, 30 Gbps 256-bit, 10752 CUDA Cores | 90YV0LV9-M0NM00
8400.00
ASUS ROG Strix Arion Hatsune Miku Edition NVME SSD Enclosure, Supports M.2 PCIe NVMe SSD 2230/2242/2260/2280, USB-C 3.2 Gen 2x1, Speeds Up to 10 Gbps | 90DD02H1-M09010
238.99
ASUS ROG STRIX X870E-H GAMING WIFI7 Hatsune MIKU Edition AM5 ATX Motherboard, 4x DIMM DDR5 8000+ MT/s (OC), PCIe 5.0 x16 slot, USB4 Type-C, 5Gb Ethernet, Bluetooth v5.4 | 90MB1MA0-M0EAY0
2068.99

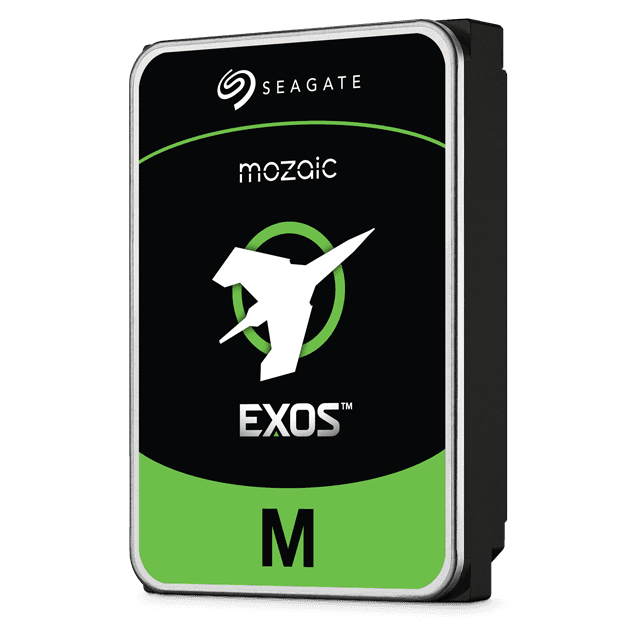

Seagate Exos M 28TB Enterprise 3.5" Hard Drive, SATA 6Gb/s, 7200RPM, CMR Recording Technology | ST28000NM003K
