GIGABYTE X870 EAGLE WIFI 7 AM5 ATX Motherboard, Digital 14+2+2 VRM PCIe 5.0 M.2 2.5GbE LAN , 4x DIMMs DDR5 | X870 EAGLE WIFI7
Model :
SKU : MB-GIGA X870 EAGLE WIFI7
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| CPU | |
|---|---|
| Chipset | |
| Memory | |
| Onboard Graphics | |
| Audio | |
| LAN | |
| Wireless Communication | |
| Expansion Slots | |
| Storage | |
| USB | |
| Internal I/O | |
| Back Panel I/O | |
| Monitoring | |
| BIOS | |
| Unique Features | |
| Bundled Software | |
| OS Support | |
| Form Factor | |
| Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 7000 Series (Refer to GIGABYTE website for latest support list.) |
| Chipset | AMD X870 |
| Memory Support | DDR5: 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600/5200/4800/4400 MT/s 4 × DDR5 DIMM sockets (Max 256GB) Dual-channel architecture Supports non-ECC unbuffered DIMM 1Rx8/2Rx8/1Rx16 Supports AMD EXPO & XMP profiles |
| USB4 Graphics Output | 2 × USB4 Type-C (DP output, 3840×2160@240Hz) Supports DP 1.4 & HDR |
| HDMI | 1 × HDMI (4096×2160@60Hz) HDMI 2.1, HDCP 2.3, HDR |
| Audio Codec | Realtek® Audio CODEC |
| Channels | 2/4/5.1/7.1-channel HD Audio |
| LAN | Realtek® 2.5GbE LAN |
| Wi-Fi (PCB rev. 1.0) | MediaTek Wi-Fi 7 MT7925 802.11a/b/g/n/ac/ax/be (2.4/5/6GHz) Bluetooth® 5.4 160MHz bandwidth |
| Wi-Fi (PCB rev. 1.1) | Realtek® Wi-Fi 7 RTL8922AE 802.11a/b/g/n/ac/ax/be (2.4/5/6GHz) Bluetooth® 5.4 160MHz bandwidth |
| PCIEX16 (CPU) | Ryzen 9000/7000 → PCIe 5.0 ×16 Ryzen 8000 Phoenix 1 → PCIe 4.0 ×8 Ryzen 8000 Phoenix 2 → PCIe 4.0 ×4 (Supports GPU or NVMe SSD only) |
| Additional PCIe Slots | 2 × PCIe 3.0 ×1 (Chipset) |
| M2A_CPU | PCIe 5.0 ×4/×2 (Ryzen 9000/7000) PCIe 4.0 ×4/×2 (Ryzen 8000) Supports 25110/22110/2580/2280 |
| M2B_SB | PCIe 4.0 ×4/×2 (Chipset) |
| M2C_SB | PCIe 4.0 ×2 (Chipset) |
| SATA | 4 × SATA 6Gb/s |
| RAID | NVMe RAID 0/1/5/10 (*RAID 5 on Ryzen 9000 only*) SATA RAID 0/1/10 |
| Rear I/O (USB4) | 2 × USB4 Type-C |
| Rear USB | 1 × USB 3.2 Gen2 Type-A (red) 1 × USB 3.2 Gen1 4 × USB 2.0 |
| Internal USB | 1 × USB-C (USB 3.2 Gen2x2) 4 × USB 3.2 Gen1 (2 rear + 2 internal) 4 × USB 2.0 internal |
| Power | 1 × 24-pin ATX 1 × 8-pin ATX 12V 1 × 4-pin ATX 12V |
| Cooling | 1 × CPU fan 1 × CPU/Pump header 4 × System fan headers |
| RGB | 3 × ARGB Gen2 headers 1 × RGB header |
| Other | 3 × M.2 sockets Front panel / audio USB-C header TPM header Clear CMOS jumper Reset button & jumper |
| Buttons | Q-Flash Plus |

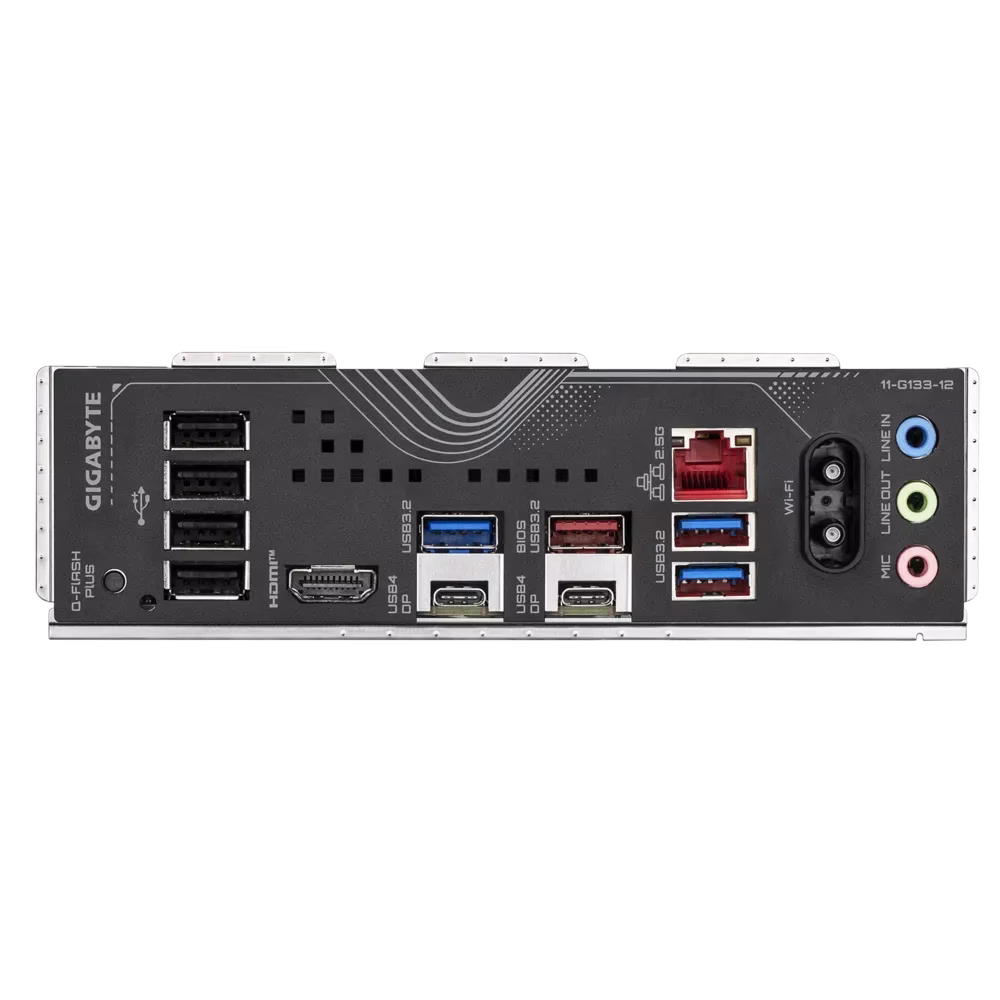

| Video | 1 × HDMI, 2 × USB4 (DP) |
| USB | 1 × USB 3.2 Gen2 Type-A 3 × USB 3.2 Gen1 4 × USB 2.0 |
| LAN | 1 × RJ-45 (2.5GbE) |
| Audio | 3 × Audio jacks |
| Wi-Fi | 2 × Antenna connectors (2T2R) |
| Hardware Monitor | Voltage, Temperature, Fan RPM Pump speed, Flow rate Fan fail warning |
| BIOS | 256Mbit flash AMI UEFI BIOS PnP, DMI 2.7, SMBIOS 2.7, ACPI 5.0 |
| Software | GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus Smart Backup |
| Apps | Norton Internet Security OEM LAN management software |
| Operating System | Windows 11 64-bit |
| Size | ATX (30.5cm × 24.4cm) |
