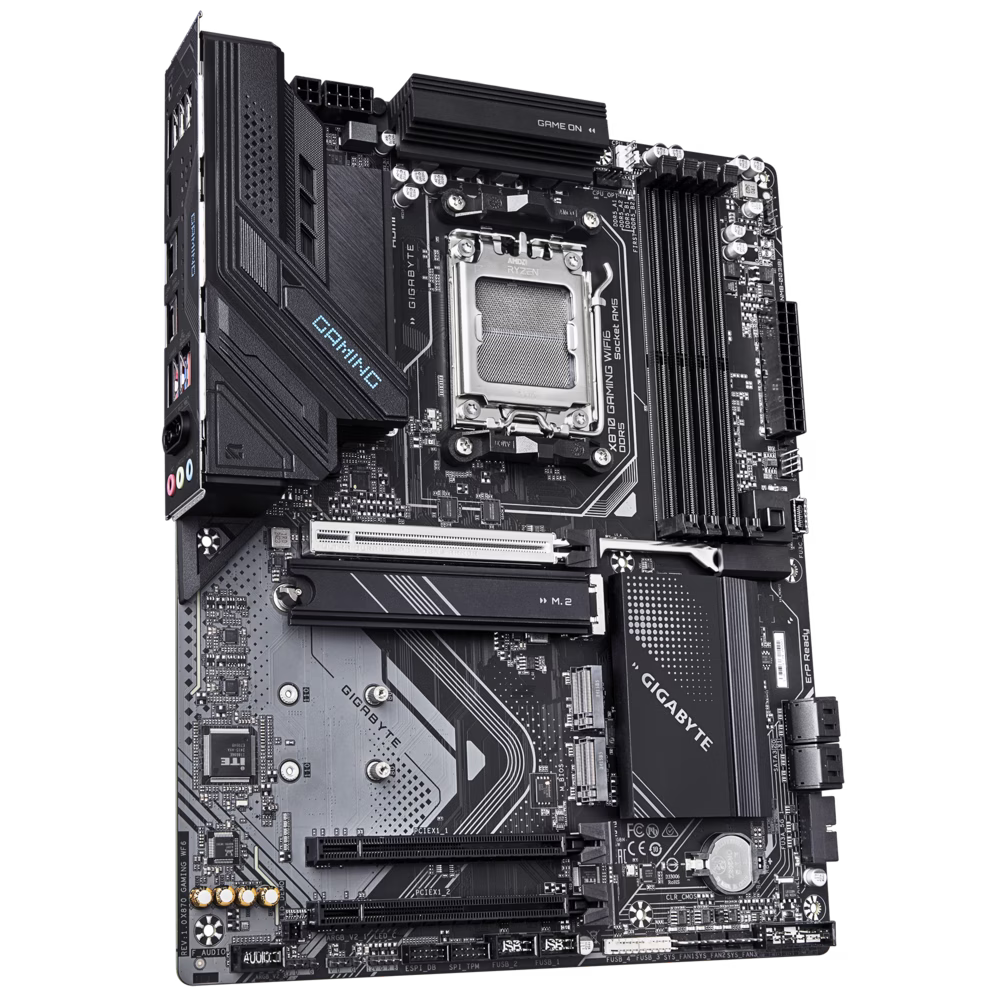

Gigabyte X870 GAMING WIFI6 AM5 DDR5 Motherboard, 4X DIMMs with AMD EXPO, 3x M.2 slots, 1x PCIe 5.0 x4, 2.5GbE LAN & Wi-Fi 6 802.11ax, Dual 40Gbps USB4 with DP-Alt | X870 GAMING WF6
Model :
SKU : MB-GIGA X870 GAMING WIFI6
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Gigabyte X870 GAMING WIFI6 AM5 DDR5 Motherboard, 4X DIMMs with AMD EXPO, 3x M.2 slots, 1x PCIe 5.0 x4, 2.5GbE LAN & Wi-Fi 6 802.11ax, Dual 40Gbps USB4 with DP-Alt | X870 GAMING WF6 Specifications
| CPU | AMD Socket AM5, support for: - AMD Ryzen??? 9000 Series Processors - AMD Ryzen??? 8000 Series Processors - AMD Ryzen??? 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870 |
| Memory | Supports DDR5 8200(OC) to 4400 MT/s memory modules 4 x DDR5 DIMM slots, up to 256 GB total Dual channel memory architecture Supports non-ECC Un-buffered DIMM and AMD EXPO???/XMP memory modules |
| Onboard Graphics | Integrated AMD Radeon??? Graphics + ASMedia USB4?? Controller: - 2 x USB4?? USB Type-C?? ports (DisplayPort, max resolution 3840x2160@240 Hz) - 1 x HDMI port (max resolution 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR) |
| Audio | Realtek?? Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Realtek?? Wi-Fi 6 RTL8851BE (Wi-Fi a/b/g/n/ac/ax, 2.4/5 GHz bands, Bluetooth 5.3) |
| Expansion Slots | 1 x PCI Express x16 slot (CPU-based): - Ryzen??? 9000/7000: PCIe 5.0 x16 - Ryzen??? 8000-Phoenix 1: PCIe 4.0 x8 - Ryzen??? 8000-Phoenix 2: PCIe 4.0 x4 Chipset-based: - 2 x PCIe 3.0 x1 slots |
| Storage | 1 x PCIe 5.0 x4/x2 M.2 (CPU-based, 25110/22110/2280) 1 x PCIe 4.0 x2 M.2 (Chipset-based, 25110/22110/2280) 1 x PCIe 4.0 x4/x2 M.2 (Chipset-based, 25110/22110/2280) * The M2B_SB shares bandwidth with M2C_SB. 4 x SATA 6Gb/s connectors RAID 0/1/5/10 (NVMe SSD), RAID 0/1/10 (SATA SSD) |
| USB | - 2 x USB4?? Type-C?? (back panel) - 1 x USB 3.2 Gen 2 Type-A (red, back panel) - 1 x USB 3.2 Gen 1 (back panel) - 1 x USB 3.2 Gen 2x2 Type-C (internal header) - 4 x USB 3.2 Gen 1 (2 back panel, 2 internal) - 8 x USB 2.0 (4 back panel, 4 internal) |
| Internal I/O | - 1 x 24-pin ATX power - 1 x 8-pin ATX 12V + 1 x 4-pin ATX 12V - 1 x CPU fan, 1 x CPU/water pump header, 4 x system fan headers - 3 x ARGB Gen2 headers, 1 x RGB LED strip header - 1 x TPM header, 1 x reset jumper, 1 x Clear CMOS jumper |

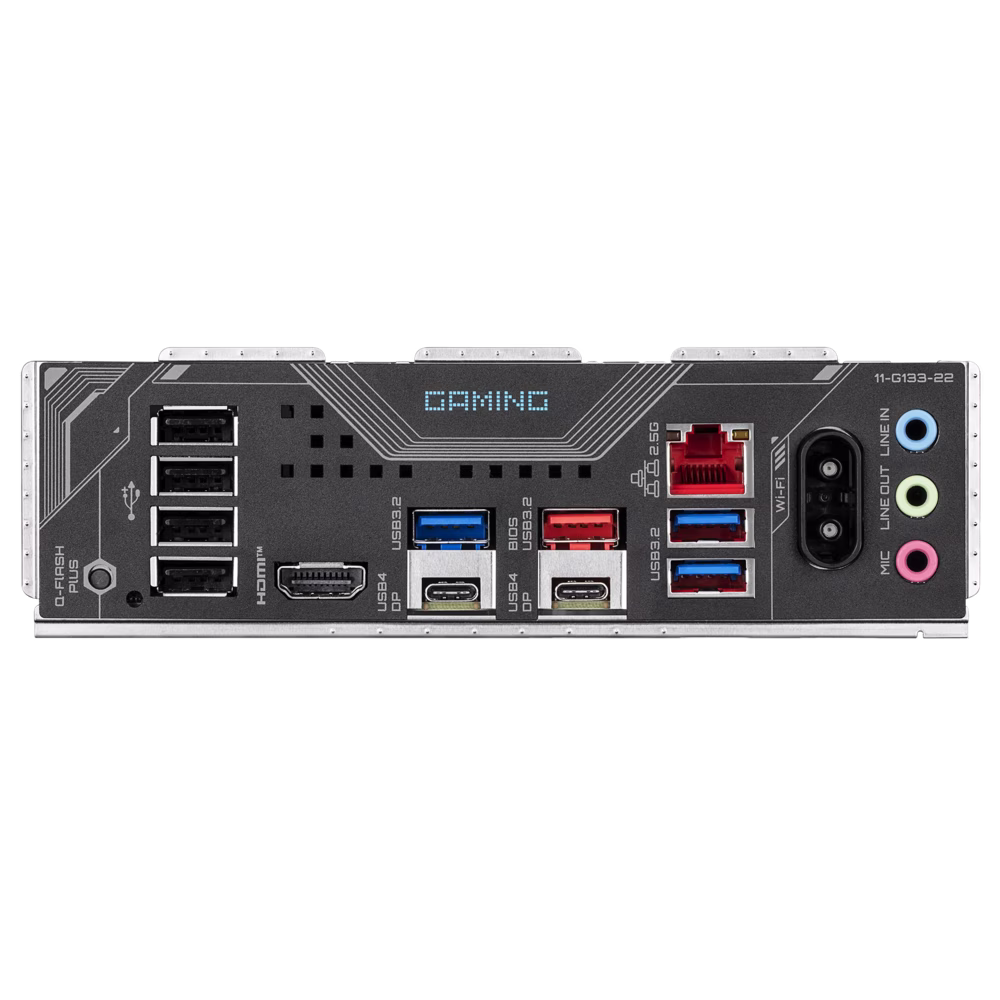

| Back Panel | - 1 x Q-Flash Plus button - 2 x SMA antenna connectors - 1 x HDMI port - 2 x USB4?? Type-C?? (DisplayPort) - 1 x USB 3.2 Gen 2 Type-A (red) - 3 x USB 3.2 Gen 1 - 4 x USB 2.0 - 1 x RJ-45 LAN port - 3 x Audio jacks |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, ACPI 5.0 |
| Unique Features | - GIGABYTE Control Center (GCC) - Q-Flash, Q-Flash Plus, Smart Backup |
| Software | Norton?? Internet Security (OEM), LAN bandwidth management |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Gigabyte X870 GAMING WIFI6 AM5 DDR5 Motherboard, 4X DIMMs with AMD EXPO, 3x M.2 slots, 1x PCIe 5.0 x4, 2.5GbE LAN & Wi-Fi 6 802.11ax, Dual 40Gbps USB4 with DP-Alt | X870 GAMING WF6 Specifications
| CPU | AMD Socket AM5, support for: - AMD Ryzen??? 9000 Series Processors - AMD Ryzen??? 8000 Series Processors - AMD Ryzen??? 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870 |
| Memory | Supports DDR5 8200(OC) to 4400 MT/s memory modules 4 x DDR5 DIMM slots, up to 256 GB total Dual channel memory architecture Supports non-ECC Un-buffered DIMM and AMD EXPO???/XMP memory modules |
| Onboard Graphics | Integrated AMD Radeon??? Graphics + ASMedia USB4?? Controller: - 2 x USB4?? USB Type-C?? ports (DisplayPort, max resolution 3840x2160@240 Hz) - 1 x HDMI port (max resolution 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR) |
| Audio | Realtek?? Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Realtek?? Wi-Fi 6 RTL8851BE (Wi-Fi a/b/g/n/ac/ax, 2.4/5 GHz bands, Bluetooth 5.3) |
| Expansion Slots | 1 x PCI Express x16 slot (CPU-based): - Ryzen??? 9000/7000: PCIe 5.0 x16 - Ryzen??? 8000-Phoenix 1: PCIe 4.0 x8 - Ryzen??? 8000-Phoenix 2: PCIe 4.0 x4 Chipset-based: - 2 x PCIe 3.0 x1 slots |
| Storage | 1 x PCIe 5.0 x4/x2 M.2 (CPU-based, 25110/22110/2280) 1 x PCIe 4.0 x2 M.2 (Chipset-based, 25110/22110/2280) 1 x PCIe 4.0 x4/x2 M.2 (Chipset-based, 25110/22110/2280) * The M2B_SB shares bandwidth with M2C_SB. 4 x SATA 6Gb/s connectors RAID 0/1/5/10 (NVMe SSD), RAID 0/1/10 (SATA SSD) |
| USB | - 2 x USB4?? Type-C?? (back panel) - 1 x USB 3.2 Gen 2 Type-A (red, back panel) - 1 x USB 3.2 Gen 1 (back panel) - 1 x USB 3.2 Gen 2x2 Type-C (internal header) - 4 x USB 3.2 Gen 1 (2 back panel, 2 internal) - 8 x USB 2.0 (4 back panel, 4 internal) |
| Internal I/O | - 1 x 24-pin ATX power - 1 x 8-pin ATX 12V + 1 x 4-pin ATX 12V - 1 x CPU fan, 1 x CPU/water pump header, 4 x system fan headers - 3 x ARGB Gen2 headers, 1 x RGB LED strip header - 1 x TPM header, 1 x reset jumper, 1 x Clear CMOS jumper |
| Back Panel | - 1 x Q-Flash Plus button - 2 x SMA antenna connectors - 1 x HDMI port - 2 x USB4?? Type-C?? (DisplayPort) - 1 x USB 3.2 Gen 2 Type-A (red) - 3 x USB 3.2 Gen 1 - 4 x USB 2.0 - 1 x RJ-45 LAN port - 3 x Audio jacks |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, ACPI 5.0 |
| Unique Features | - GIGABYTE Control Center (GCC) - Q-Flash, Q-Flash Plus, Smart Backup |
| Software | Norton?? Internet Security (OEM), LAN bandwidth management |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
