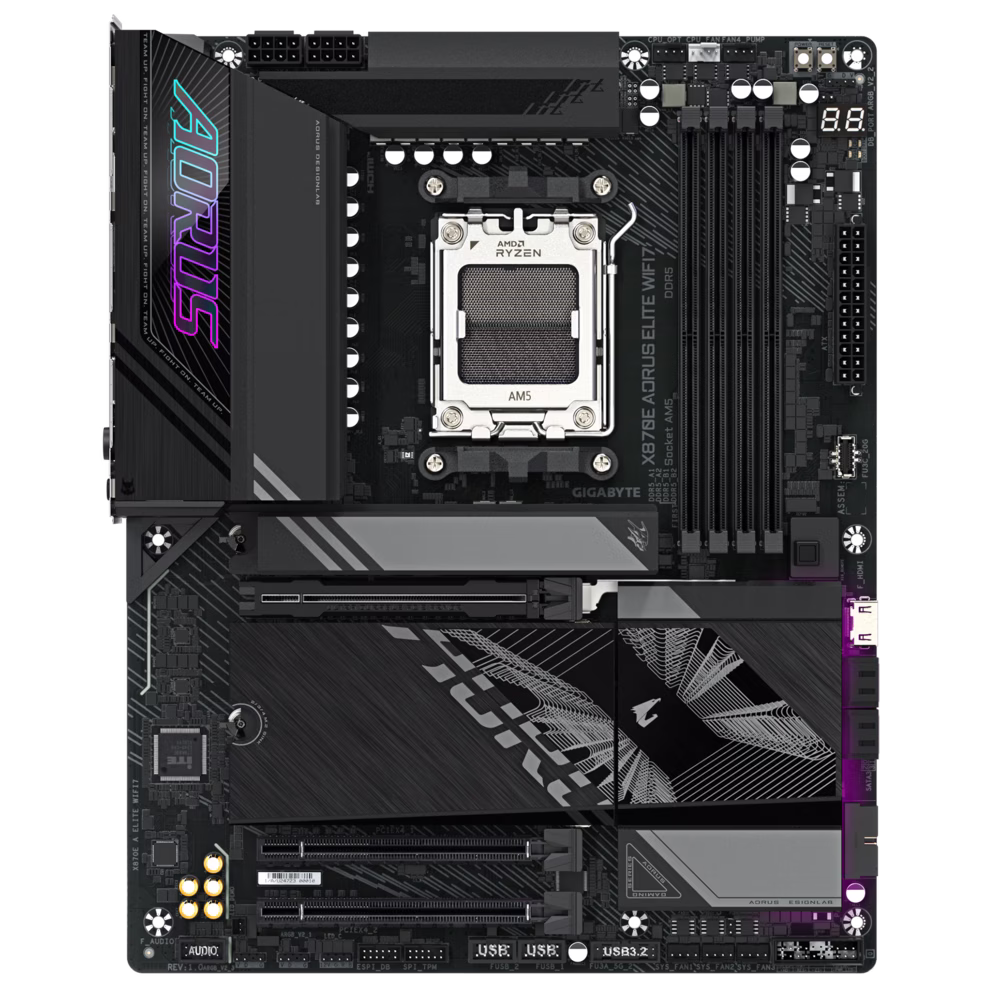

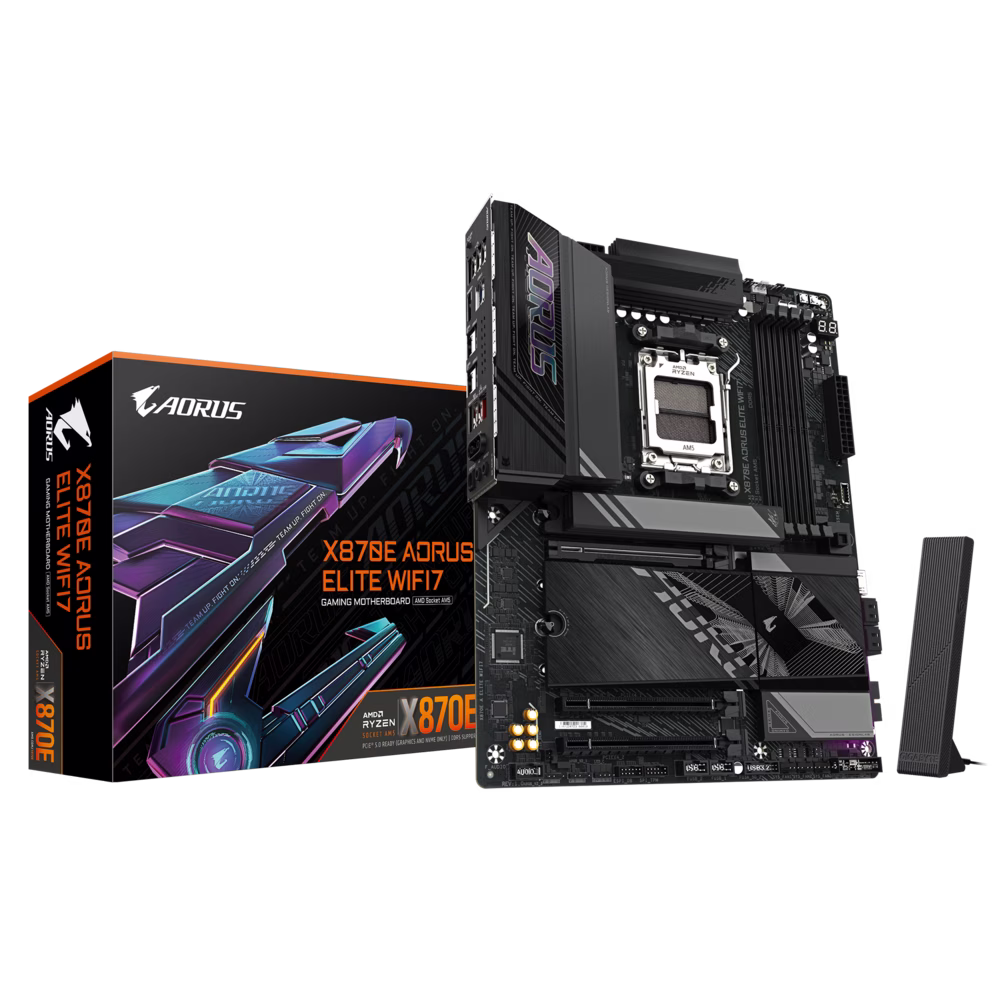

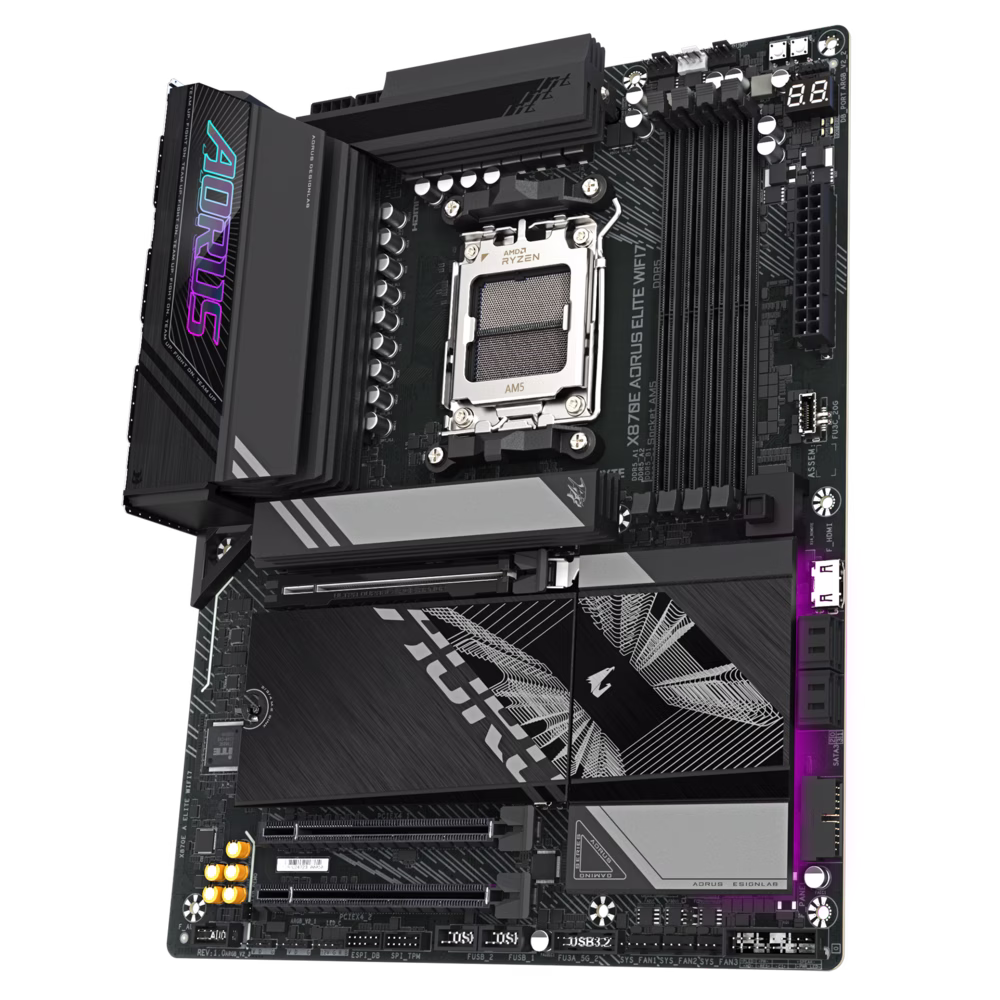

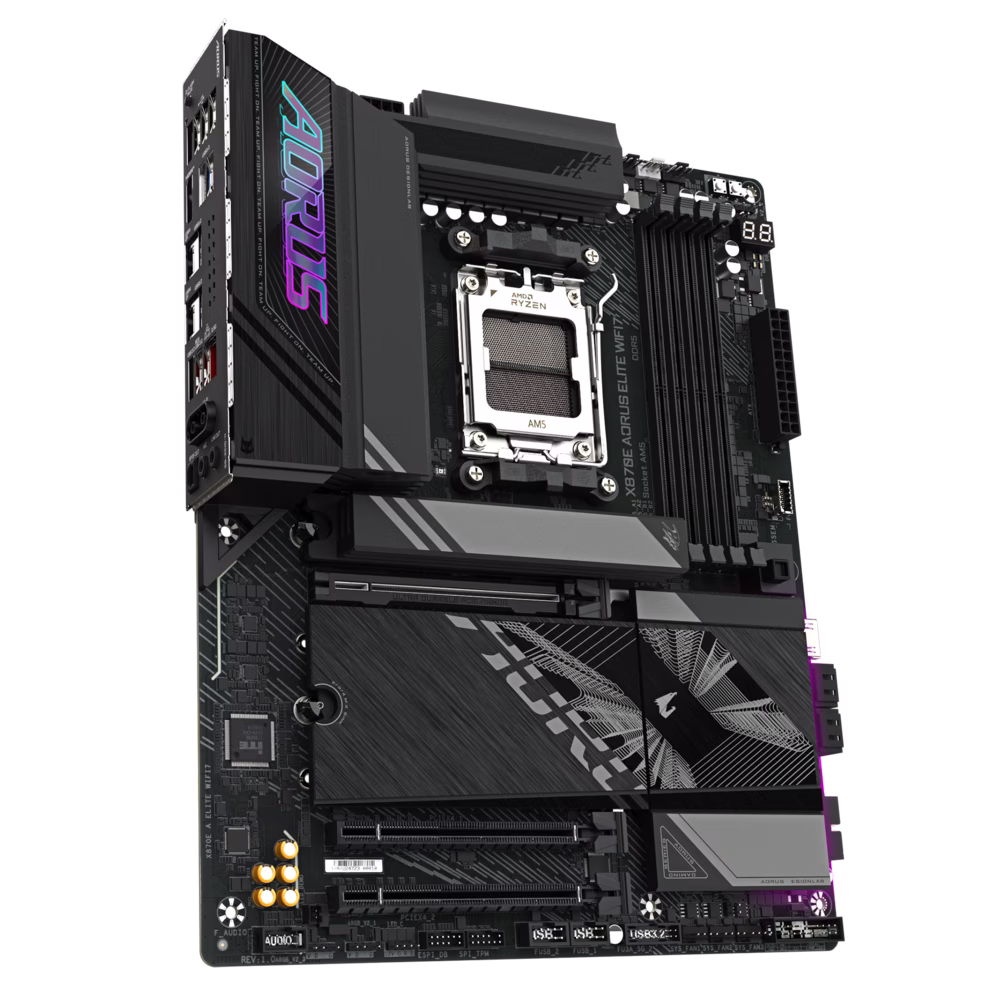

Gigabyte X870E AORUS ELITE WIFI7 AM5 ATX Motherboard, 4x DIMMs with AMD EXPO, 4x M.2 slots, 3x PCIe 5.0 x4, 2.5GbE LAN & Wi-Fi 7, Dual USB4 Type-C with DP-Alt, HDMI | X870E AORUS ELITE WIFI7
Model :
SKU : MB-GIGA X870E AO ELI WIF7
About this item
About this item
Description
The X870E AORUS ELITE WIFI7 represents the pinnacle of GIGABYTE’s engineering for the AMD AM5 socket. By utilizing the enhanced X870E chipset, this motherboard provides superior PCIe lane distribution compared to standard B-series or X-series boards, making it ideal for users running multiple high-speed NVMe drives and top-tier graphics cards simultaneously. It is an "AI PC Ready" motherboard, designed with the signal integrity and power stability required for local AI processing and professional content creation.
Dominant Power Delivery & AORUS Thermal Armor
To support the aggressive boost clocks of Ryzen 9 processors, the board features a Twin 16+2+2 Digital VRM design with 80A Smart Power Stages. Heat is efficiently dissipated through the AORUS Thermal Armor Advanced, which utilizes high-coverage heatsinks and an 8mm heatpipe. The M.2 Thermal Guard Ext. ensures that even the most demanding PCIe 5.0 SSDs maintain peak performance without thermal throttling during sustained data transfers.
Next-Gen Speed: WiFi 7, 2.5GbE LAN, & Dual USB4®

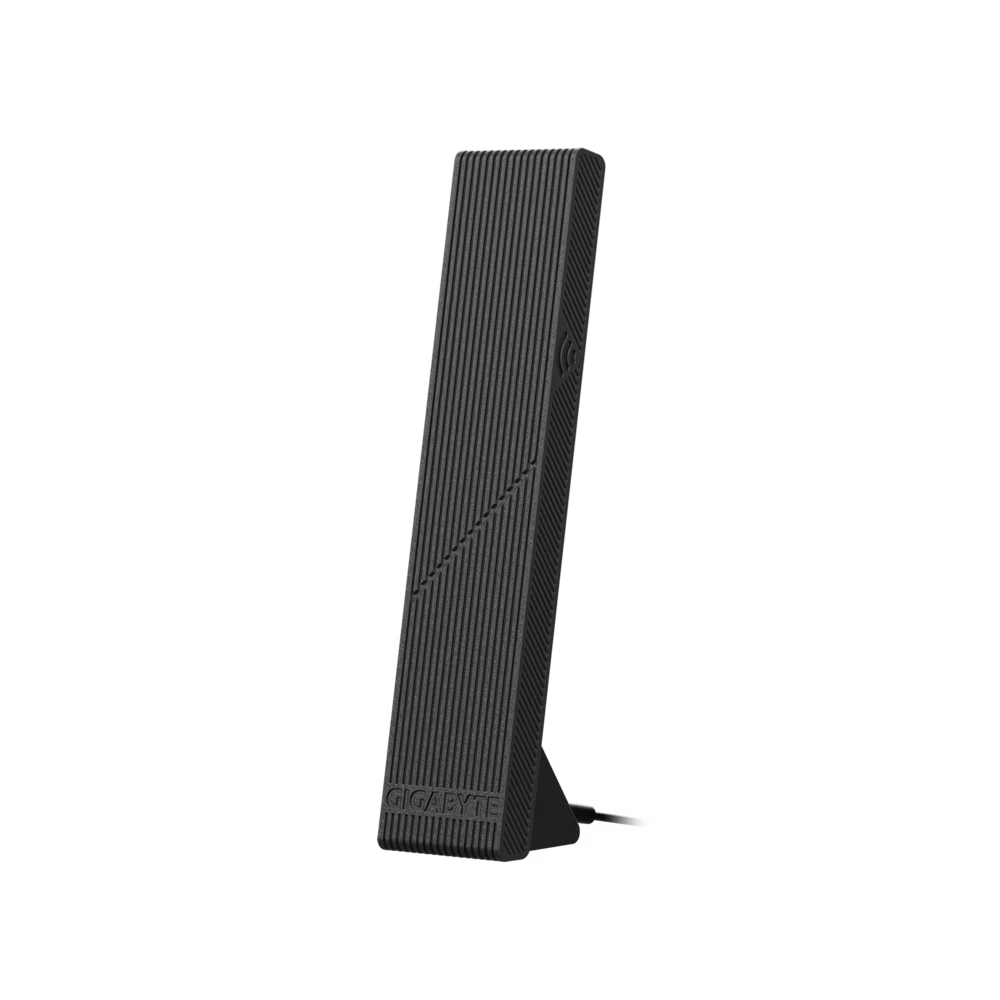

Connectivity is where the X870E AORUS ELITE truly shines. It features integrated WiFi 7 with a directional ultra-high gain antenna, delivering 320MHz bandwidth for wireless speeds up to 5.8Gbps. The inclusion of Dual USB4® (Type-C) ports provides 40Gbps bidirectional bandwidth, supporting high-speed external RAID arrays and 8K display output. For wired networking, the 2.5GbE LAN ensures a low-latency connection for competitive online gaming.
DIY Friendly: EZ-Latch and UD Slot X
GIGABYTE has streamlined the PC-building process with several "EZ" innovations. The PCIe EZ-Latch Plus allows for one-handed removal of massive GPUs, while the M.2 EZ-Latch Click and EZ-Latch Plus systems make storage installation entirely tool-less. The primary graphics slot is reinforced with PCIe UD Slot X, providing 10X the load-bearing strength to support even the heaviest modern triple-fan graphics cards.
Why the X870E AORUS ELITE WIFI7 Stands Out
Flagship X870E Chipset: Maximum PCIe connectivity for high-end expansion and storage.
Dual USB4® Ports: Future-proof 40Gbps speeds for professional peripherals and displays.
WiFi 7 Connectivity: Next-gen wireless standard for ultra-low latency gaming.
AI Perfdrive: Intelligently balances power and cooling to maximize Ryzen performance.
Specification
Gigabyte X870E AORUS ELITE WIFI7 AM5 ATX Motherboard, 4x DIMMs with AMD EXPO, 4x M.2 slots, 3x PCIe 5.0 x4, 2.5GbE LAN & Wi-Fi 7, Dual USB4 Type-C with DP-Alt, HDMI | X870E AORUS ELITE WIFI7 Specifications
| CPU Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen??? 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870E |
| Memory Support | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) |
| Memory Architecture | Dual Channel |
| Memory Speeds | 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600 / 5200 / 4800 / 4400 MT/s |
| Memory Features | Support for AMD EXPO??? and XMP memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon??? Graphics support |
| Graphics Outputs | - 2 x USB4?? USB Type-C?? ports, supporting USB4 and DisplayPort video outputs (up to 3840x2160@240 Hz) - 1 x HDMI port, supporting up to 4096x2160@60 Hz - 1 x front HDMI port, supporting up to 1920x1080@30 Hz |
| Audio | Realtek?? ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out |
| LAN | Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | - MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) or Realtek?? Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2) - Wi-Fi a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz bands - Bluetooth 5.4 |
| Expansion Slots | - 1 x PCI Express x16 slot (PCIEX16), supporting PCIe 5.0 x16 mode - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Storage Interface | - 1 x M.2 connector (M2A_CPU), supporting PCIe 5.0 x4/x2 SSDs - 2 x M.2 connectors (M2B_CPU, M2C_CPU), supporting PCIe 5.0 x4/x2 SSDs - 1 x M.2 connector (M2D_SB), supporting PCIe 4.0 x4/x2 SSDs - 4 x SATA 6Gb/s connectors - RAID 0, RAID 1, RAID 5 (only on AMD Ryzen??? 9000 Series Processors), and RAID 10 support |
| USB Ports | - 2 x USB4?? USB Type-C?? ports on the back panel - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB Type-C?? port with USB 3.2 Gen 2x2 support (internal header) - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 7 x USB 3.2 Gen 1 ports (3 on back panel, 4 via internal headers) - 8 x USB 2.0/1.1 ports (4 on back panel, 4 via internal headers) |
| Internal I/O Connectors | - 1 x 24-pin ATX main power connector - 2 x 8-pin ATX 12V power connectors - 1 x CPU fan header - 1 x CPU fan/water cooling pump header - 3 x system fan headers - 1 x system fan/water cooling pump header - 3 x addressable RGB Gen2 LED strip headers - 1 x RGB LED strip header - 4 x M.2 Socket 3 connectors - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB Type-C?? header (USB 3.2 Gen 2x2 support) - 2 x USB 3.2 Gen 1 headers - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module header - 1 x HDMI port (Note) - 1 x power button - 1 x reset button - 1 x reset jumper - 1 x Clear CMOS jumper |

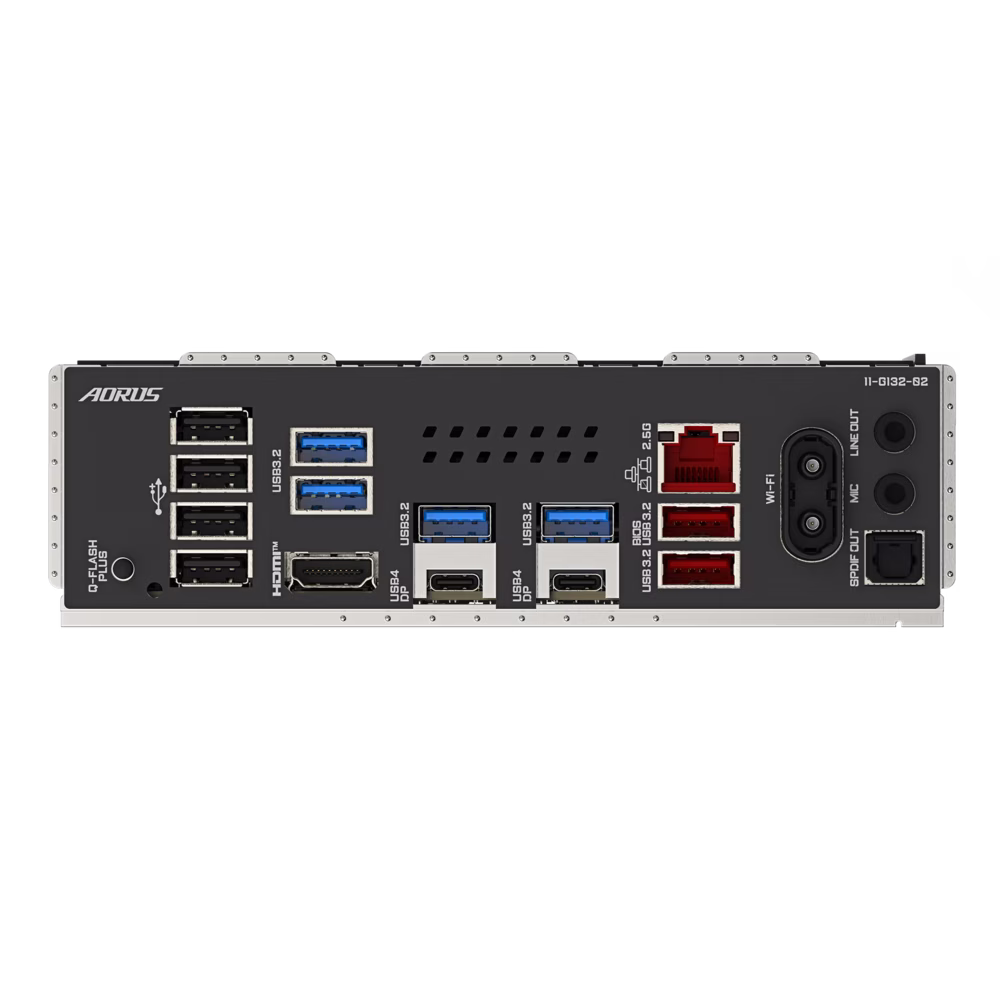

| Back Panel Connectors | - 1 x Q-Flash Plus button - 4 x USB 2.0/1.1 ports - 4 x USB 3. ::contentReference[oaicite:0]{index=0} |
