Gigabyte X870E AORUS MASTER AM5 Motherboard, 4 x DDR5 DIMM OC up to 8600MT/s, 4xM.2 slots, 3xPCIe 5.0 x4, Digital Twin VRM Design, 5GbE LAN & Wi-Fi 7 | X870E AORUS MASTER
Model :
SKU : MB-GIGA X870E AORUS MASTE
About this item
Description
The GIGABYTE X870E AORUS MASTER is engineered for the future of desktop computing. Utilizing the AMD AM5 socket, this motherboard is fully prepared for the latest Ryzen™ 9000 series "Zen 5" processors while maintaining backward compatibility with Ryzen 7000 and 8000 series. The X870E chipset provides maximum PCIe lane flexibility, ensuring that your GPU and high-speed NVMe storage never compete for bandwidth.

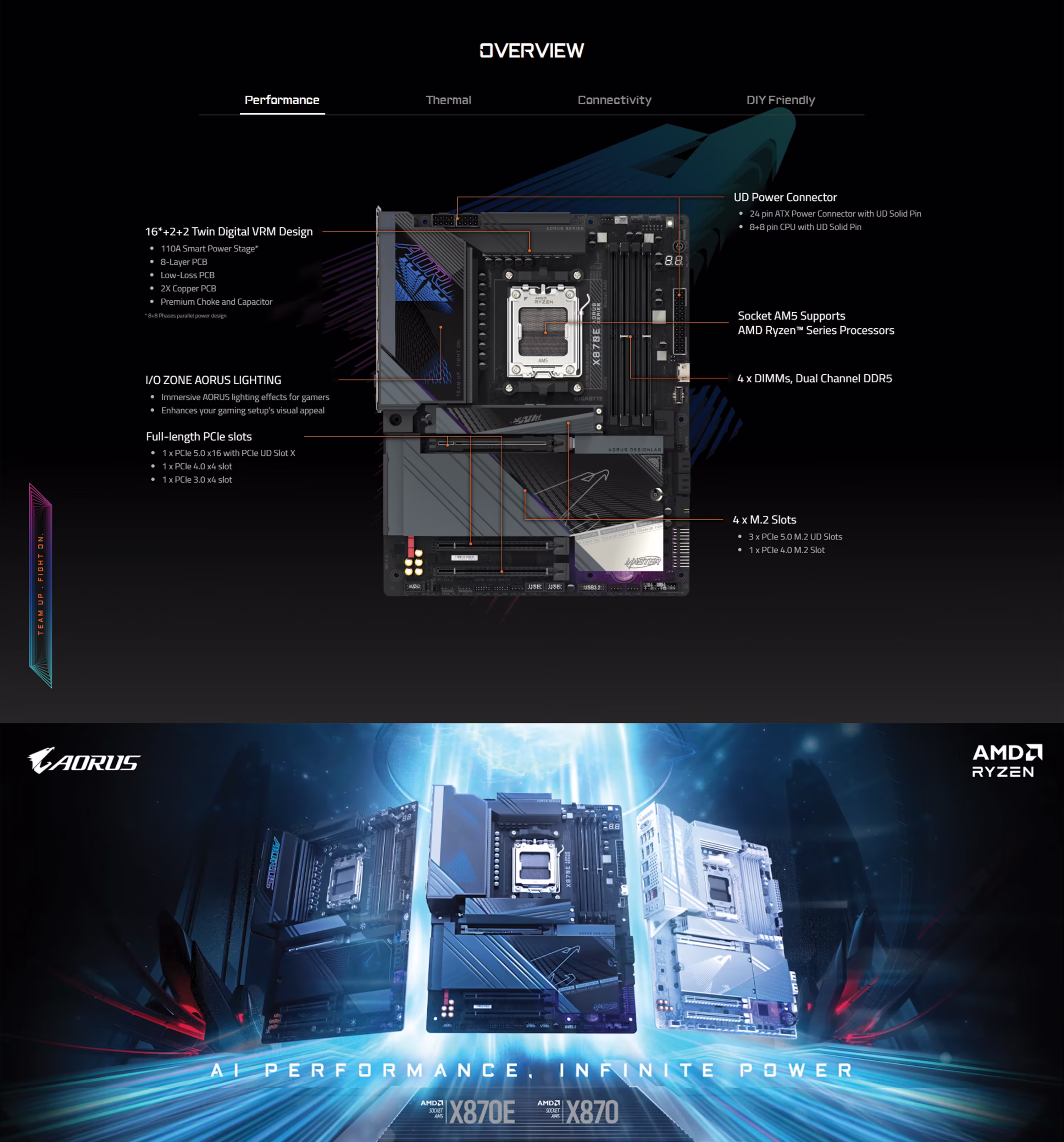

Elite Power Delivery & Thermal Armor
Stability during extreme gaming or heavy rendering is guaranteed by the 16+2+2 phase digital VRM with 110A Smart Power Stages. GIGABYTE’s AORUS Thermal Armor utilizes a high-coverage heatsink with an 8mm Mega-Heatpipe and a 7 W/mK thermal pad to keep the power delivery system cool. Additionally, the M.2 Thermal Guard XL ensures that the latest PCIe 5.0 SSDs can run at peak speeds for extended periods without thermal throttling.
Next-Gen Connectivity: WiFi 7 and Dual USB4
The X870E AORUS MASTER is a connectivity powerhouse. It features onboard WiFi 7 with a directional high-gain antenna, delivering ultra-wide bandwidth and low latency for wireless gaming. For wired peripherals, Dual USB4 ports provide up to 40Gbps of speed, supporting DisplayPort Alt Mode for high-resolution monitors and lightning-fast external storage. The networking stack is rounded out by a 5GbE LAN port, providing a significant upgrade over standard Gigabit Ethernet.
Specification
Gigabyte X870E AORUS MASTER AM5 Motherboard, 4 x DDR5 DIMM OC up to 8600MT/s, 4xM.2 slots, 3xPCIe 5.0 x4, Digital Twin VRM Design, 5GbE LAN & Wi-Fi 7 | X870E AORUS MASTER Specifications
| CPU | AMD Socket AM5, support for AMD Ryzen??? 9000, 8000, 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) and more, up to 256GB, Dual Channel, ECC & Non-ECC |
| Onboard Graphics | Integrated Graphics with AMD Radeon??? and ASMedia USB4?? Controller, 2 x USB4?? USB Type-C?? ports, DisplayPort 1.4, HDMI 2.1, Front HDMI |
| Audio | Realtek?? ALC1220 CODEC, DTS:X?? Ultra, High Definition Audio, 2/4/5.1/7.1-channel support, S/PDIF Out |
| LAN | Realtek?? 5GbE LAN chip |
| Wireless Communication | Qualcomm?? Wi-Fi 7 QCNCM865, BLUETOOTH 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x4 |
| Storage Interface | 4 x M.2, 4 x SATA 6Gb/s, RAID 0/1/5/10 support for NVMe and SATA |
| USB | 2 x USB4?? Type-C??, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, and more |
| Internal I/O Connectors | ATX power connectors, CPU fan headers, RGB LED headers, M.2 connectors, SATA connectors |
| Back Panel Connectors | USB4?? Type-C??, HDMI, RJ-45 LAN, Audio jacks, Optical S/PDIF |
| I/O Controller | iTE?? I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate, Noise detection |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Smart Backup |
| Bundled Software | Norton?? Internet Security, LAN bandwidth management |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
