Gigabyte X870E AORUS PRO AM5 DDR5 ATX Motherboard, 4x DIMMs with AMD EXPO, 4x M.2 slots, including 3x PCIe 5.0 x4, Dual USB4 Type-C with DP-Alt, HDMI, 2.5GbE LAN & Wi-Fi 7 | X870E AORUS PRO
Model :
SKU : MB-GIGA X870E AORUS PRO
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Gigabyte X870E AORUS PRO AM5 DDR5 ATX Motherboard, 4x DIMMs with AMD EXPO, 4x M.2 slots, including 3x PCIe 5.0 x4, Dual USB4 Type-C with DP-Alt, HDMI, 2.5GbE LAN & Wi-Fi 7 | X870E AORUS PRO Specifications
| CPU | AMD Socket AM5, support for AMD Ryzen??? 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | Supports DDR5 up to 8200(OC) MT/s, 4 x DIMM slots, up to 256GB, Dual Channel, EXPO & XMP support |
| Onboard Graphics | Integrated AMD Radeon??? Graphics, 2 x USB4?? Type-C (DP 3840x2160@240Hz), 1 x HDMI 2.1 (4096x2160@60Hz), 1 x front HDMI 1.4 (1920x1080@30Hz) |
| Audio | Realtek?? ALC1220 CODEC, 7.1-Channel, S/PDIF Out, DSD Audio Support |
| LAN | Realtek?? 2.5GbE LAN |
| Wireless | Qualcomm?? Wi-Fi 7 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz), Bluetooth 5.3 |
| PCIe Slots | 1 x PCIe 5.0 x16 (CPU, x8 mode if M2B_CPU or M2C_CPU is populated) 1 x PCIe 4.0 x4 1 x PCIe 3.0 x4 |
| Storage | 4 x M.2 Slots (PCIe 5.0/4.0, NVMe, 22110/2280) 4 x SATA 6Gb/s RAID 0/1/5/10 support (NVMe & SATA) |
| USB Ports | 2 x USB4?? Type-C 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2x2 Type-C (internal) 2 x USB 3.2 Gen 2 Type-A 8 x USB 3.2 Gen 1 (4 rear, 4 internal) 6 x USB 2.0 (2 rear, 4 internal) |
| Internal I/O | 1 x 24-pin ATX, 2 x 8-pin ATX 12V 6 x fan headers (CPU/System/Pump) 3 x ARGB Gen2, 1 x RGB header 4 x SATA, 4 x M.2 1 x USB 3.2 Gen 2x2 Type-C header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0 headers 1 x TPM header, 2 x temperature sensor headers |

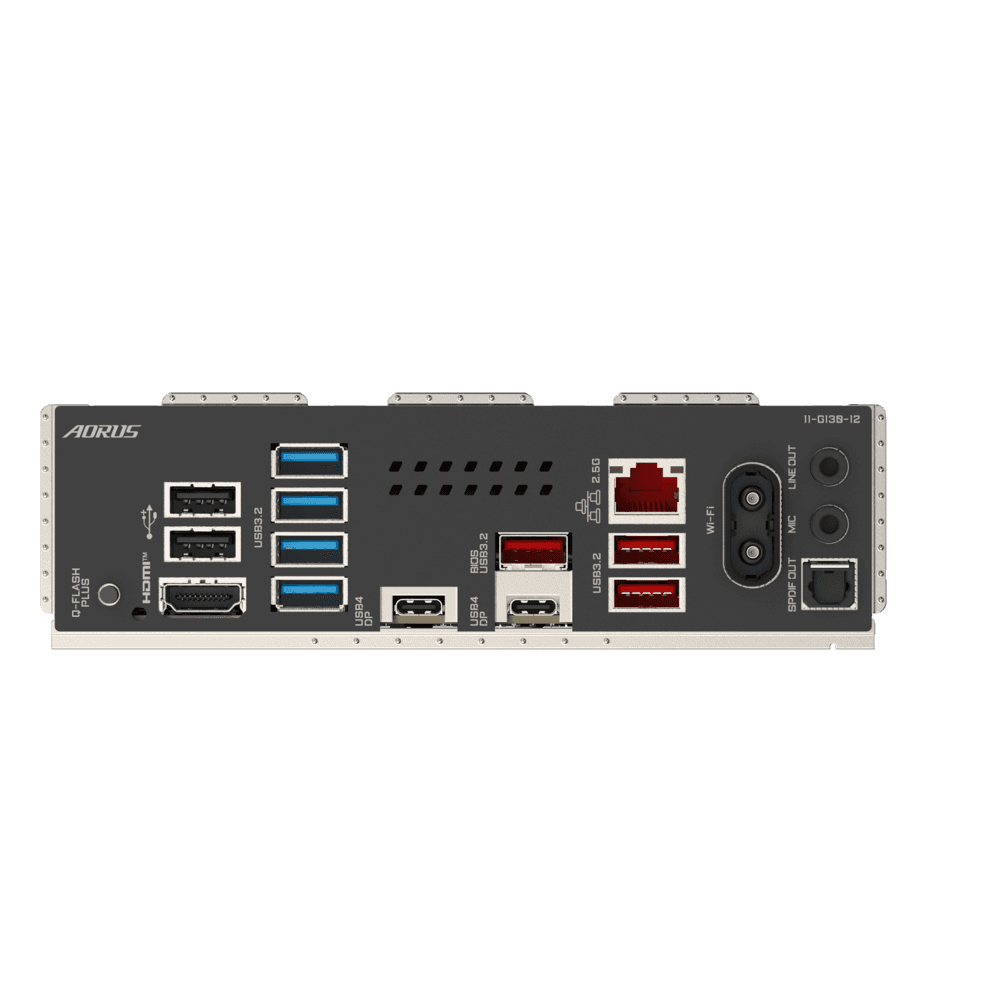

| Back Panel | 1 x Q-Flash Plus button 2 x USB 2.0 1 x HDMI 2.1 4 x USB 3.2 Gen 1 2 x USB4?? Type-C 3 x USB 3.2 Gen 2 Type-A 1 x 2.5GbE LAN 2 x Wi-Fi Antenna connectors 1 x Optical S/PDIF Out 2 x Audio jacks |
| BIOS | 256 Mbit Flash, AMI UEFI, Q-Flash, Q-Flash Plus |
| Unique Features | GIGABYTE Control Center (GCC), Smart Backup |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Gigabyte X870E AORUS PRO AM5 DDR5 ATX Motherboard, 4x DIMMs with AMD EXPO, 4x M.2 slots, including 3x PCIe 5.0 x4, Dual USB4 Type-C with DP-Alt, HDMI, 2.5GbE LAN & Wi-Fi 7 | X870E AORUS PRO Specifications
| CPU | AMD Socket AM5, support for AMD Ryzen??? 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | Supports DDR5 up to 8200(OC) MT/s, 4 x DIMM slots, up to 256GB, Dual Channel, EXPO & XMP support |
| Onboard Graphics | Integrated AMD Radeon??? Graphics, 2 x USB4?? Type-C (DP 3840x2160@240Hz), 1 x HDMI 2.1 (4096x2160@60Hz), 1 x front HDMI 1.4 (1920x1080@30Hz) |
| Audio | Realtek?? ALC1220 CODEC, 7.1-Channel, S/PDIF Out, DSD Audio Support |
| LAN | Realtek?? 2.5GbE LAN |
| Wireless | Qualcomm?? Wi-Fi 7 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz), Bluetooth 5.3 |
| PCIe Slots | 1 x PCIe 5.0 x16 (CPU, x8 mode if M2B_CPU or M2C_CPU is populated) 1 x PCIe 4.0 x4 1 x PCIe 3.0 x4 |
| Storage | 4 x M.2 Slots (PCIe 5.0/4.0, NVMe, 22110/2280) 4 x SATA 6Gb/s RAID 0/1/5/10 support (NVMe & SATA) |
| USB Ports | 2 x USB4?? Type-C 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2x2 Type-C (internal) 2 x USB 3.2 Gen 2 Type-A 8 x USB 3.2 Gen 1 (4 rear, 4 internal) 6 x USB 2.0 (2 rear, 4 internal) |
| Internal I/O | 1 x 24-pin ATX, 2 x 8-pin ATX 12V 6 x fan headers (CPU/System/Pump) 3 x ARGB Gen2, 1 x RGB header 4 x SATA, 4 x M.2 1 x USB 3.2 Gen 2x2 Type-C header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0 headers 1 x TPM header, 2 x temperature sensor headers |
| Back Panel | 1 x Q-Flash Plus button 2 x USB 2.0 1 x HDMI 2.1 4 x USB 3.2 Gen 1 2 x USB4?? Type-C 3 x USB 3.2 Gen 2 Type-A 1 x 2.5GbE LAN 2 x Wi-Fi Antenna connectors 1 x Optical S/PDIF Out 2 x Audio jacks |
| BIOS | 256 Mbit Flash, AMI UEFI, Q-Flash, Q-Flash Plus |
| Unique Features | GIGABYTE Control Center (GCC), Smart Backup |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
