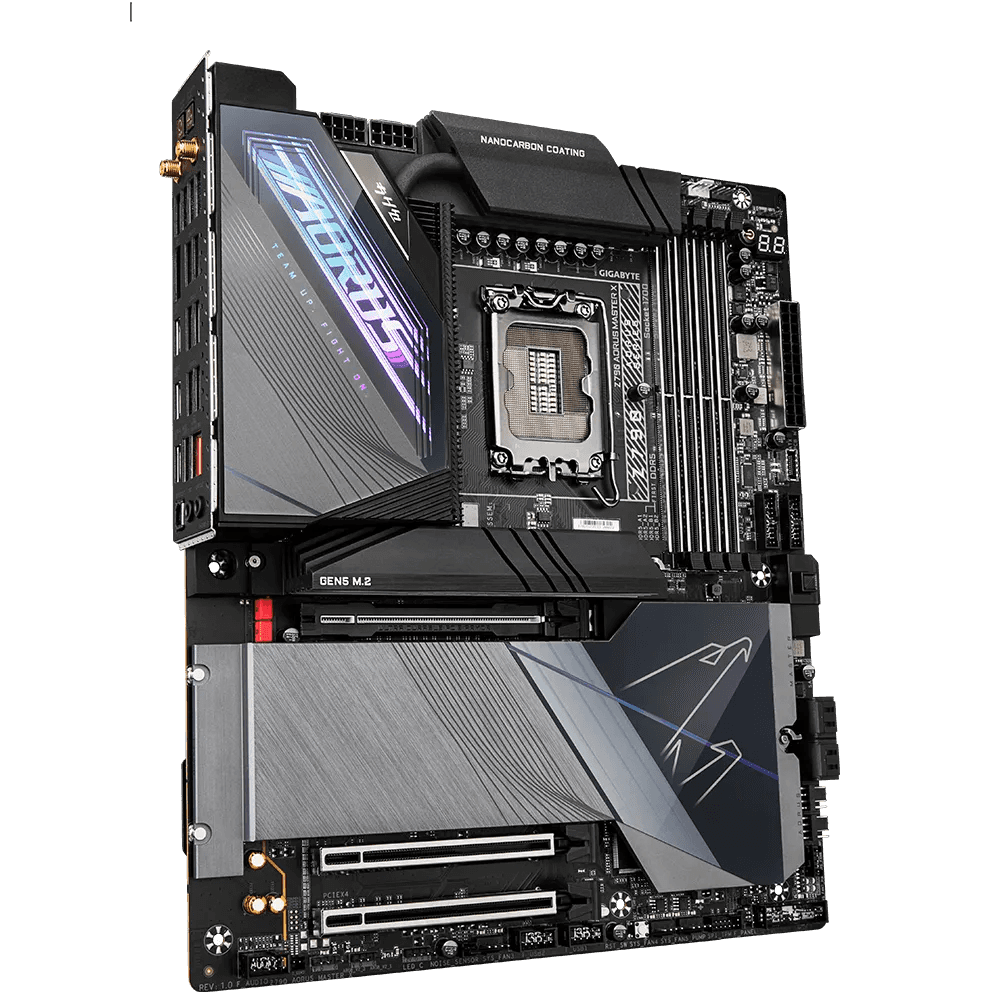

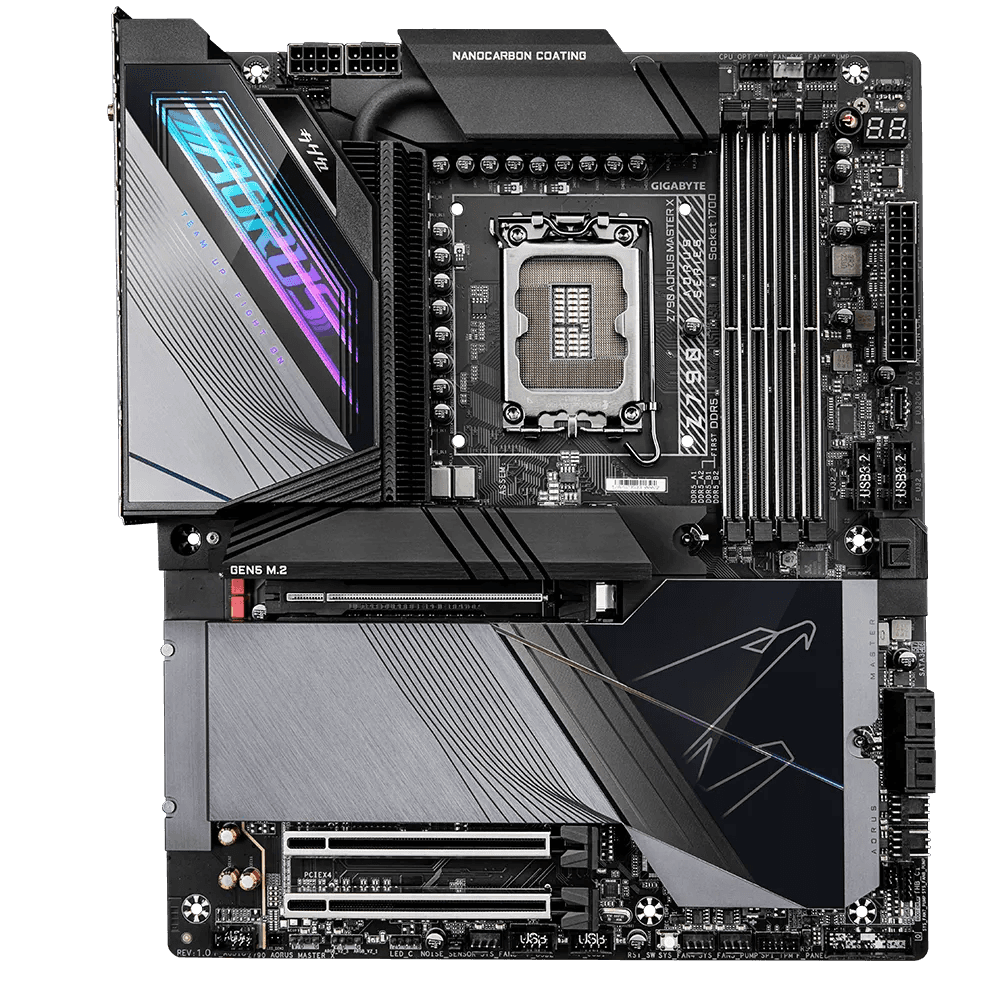

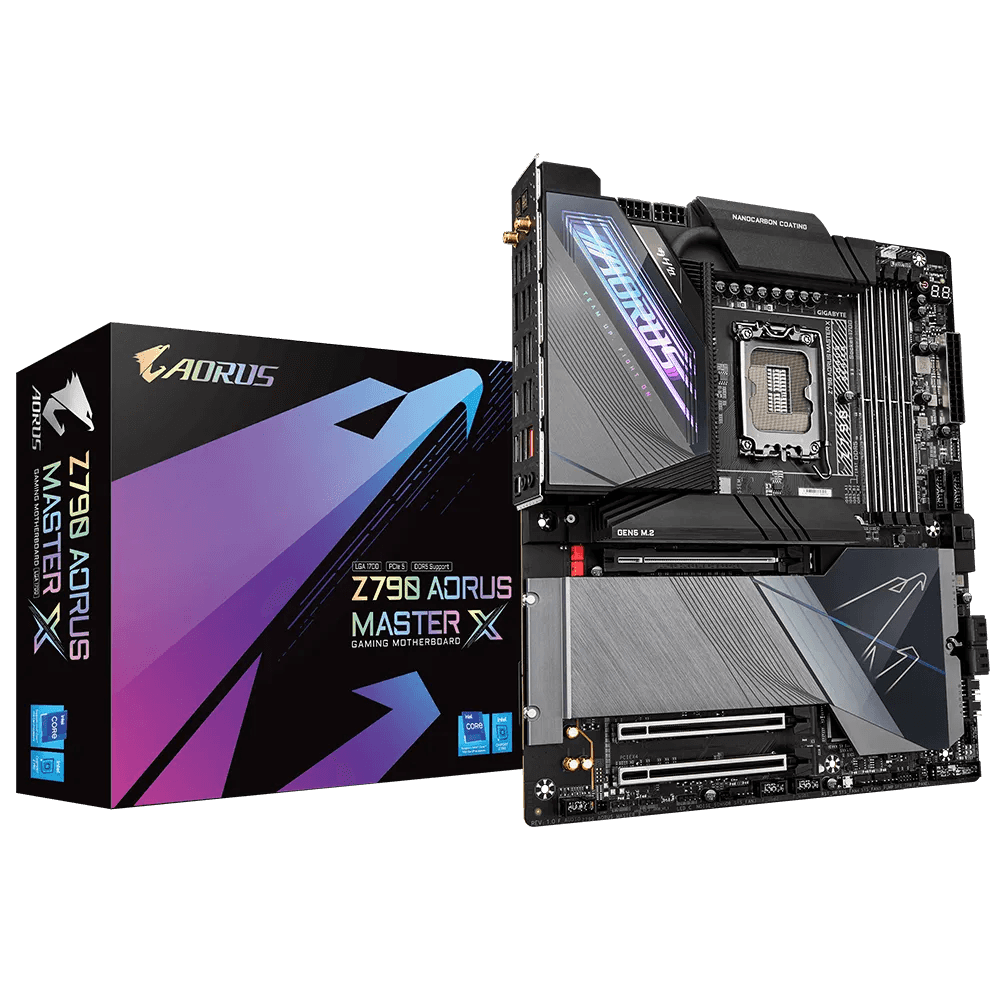

Gigabyte Z790 AORUS MASTER X LGA 1700 E-ATX Motherboard, Z790 Chipset, 4 x DDR5 DIMM, Supporting Up to 128GB | Z790 AORUS MASTER X
Model :
SKU : MB-GI Z790 AORUS MASTER X
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
GIGABYTE Z790 AORUS MASTER X INTEL LGA 1700 DDR5 PCLE 514TH GEN SUPPORTS GAMING MOTHERBOARD,Z790 AORUS MASTER X,889523039335,4719331857585
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel?? Core???, Pentium?? Gold and Celeron?? Processors* L3 cache varies with CPU |
| Chipset | Intel?? Z790 Express Chipset |
| Memory | Support for DDR5 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel?? HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096??2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Audio | Realtek?? ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X?? Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Marvell?? AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | Intel?? Wi-Fi 6E AX411 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire??? technology (PCIEX16 and PCIEX4) |
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices |
| USB | Chipset: 3 x USB Type-C?? ports, with USB 3.2 Gen 2??2 support (2 ports on the back panel, 1 port available through the internal USB header) Chipset+2 USB 3.2 Gen 2 Hubs: 1 x USB Type-C?? port on the back panel, with USB 3.2 Gen 1 support 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C?? header, with USB 3.2 Gen 2??2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt??? add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |

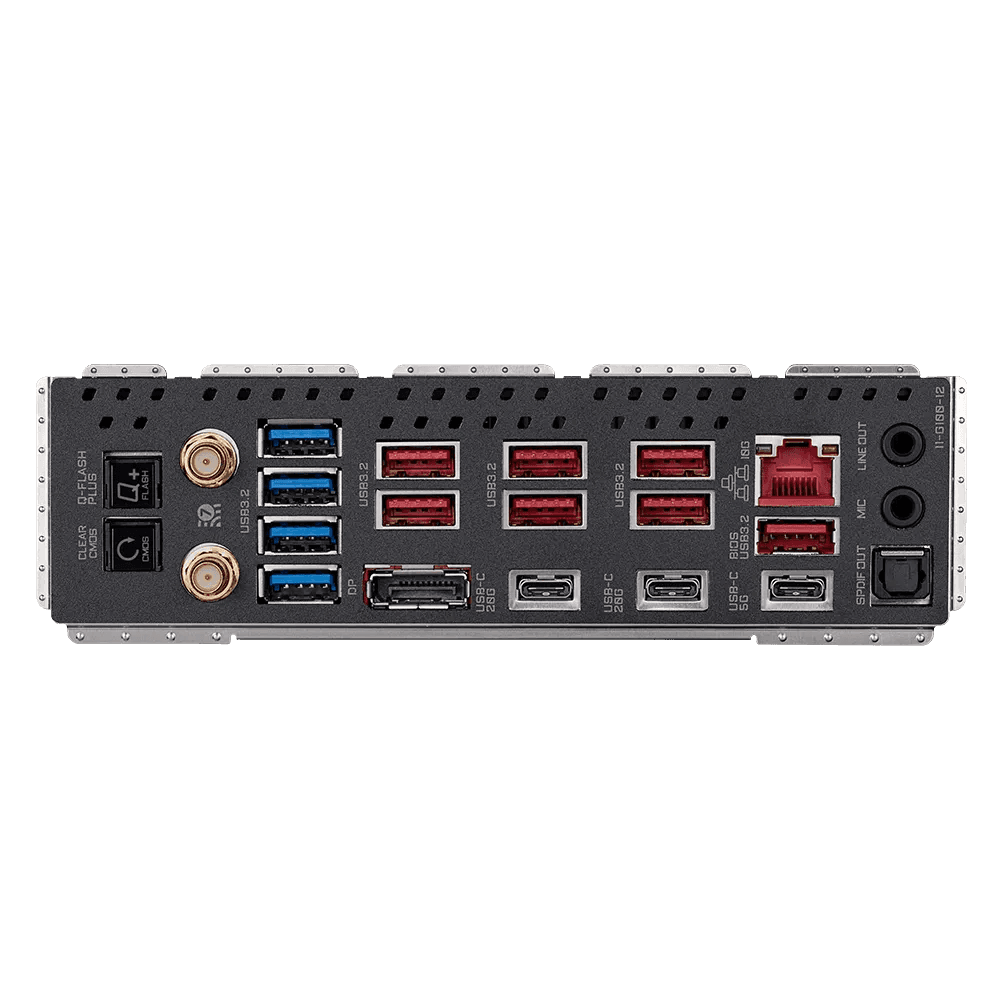

| Back Panel Connector | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C?? port, with USB 3.2 Gen 1 support 2 x USB Type-C?? ports, with USB 3.2 Gen 2??2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| I/O Controller | iTE?? I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton?? Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | E-ATX Form Factor; 30.5cm x 26.0cm |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
Specification
GIGABYTE Z790 AORUS MASTER X INTEL LGA 1700 DDR5 PCLE 514TH GEN SUPPORTS GAMING MOTHERBOARD,Z790 AORUS MASTER X,889523039335,4719331857585
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel?? Core???, Pentium?? Gold and Celeron?? Processors* L3 cache varies with CPU |
| Chipset | Intel?? Z790 Express Chipset |
| Memory | Support for DDR5 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel?? HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096??2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Audio | Realtek?? ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X?? Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Marvell?? AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | Intel?? Wi-Fi 6E AX411 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire??? technology (PCIEX16 and PCIEX4) |
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices |
| USB | Chipset: 3 x USB Type-C?? ports, with USB 3.2 Gen 2??2 support (2 ports on the back panel, 1 port available through the internal USB header) Chipset+2 USB 3.2 Gen 2 Hubs: 1 x USB Type-C?? port on the back panel, with USB 3.2 Gen 1 support 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C?? header, with USB 3.2 Gen 2??2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt??? add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |
| Back Panel Connector | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C?? port, with USB 3.2 Gen 1 support 2 x USB Type-C?? ports, with USB 3.2 Gen 2??2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| I/O Controller | iTE?? I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton?? Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | E-ATX Form Factor; 30.5cm x 26.0cm |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
