Feature

Specification

Model & Form Factor

GIGABYTE Z890 AORUS ELITE WIFI7 PLUS (Z890 A ELITE WIFI7 P) | ATX (30.5 × 24.4 cm)

CPU Socket & Chipset

LGA1851 (Supports Intel® Core™ Ultra Processors) | Intel® Z890 Express Chipset

Memory Architecture

4x DDR5 DIMM Slots (Dual Channel, up to 256 GB)

Speeds up to DDR5 9466+ MT/s (OC)

Supports CUDIMM (Clocked Unbuffered DIMM), Non-ECC Un-buffered DIMM, and Intel® XMP

PCIe Expansion Slots

1x PCIe 5.0 x16 (PCIEX16 via CPU; graphics card or NVMe SSD)

2x PCIe 4.0 x16 (running at x4) (PCIEX4_1, PCIEX4_2 via Chipset)

M.2 & SATA Storage

4x M.2 Connectors (Socket 3, M Key):

M2A_CPU: PCIe 5.0 x4/x2 (Types 25110/22110/2580/2280)

M2B_CPU: PCIe 4.0 x4/x2 (Types 22110/2280)

M2Q_SB: PCIe 4.0 x4/x2 (Types 22110/2280)

M2M_SB: SATA & PCIe 4.0 x4/x2 (Types 22110/2280)

4x SATA 6Gb/s ports | RAID 0, 1, 5, 10 for NVMe & SATA

Display & USB4 Outputs

1x USB4® Type-C: Supports DisplayPort 2.1 video up to 3840 × 2160 @ 144 Hz

1x DisplayPort: DP 2.1 up to 3840 × 2160 @ 144 Hz

Networking & Wireless

5GbE LAN: Realtek® 5 Gbps Ethernet chip (5G / 2.5G / 1G / 100M)

Wi-Fi 7: Intel® Wi-Fi 7 BE200NGW (2.4/5/6 GHz, 320 MHz channel bandwidth)

Bluetooth 5.4

Audio Subsystem

Realtek® ALC1220 Codec | High Definition Audio (2/4/5.1/7.1-channel) | Optical S/PDIF Out | DSD Audio support on line-out jack

Back Panel I/O

1x USB4® Type-C | 2x USB 3.2 Gen 2 Type-A (Red) | 3x USB 3.2 Gen 1 Type-A | 4x USB 2.0/1.1

1x DisplayPort | 1x RJ-45 (5GbE) | 2x Antenna Connectors (2T2R) | 1x Optical S/PDIF Out | 2x Audio Jacks

Rear Controls: Power Button, Reset Button, Clear CMOS Button, Q-Flash Plus Button

Internal USB & Expansion

1x USB Type-C header (USB 3.2 Gen 2) | 1x USB 3.2 Gen 1 header (2 ports) | 2x USB 2.0/1.1 headers (4 ports)

2x Thunderbolt™ Add-in Card Connectors (dedicated for GIGABYTE Thunderbolt™ 5 AIC) | 1x TPM header (SPI V2)

Cooling & RGB Headers

1x CPU Fan | 1x CPU Fan/Water Cooling Pump | 3x System Fan | 1x System Fan/Water Cooling Pump

3x Addressable Gen2 ARGB Headers | 1x RGB LED Strip Header

Power & Electrical

1x 24-pin ATX Main Power Connector | 2x 8-pin ATX 12V Power Connectors

BIOS & System Features

1x 512 Mbit Flash AMI UEFI BIOS | Q-Flash & Q-Flash Plus | GIGABYTE Control Center (GCC) | Smart Backup | Windows 11 64-bit

Description

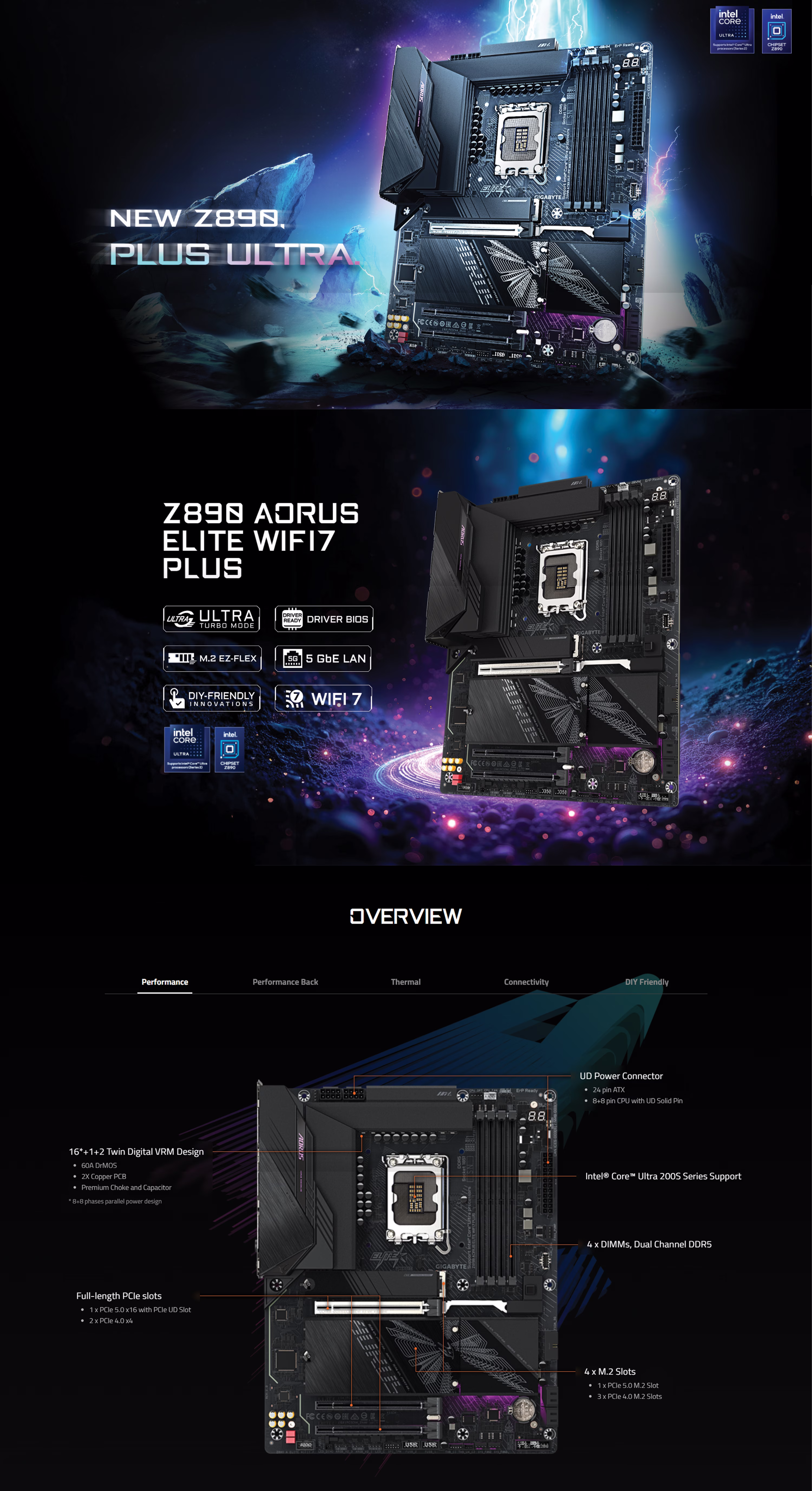

GIGABYTE Z890 AORUS ELITE WIFI7 PLUS LGA 1851 ATX gaming motherboard front view showing the VRM heatsinks and 4 DDR5 slots

The GIGABYTE Z890 AORUS ELITE WIFI7 PLUS (9MZ89EL7P-00-G10 / 889523058237) strikes the perfect balance between enthusiast-grade performance and practical DIY-friendly features. Engineered for Intel's latest Core Ultra desktop processors, it leverages the high-bandwidth Z890 chipset to deliver maximum PCIe lane distribution, incredible memory overclocking headroom, and ultra-fast networking capabilities.

Performance & Thermals
Take total control of your system's acoustics and cooling with GIGABYTE’s Smart Fan 6 technology. Multiple hybrid fan headers and temperature sensors allow you to dial in the perfect fan curves for your specific chassis airflow setup.

Design & Aesthetics
Sporting a sleek, dark industrial aesthetic with the iconic AORUS falcon motif, this motherboard blends seamlessly into any build. Built-in RGB FUSION support allows you to sync your motherboard lighting with your other addressable RGB components.

Why This Product Stands Out
The GIGABYTE Z890 AORUS ELITE WIFI7 PLUS stands out as a premium, well-rounded foundation for high-end builds, delivering essential next-gen tech like Wi-Fi 7, PCIe 5.0, and a powerful 16+1+2 VRM without unnecessary bloat.

Specification

Feature	Specification
Model & Form Factor	GIGABYTE Z890 AORUS ELITE WIFI7 PLUS (Z890 A ELITE WIFI7 P) \| ATX (30.5 × 24.4 cm)
CPU Socket & Chipset	LGA1851 (Supports Intel® Core™ Ultra Processors) \| Intel® Z890 Express Chipset
Memory Architecture	4x DDR5 DIMM Slots (Dual Channel, up to 256 GB) Speeds up to DDR5 9466+ MT/s (OC) Supports CUDIMM (Clocked Unbuffered DIMM), Non-ECC Un-buffered DIMM, and Intel® XMP
PCIe Expansion Slots	1x PCIe 5.0 x16 (PCIEX16 via CPU; graphics card or NVMe SSD) 2x PCIe 4.0 x16 (running at x4) (PCIEX4_1, PCIEX4_2 via Chipset)
M.2 & SATA Storage	4x M.2 Connectors (Socket 3, M Key): M2A_CPU: PCIe 5.0 x4/x2 (Types 25110/22110/2580/2280) M2B_CPU: PCIe 4.0 x4/x2 (Types 22110/2280) M2Q_SB: PCIe 4.0 x4/x2 (Types 22110/2280) M2M_SB: SATA & PCIe 4.0 x4/x2 (Types 22110/2280) 4x SATA 6Gb/s ports \| RAID 0, 1, 5, 10 for NVMe & SATA
Display & USB4 Outputs	1x USB4® Type-C: Supports DisplayPort 2.1 video up to 3840 × 2160 @ 144 Hz 1x DisplayPort: DP 2.1 up to 3840 × 2160 @ 144 Hz
Networking & Wireless	5GbE LAN: Realtek® 5 Gbps Ethernet chip (5G / 2.5G / 1G / 100M) Wi-Fi 7: Intel® Wi-Fi 7 BE200NGW (2.4/5/6 GHz, 320 MHz channel bandwidth) Bluetooth 5.4
Audio Subsystem	Realtek® ALC1220 Codec \| High Definition Audio (2/4/5.1/7.1-channel) \| Optical S/PDIF Out \| DSD Audio support on line-out jack
Back Panel I/O	1x USB4® Type-C \| 2x USB 3.2 Gen 2 Type-A (Red) \| 3x USB 3.2 Gen 1 Type-A \| 4x USB 2.0/1.1 1x DisplayPort \| 1x RJ-45 (5GbE) \| 2x Antenna Connectors (2T2R) \| 1x Optical S/PDIF Out \| 2x Audio Jacks Rear Controls: Power Button, Reset Button, Clear CMOS Button, Q-Flash Plus Button
Internal USB & Expansion	1x USB Type-C header (USB 3.2 Gen 2) \| 1x USB 3.2 Gen 1 header (2 ports) \| 2x USB 2.0/1.1 headers (4 ports) 2x Thunderbolt™ Add-in Card Connectors (dedicated for GIGABYTE Thunderbolt™ 5 AIC) \| 1x TPM header (SPI V2)
Cooling & RGB Headers	1x CPU Fan \| 1x CPU Fan/Water Cooling Pump \| 3x System Fan \| 1x System Fan/Water Cooling Pump 3x Addressable Gen2 ARGB Headers \| 1x RGB LED Strip Header
Power & Electrical	1x 24-pin ATX Main Power Connector \| 2x 8-pin ATX 12V Power Connectors
BIOS & System Features	1x 512 Mbit Flash AMI UEFI BIOS \| Q-Flash & Q-Flash Plus \| GIGABYTE Control Center (GCC) \| Smart Backup \| Windows 11 64-bit
