Feature

Specification

Model & Form Factor

GIGABYTE Z890 EAGLE WIFI7 PLUS (Z890 EAGLE WIFI7 P) | ATX (30.5 × 24.4 cm)

CPU Socket & Chipset

LGA1851 (Supports Intel® Core™ Ultra Processors) | Intel® Z890 Express Chipset

Memory Architecture

4x DDR5 DIMM Slots (Dual Channel, up to 256 GB)

Speeds up to DDR5 9466+ MT/s (OC)

Supports CUDIMM (Clocked Unbuffered DIMM), Non-ECC Un-buffered DIMM, and Intel® XMP

PCIe Expansion Slots

1x PCIe 5.0 x16 (PCIEX16 via CPU; graphics card or NVMe SSD)

2x PCIe 4.0 x16 (running at x4) (PCIEX4_1/2 via Chipset)

M.2 & SATA Storage

4x M.2 Connectors (Socket 3, M Key):

M2A_CPU: PCIe 5.0 x4/x2 (Types 25110/22110/2580/2280)

M2B_CPU: PCIe 4.0 x4/x2 (Types 22110/2280)

M2Q_SB: PCIe 4.0 x4/x2 (Types 22110/2280)

M2M_SB: SATA & PCIe 4.0 x4/x2 (Types 22110/2280)

4x SATA 6Gb/s ports | RAID 0, 1, 5, 10 for NVMe & SATA

Display & USB4 Outputs

1x USB4® Type-C: Supports DisplayPort 2.1 video up to 3840 × 2160 @ 144 Hz

1x DisplayPort: DP 2.1 up to 3840 × 2160 @ 144 Hz

Networking & Wireless

2.5GbE LAN: Realtek® 2.5 Gbps Ethernet chip (2.5G / 1G / 100M)

Wi-Fi 7: Intel® Wi-Fi 7 BE202 / BE200NGW M (2.4/5/6 GHz, 160 MHz channel bandwidth)

Bluetooth 5.4

Audio Subsystem

Realtek® ALC1220 Codec | High Definition Audio (2/4/5.1/7.1-channel) | Optical S/PDIF Out | DSD Audio support on line-out jack

Back Panel I/O

1x USB4® Type-C | 2x USB 3.2 Gen 2 Type-A (Red) | 3x USB 3.2 Gen 1 Type-A | 4x USB 2.0/1.1

1x DisplayPort | 1x RJ-45 (2.5GbE) | 2x Antenna Connectors (2T2R) | 1x Optical S/PDIF Out | 2x Audio Jacks

Rear Controls: Power Button, Reset Button, Clear CMOS Button, Q-Flash Plus Button

Internal USB & Expansion

1x USB Type-C header (USB 3.2 Gen 2) | 1x USB 3.2 Gen 1 header (2 ports) | 2x USB 2.0/1.1 headers (4 ports)

2x Thunderbolt™ Add-in Card Connectors (dedicated for GIGABYTE Thunderbolt™ 5 AIC) | 1x TPM header (SPI V2)

Cooling & RGB Headers

1x CPU Fan | 1x CPU Fan/Water Cooling Pump | 3x System Fan | 1x System Fan/Water Cooling Pump

3x Addressable Gen2 ARGB Headers | 1x RGB LED Strip Header

Power & Electrical

1x 24-pin ATX Main Power Connector | 2x 8-pin ATX 12V Power Connectors

BIOS & System Features

1x 512 Mbit Flash AMI UEFI BIOS | Q-Flash & Q-Flash Plus | GIGABYTE Control Center (GCC) | Smart Backup | Windows 11 64-bit

Description

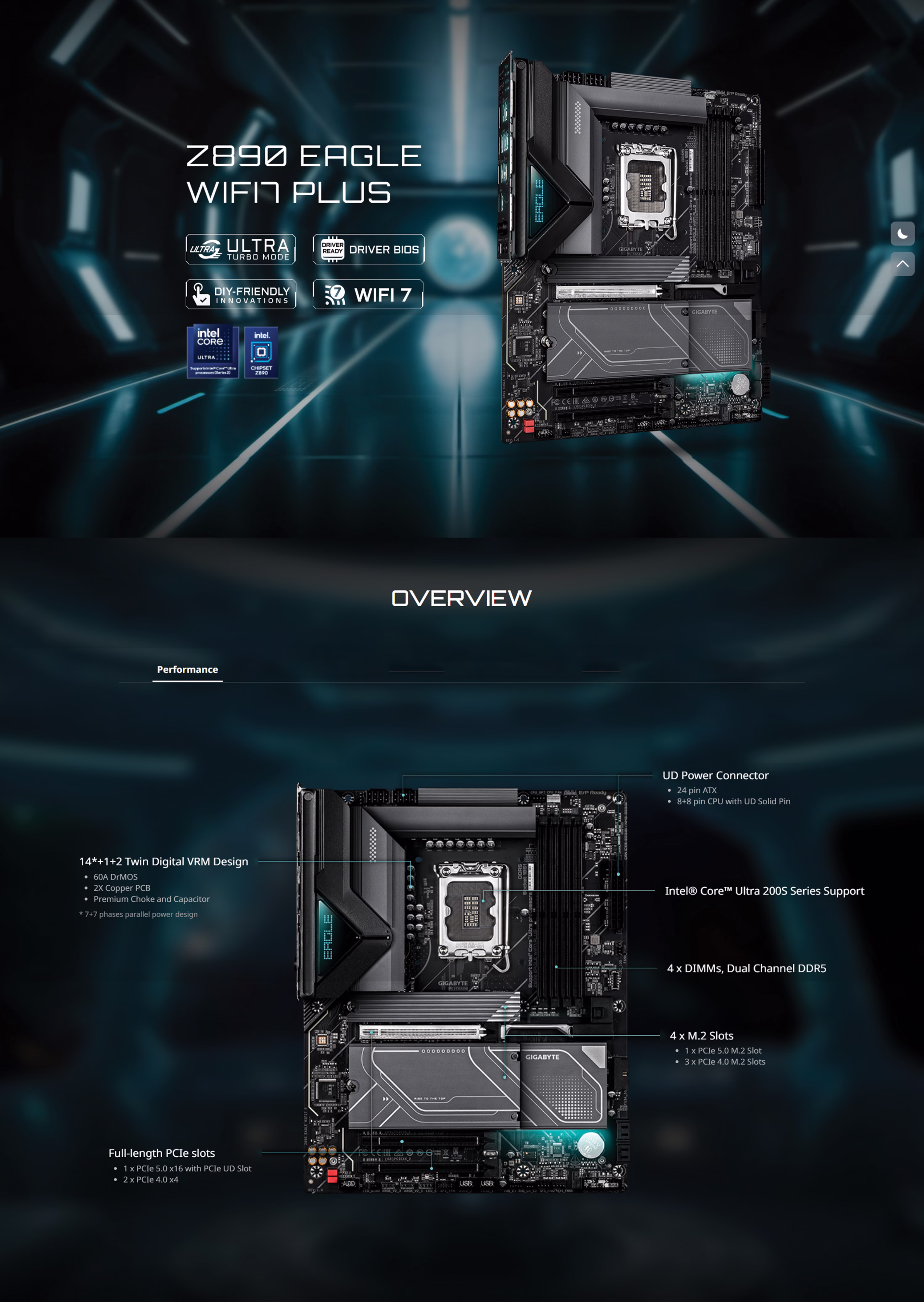

GIGABYTE Z890 EAGLE WIFI7 PLUS LGA 1851 ATX gaming motherboard front view showing the dark VRM thermal armor and 4 DDR5 slots

The GIGABYTE Z890 EAGLE WIFI7 PLUS (9MZ89EG7P-00-G10 / 889523058190) combines high-performance power delivery with essential next-generation connectivity. Designed for Intel's latest Core Ultra desktop processors via the LGA 1851 socket, this motherboard provides an accessible entry point to premium Z890 features, allowing gamers and creators to push their hardware to the limit using advanced intelligent overclocking and Turbo Mode technologies.

Performance & Thermals
Thermal throttling is eliminated thanks to the advanced VRM Thermal Armor and extended M.2 Thermal Guards. Paired with GIGABYTE's Smart Fan 6, users can intuitively map cooling fan curves to multiple onboard temperature sensors.

Design & Aesthetics
The Z890 EAGLE WIFI7 PLUS features a clean, aggressive dark gray and black aesthetic that blends seamlessly into any stealth or RGB-heavy build. Addressable RGB Gen2 headers allow you to synchronize custom lighting profiles using the GIGABYTE Control Center.

Why This Product Stands Out
By combining Intel Ultra Turbo Mode support, Wi-Fi 7, USB4, and a rock-solid 14+1+2 phase VRM, the GIGABYTE Z890 EAGLE WIFI7 PLUS delivers a perfectly balanced, high-end Z890 foundation for enthusiast gamers and creators.

Specification

Feature	Specification
Model & Form Factor	GIGABYTE Z890 EAGLE WIFI7 PLUS (Z890 EAGLE WIFI7 P) \| ATX (30.5 × 24.4 cm)
CPU Socket & Chipset	LGA1851 (Supports Intel® Core™ Ultra Processors) \| Intel® Z890 Express Chipset
Memory Architecture	4x DDR5 DIMM Slots (Dual Channel, up to 256 GB) Speeds up to DDR5 9466+ MT/s (OC) Supports CUDIMM (Clocked Unbuffered DIMM), Non-ECC Un-buffered DIMM, and Intel® XMP
PCIe Expansion Slots	1x PCIe 5.0 x16 (PCIEX16 via CPU; graphics card or NVMe SSD) 2x PCIe 4.0 x16 (running at x4) (PCIEX4_1/2 via Chipset)
M.2 & SATA Storage	4x M.2 Connectors (Socket 3, M Key): M2A_CPU: PCIe 5.0 x4/x2 (Types 25110/22110/2580/2280) M2B_CPU: PCIe 4.0 x4/x2 (Types 22110/2280) M2Q_SB: PCIe 4.0 x4/x2 (Types 22110/2280) M2M_SB: SATA & PCIe 4.0 x4/x2 (Types 22110/2280) 4x SATA 6Gb/s ports \| RAID 0, 1, 5, 10 for NVMe & SATA
Display & USB4 Outputs	1x USB4® Type-C: Supports DisplayPort 2.1 video up to 3840 × 2160 @ 144 Hz 1x DisplayPort: DP 2.1 up to 3840 × 2160 @ 144 Hz
Networking & Wireless	2.5GbE LAN: Realtek® 2.5 Gbps Ethernet chip (2.5G / 1G / 100M) Wi-Fi 7: Intel® Wi-Fi 7 BE202 / BE200NGW M (2.4/5/6 GHz, 160 MHz channel bandwidth) Bluetooth 5.4
Audio Subsystem	Realtek® ALC1220 Codec \| High Definition Audio (2/4/5.1/7.1-channel) \| Optical S/PDIF Out \| DSD Audio support on line-out jack
Back Panel I/O	1x USB4® Type-C \| 2x USB 3.2 Gen 2 Type-A (Red) \| 3x USB 3.2 Gen 1 Type-A \| 4x USB 2.0/1.1 1x DisplayPort \| 1x RJ-45 (2.5GbE) \| 2x Antenna Connectors (2T2R) \| 1x Optical S/PDIF Out \| 2x Audio Jacks Rear Controls: Power Button, Reset Button, Clear CMOS Button, Q-Flash Plus Button
Internal USB & Expansion	1x USB Type-C header (USB 3.2 Gen 2) \| 1x USB 3.2 Gen 1 header (2 ports) \| 2x USB 2.0/1.1 headers (4 ports) 2x Thunderbolt™ Add-in Card Connectors (dedicated for GIGABYTE Thunderbolt™ 5 AIC) \| 1x TPM header (SPI V2)
Cooling & RGB Headers	1x CPU Fan \| 1x CPU Fan/Water Cooling Pump \| 3x System Fan \| 1x System Fan/Water Cooling Pump 3x Addressable Gen2 ARGB Headers \| 1x RGB LED Strip Header
Power & Electrical	1x 24-pin ATX Main Power Connector \| 2x 8-pin ATX 12V Power Connectors
BIOS & System Features	1x 512 Mbit Flash AMI UEFI BIOS \| Q-Flash & Q-Flash Plus \| GIGABYTE Control Center (GCC) \| Smart Backup \| Windows 11 64-bit
