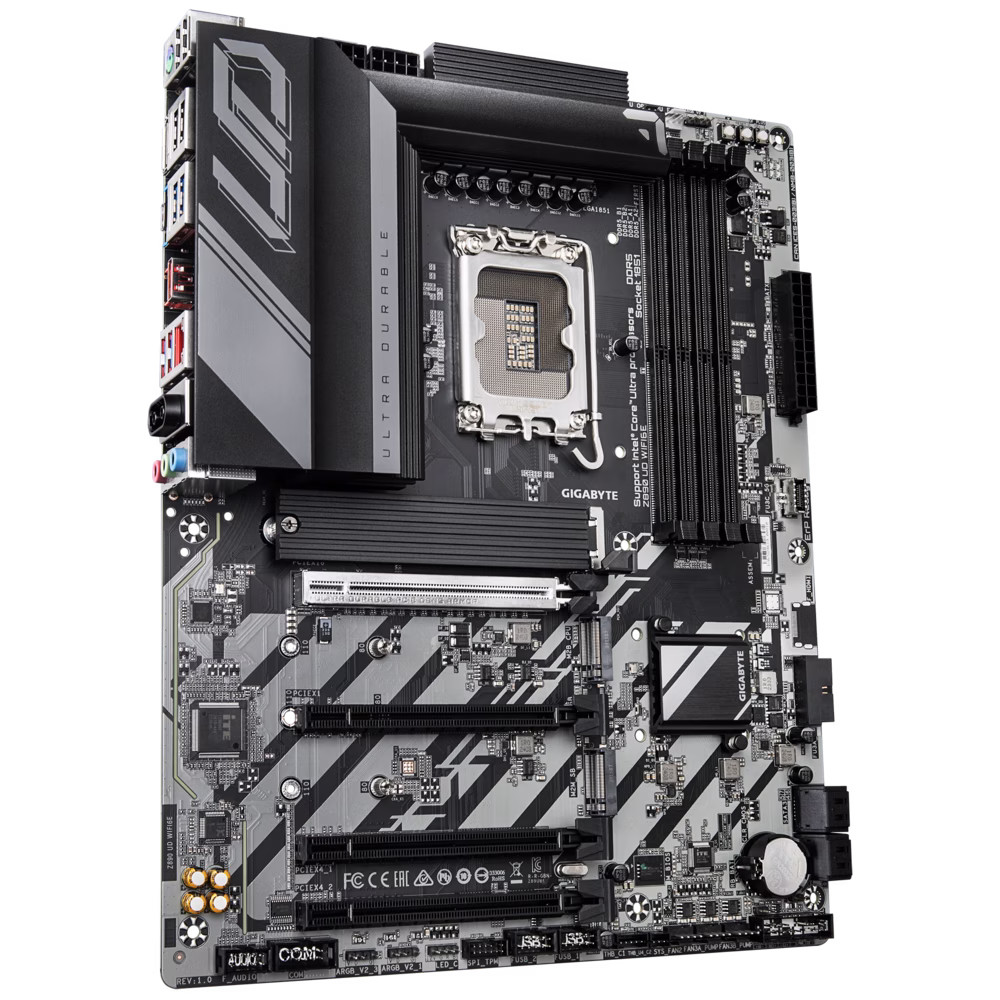

GIGABYTE Z890 UD WIFI6E LGA1851 DDR5 ATX Motherboard, 4 x DIMMs up to 256 GB, 3 x M.2 Slots, Full-length PCIe slots, Wi-Fi 6E & BT 5.3 | Z890 UD WIFI6E
Model :
SKU : MB-GIGABYT Z890 UD WIFI6E
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
GIGABYTE Z890 UD WIFI6E LGA1851 DDR5 ATX Motherboard, 4 x DIMMs up to 256 GB, 3 x M.2 Slots, Full-length PCIe slots, Wi-Fi 6E & BT 5.3 | Z890 UD WIFI6E Specifications
| CPU Socket | LGA1851 socket: Support for Intel?? Core??? Ultra Processors |
| L3 Cache | Varies with CPU (Please refer to "CPU Support List" for more information) |
| Chipset | Intel?? Z890 Express Chipset |
| Memory Support | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules |
| Memory Slots | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) |
| Memory Architecture | Dual channel memory architecture |
| ECC Memory Support | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Onboard Graphics | Integrated Graphics Processor-Intel?? HD Graphics support (1 x USB4?? USB Type-C?? port, DisplayPort 2.1 version) |
| Audio | Realtek?? Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Intel?? Wi-Fi 6E AX211 (Wi-Fi 6E 2.4/5/6 GHz, Bluetooth 5.3) & Realtek?? Wi-Fi 6E RTL8852CE (Wi-Fi 6E 2.4/5/6 GHz, Bluetooth 5.3) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots (x4), 1 x PCIe 4.0 x16 slot (x1) |
| Storage Interface | 1 x M.2 PCIe 5.0 x4 SSD support, 1 x M.2 PCIe 4.0 x4 SSD support, 4 x SATA 6Gb/s connectors |
| USB Ports | 1 x USB4?? USB Type-C??, 1 x USB 3.2 Gen 2 Type-A port, 6 x USB 3.2 Gen 1 ports, 8 x USB 2.0/1.1 ports |
| Internal I/O Connectors | 1 x 24-pin ATX main power, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 2 x system fan headers, 3 x addressable RGB Gen2 LED strip headers |

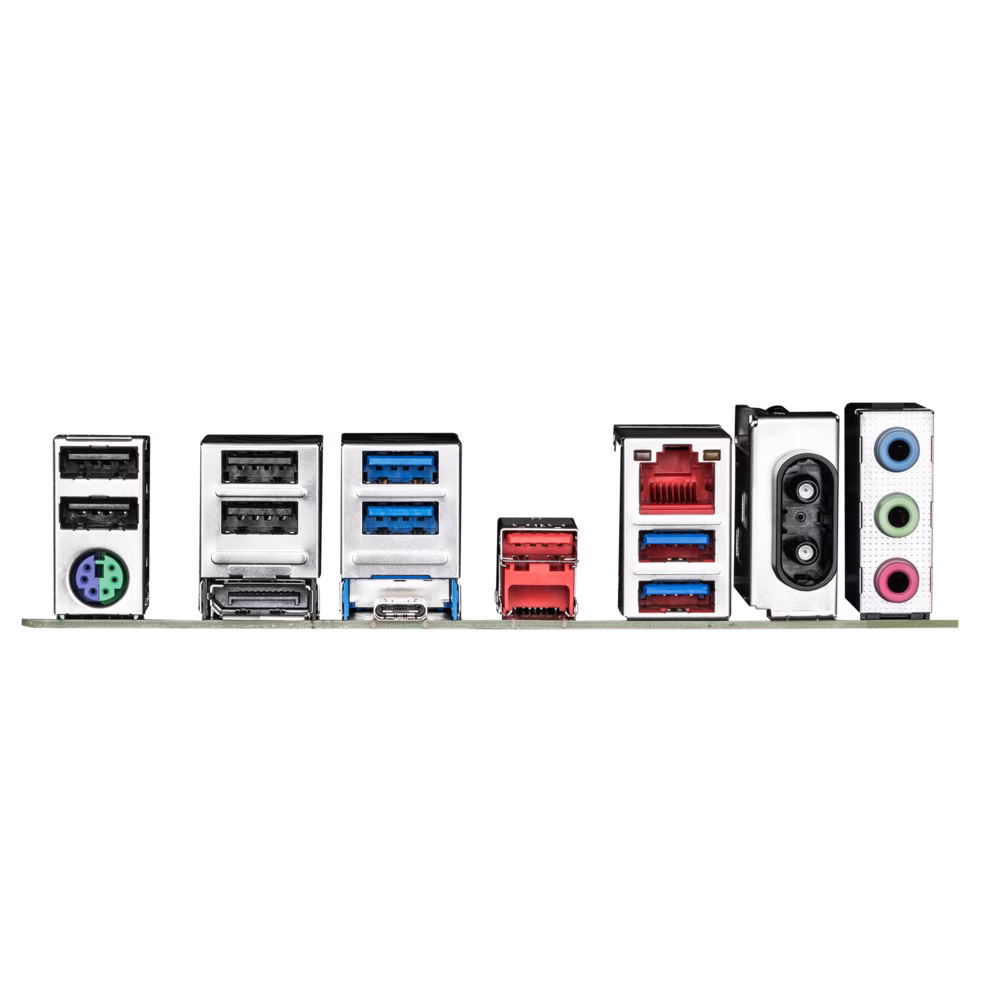

| Back Panel Connectors | 4 x USB 2.0/1.1 ports, 1 x PS/2 port, 1 x DisplayPort, 4 x USB 3.2 Gen 1 ports, 1 x USB4?? USB Type-C?? port, 1 x USB 3.2 Gen 2 Type-A port, 1 x RJ-45 port, 2 x SMA antenna connectors, 3 x audio jacks |
| I/O Controller | iTE?? I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Specification
GIGABYTE Z890 UD WIFI6E LGA1851 DDR5 ATX Motherboard, 4 x DIMMs up to 256 GB, 3 x M.2 Slots, Full-length PCIe slots, Wi-Fi 6E & BT 5.3 | Z890 UD WIFI6E Specifications
| CPU Socket | LGA1851 socket: Support for Intel?? Core??? Ultra Processors |
| L3 Cache | Varies with CPU (Please refer to "CPU Support List" for more information) |
| Chipset | Intel?? Z890 Express Chipset |
| Memory Support | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules |
| Memory Slots | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) |
| Memory Architecture | Dual channel memory architecture |
| ECC Memory Support | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Onboard Graphics | Integrated Graphics Processor-Intel?? HD Graphics support (1 x USB4?? USB Type-C?? port, DisplayPort 2.1 version) |
| Audio | Realtek?? Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Intel?? Wi-Fi 6E AX211 (Wi-Fi 6E 2.4/5/6 GHz, Bluetooth 5.3) & Realtek?? Wi-Fi 6E RTL8852CE (Wi-Fi 6E 2.4/5/6 GHz, Bluetooth 5.3) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots (x4), 1 x PCIe 4.0 x16 slot (x1) |
| Storage Interface | 1 x M.2 PCIe 5.0 x4 SSD support, 1 x M.2 PCIe 4.0 x4 SSD support, 4 x SATA 6Gb/s connectors |
| USB Ports | 1 x USB4?? USB Type-C??, 1 x USB 3.2 Gen 2 Type-A port, 6 x USB 3.2 Gen 1 ports, 8 x USB 2.0/1.1 ports |
| Internal I/O Connectors | 1 x 24-pin ATX main power, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 2 x system fan headers, 3 x addressable RGB Gen2 LED strip headers |
| Back Panel Connectors | 4 x USB 2.0/1.1 ports, 1 x PS/2 port, 1 x DisplayPort, 4 x USB 3.2 Gen 1 ports, 1 x USB4?? USB Type-C?? port, 1 x USB 3.2 Gen 2 Type-A port, 1 x RJ-45 port, 2 x SMA antenna connectors, 3 x audio jacks |
| I/O Controller | iTE?? I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
