Overview / Introduction

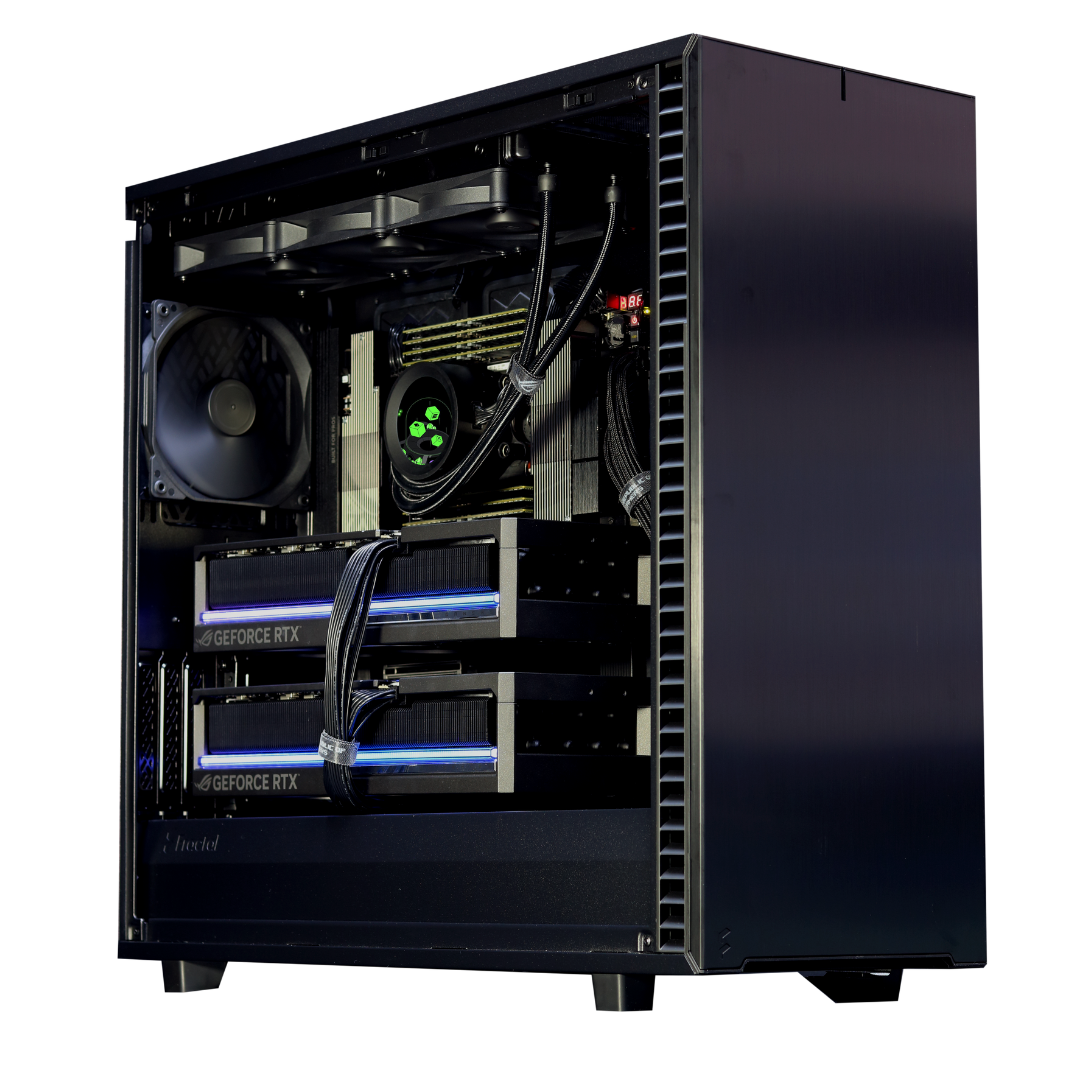

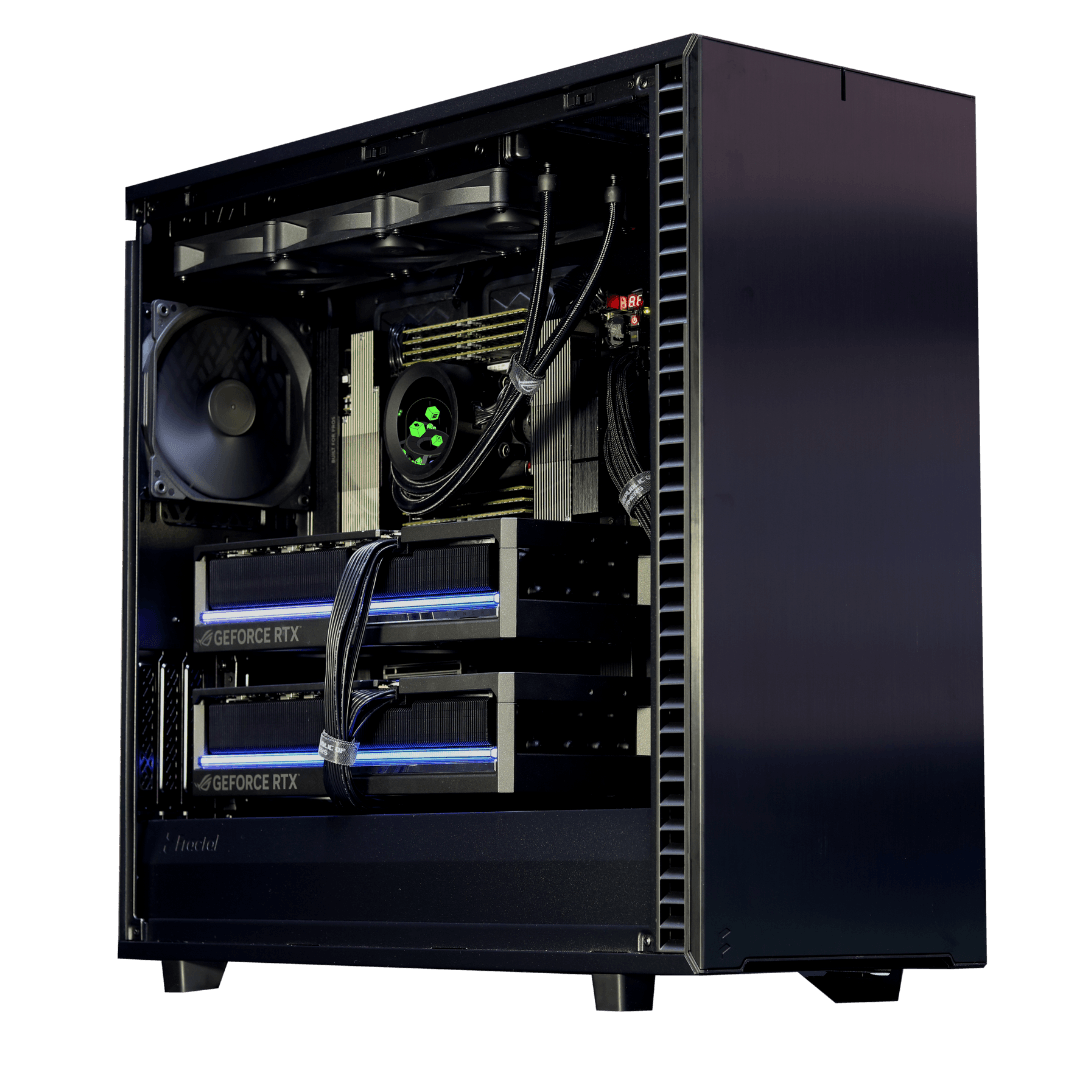

Take full ownership of your organization's artificial intelligence, machine learning, and high-performance computing (HPC) workflows with this Air-Gapped Local AI & LLM Supercomputer Workstation. Built on the enterprise-grade sTR5 platform with the ASUS PRO WS WRX90E-SAGE SE motherboard, this system delivers massive local compute power using dual NVIDIA GeForce RTX 5090 GPUs (64GB combined VRAM) and an 8-channel 512GB DDR5 ECC memory system. Designed for confidential AI development, computer vision testing, and high-throughput ETL data pipelines, it eliminates recurring cloud fees and network latency while protecting proprietary corporate datasets.
Key Features
- AMD Ryzen Threadripper PRO 9985WX Processor: Enterprise-class 64-core, 128-thread CPU built on 4nm "Zen 5" architecture, providing 256MB of L3 cache and 128 PCIe 5.0 lanes for rapid multi-GPU compute execution and multi-threaded data processing.
- Dual GeForce RTX 5090 32GB GDDR7 GPUs (64GB VRAM): Two flagship graphics cards providing 64GB of ultra-fast GDDR7 VRAM across a combined 1024-bit memory bus, delivering massive parallel throughput for local LLM fine-tuning, ray tracing, and 3D simulation.
- ASUS PRO WS WRX90E-SAGE SE Motherboard: Enterprise EEB workstation board equipped with 7x PCIe 5.0 x16 full-bandwidth slots, dual 10G LAN, and a robust 32+3+3+3 power-stage architecture.
- 512GB (8x64GB) Server Premier DDR5 6400MHz ECC RAM: 8-channel Registered ECC memory array delivering massive bandwidth and error-correcting code protection to eliminate system crashes during large dataset operations.
- 4TB Samsung 9100 Pro PCIe Gen5 x4 NVMe M.2 SSD: Primary solid-state storage drive achieving sequential read speeds up to 14,800 MB/s for rapid model weights loading and instant dataset caching.
- Platinum 2000W ATX 3.1 PSU: Industrial-grade 2000W 80+ Platinum power supply engineered with dual native PCIe 5.0 16-pin connectors to reliably handle extreme dual-GPU power draws.
- ThermalTake ToughFan AW420 Liquid Cooler: High-efficiency 420mm AIO liquid cooling loop featuring three 140mm PWM fans and a copper cold plate to maintain low CPU thermals under continuous full-load calculations.
- Fractal Design Define 7 XL Full Tower Chassis: Modular full-tower enclosure equipped with industrial sound-dampening insulation, massive internal airflow capacity, and extensive storage drive expansion options.
Performance / Technology
Equipped with 64GB of GDDR7 VRAM and 128 usable PCIe 5.0 lanes, this workstation executes parallel matrix math via NVIDIA CUDA and Tensor Cores. With 512GB of 8-channel DDR5 ECC RAM, the system loads massive datasets into active memory, enabling developers to run accelerated data science tasks with NVIDIA RAPIDS or compile multi-threaded robotics codebases without relying on cloud services.
Design & Ergonomics
The Fractal Design Define 7 XL provides a quiet environment for office spaces or lab workstations thanks to its industrial acoustic dampening material. The ASUS PRO WS WRX90E-SAGE SE motherboard includes dual 10G Ethernet ports for high-speed local NAS transfers, alongside a PCIe Q-Release mechanism for simple maintenance.
Compatibility & Primary Workloads
- Local Fine-Tuning of LLMs/MLMs: Fine-tune domain-specific models up to 70 billion parameters locally using proprietary company data, maintaining complete air-gapped security.
- High-Parameter Local Inference: Host and run advanced reasoning models (DeepSeek, Meta Llama, Google Gemma up to 200B parameters) locally with zero cloud subscription fees or transmission latency.
- Local Prototyping & AI Testing: Iterate, prompt, and test complex AI applications locally before deploying code to cloud instances or enterprise DGX SuperPODs.
- Data Science & ETL Pipelines: Accelerate big data processing (Pandas, Apache Spark) using GPU-accelerated NVIDIA RAPIDS libraries directly at your desk.
- Robotics, Computer Vision & Edge AI: Develop visual inspection systems, real-time video analytics, and robotics workflows using frameworks like NVIDIA Isaac and Metropolis.
Why This Product Stands Out
By combining AMD's 64-core Threadripper PRO 9985WX, Dual RTX 5090 32GB GPUs (64GB VRAM), 512GB 8-Channel DDR5 ECC RAM, and a 2000W Platinum power supply, this desktop functions as a complete air-gapped personal AI supercomputer.
