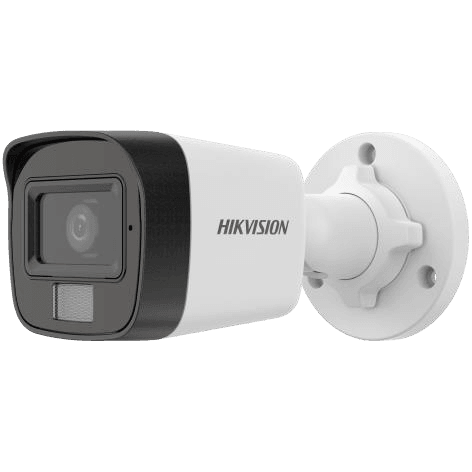

Hikvision 2 MP Smart Hybrid Light Fixed Bullet Network Camera, 2.8 mm Lens, H.265+ Compression, Up to 30m IR Light Range, Built-in Mic, IP67 Water & Dust Resistant, White | DS-2CD1023G2-LIU
Model :
SKU : DS-2CD1023G2-LIU 2.8m 2MP
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Hikvision 2 MP Smart Hybrid Light Fixed Bullet Network Camera, 2.8 mm Lens, H.265+ Compression, Up to 30m IR Light Range, Built-in Mic, IP67 Water & Dust Resistant, White | DS-2CD1023G2-LIU
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 1920 ?? 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 103??, vertical FOV 56??, diagonal FOV 121?? 4 mm, horizontal FOV 83??, vertical FOV 44??, diagonal FOV 99?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream | 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region Of Interest (ROI) | 1 fixed region for main stream |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/ 32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Wide Dynamic Range (WDR): Digital WDR SNR: ??? 52 dB Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC, HLC, 3D DNR Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Privacy Mask: 4 programmable polygon privacy masks |
| Interface | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Microphone | Yes |
| Reset Key | -F: Yes |
| Event | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture |
| General | Power: 12 VDC ?? 25%, 0.4 A, max. 5 W, ??5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max: 6.5 W Material: Metal & Plastic Dimension: 170.8 mm ?? 66 mm ?? 69.1 mm (6.7" ?? 2.6" ?? 2.7") Package Dimension: 216 mm ?? 121 mm ?? 118 mm (8.5" ?? 4.8" ?? 4.6") Weight: Approx. 265 g (0.6 lb.) With Package Weight: Approx. 495 g (1.1 lb.) Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Approval | EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
