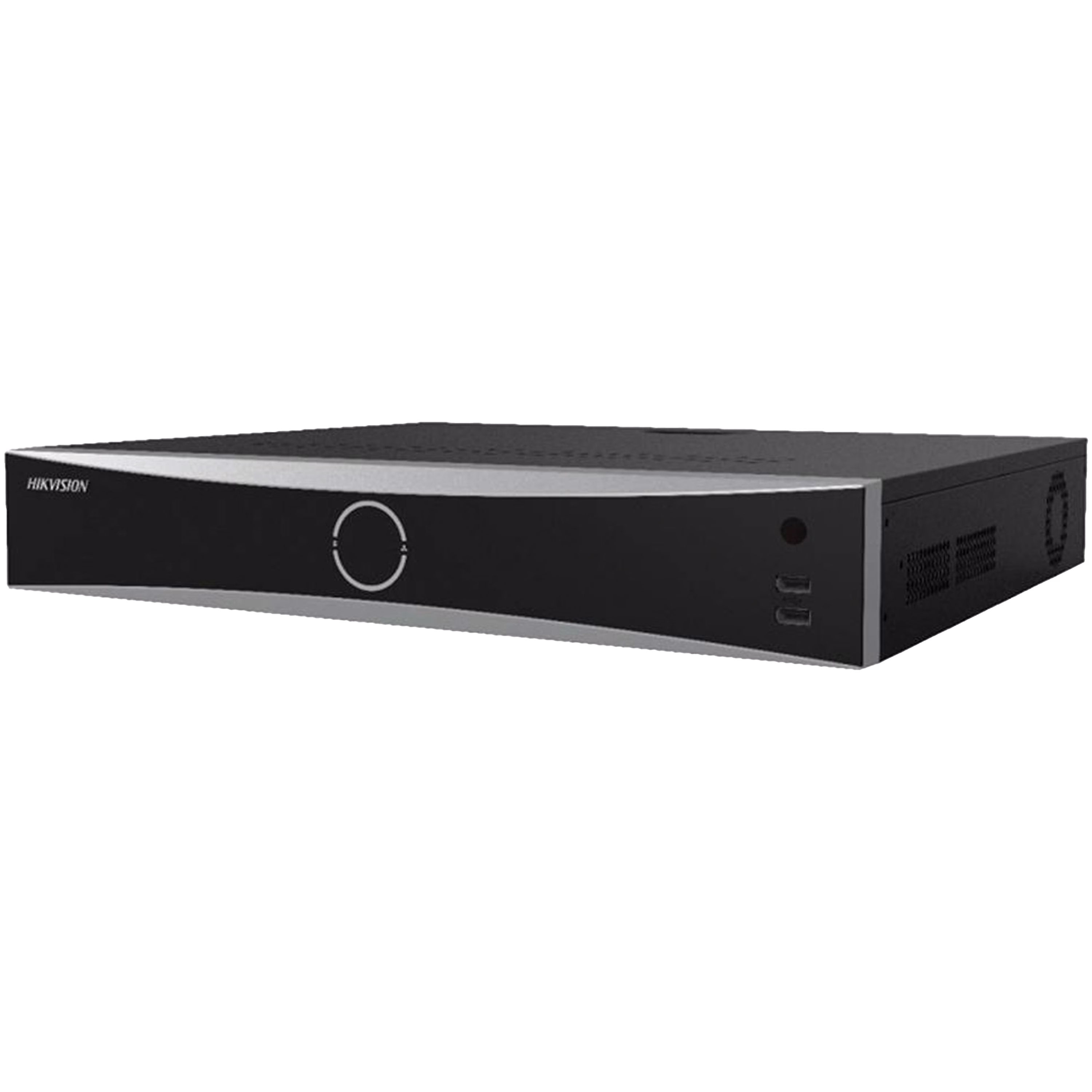

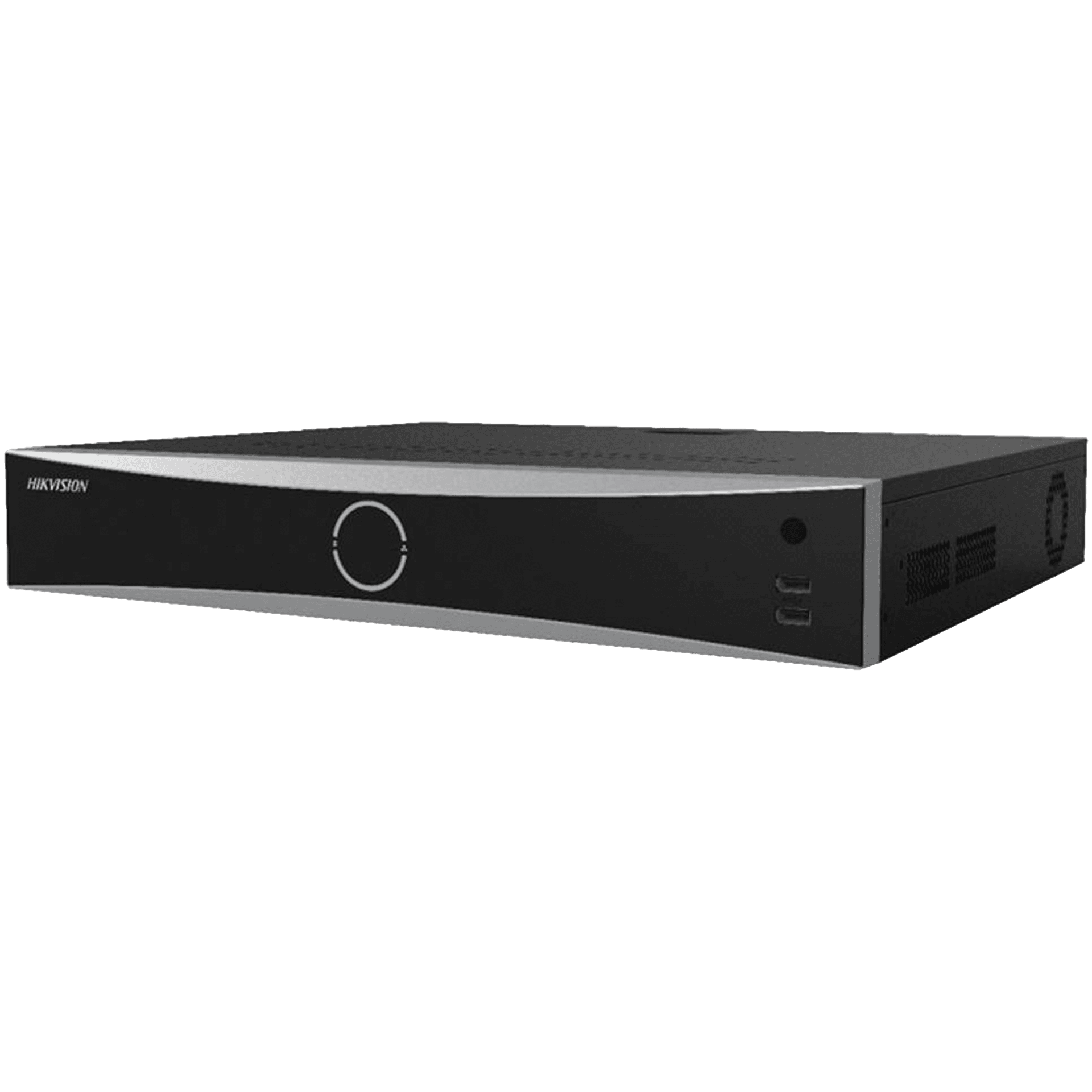

Hikvision 32 CHANEEL NVR WITH 16 PORT POE model DS-7732NXI-K4/16P (16 chanel only poe)
Model :
SKU : DS-7732NXI-K4/16P
About this item
About this item
Description
The DS-7732NXI-K4/16P brings enterprise-level intelligence to your security network. Equipped with Hikvision’s AcuSense AI, this NVR provides deep-learning algorithms that can perform facial recognition and perimeter protection. Its standout feature, Motion Detection 2.0, is enabled on all channels by default, ensuring that the system only alerts you when a person or vehicle is detected, ignoring wind, rain, or animals.
High-Resolution 4K & Decoding Power
Designed to capture every detail, this NVR supports a massive 256 Mbps incoming bandwidth, allowing for smooth recording from up to 32 IP cameras. It handles ultra-high-definition video with a decoding capacity of up to 2-ch at 12MP or 16-ch at 1080p, ensuring that high-resolution playback is fluid and clear. The H.265+ compression technology further optimizes the system by reducing storage and bandwidth requirements by up to 75% without sacrificing image quality.
Simplified Connectivity: 16-Port PoE
Installation is streamlined through the integrated 16-port Power over Ethernet (PoE) switch. This allows you to power and transmit data to up to 16 compatible IP cameras using a single Ethernet cable per camera, significantly reducing cabling costs and complexity. For the remaining 16 channels, the NVR connects via your standard network infrastructure, providing a total of 32-channel management.
Reliable Storage and Professional Interfaces

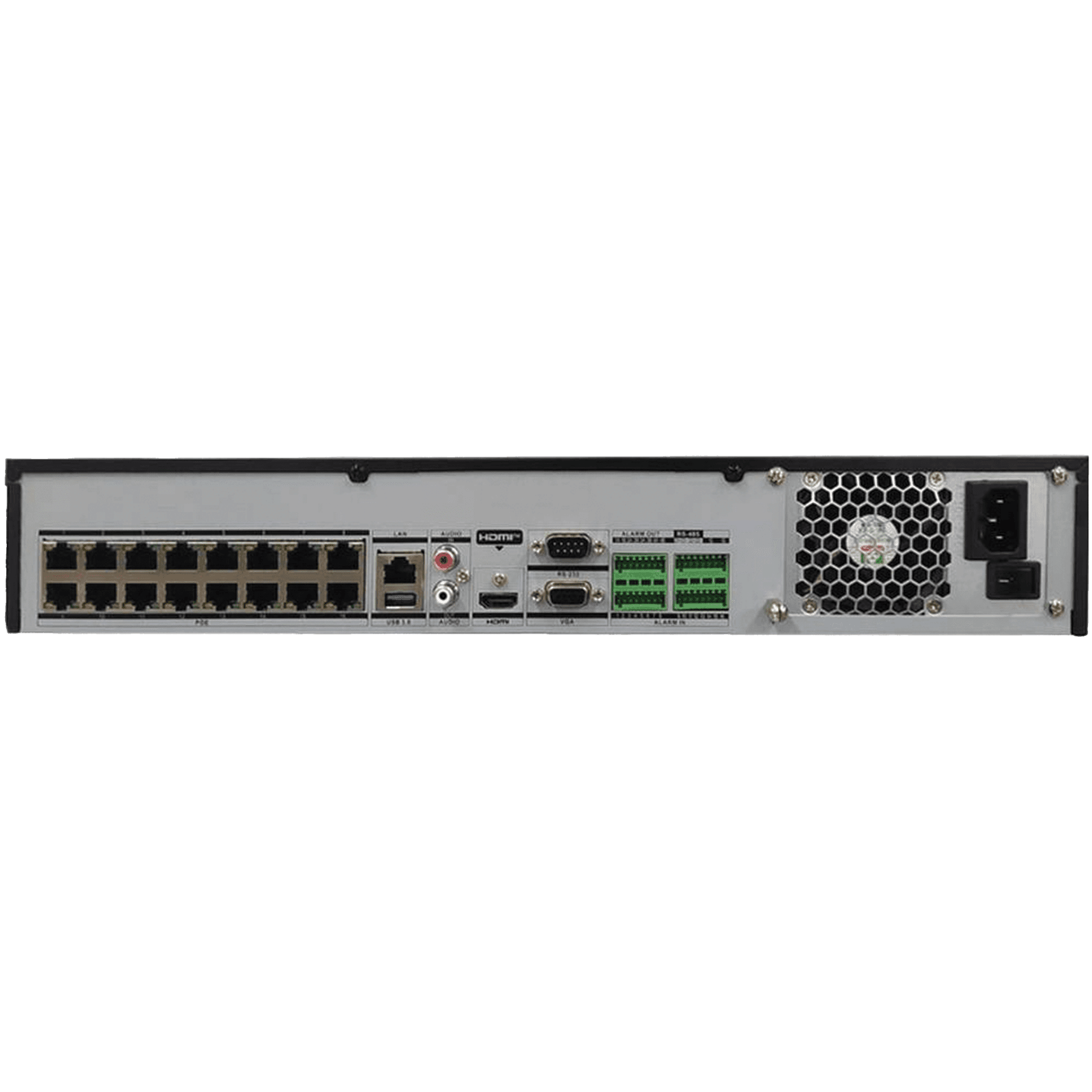

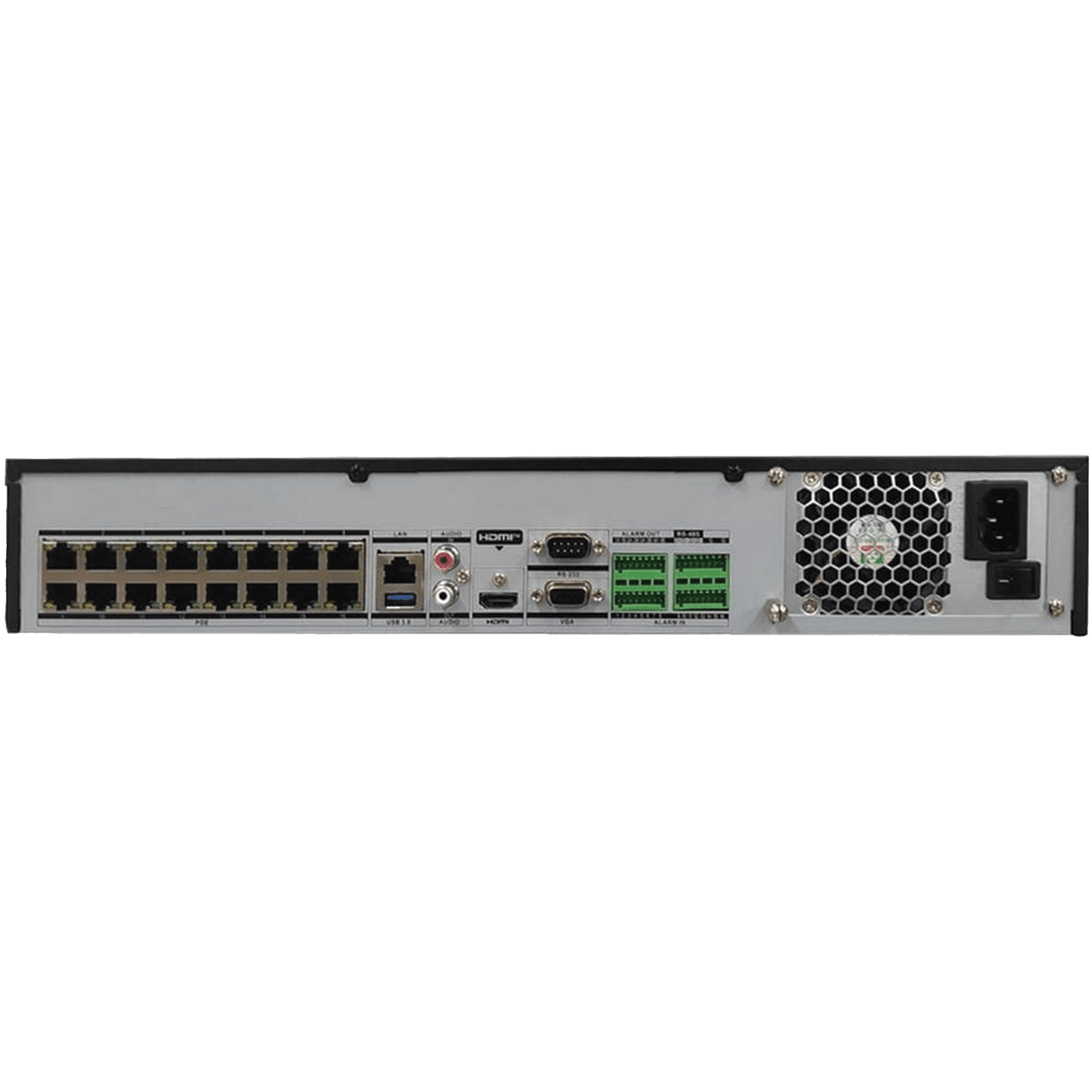

The DS-7732NXI-K4/16P is built for long-term data retention with 4 SATA interfaces, supporting a total capacity of up to 64TB (using 16TB HDDs). Professional connectivity is standard, including an independent 4K HDMI output, a VGA output, 16 alarm inputs, and 4 alarm outputs. It also features dual-way audio support and RS-485/RS-232 serial ports for integration with PTZ controllers or legacy security hardware.
Why the Hikvision DS-7732NXI-K4/16P Stands Out
AcuSense Technology: Reduces false alarms by focusing on human and vehicle targets.
16-Port PoE Switch: Built-in plug-and-play power for half of your camera fleet.
4-SATA Drive Bays: Massive storage potential for high-retention requirements.
Smart Search/Playback: Rapidly find specific events based on human or vehicle triggers.
Specification
| Channel Support | 32-ch IP Video Input Bandwidth: 256 Mbps (In) / 160 Mbps (Out) |
|---|---|
| Intelligent Analytics (AI) | Facial Recognition: Up to 16 libraries (20,000 total images) Motion Detection 2.0: Human and vehicle recognition on all channels Perimeter Protection: 2-ch by device (4 MP) or all channels by camera Face Comparison: 4-ch performance |
| Video & Audio | Decoding Format: H.265 / H.265+ / H.264 / H.264+ Recording: Up to 12 MP resolution HDMI Output: 1-ch 4K (3840 x 2160)/30Hz VGA Output: 1-ch 1080p/60Hz (Independent output support) |
| Decoding Capacity | AI ON: 1-ch@12 MP / 2-ch@8 MP / 4-ch@4 MP / 8-ch@1080p AI OFF: 2-ch@12 MP / 3-ch@8 MP / 6-ch@4 MP / 12-ch@1080p |
| Storage (SATA) | 4 SATA Interfaces Up to 16 TB capacity for each HDD (64 TB total) |
| Network & PoE | PoE Interface: 16 RJ-45 ports (IEEE 802.3af/at) PoE Power: ≤ 200 W Ethernet: 1 RJ-45 10/100/1000 Mbps self-adaptive |
| External Interface | USB: 2x USB 2.0 (Front), 1x USB 3.0 (Rear) Serial: 2x RS-485, 1x RS-232 Alarm I/O: 16 Inputs / 4 Outputs |
| General | Power Supply: 100 to 240 VAC Dimensions: 445 × 400 × 75 mm (1.5U Rackmount) Weight: ≤ 5 kg (without HDD) |
