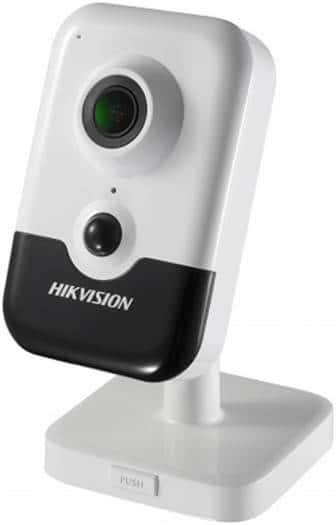

Hikvision DS-2CD2443G2-IW 4 MP Indoor WDR Fixed Cube Network Camera, 2.8mm Lens 10 m IR Range, H.265+ Compression, Built-in Two-Way Audio, Up to 6 Channels Live View, 360?? Rotate, White | DS-2CD2443G2-IW-2.8mm
Model :
SKU : DS-2CD2443G2-IW 2.8MM 4MP
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision 4 MP Indoor WDR Fixed Cube Network Camera, 2.8mm Lens 10 m IR Range, H.265+ Compression, Built-in Two-Way Audio, Up to 6 Channels Live View, 360?? Rotate, White | DS-2CD2443G0-IW-2.8mm
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens |
Lens Type: 2.8/4 mm FOV: 2.8 mm, horizontal FOV: 98??, vertical FOV: 55??, diagonal FOV: 114?? 4 mm, horizontal FOV: 78??, vertical FOV: 42??, diagonal FOV: 93?? Aperture: F1.6 Lens Mount: M12 |
| Illuminator |
IR Range: 10 m Wavelength: 850nm |
| Video |
Max. Resolution: 2688 ?? 1520 Main Stream: 50Hz:25fps (2688 ?? 1520, 2560 ?? 1440, 2304 ?? 1296, 1920 ?? 1080, 1280 ?? 720) 60Hz: 30fps (2688 ?? 1520, 2560 ?? 1440, 2304 ?? 1296, 1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50Hz: 25fps (640 ?? 480, 640 ?? 360, 320 ?? 240), 60Hz: 30fps (640 ?? 480, 640 ?? 360, 320 ?? 240) Third Stream: 50Hz: 25fps (1280 ?? 720, 640 ?? 360, 352 ?? 288), 60Hz: 30fps (1280 ?? 720, 640 ?? 360, 352 ?? 240) Video Compression: Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps |
| Audio |
Environment Noise Filtering: Yes Audio Sampling Rate: 8kHz/16kHz/32kHz/44.1kHZ/48kHz Audio Compression: G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Network |
Simultaneous Live View: Up to 6 channels API: ONVIF (PROFILE S, PROFILE G), ISAPI Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets User/Host: Up to 32 users,3 levels: Administrator, Operator and User Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 Web Browser: Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11, Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login |
| Wi-Fi |
Encryption Mode: WPA, WPA2 Wi-Fi Protocol: IEEE 802.11b/g/n Frequency Range: 2.412 GHz to 2.4835 GHz Channel Bandwidth: 20M/40M Transfer Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps Wireless Range: 50 m |
| Image |
Day/Night Switch: Day/Night/Auto/Schedule DNR: 3D DNR Image Enhancement: BLC/3D DNR/HLC Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser Transducer: PIR Angle: Horizontal: 90??, Vertical: 80??, PIR Range: 10 m |
| Interface |
Audio: 1 built-in mic, 1 built-in speaker, mono sound On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G Hardware Reset: Yes Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event |
Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event: Line crossing detection, intrusion detection, face detection |
| General |
Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email Firmware Version: 5.6.3 General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Startup And Operating Conditions: -10 ??C to +40 ??C (14 ??F to +104 ??F), Humidity 95% or less (non-condensing) Power Supply: 12 VDC ?? 25%, PoE (802.3af, class 3) Power Consumption And Current: 12 VDC, 0.5 A, max. 6 W, ?? 5.5 mm coaxial plug power, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W Camera Dimension: 102.8 mm ?? 65.2 mm ?? 32.6 mm (4.1" ?? 2.6" ?? 1.3") Camera Weight: Camera: Approx. 128 g (0.3 lb.) |
Specification
Hikvision 4 MP Indoor WDR Fixed Cube Network Camera, 2.8mm Lens 10 m IR Range, H.265+ Compression, Built-in Two-Way Audio, Up to 6 Channels Live View, 360?? Rotate, White | DS-2CD2443G0-IW-2.8mm
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens |
Lens Type: 2.8/4 mm FOV: 2.8 mm, horizontal FOV: 98??, vertical FOV: 55??, diagonal FOV: 114?? 4 mm, horizontal FOV: 78??, vertical FOV: 42??, diagonal FOV: 93?? Aperture: F1.6 Lens Mount: M12 |
| Illuminator |
IR Range: 10 m Wavelength: 850nm |
| Video |
Max. Resolution: 2688 ?? 1520 Main Stream: 50Hz:25fps (2688 ?? 1520, 2560 ?? 1440, 2304 ?? 1296, 1920 ?? 1080, 1280 ?? 720) 60Hz: 30fps (2688 ?? 1520, 2560 ?? 1440, 2304 ?? 1296, 1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50Hz: 25fps (640 ?? 480, 640 ?? 360, 320 ?? 240), 60Hz: 30fps (640 ?? 480, 640 ?? 360, 320 ?? 240) Third Stream: 50Hz: 25fps (1280 ?? 720, 640 ?? 360, 352 ?? 288), 60Hz: 30fps (1280 ?? 720, 640 ?? 360, 352 ?? 240) Video Compression: Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 16 Mbps |
| Audio |
Environment Noise Filtering: Yes Audio Sampling Rate: 8kHz/16kHz/32kHz/44.1kHZ/48kHz Audio Compression: G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Network |
Simultaneous Live View: Up to 6 channels API: ONVIF (PROFILE S, PROFILE G), ISAPI Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets User/Host: Up to 32 users,3 levels: Administrator, Operator and User Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 Web Browser: Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11, Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login |
| Wi-Fi |
Encryption Mode: WPA, WPA2 Wi-Fi Protocol: IEEE 802.11b/g/n Frequency Range: 2.412 GHz to 2.4835 GHz Channel Bandwidth: 20M/40M Transfer Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps Wireless Range: 50 m |
| Image |
Day/Night Switch: Day/Night/Auto/Schedule DNR: 3D DNR Image Enhancement: BLC/3D DNR/HLC Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser Transducer: PIR Angle: Horizontal: 90??, Vertical: 80??, PIR Range: 10 m |
| Interface |
Audio: 1 built-in mic, 1 built-in speaker, mono sound On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G Hardware Reset: Yes Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event |
Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event: Line crossing detection, intrusion detection, face detection |
| General |
Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email Firmware Version: 5.6.3 General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Startup And Operating Conditions: -10 ??C to +40 ??C (14 ??F to +104 ??F), Humidity 95% or less (non-condensing) Power Supply: 12 VDC ?? 25%, PoE (802.3af, class 3) Power Consumption And Current: 12 VDC, 0.5 A, max. 6 W, ?? 5.5 mm coaxial plug power, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W Camera Dimension: 102.8 mm ?? 65.2 mm ?? 32.6 mm (4.1" ?? 2.6" ?? 1.3") Camera Weight: Camera: Approx. 128 g (0.3 lb.) |
