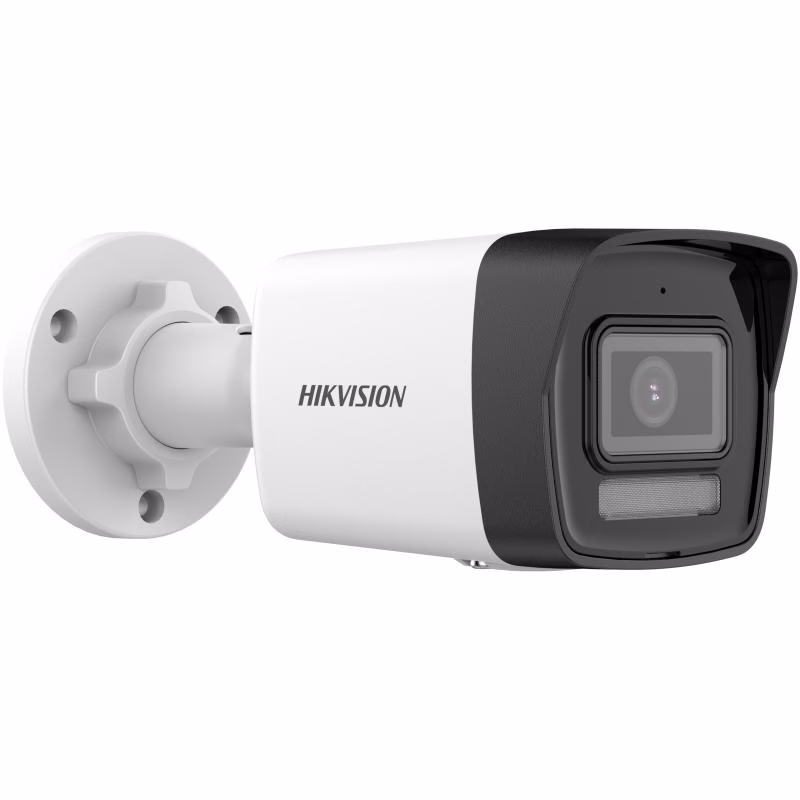

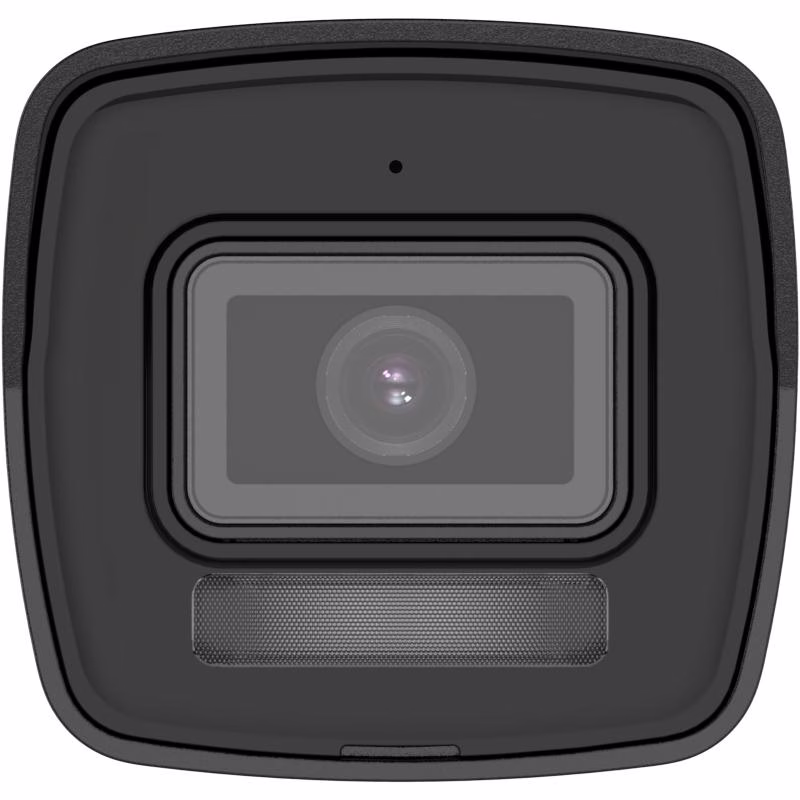

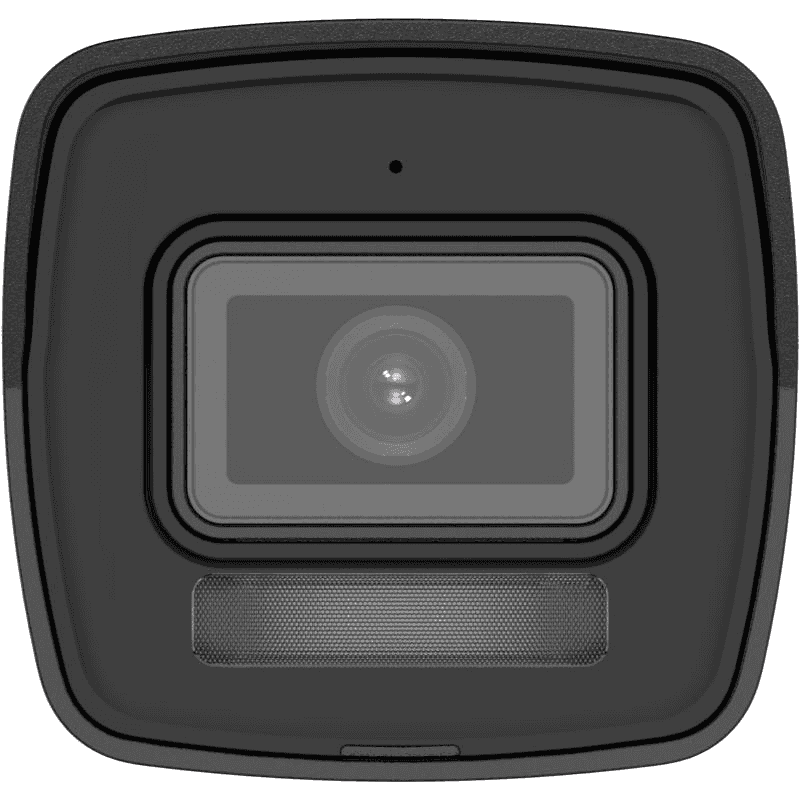

Hikvision 4 MP IP BULLET CAMERA DS-2CD1043G2-LIU 2.8m LENS 4MP Smart Hybrid Light Fixed Bullet Network Camera DS-2CD1043G2-LIU CCTV CAMERA
Model :
SKU : DS-2CD1043G2-LIU 2.8m 4MP
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 ?? 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0?? to 360??,tilt: 0?? to 90??,rotate: 0?? to 360??
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98??, vertical FOV 54??, diagonal FOV 114??
4 mm, horizontal FOV 78??, vertical FOV 42??, diagonal FOV 93??
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- DORI
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
Main Stream
50 Hz:
20 fps (2560 ?? 1440)
25 fps (1920 ?? 1080, 1280 ?? 720)
60 Hz:
20 fps (2560 ?? 1440)
24 fps (1920 ?? 1080, 1280 ?? 720)
Sub-Stream
50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)
60 Hz: 24 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)120 dB
- SNR??? 52 dB
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In MicrophoneYes
- Reset Key-F: Yes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
- General
Power
12 VDC ?? 25%, 0.4 A, max. 5 W,??5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
- MaterialMetal & Plastic
- Dimension170.8 mm ?? 66 mm ?? 69.1 mm (6.7" ?? 2.6" ?? 2.7")
- Package Dimension216 mm ?? 121 mm ?? 118 mm (8.5" ?? 4.8" ?? 4.6")
- WeightApprox. 270 g (0.6 lb.)
- With Package WeightApprox. 481 g (1.1 lb.)
- Storage Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
Specification
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 ?? 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0?? to 360??,tilt: 0?? to 90??,rotate: 0?? to 360??
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98??, vertical FOV 54??, diagonal FOV 114??
4 mm, horizontal FOV 78??, vertical FOV 42??, diagonal FOV 93??
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- DORI
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
Main Stream
50 Hz:
20 fps (2560 ?? 1440)
25 fps (1920 ?? 1080, 1280 ?? 720)
60 Hz:
20 fps (2560 ?? 1440)
24 fps (1920 ?? 1080, 1280 ?? 720)
Sub-Stream
50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)
60 Hz: 24 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)120 dB
- SNR??? 52 dB
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-In MicrophoneYes
- Reset Key-F: Yes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
- General
Power
12 VDC ?? 25%, 0.4 A, max. 5 W,??5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
- MaterialMetal & Plastic
- Dimension170.8 mm ?? 66 mm ?? 69.1 mm (6.7" ?? 2.6" ?? 2.7")
- Package Dimension216 mm ?? 121 mm ?? 118 mm (8.5" ?? 4.8" ?? 4.6")
- WeightApprox. 270 g (0.6 lb.)
- With Package WeightApprox. 481 g (1.1 lb.)
- Storage Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
