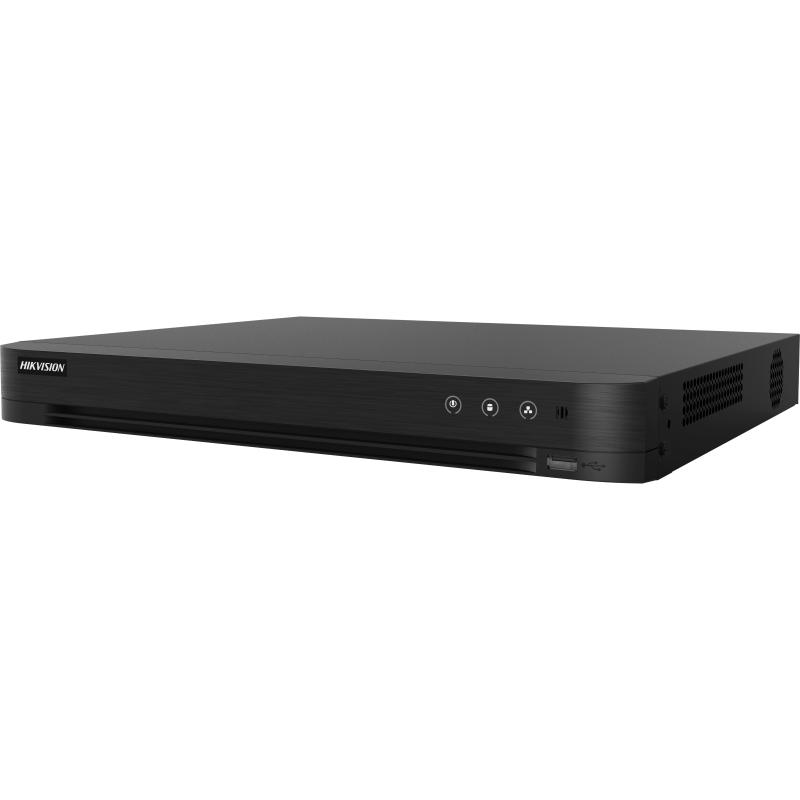

Hikvision 5MP16-ch 5 MP 1U H.265 AcuSense DVR, Up to 32-ch IP camera, H.265 pro+, Up to 8 MP@8 fps/5 MP@12 fps encoding capability, HDTVI/AHD/CVI/CVBS/IP | DS-7216HUHI-M2/S

Model :

SKU : DS-7216HUHI-M2/S 5MP

About this item

Description

Hikvision DS-7216HUHI-M2/S 5MP16-ch 5 MP 1U H.265 AcuSense DVR, Up to 32-ch IP, H.265 pro+, Up to 8 MP@8 fps/5 MP@12 fps encoding capability, HDTVI/AHD/CVI/CVBS/IP

Motion Detection 2.0 Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection Human/Vehicle Analysis
Up to 4-ch
Facial Detection And Capture
Face picture detection, face picture search
Recording Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:
Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps, 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Dual-Stream Support: Yes
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Video And Audio IP Video Input: 8-ch (up to 24-ch), Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps, Up to 8 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input: 16-ch, BNC interface (1.0 Vp-p, 75 ??), supporting coaxitron connection
HDMI Output: 1-ch, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, HDMI/VGA simultaneous output
VGA Output: 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, HDMI/VGA simultaneous output
CVBS Input: PAL/NTSC
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ??), resolution: PAL: 704 ?? 576, NTSC: 704 ?? 480
Synchronous Playback: 16-ch
HDTVI Input: 8 MP(3840 ?? 2160)@15 fps, 8 MP(3840 ?? 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 ?? 1944)@20 fps, 5 MP(2560 ?? 1944)@12 fps, 4 MP(2560 ?? 1440)@30 fps, 4 MP(2560 ?? 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input: 5 MP(2560 ?? 1944)@20 fps, 5 MP(2560 ?? 1944)@12 fps, 4 MP(2560 ?? 1440)@30 fps, 4 MP(2560 ?? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input: 8 MP(3840 ?? 2160)@15 fps, 8 MP(3840 ?? 2160)@12 fps, 5 MP(2592 ?? 1944)@20 fps, 4 MP(2560 ?? 1440)@30 fps, 4 MP(2560 ?? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Audio Output: 1-ch, RCA (Linear, 1 K??)
Audio Input: 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 K??), 16-ch via coaxial cable
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K??) (using the audio input)
Network Total Bandwidth: 128Mbps
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP???, HTTPS, ONVIF
Remote Connection: 128
Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface, Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface SATA: 2 SATA interfaces, Up to 10 TB capacity for each disk
Serial Interface: RS-485 (half-duplex)
USB Interface: Front panel: 1 ?? USB 2.0, Rear panel: 1 ?? USB 3.0
Alarm In/Out: N/A (optional to support)
General Power Supply: 12 VDC, 5 A
Consumption: ??? 19 W
Working Temperature: -10 ??C to +55 ??C (+14 ??F to +131 ??F)
Working Humidity: 10% to 90%
Dimension (W ?? D ?? H): 380 ?? 320 ?? 48 mm (15.0 ?? 12.6 ?? 1.9 inch)
Weight: ??? 2.1 kg (4.6 lb)

Specification

Hikvision DS-7216HUHI-M2/S 5MP16-ch 5 MP 1U H.265 AcuSense DVR, Up to 32-ch IP, H.265 pro+, Up to 8 MP@8 fps/5 MP@12 fps encoding capability, HDTVI/AHD/CVI/CVBS/IP

Motion Detection 2.0 Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection Human/Vehicle Analysis
Up to 4-ch
Facial Detection And Capture
Face picture detection, face picture search
Recording Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:
Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps, 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Dual-Stream Support: Yes
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Video And Audio IP Video Input: 8-ch (up to 24-ch), Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps, Up to 8 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input: 16-ch, BNC interface (1.0 Vp-p, 75 ??), supporting coaxitron connection
HDMI Output: 1-ch, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, HDMI/VGA simultaneous output
VGA Output: 1-ch, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz, HDMI/VGA simultaneous output
CVBS Input: PAL/NTSC
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ??), resolution: PAL: 704 ?? 576, NTSC: 704 ?? 480
Synchronous Playback: 16-ch
HDTVI Input: 8 MP(3840 ?? 2160)@15 fps, 8 MP(3840 ?? 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 ?? 1944)@20 fps, 5 MP(2560 ?? 1944)@12 fps, 4 MP(2560 ?? 1440)@30 fps, 4 MP(2560 ?? 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input: 5 MP(2560 ?? 1944)@20 fps, 5 MP(2560 ?? 1944)@12 fps, 4 MP(2560 ?? 1440)@30 fps, 4 MP(2560 ?? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input: 8 MP(3840 ?? 2160)@15 fps, 8 MP(3840 ?? 2160)@12 fps, 5 MP(2592 ?? 1944)@20 fps, 4 MP(2560 ?? 1440)@30 fps, 4 MP(2560 ?? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Audio Output: 1-ch, RCA (Linear, 1 K??)
Audio Input: 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 K??), 16-ch via coaxial cable
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K??) (using the audio input)
Network Total Bandwidth: 128Mbps
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP???, HTTPS, ONVIF
Remote Connection: 128
Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface, Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface SATA: 2 SATA interfaces, Up to 10 TB capacity for each disk
Serial Interface: RS-485 (half-duplex)
USB Interface: Front panel: 1 ?? USB 2.0, Rear panel: 1 ?? USB 3.0
Alarm In/Out: N/A (optional to support)
General Power Supply: 12 VDC, 5 A
Consumption: ??? 19 W
Working Temperature: -10 ??C to +55 ??C (+14 ??F to +131 ??F)
Working Humidity: 10% to 90%
Dimension (W ?? D ?? H): 380 ?? 320 ?? 48 mm (15.0 ?? 12.6 ?? 1.9 inch)
Weight: ??? 2.1 kg (4.6 lb)
