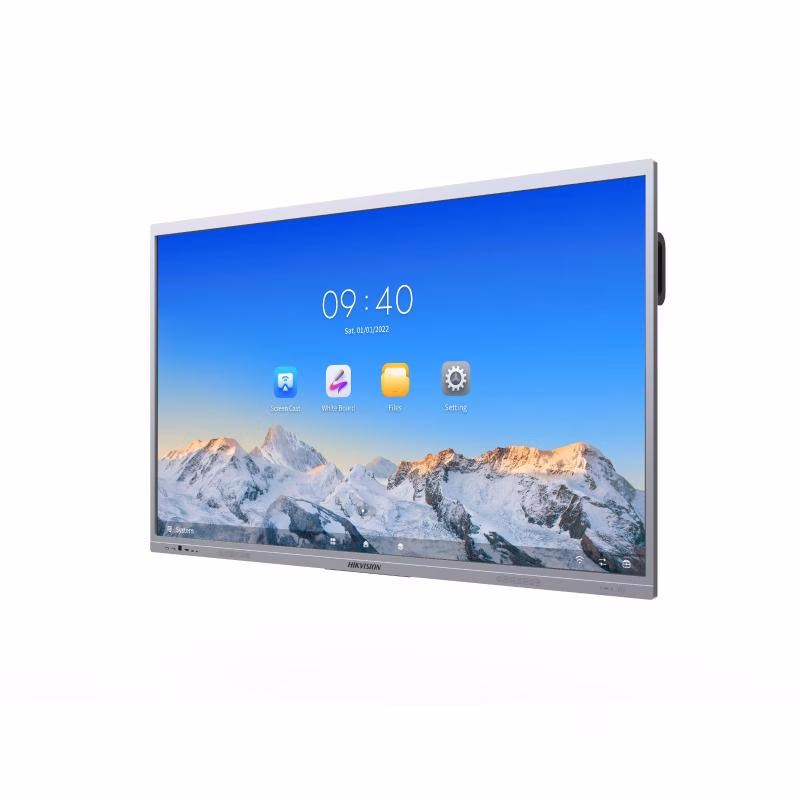

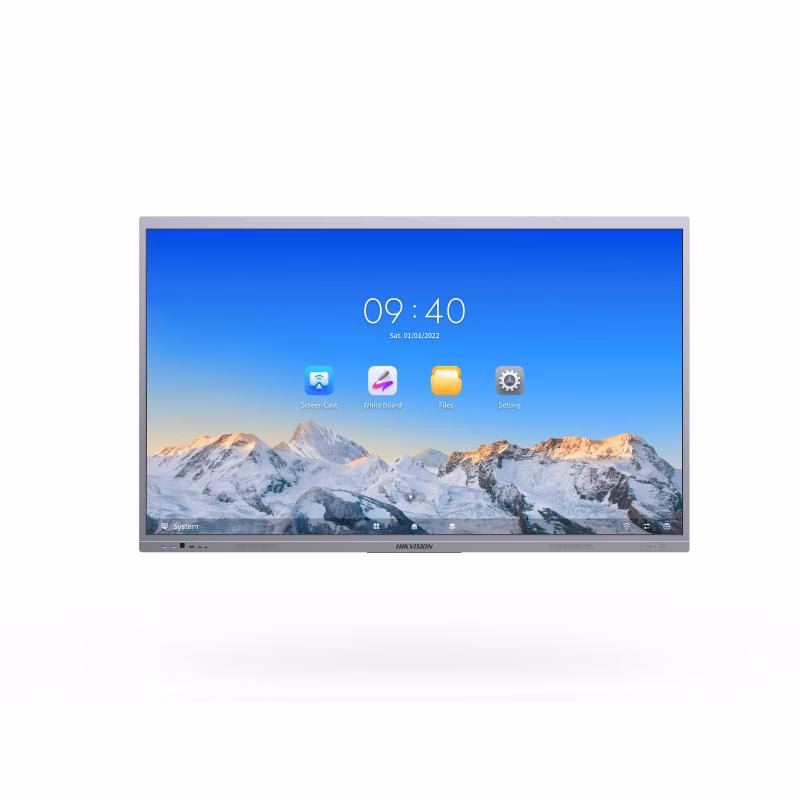

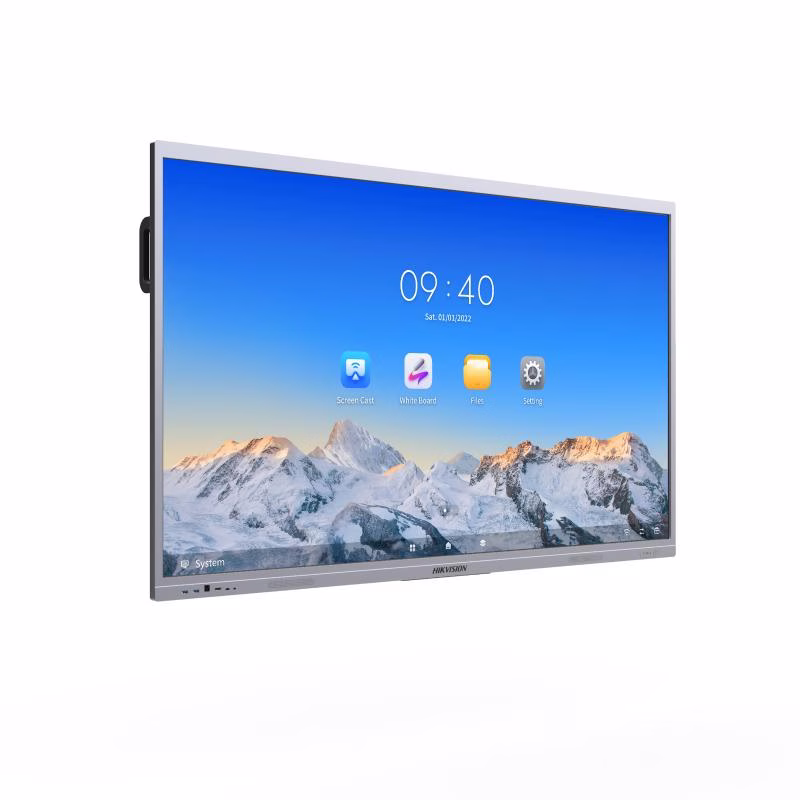

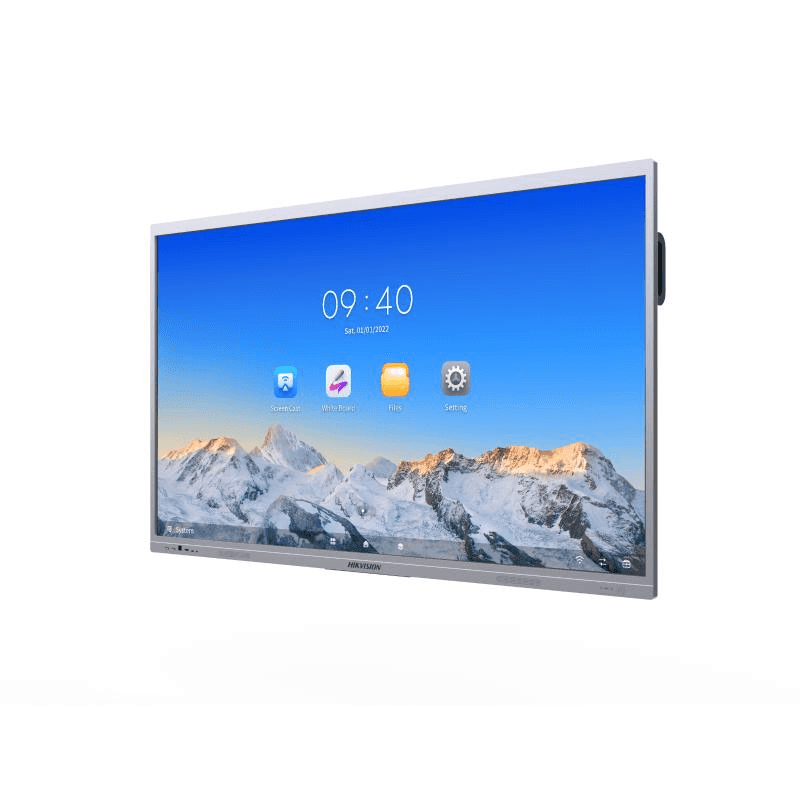

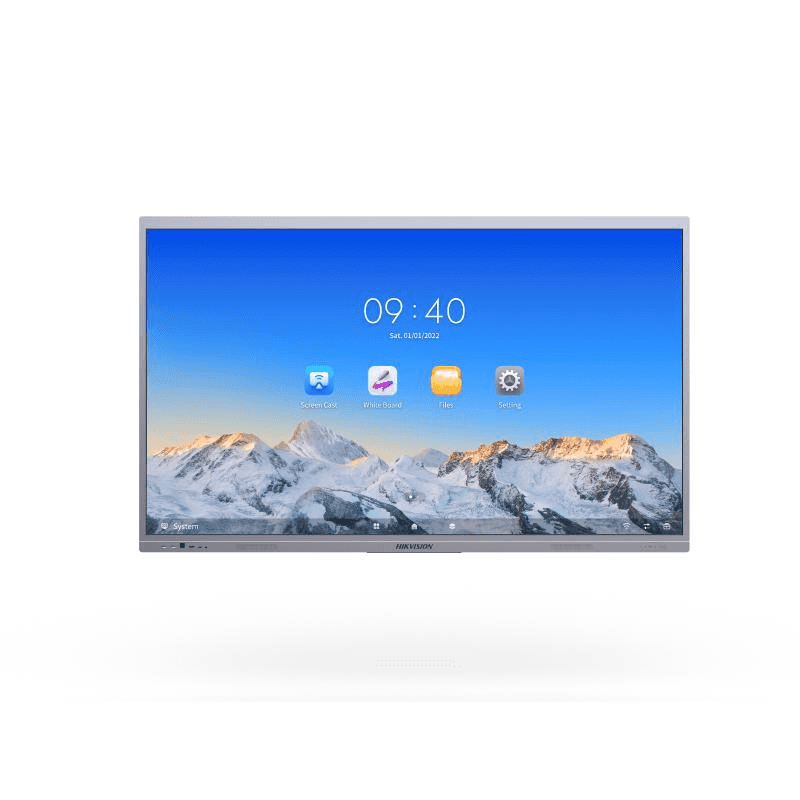

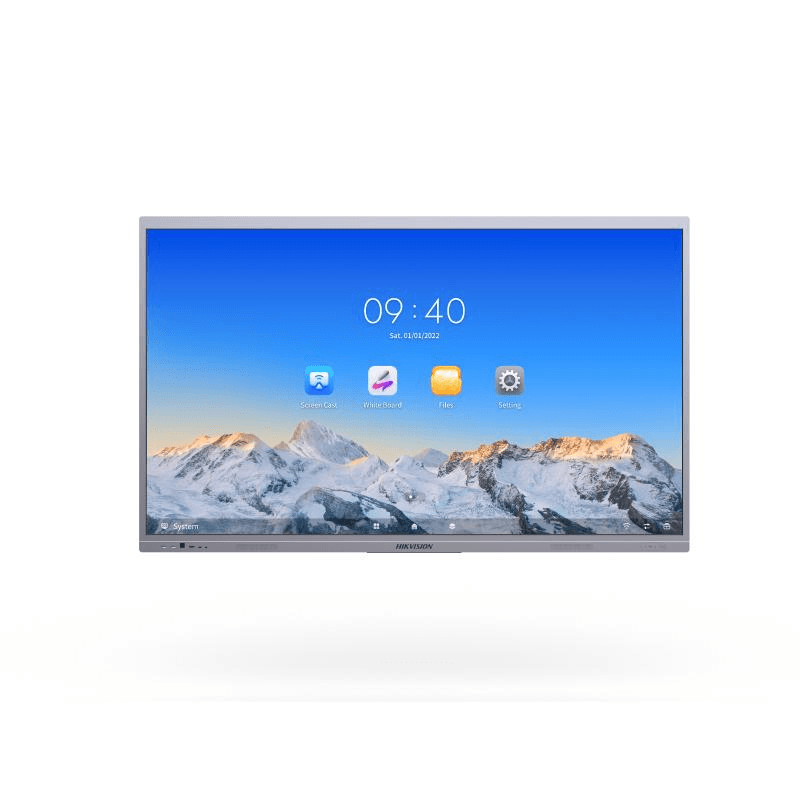

Hikvision 86", 4K Interactive Display, Android 12, memory 8GB, build-in 128GB storage, 45 points infrared touch, Type-C*2,VGA input*1,DP input*1, HDMI input *3, HDMI output*1, Dual wifi, Buletooth 5.1, industrial screen protection. 5.1, | DS-D5C86RB/A
Model :
SKU : DS-D5C86RB/A
About this item
About this item
Description
Transform Meetings & Collaboration: Hikvision 86" 4K Interactive Display with Camera, Mic, & Touch DS-D5B86RB-B
Immerse your team in interactive presentations with the Hikvision 86" 4K display. Features include 20-point multi-touch, built-in camera & mic, Android 8.0, & powerful specs. Ideal for conferences, classrooms, & collaborative spaces.
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }
| Product Model | |
| DS-D5B86RB/B | |
| Display | |
| Screen Size | 86 inch LED Backlight |
| Backlight | DLED |
| Pixel Pitch | 0.164 (H) ?? 0.493 (V) mm |
| Resolution | 3840 ?? 2160@60 Hz |
| Brightness | 350 cd/m?? |
| Color Depth | 10 bit |
| Contrast Ratio | 1200 : 1 (Typ.) |
| Response Time | 6 ms |
| Color Gamut | 90% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178?? (H) / 178?? (V) |
| Touch | |
| Type | Infrared touch screen |
| Glass | Smooth tempered glass being anti-glare and explosion-proof |
| Touch Point | 20 point multi-touch |
| Touch Response Time | < 10 ms |
| Touch Precision | ?? 1 mm (??? 90% touching area) |
| Optical Bonding | Support |
| Built-In System | |
| Operation System | Android 8.0 |
| Processor | 4-core A73 ?? 2 + A53 ?? 2, 1.5 GHz |
| Memory | 3 GB |
| Built-In Storage | 32 GB |
| NIC | Built-in 100 Mbps NIC, supporting routing |
| Camera | |
| Pixel | 8 MP |
| Camera Function | Smart switch between Android system and OPS |
| Field Angle | 100?? (diagonal), 90?? (horizontal), 66?? (vertical) |
| Distortion | ≤1% |
| Camera Resolution Ratio | Up to 4K |
| Microphone | |
| Specification | Omni-directional 6-array layout |
| Mic Function | Echo reduction and smart noise-cancellation |
| Voice Distance | 8 m |
| Sampling Rate | 32 K |
| Mic Sampling Rate | 16 bit |
| Internal Function | |
| Loudspeaker | Built-in 2 ?? 16 W loudspeaker |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version. |
| Interface | |
| Video & Audio Input | HDMI IN ?? 2, MAX 4K @ 60 Hz, LINE IN ?? 1 |
| Video & Audio Output | HDMI OUT ?? 1, MAX 4K @ 60 Hz, LINE OUT ?? 1 |
| Control Interface | RS-232 ?? 1 |
| Network Interface | RJ45 (100 Mbps port) ?? 2 |
| Data Transmission Interface | USB on front panel ?? 2, USB on rear panel ?? 2, touch USB ?? 1 |
| Power | |
| Power Consumption | ??? 420 W (full load) |
| Standby Consumption | 0.5 W |
| General Power | 100 to 240 VAC, 50/60 Hz |
| Product Dimensions | |
| Dimensions (W ?? H ?? D) | 1963 ?? 1159 ?? 87.5 mm (77.3'' ?? 45.6'' ?? 3.4'') |
| Package Dimensions | |
| Dimensions (W ?? H ?? D) | 2187 ?? 1366 ?? 274 mm (86.1'' ?? 53.8'' ?? 10.8'') |
| Weight | |
| Net Weight | 65.62 kg (144.67 lb.) |
| Gross Weight | 86.74 kg (191.23 lb.) |
| Working Environment | |
| Working Temperature | 0 ??? to 40 ??? (32 ??? to 104 ???) |
| Working Humidity | 10% to 90% RH |
Specification
Transform Meetings & Collaboration: Hikvision 86" 4K Interactive Display with Camera, Mic, & Touch DS-D5B86RB-B
Immerse your team in interactive presentations with the Hikvision 86" 4K display. Features include 20-point multi-touch, built-in camera & mic, Android 8.0, & powerful specs. Ideal for conferences, classrooms, & collaborative spaces.
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }
| Product Model | |
| DS-D5B86RB/B | |
| Display | |
| Screen Size | 86 inch LED Backlight |
| Backlight | DLED |
| Pixel Pitch | 0.164 (H) ?? 0.493 (V) mm |
| Resolution | 3840 ?? 2160@60 Hz |
| Brightness | 350 cd/m?? |
| Color Depth | 10 bit |
| Contrast Ratio | 1200 : 1 (Typ.) |
| Response Time | 6 ms |
| Color Gamut | 90% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178?? (H) / 178?? (V) |
| Touch | |
| Type | Infrared touch screen |
| Glass | Smooth tempered glass being anti-glare and explosion-proof |
| Touch Point | 20 point multi-touch |
| Touch Response Time | < 10 ms |
| Touch Precision | ?? 1 mm (??? 90% touching area) |
| Optical Bonding | Support |
| Built-In System | |
| Operation System | Android 8.0 |
| Processor | 4-core A73 ?? 2 + A53 ?? 2, 1.5 GHz |
| Memory | 3 GB |
| Built-In Storage | 32 GB |
| NIC | Built-in 100 Mbps NIC, supporting routing |
| Camera | |
| Pixel | 8 MP |
| Camera Function | Smart switch between Android system and OPS |
| Field Angle | 100?? (diagonal), 90?? (horizontal), 66?? (vertical) |
| Distortion | ≤1% |
| Camera Resolution Ratio | Up to 4K |
| Microphone | |
| Specification | Omni-directional 6-array layout |
| Mic Function | Echo reduction and smart noise-cancellation |
| Voice Distance | 8 m |
| Sampling Rate | 32 K |
| Mic Sampling Rate | 16 bit |
| Internal Function | |
| Loudspeaker | Built-in 2 ?? 16 W loudspeaker |
| Bluetooth | Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version. |
| Interface | |
| Video & Audio Input | HDMI IN ?? 2, MAX 4K @ 60 Hz, LINE IN ?? 1 |
| Video & Audio Output | HDMI OUT ?? 1, MAX 4K @ 60 Hz, LINE OUT ?? 1 |
| Control Interface | RS-232 ?? 1 |
| Network Interface | RJ45 (100 Mbps port) ?? 2 |
| Data Transmission Interface | USB on front panel ?? 2, USB on rear panel ?? 2, touch USB ?? 1 |
| Power | |
| Power Consumption | ??? 420 W (full load) |
| Standby Consumption | 0.5 W |
| General Power | 100 to 240 VAC, 50/60 Hz |
| Product Dimensions | |
| Dimensions (W ?? H ?? D) | 1963 ?? 1159 ?? 87.5 mm (77.3'' ?? 45.6'' ?? 3.4'') |
| Package Dimensions | |
| Dimensions (W ?? H ?? D) | 2187 ?? 1366 ?? 274 mm (86.1'' ?? 53.8'' ?? 10.8'') |
| Weight | |
| Net Weight | 65.62 kg (144.67 lb.) |
| Gross Weight | 86.74 kg (191.23 lb.) |
| Working Environment | |
| Working Temperature | 0 ??? to 40 ??? (32 ??? to 104 ???) |
| Working Humidity | 10% to 90% RH |
