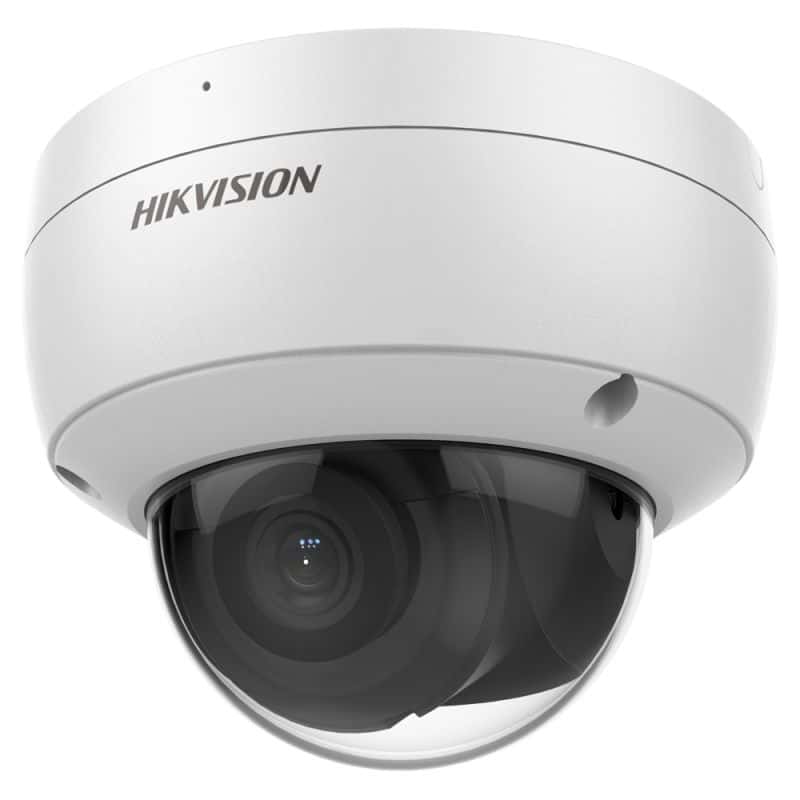

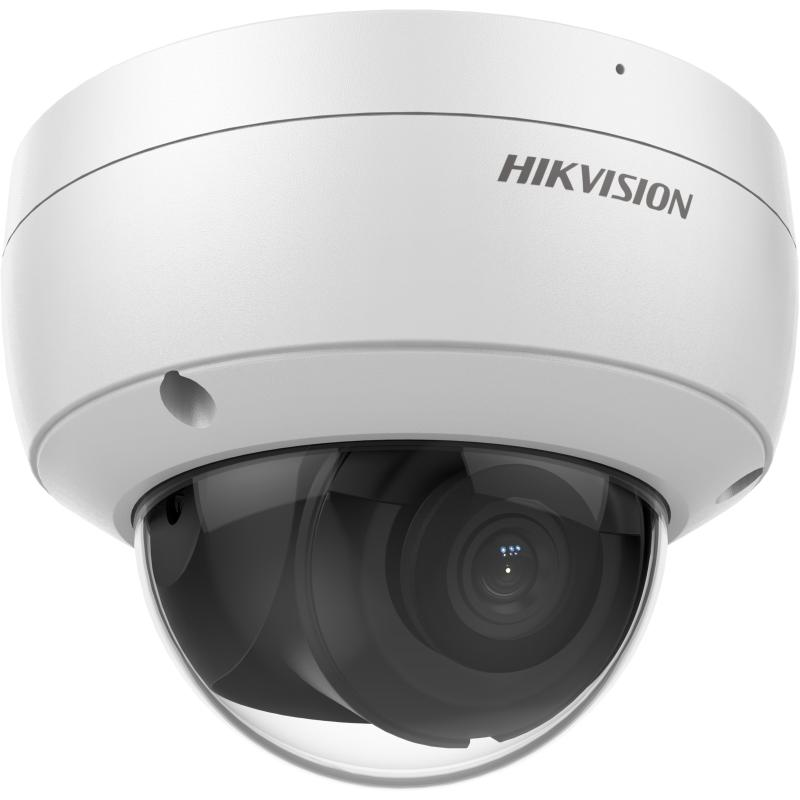

Hikvision AcuSense DS-2CD2143G2-IU 4MP Outdoor Network Dome Camera with Night Vision & 2.8mm Lens (White)
Model :
SKU : DS-2CD2143G2-IU
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision AcuSense DS-2CD2143G2-IU 4MP Outdoor Network Dome Camera with Night Vision & 2.8mm Lens (White)
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, tilt: 0?? to 75??, rotate: 0?? to 355?? |
| Lens | Focal Length & FOV: 2.8 mm, horizontal FOV 103??, vertical FOV 55??, diagonal FOV 122?? 4 mm, horizontal FOV 84??, vertical FOV 45??, diagonal FOV 100?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m |
| Illuminator | Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm |
| Video | Main Stream: 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | Yes |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK User/Host: Up to 32 users. 3 user levels: administrator, operator and user Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Image Parameters Switch: Yes Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: ??? 52 dB Image Enhancement: BLC, HLC, 3D DNR |
| Interface | Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Storage: Built-in microSD, up to 512 GB Built-In Microphone: Yes Reset Key: Yes |
| Event | Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), Face detection Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email |
| General | Power: 12 VDC ?? 25%, 0.4 A, max. 5 W, ??5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W Dimension: ??121.4 ?? 92.2 mm (??4.8??? ?? 3.7???) Package Dimension: 150 ?? 150 ?? 141 mm (5.9??? ?? 5.9??? ?? 5.6???) Weight: Approx. 570 g (1.3 lb.) With Package Weight: Approx. 806 g (1.8 lb.) Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian) General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter Approval: EMC - FCC, CE-EMC, RCM, IC, KC; Safety - UL, CB, CE-LVD, BIS; Environment - CE-RoHS, WEEE, Reach; Protection - IP67, IK10 |
Specification
Hikvision AcuSense DS-2CD2143G2-IU 4MP Outdoor Network Dome Camera with Night Vision & 2.8mm Lens (White)
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 ?? 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, tilt: 0?? to 75??, rotate: 0?? to 355?? |
| Lens | Focal Length & FOV: 2.8 mm, horizontal FOV 103??, vertical FOV 55??, diagonal FOV 122?? 4 mm, horizontal FOV 84??, vertical FOV 45??, diagonal FOV 100?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m |
| Illuminator | Supplement Light Type: IR Supplement Light Range: Up to 30 m Smart Supplement Light: Yes IR Wavelength: 850 nm |
| Video | Main Stream: 50 Hz: 25 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (2688 ?? 1520, 1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | Yes |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK User/Host: Up to 32 users. 3 user levels: administrator, operator and user Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Image Parameters Switch: Yes Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: ??? 52 dB Image Enhancement: BLC, HLC, 3D DNR |
| Interface | Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Storage: Built-in microSD, up to 512 GB Built-In Microphone: Yes Reset Key: Yes |
| Event | Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), Face detection Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email |
| General | Power: 12 VDC ?? 25%, 0.4 A, max. 5 W, ??5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W Dimension: ??121.4 ?? 92.2 mm (??4.8??? ?? 3.7???) Package Dimension: 150 ?? 150 ?? 141 mm (5.9??? ?? 5.9??? ?? 5.6???) Weight: Approx. 570 g (1.3 lb.) With Package Weight: Approx. 806 g (1.8 lb.) Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian) General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter Approval: EMC - FCC, CE-EMC, RCM, IC, KC; Safety - UL, CB, CE-LVD, BIS; Environment - CE-RoHS, WEEE, Reach; Protection - IP67, IK10 |
