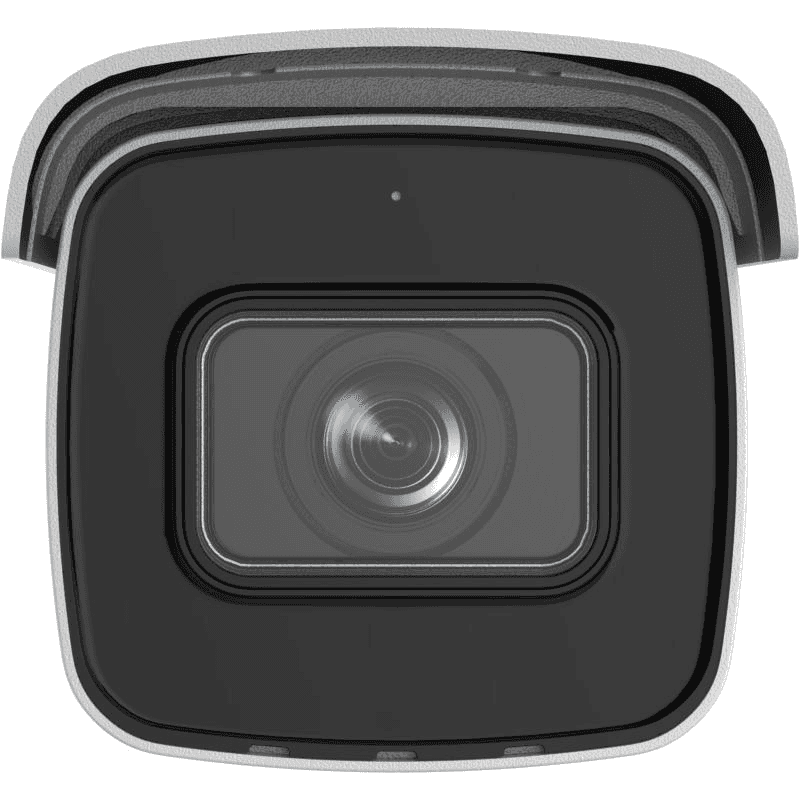

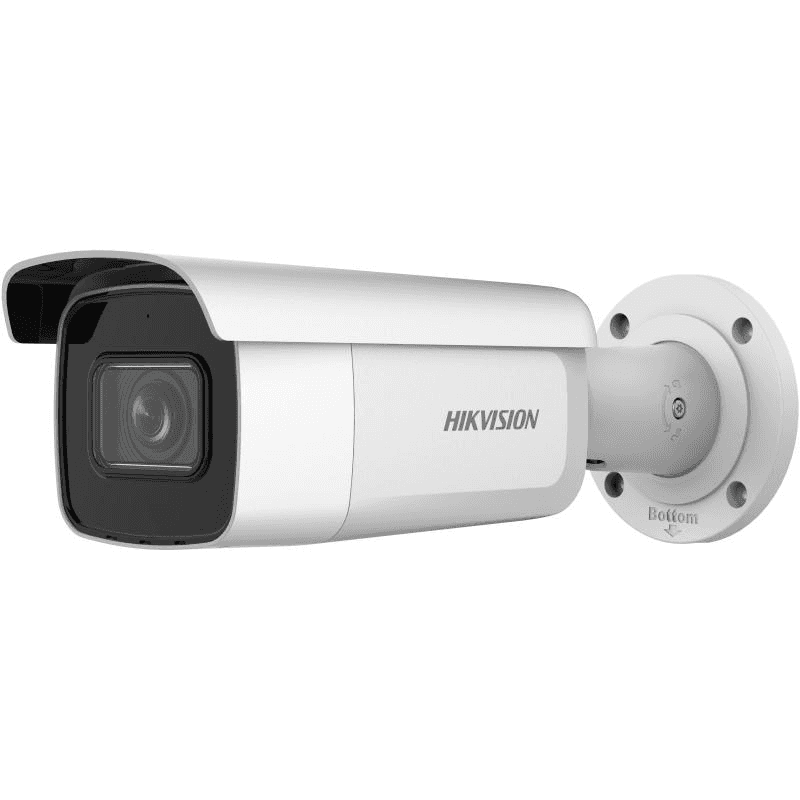

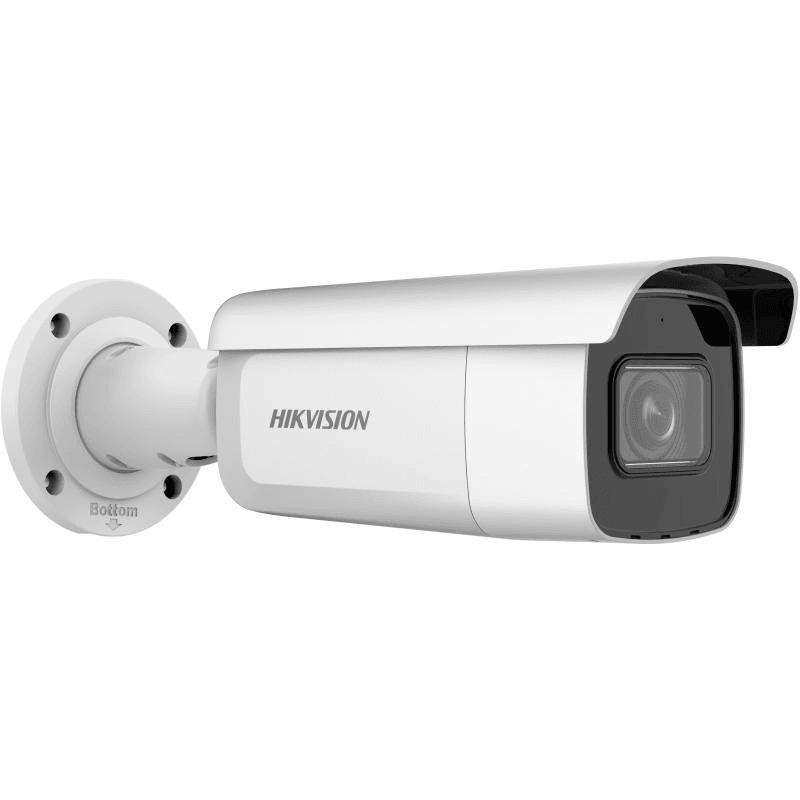

Hikvision AcuSense DS-2CD2623G2-IZS 2MP Motorized Varifocal Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Lens
Model :
SKU : DS-2CD2623G2-IZS
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Hikvision AcuSense DS-2CD2623G2-IZS 2MP Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Lens
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 ?? 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens | Depth Of Field: 0.5 m to ??? Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 107?? to 32??, vertical FOV 55?? to 18??, diagonal FOV 130?? to 36?? Aperture: F1.6 Lens Mount: ??14 Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm Iris Type: Fixed |
| DORI | Wide: D: 45.5m, O: 18.1m, R: 9.1m, I: 4.6m Tele: D: 137.9m, O: 54.7m, R: 27.6m, I: 13.8m |
| Illuminator | IR Wavelength: 850 nm Supplement Light Type: IR Supplement Light Range: Up to 60 m Smart Supplement Light: Yes |
| Video | Main Stream: 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region(s) for main stream and sub-stream |
| Audio | Audio Type: Mono sound Environment Noise Filtering: Yes Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network | Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets User/Host: Up to 32 users. 3 user levels: administrator, operator, and user Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Privacy Mask: Yes Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC, HLC, 3D DNR Image Parameters Switch: Yes Image Settings: Rotate mode, mirror, privacy mask, saturation, brightness, contrast, gain, white balance, adjustable by client software or web browser Wide Dynamic Range (WDR): 120 dB SNR: ??? 52 dB |
| Interface | Alarm: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K??, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB Reset Key: Yes Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection (support alarm triggered by specific target types (human and vehicle), face detection Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, trigger alarm output, audible warning |
| General | Power: 12 VDC ?? 25%, 1.08 A, max. 13 W, ??5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W General Function: Anti-flicker, heartbeat, password reset via email, pixel counter Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Material: Aluminum alloy body Dimension: 308.5 mm ?? 97.9 mm ?? 93 mm (12.2" ?? 3.9" ?? 3.7") Package Dimension: 385 mm ?? 190 mm ?? 180 mm (15.2" ?? 7.5" ?? 7.1") Weight: Approx. 1440 g (3.2 lb.) With Package Weight: Approx. 2506 g (5.5 lb.) Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Approval: EMC - FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection: IP67: IEC 60529-2013; IK10: IEC 62262:2002 |
Specification
Hikvision AcuSense DS-2CD2623G2-IZS 2MP Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Lens
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 ?? 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens | Depth Of Field: 0.5 m to ??? Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 107?? to 32??, vertical FOV 55?? to 18??, diagonal FOV 130?? to 36?? Aperture: F1.6 Lens Mount: ??14 Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm Iris Type: Fixed |
| DORI | Wide: D: 45.5m, O: 18.1m, R: 9.1m, I: 4.6m Tele: D: 137.9m, O: 54.7m, R: 27.6m, I: 13.8m |
| Illuminator | IR Wavelength: 850 nm Supplement Light Type: IR Supplement Light Range: Up to 60 m Smart Supplement Light: Yes |
| Video | Main Stream: 50 Hz: 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 30 fps (1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) Third Stream: 50 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 10 fps (1920 ?? 1080, 1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region(s) for main stream and sub-stream |
| Audio | Audio Type: Mono sound Environment Noise Filtering: Yes Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network | Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets User/Host: Up to 32 users. 3 user levels: administrator, operator, and user Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Privacy Mask: Yes Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC, HLC, 3D DNR Image Parameters Switch: Yes Image Settings: Rotate mode, mirror, privacy mask, saturation, brightness, contrast, gain, white balance, adjustable by client software or web browser Wide Dynamic Range (WDR): 120 dB SNR: ??? 52 dB |
| Interface | Alarm: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K??, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB Reset Key: Yes Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection (support alarm triggered by specific target types (human and vehicle), face detection Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, trigger alarm output, audible warning |
| General | Power: 12 VDC ?? 25%, 1.08 A, max. 13 W, ??5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W General Function: Anti-flicker, heartbeat, password reset via email, pixel counter Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Material: Aluminum alloy body Dimension: 308.5 mm ?? 97.9 mm ?? 93 mm (12.2" ?? 3.9" ?? 3.7") Package Dimension: 385 mm ?? 190 mm ?? 180 mm (15.2" ?? 7.5" ?? 7.1") Weight: Approx. 1440 g (3.2 lb.) With Package Weight: Approx. 2506 g (5.5 lb.) Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Approval: EMC - FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection: IP67: IEC 60529-2013; IK10: IEC 62262:2002 |
