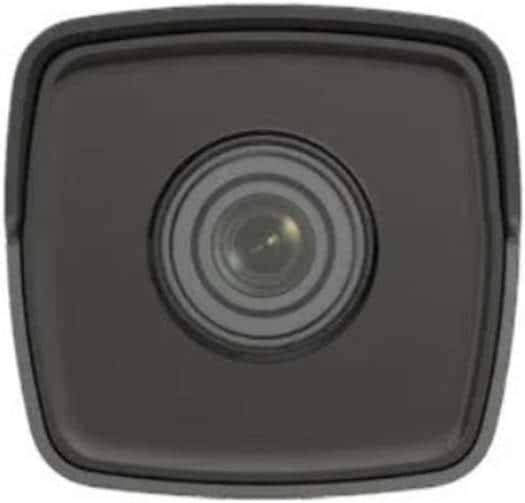

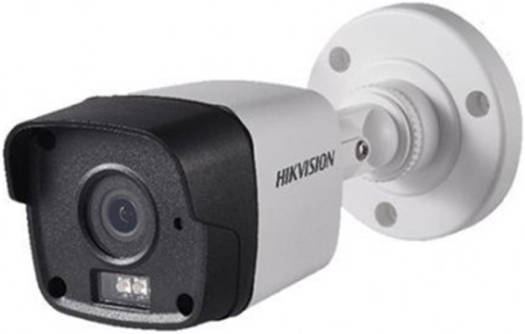

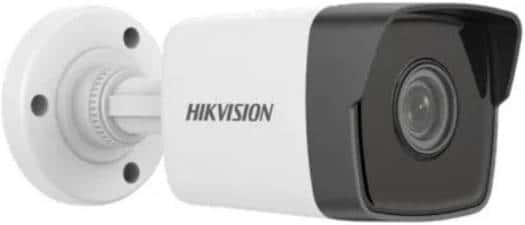

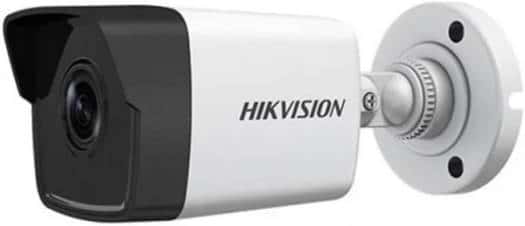

Hikvision DS-2CD1021-I 2.0 MP CMOS Network Bullet Camera, 2.8mm Fixed Focal Lens, Up To 30m IR Range, Dual Stream, 3D Digital Noise Reduction, IP67, White - Black | DS-2CD1021G0E-I/ECO-2.8mm
Model :
SKU : DS-2CD1021G0E-I /ECO-2.8M
Description
Hikvision DS-2CD1021-I 2.0 MP CMOS Network Bullet Camera, 2.8mm Fixed Focal Lens, Up To 30m IR Range, Dual Stream, 3D Digital Noise Reduction, IP67, White - Black | DS-2CD1021G0E-I/ECO-2.8mm
| Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s, support slow shutter |
| Lens | 2.8 mm @F2.0, horizontal field of view 105.8??, 4 mm @F2.2, horizontal field of view 83.6??, 6 mm @F2.0, horizontal field of view 55?? |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| 3-Axis Adjustment (Bracket) | Pan: 0?? to 360??, tilt: -90?? to 90??, rotation: 0?? to 360?? |
| DNR (Digital Noise Reduction) | 3D DNR |
| WDR (Wide Dynamic Range) | Digital WDR |
| Compression Standard | Main stream: H.264+/H.264 Sub stream: H.264/MJPEG |
| Video Compression | Baseline profile/Main profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Image | Max. Resolution: 1920 x 1080 |
| Main Stream | Max. Frame Rate: 50Hz: 25fps @(1920 x 1080, 1280 ?? 960, 1280 x 720) 60Hz: 30fps @(1920 x 1080, 1280 x 960, 1280 x 720) |
| Sub-stream | Max. Frame Rate: 50Hz: 25fps @(704 x 576, 640 x 480, 352 ?? 288, 320 ?? 240) 60Hz: 30fps @(704 x 480, 640 x 480, 352 x 240, 320 x 240) |
| Image Settings | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software |
| Day/Night Switch | Support auto, scheduled |
| Others | Mirror, BLC (area configurable), region of interest (support 1 fixed region) |
