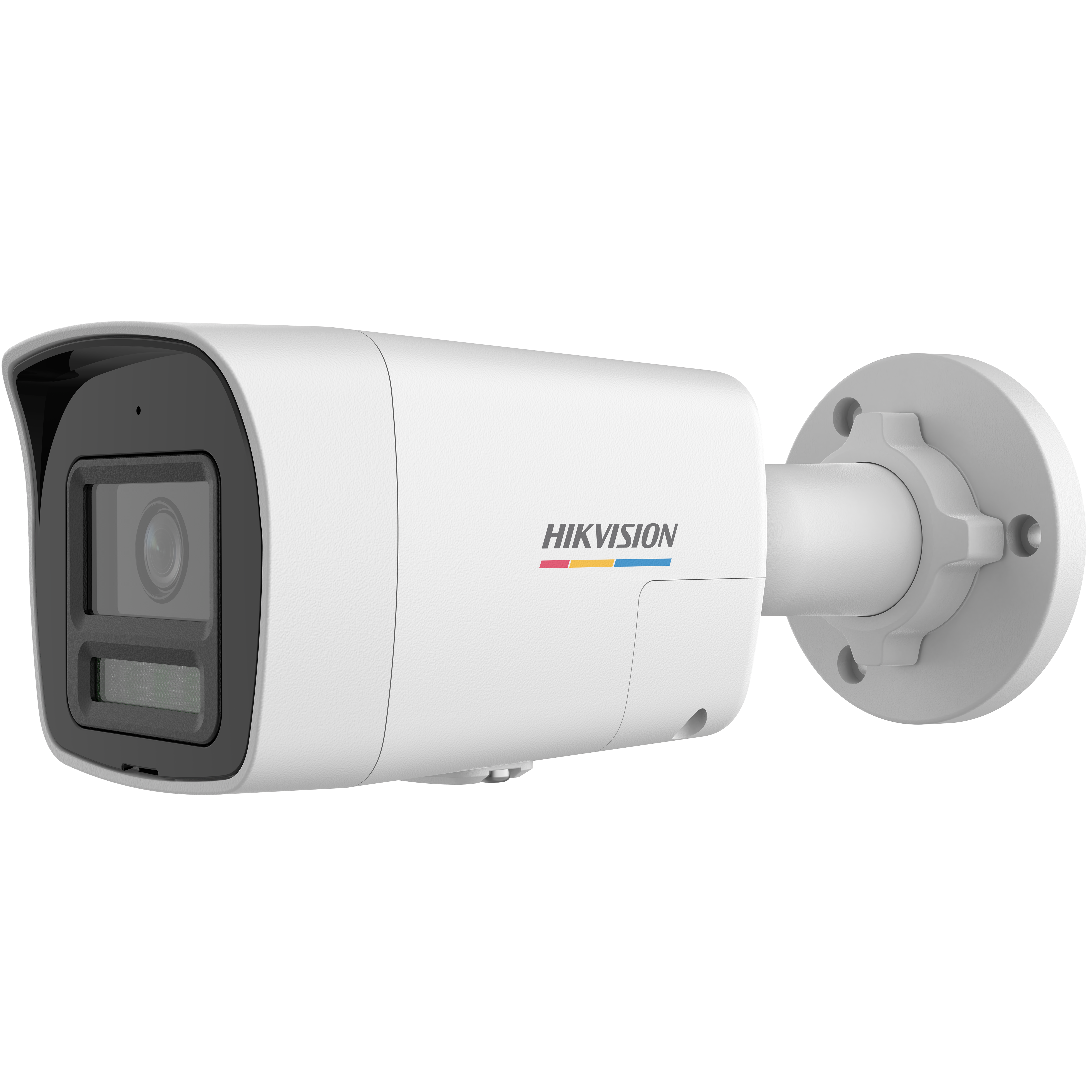

Hikvision DS-2CD1027G2H-LIUF/S(L)(RB) 2 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera
Model :
SKU : DS-2CD1027G2H-LIUF/SL 2.8
About this item
About this item
Description
2 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera
- High quality imaging with 2 MP resolution
- 24/7 colorful imaging
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range cover
- Provide real-time security via built-in two-way audio and strobe light alarm
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP67)
Specification
Hikvision DS-2CD1027G2H-LIUF/S(L)(RB) 2 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera Specification
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 355° |
| Lens Type | Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 106°, V 56°, D 129° 4 mm: H 88°, V 47°, D 103° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI (2.8 mm) | D: 44 m, O: 17 m, R: 8 m, I: 4 m |
| DORI (4 mm) | D: 53 m, O: 21 m, R: 10 m, I: 5 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (1920×1080, 1280×720) 60 Hz: 30 fps (1920×1080, 1280×720) |
| Sub-Stream | 50 Hz: 25 fps (640×480, 640×360) 60 Hz: 30 fps (640×480, 640×360) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4/IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, G, T), ISAPI, SDK |
| User/Host | Up to 32 users (admin, operator, user) |
| Security | Password protection, complex password, watermark, authentication, audit log, MAC address authentication |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in: IE10, IE11 Local: Chrome 57+, Firefox 52+, Edge 89+ |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Day/Night Switch | Day, Night, Auto, Schedule |
| WDR | Digital WDR |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon masks |
| Ethernet Interface | 1 × RJ45 10M/100M self-adaptive |
| On-Board Storage | MicroSD/SDHC/SDXC, up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes, max. 1.5 W, 98 dB @10 cm |
| Reset Key | Yes |
| Basic Event | Motion detection (person/vehicle), tampering alarm, exception |
| Linkage | Upload to card/FTP, recording, notify center, email, capture |
| Power | 12 VDC ±25%, 0.55 A, max. 6.6 W, PoE IEEE 802.3af Class 3, max. 8 W |
| Material | Front: metal; Body: plastic; Bracket: plastic |
| Dimension | 179 × 69.1 × 67.4 mm (7.05" × 2.72" × 2.65") |
| Package Dimension | 150 × 150 × 141 mm (5.91" × 5.91" × 5.55") |
| Weight | Approx. 320 g (0.7 lb) |
| With Package Weight | Approx. 540 g (1.2 lb) |
| Storage Conditions | -30 °C to 60 °C, ≤95% RH (non-condensing) |
| Operating Conditions | -30 °C to 60 °C, ≤95% RH (non-condensing) |
| Language | English, Ukrainian |
| General Functions | Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding |
| Flashing Light | /SRB: Red & Blue Light /SL: White Light |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1:2014+A11, CE-LVD: EN 62368-1:2014/A11:2017, BIS: IS 13252 (Part 1):2010/IEC 60950-1:2005 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
