Hikvision DS-2CE16D0T-LPFS 2MP Smart Hybrid Light Audio Fixed Bullet Camera, 1080p, 2.8mm Lens, 25m IR, 20m White Light, Built-in Mic, IP67 Weatherproof | DS-2CE16D0T-LPFS
69.00Home/Networking/Security Devices/Security Cameras & Surveillance/Hikvision DS-2CD1047G2H-LIU 4 MP ColorVu with Smar...

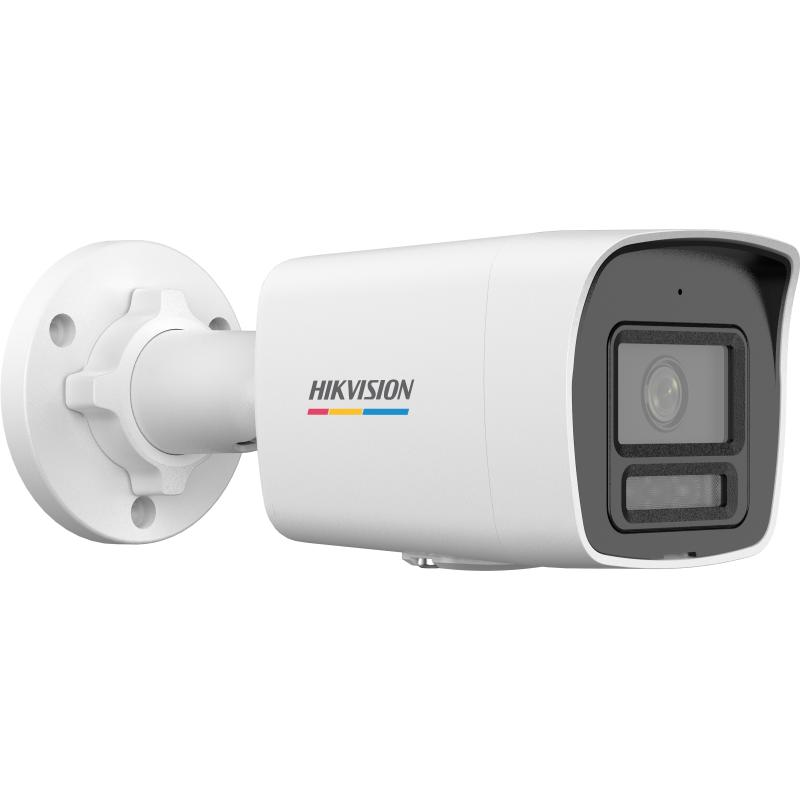

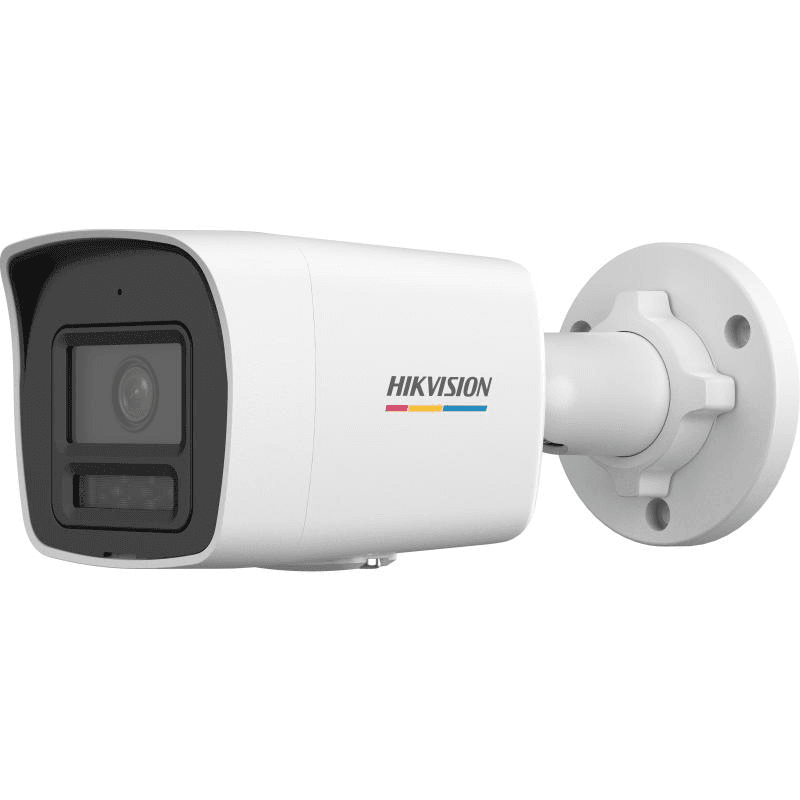

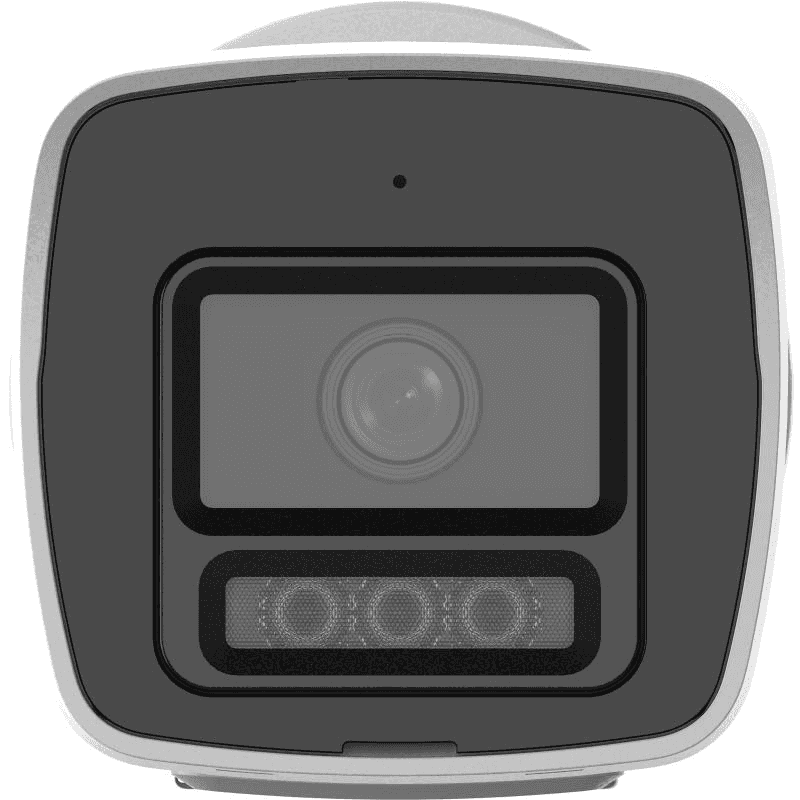

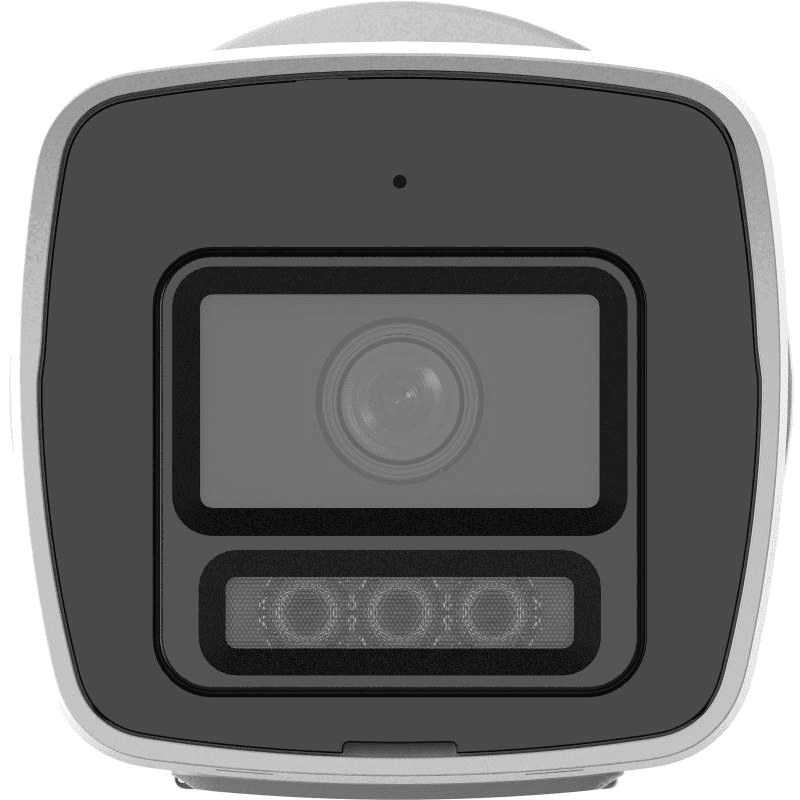

Hikvision DS-2CD1047G2H-LIU 4 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera, Up to 30 m, Human and Vehicle Detection, Built-in microphone
Model :
SKU : DS-2CD1047G2H-LIU 2.8MM
About this item
About this item
Description
Specification
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 ?? 1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON) |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 115??, vertical FOV 60??, diagonal FOV 143?? 4 mm, horizontal FOV 94??, vertical FOV 50??, diagonal FOV 110?? |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI | 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 20 fps (2560 ?? 1440) 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 20 fps (2560 ?? 1440) 24 fps (1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 24 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network Protocols | IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ??? 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes, 1 built-in microphone |
| Reset Key | -F: Yes |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to memory card (-F model supports), trigger recording (-F model supports), upload to FTP, notify surveillance center, send email, trigger capture |
| Power | 12 VDC ?? 25%, 0.5 A, max. 6 W, ??5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Material | Front cover: metal, body: plastic, bracket: plastic |
| Dimension | 69.8 mm ?? 67.9 mm ?? 172.9 mm (2.7" ?? 2.7" ?? 6.8") |
| Package Dimension | 150 mm ?? 150 mm ?? 141 mm (5.91" ?? 5.91" ?? 5.55") |
| Weight | Approx. 550 g (1.2 lb.) |
| With Package Weight | Approx. 800 g (1.8 lb.) |
| Storage Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
