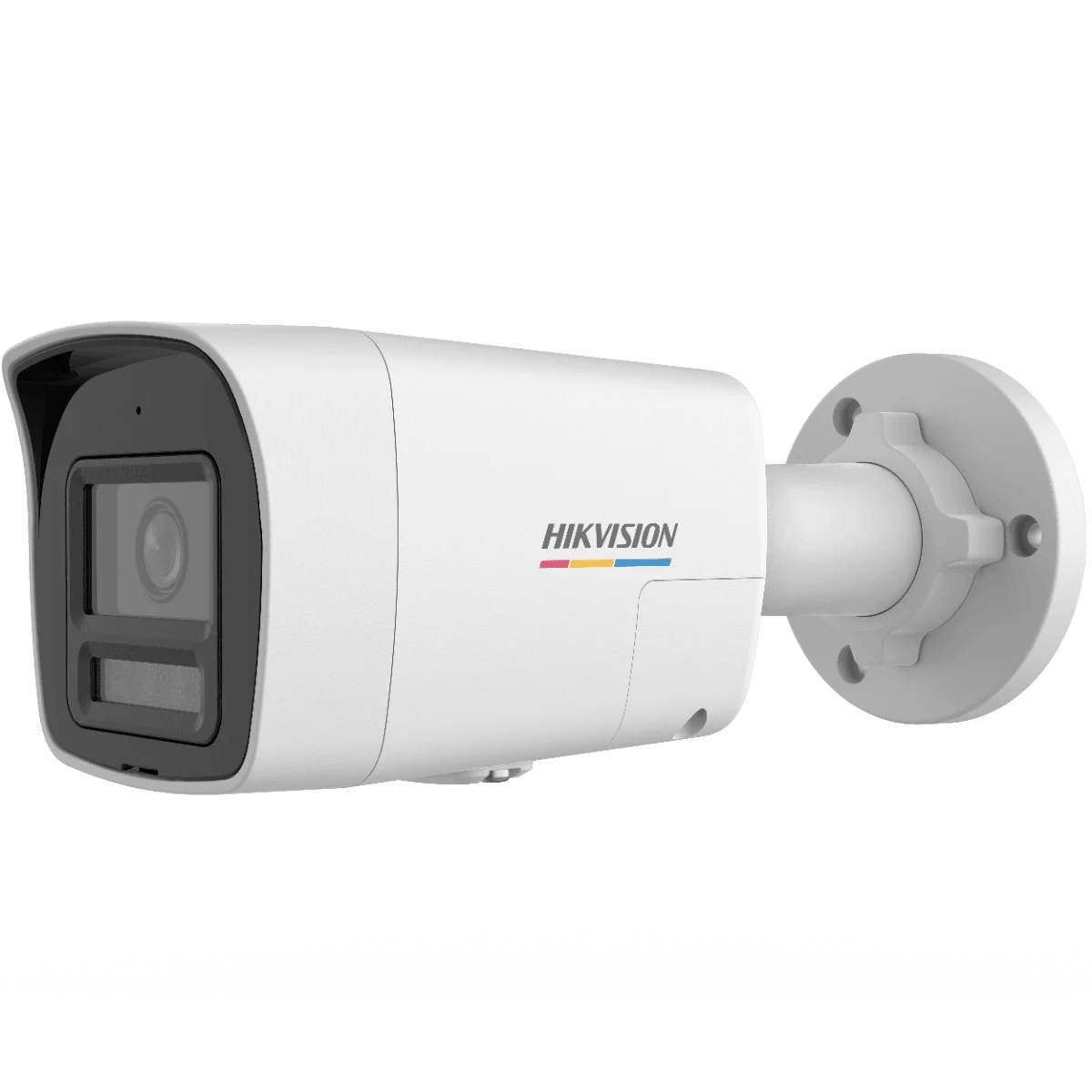

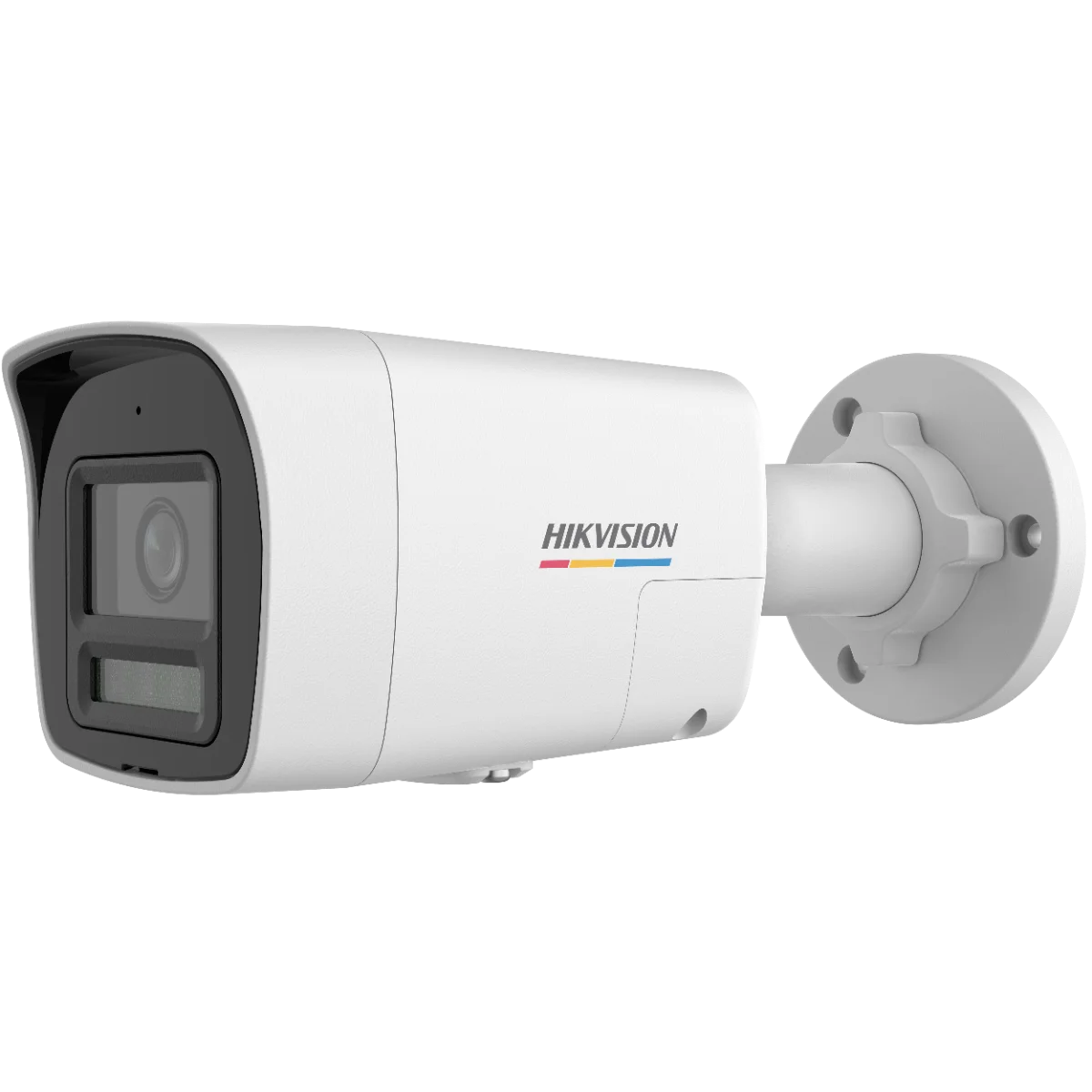

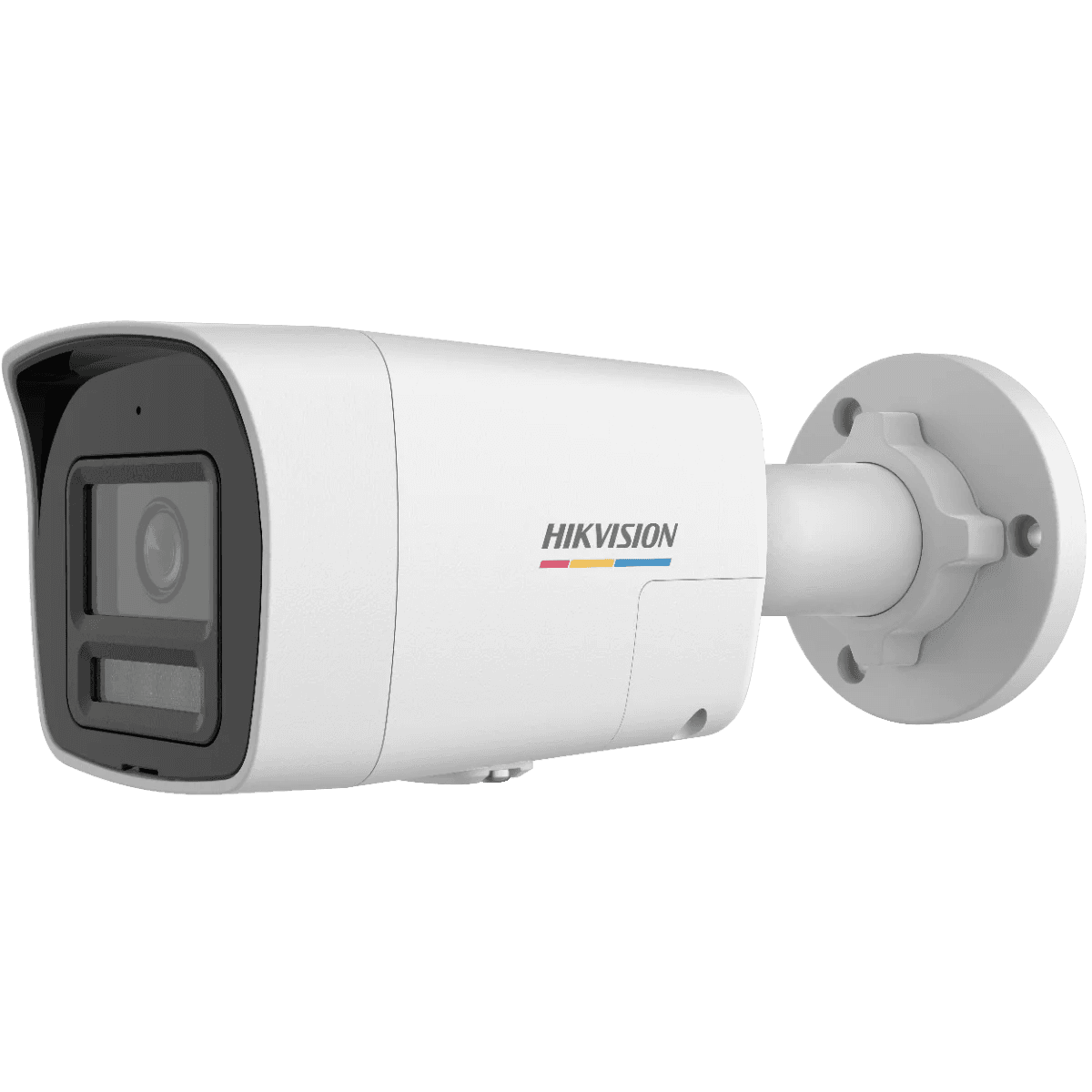

Hikvision DS-2CD1047G2H-LIUF/S(L)(RB) 4 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera-4MP IP CAMERA COLUR
Model :
SKU : DS-2CD1047G2H-LIUF/SL 4MP
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
Hikvision DS-2CD1047G2H-LIUF/S(L)(RB) 4 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera Specification
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: HFOV 96°, VFOV 52°, DFOV 114° 4 mm: HFOV 80°, VFOV 43°, DFOV 93° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI | |
| DORI | 2.8 mm: D 63 m, O 25 m, R 12 m, I 6 m 4 mm: D 77 m, O 30 m, R 15 m, I 7 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | H.265+/H.265/H.264+/H.264 (Main), H.265/H.264/MJPEG (Sub) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4/IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S/G/T), ISAPI, SDK |
| User/Host | Up to 32 users; admin/operator/user levels |
| Security | Password protection, complicated password, watermark, authentication (HTTP, WSSE, MAC address), security audit log |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in live view: IE 10/11; Local service: Chrome 57+, Firefox 52+, Edge 89+ |
| Image | |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance (adjustable) |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon masks |
| Interface | |
| Ethernet Interface | 1 × RJ45 10M/100M self-adaptive |
| On-Board Storage | microSD/microSDHC/microSDXC up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | 1 ×, Max 1.5 W, SPL 98 dB @ 10 cm |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (person/vehicle), tampering alarm, exception |
| Linkage | Upload to card/FTP, trigger recording, notify center, send email, capture |
| General | |
| Power | 12 VDC ±25% (0.6 A, max 7.2 W), PoE (IEEE 802.3af, Class 3, max 8.7 W) |
| Material | Front cover: metal; body: plastic; bracket: plastic |
| Dimension | 179 × 69.1 × 67.4 mm (7.05" × 2.72" × 2.65") |
| Package Dimension | 150 × 150 × 141 mm (5.91" × 5.91" × 5.55") |
| Weight | Approx. 320 g (0.7 lb) |
| With Package Weight | Approx. 540 g (1.2 lb) |
| Storage Conditions | -30 °C to 60 °C, ≤95% RH (non-condensing) |
| Operating Conditions | -30 °C to 60 °C, ≤95% RH (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, mirror, flash log, email password reset, anti-banding |
| Flashing Light | /SRB: Red & Blue; /SL: White |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252 (Part 1):2010/IEC 60950-1:2005 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: EC 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
