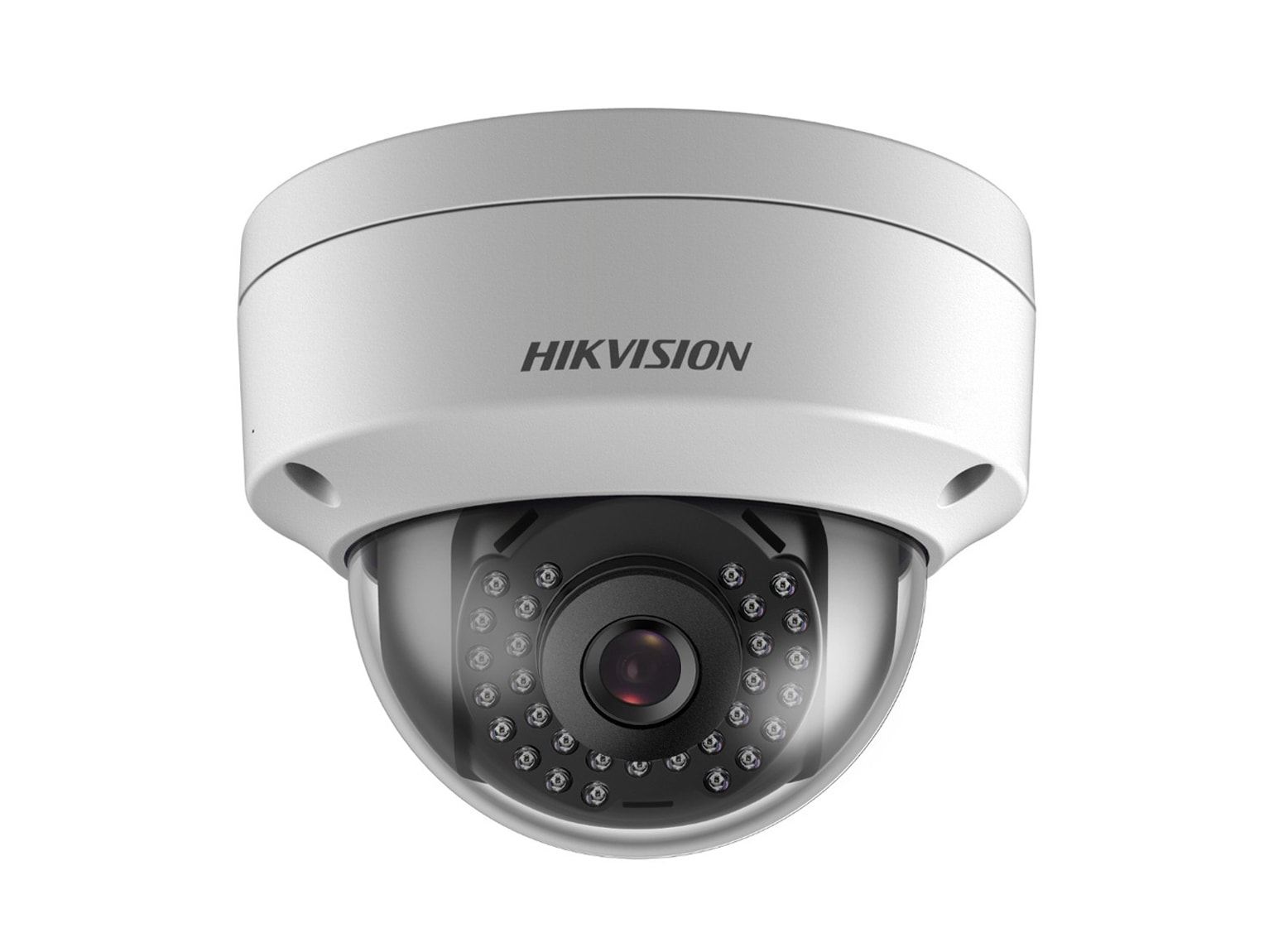

HIKVISION DS-2CD1143G2-LIU(2.8mm) 4.0 MP IR Network Dome Camera, 2560 ?? 1440@20fps, Up to 30 m IR Range, 1/3" Progressive Scan CMOS, 120 dB WDR (Wide Dynamic Range)
Model :
SKU : DS-2CD1143G0-I (2.8MM)
About this item
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
HIKVISION DS-2CD1143G0-I(2.8mm) 4.0 MP IR Network Dome Camera, 2560 ?? 1440@20fps, Up to 30 m IR Range, 1/3" Progressive Scan CMOS, 120 dB WDR (Wide Dynamic Range
| Image Sensor | 1/3" progressive scan CMOS |
| Max. Resolution | 2560 ?? 1440 |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, tilt: 0?? to 75?? |
| Lens | 2.8 mm: Focal Length & FOV: horizontal FOV 98.0??, vertical FOV 53.1??, diagonal FOV 114.7?? 4 mm: Focal Length & FOV: horizontal FOV 78.7??, vertical FOV 43.1??, diagonal FOV 92.3?? Lens Mount: M12 Focus: Fixed Aperture: F2.0 Lens Type: Fixed focal lens, 2.8 and 4 mm optional Iris Type: Fixed |
| Illuminator | Supplement Light Type: IR Supplement Light Range: Up to 30 m IR Wavelength: 850 nm Smart Supplement Light: Yes |
| Video | Main Stream: 50 Hz: 20 fps (2560 ?? 1440), 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 20 fps (2560 ?? 1440), 30 fps (1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile |
| Region Of Interest (ROI) | 1 fixed region for main stream |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP???, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live View: Up to 6 channels API: Open Network Video Interface, ISAPI User/Host: Up to 32 users. 3 levels: administrator, operator and user Client: iVMS-4200, Hik-Connect Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch: Auto, Schedule, Day, Night Wide Dynamic Range (WDR): 120 dB Image Enhancement: BLC, 3D DNR |
| Interface | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | Basic Event: Motion detection, video tampering alarm, exception Linkage: Upload to FTP, notify surveillance center, send email |
| General | Power: 12 VDC ?? 25%, 0.4 A, max. 5 W, ??5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W Dimension: ??111 mm ?? 82.4 mm (?? 4.4" ?? 3.2") Package Dimension: 134 mm ?? 134 mm ?? 108 mm (5.3" ?? 5.3" ?? 4.3") Weight: Approx. 360 g (0.8 lb.) With Package Weight: Approx. 560 g (1.2 lb.) Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity: 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity: 95% or less (non-condensing) Language: English, Ukrainian General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Approval: EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
HIKVISION DS-2CD1143G0-I(2.8mm) 4.0 MP IR Network Dome Camera, 2560 ?? 1440@20fps, Up to 30 m IR Range, 1/3" Progressive Scan CMOS, 120 dB WDR (Wide Dynamic Range
| Image Sensor | 1/3" progressive scan CMOS |
| Max. Resolution | 2560 ?? 1440 |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, tilt: 0?? to 75?? |
| Lens | 2.8 mm: Focal Length & FOV: horizontal FOV 98.0??, vertical FOV 53.1??, diagonal FOV 114.7?? 4 mm: Focal Length & FOV: horizontal FOV 78.7??, vertical FOV 43.1??, diagonal FOV 92.3?? Lens Mount: M12 Focus: Fixed Aperture: F2.0 Lens Type: Fixed focal lens, 2.8 and 4 mm optional Iris Type: Fixed |
| Illuminator | Supplement Light Type: IR Supplement Light Range: Up to 30 m IR Wavelength: 850 nm Smart Supplement Light: Yes |
| Video | Main Stream: 50 Hz: 20 fps (2560 ?? 1440), 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 20 fps (2560 ?? 1440), 30 fps (1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (640 ?? 480, 640 ?? 360) Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile |
| Region Of Interest (ROI) | 1 fixed region for main stream |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP???, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live View: Up to 6 channels API: Open Network Video Interface, ISAPI User/Host: Up to 32 users. 3 levels: administrator, operator and user Client: iVMS-4200, Hik-Connect Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch: Auto, Schedule, Day, Night Wide Dynamic Range (WDR): 120 dB Image Enhancement: BLC, 3D DNR |
| Interface | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | Basic Event: Motion detection, video tampering alarm, exception Linkage: Upload to FTP, notify surveillance center, send email |
| General | Power: 12 VDC ?? 25%, 0.4 A, max. 5 W, ??5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W Dimension: ??111 mm ?? 82.4 mm (?? 4.4" ?? 3.2") Package Dimension: 134 mm ?? 134 mm ?? 108 mm (5.3" ?? 5.3" ?? 4.3") Weight: Approx. 360 g (0.8 lb.) With Package Weight: Approx. 560 g (1.2 lb.) Storage Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity: 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity: 95% or less (non-condensing) Language: English, Ukrainian General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Approval: EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
