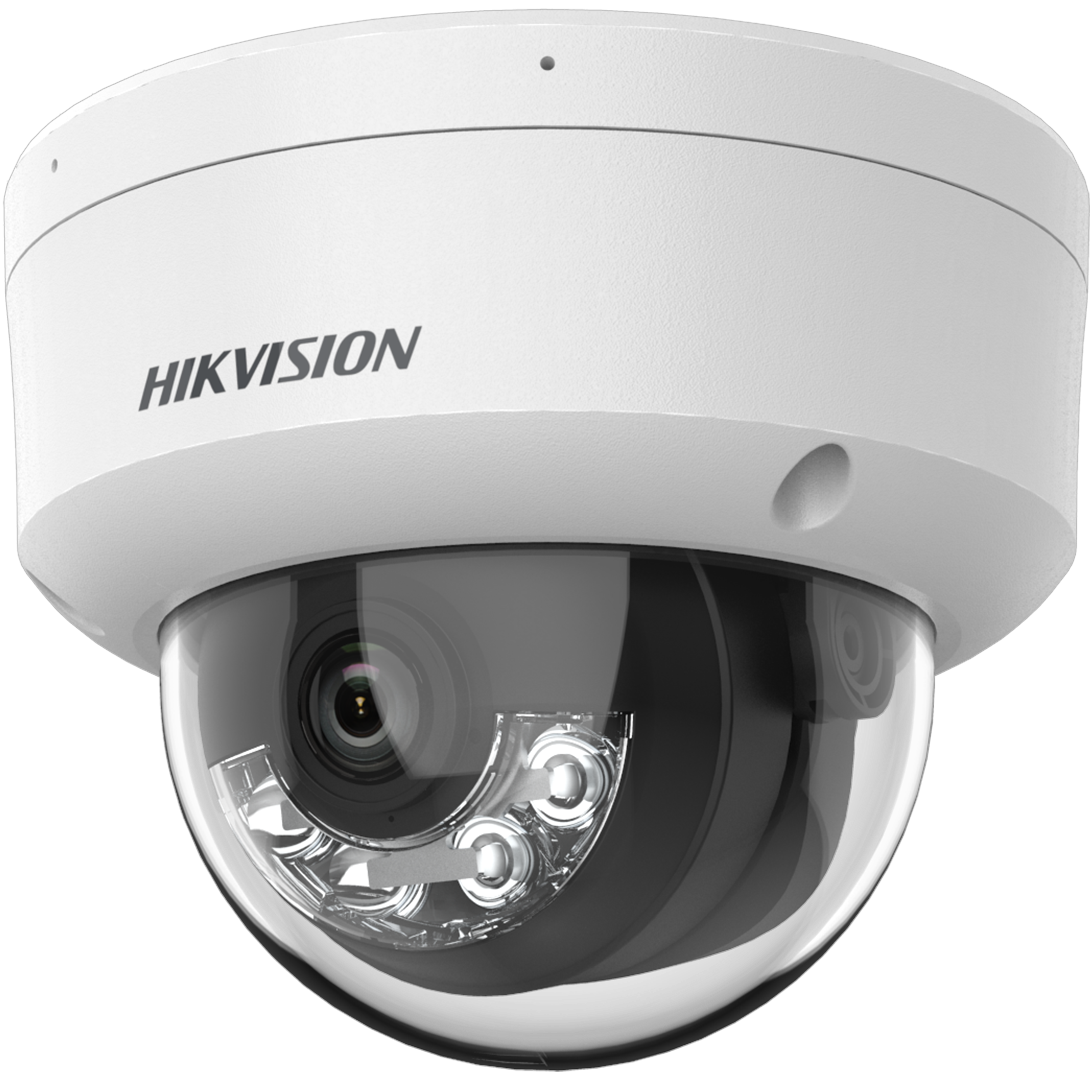

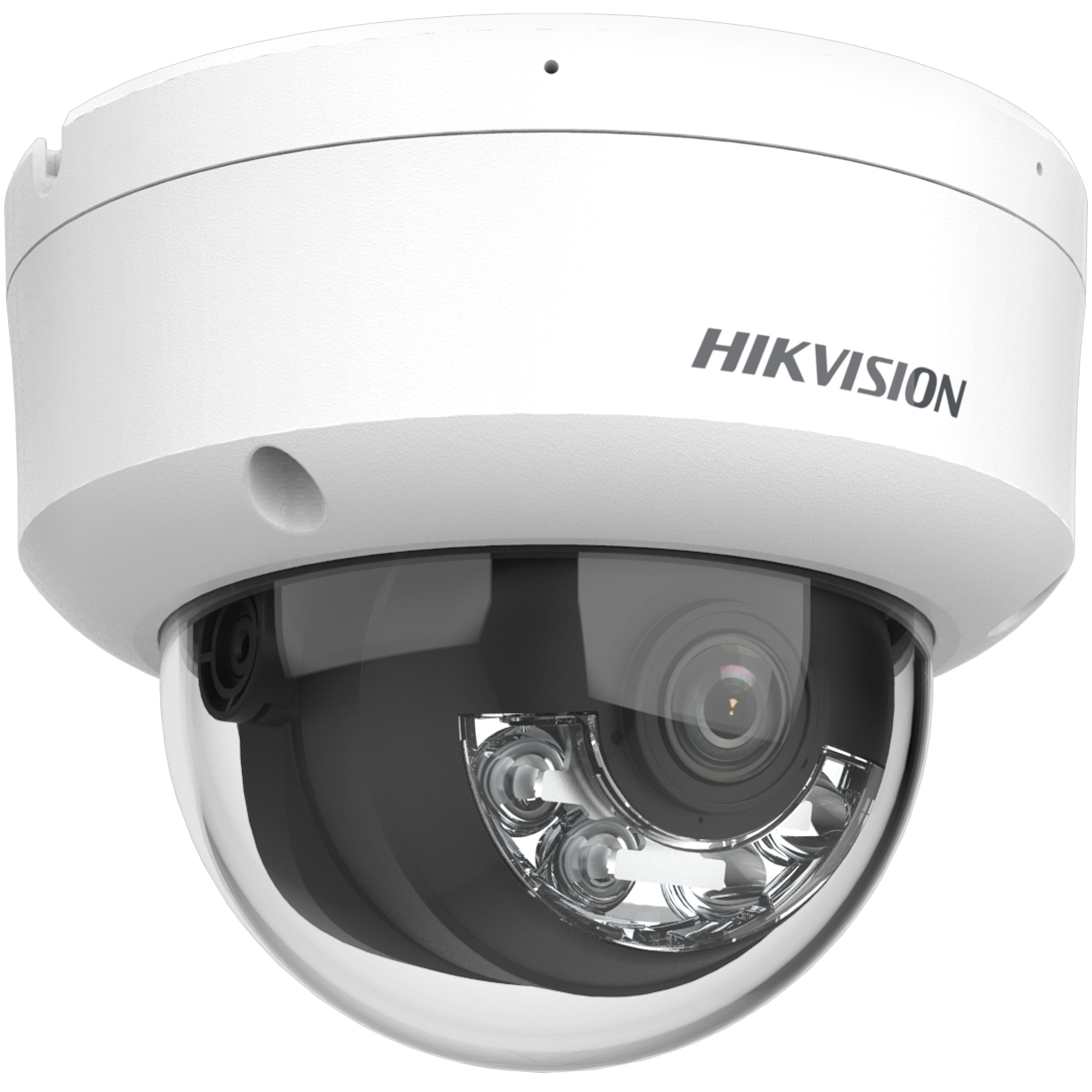

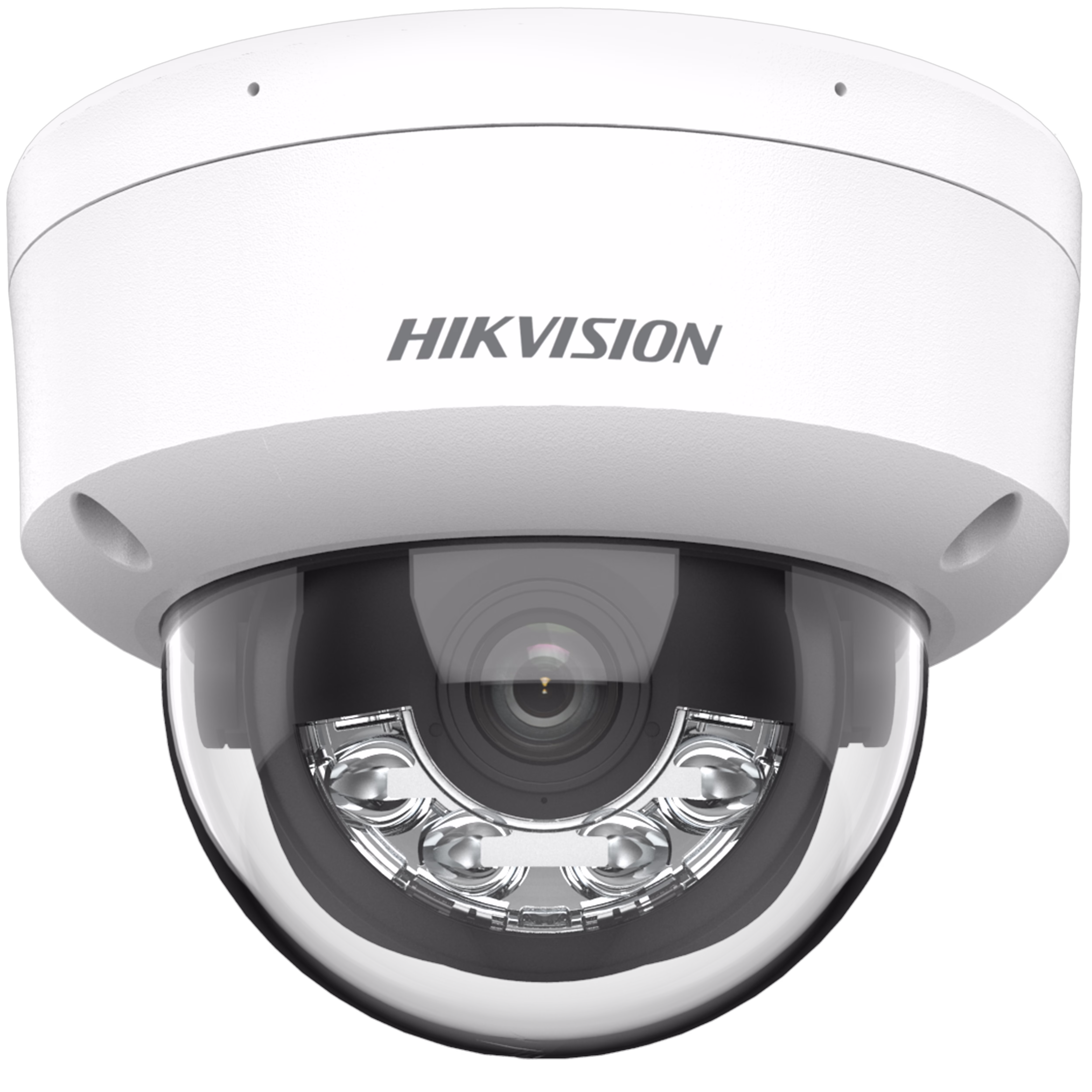

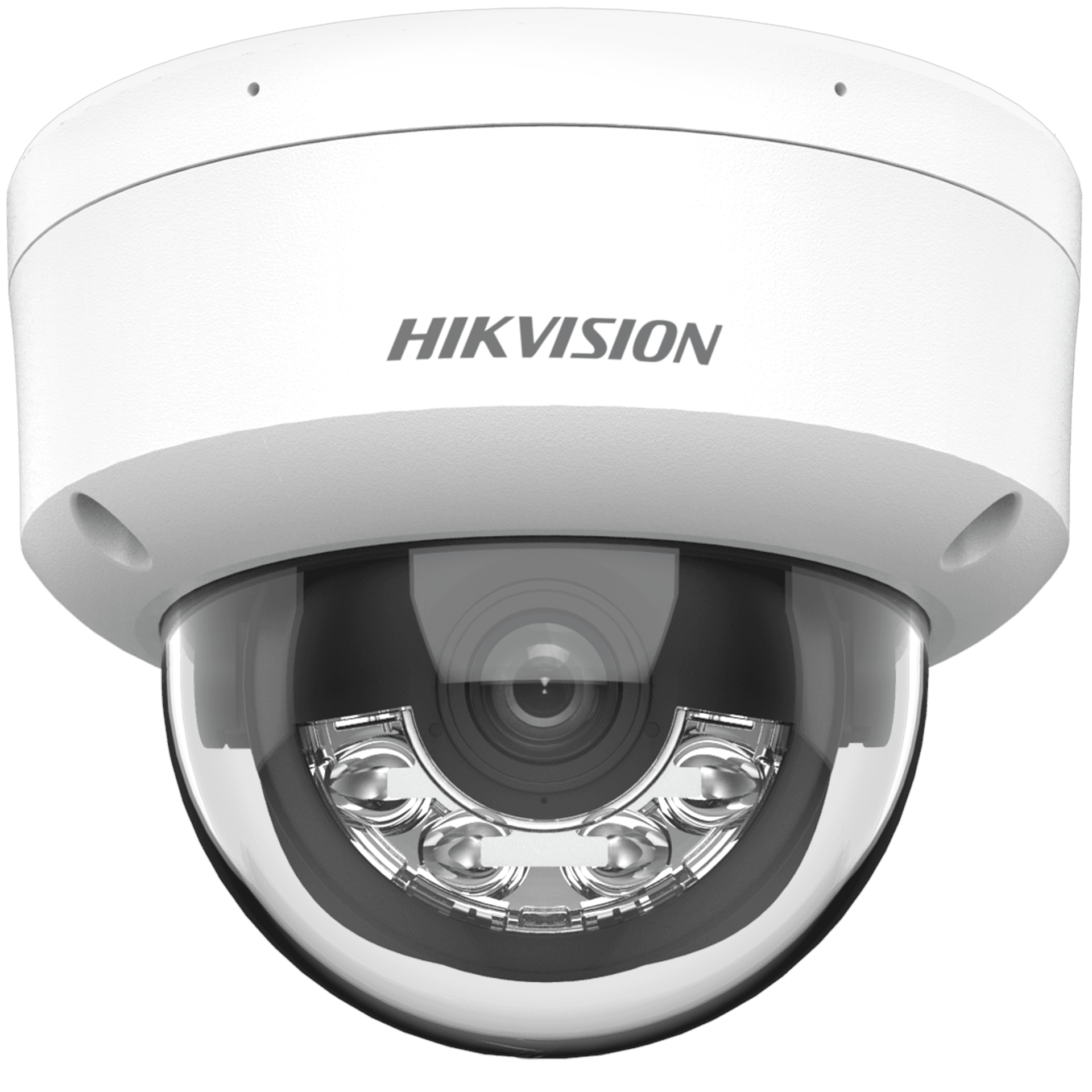

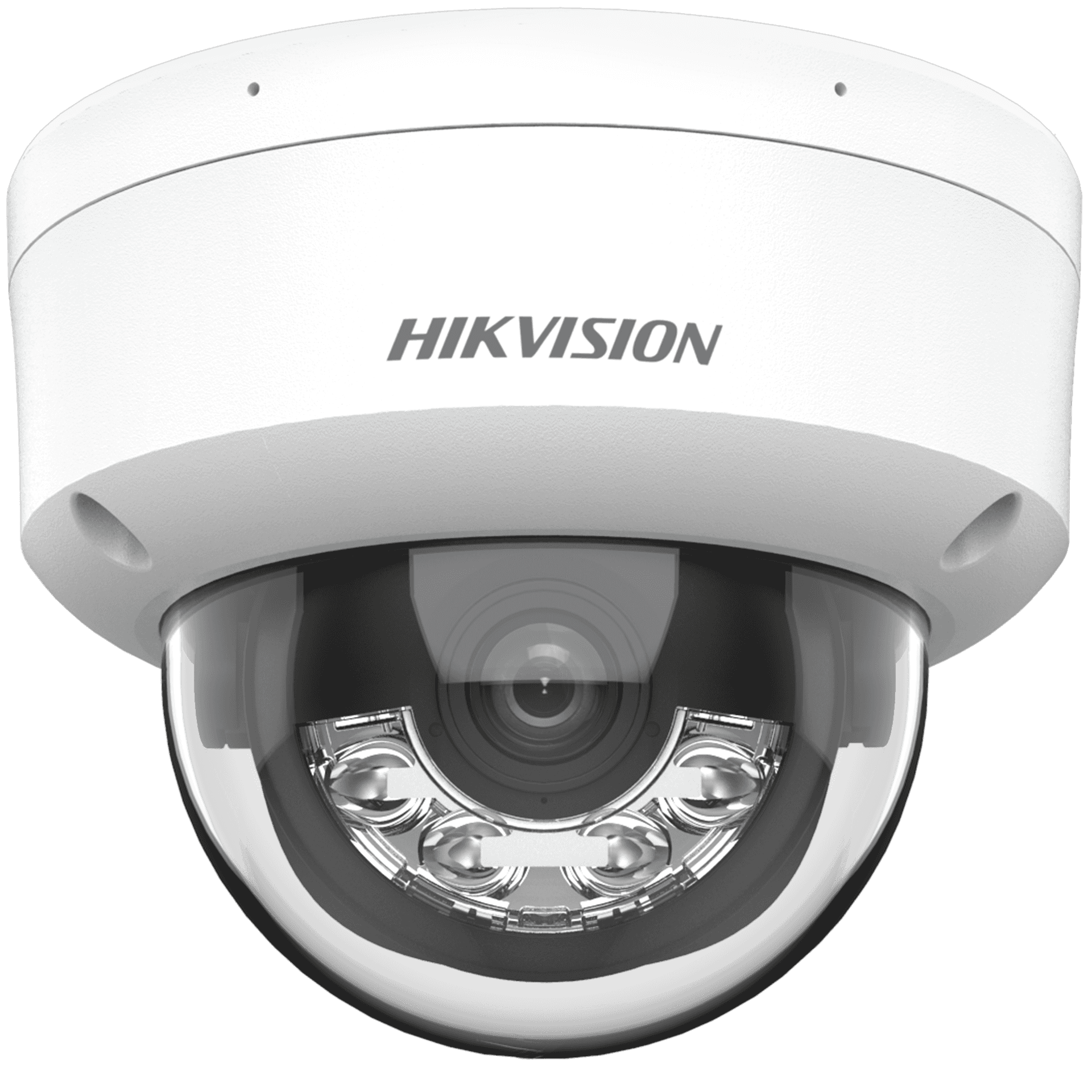

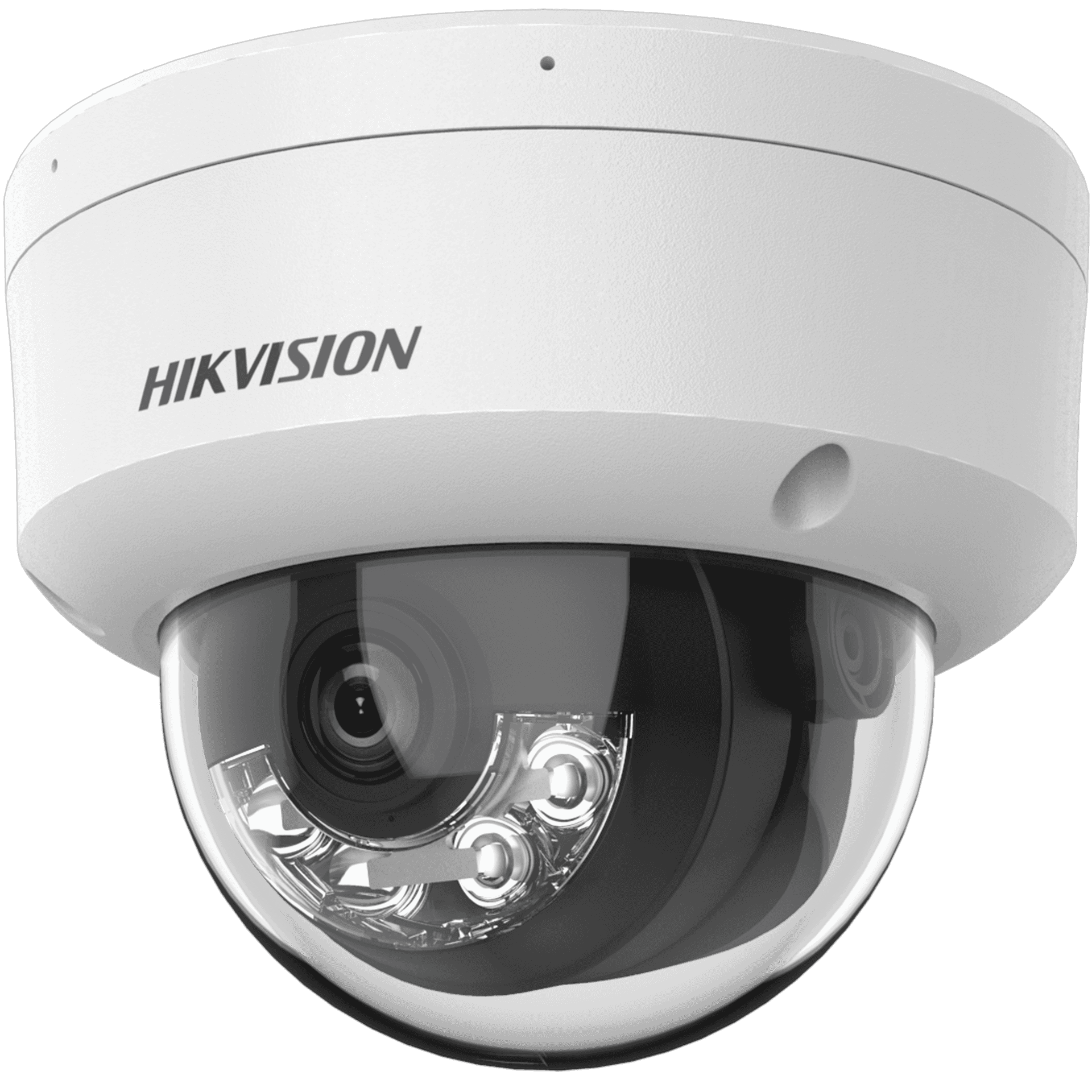

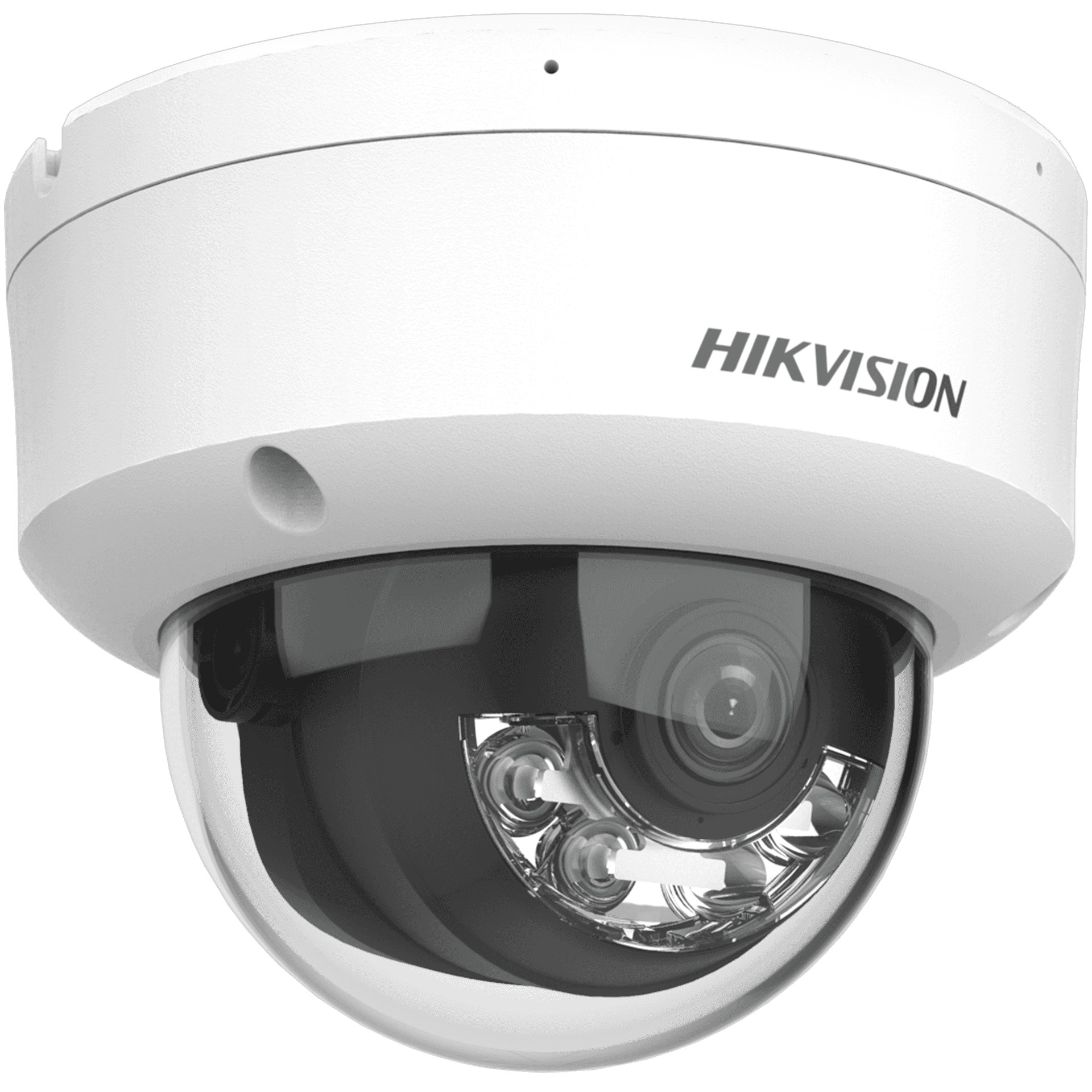

Upgrade your surveillance to ultra-high definition with the Hikvision DS-2CD1163G2-LIU. Delivering 6 MP resolution (3200 × 1800), this camera provides the forensic detail necessary for identifying faces and license plates. As part of Hikvision's modern Value Series, it combines advanced AI-driven analytics with flexible lighting options, making it an ideal security solution for retail spaces, residential perimeters, and office complexes.
Key Features
Flexible Storage & Efficiency: Support for H.265+ compression reduces bandwidth and storage requirements by up to 70% without sacrificing image quality. The "-F" model includes a built-in microSD slot supporting up to 512 GB for local edge storage.
Why This Product Stands Out
The DS-2CD1163G2-LIU strikes the perfect balance between high-end 6MP resolution and affordability. Its Smart Hybrid Light feature solves the common dilemma of wanting color at night without having bright white lights on constantly. Coupled with its easy-to-use Hik-Connect mobile integration, this camera offers professional-grade security that is accessible to everyone.
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Lens Type | Fixed focal lens, 2.8 mm / 4 mm optional |
| Focal Length & FOV | 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127° 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm: Detect 76 m, Observe 30 m, Recognize 15 m, Identify 7 m 4 mm: Detect 115 m, Observe 45 m, Recognize 23 m, Identify 11 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 20 fps (3200×1800, 2688×1520, 1920×1080, 1280×720) 60 Hz: 20 fps (3200×1800, 2688×1520, 1920×1080, 1280×720) |
| Sub Stream | 50 Hz: 20 fps (1280×720, 640×480, 640×360) 60 Hz: 20 fps (1280×720, 640×480, 640×360) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio Type | Mono Sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Audio Compression | G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
| Security | Password protection, watermark, HTTP authentication, WSSE authentication, security audit log, MAC host authentication |
| Simultaneous Live View | Up to 6 channels |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| Users | Up to 32 users (Administrator / Operator / User) |
| Client Software | iVMS-4200, Hik-Connect |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon masks |
| Ethernet Interface | 1 × RJ45 10/100 Mbps self-adaptive port |
| On-Board Storage | MicroSD / microSDHC / microSDXC up to 512 GB |
| Built-in Microphone | Yes |
| Power | 12 VDC ±25%, 0.5 A (Max 6 W) / PoE IEEE 802.3af Class 3 (Max 7.5 W) |
| Material | Metal & Plastic |
| Dimensions | Ø121.4 mm × 97.6 mm |
| Weight | Approx. 550 g |
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -30 °C to 60 °C |
| Humidity | 95% or less (non-condensing) |
| Protection | IP67, IK08 |
| Language | English, Ukrainian |
| General Functions | Heartbeat, Anti-banding, Mirror, Password Protection, Email Reset |
