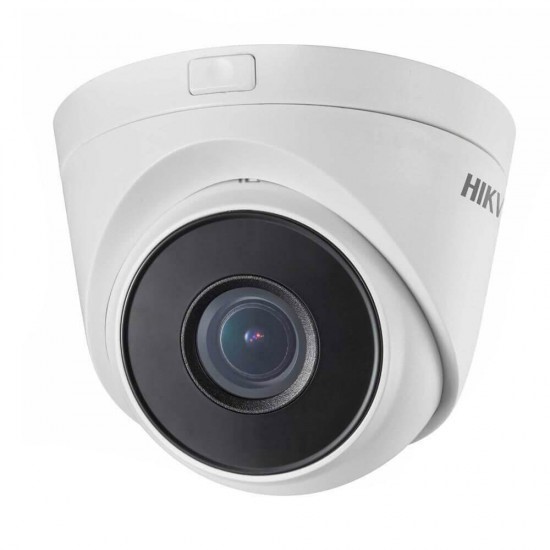

HIKVISION, DS-2CD1323GO-IUF, 2 MP Fixed Turret Network Camera

#html-body [data-pb-style=US3TPP8]{background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;align-self:stretch}#html-body [data-pb-style=MQ58XM1]{display:flex;width:100%}#html-body [data-pb-style=XHOLCXX]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll;width:50%;align-self:stretch}#html-body [data-pb-style=L0Y817V]{border-width:1px}#html-body [data-pb-style=XGHDIDR]{text-align:left}#html-body [data-pb-style=QT1PXG3]{border-width:1px;min-height:300px}#html-body [data-pb-style=LW5OPLI],#html-body [data-pb-style=ROEL5DY]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}#html-body [data-pb-style=LW5OPLI]{width:50%;align-self:stretch}

• SPECIFICATION

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Day &NightIR cut filter
Wide Dynamic RangeDigital WDR

Lens
LensFixed lens, 2.8/4 mm
Auto-IrisNo
ApertureF2.0
FOV2.8mm: Horizontal FOV: 114??, vertical FOV: 62??, diagonal FOV: 135?? ;4 mm: Horizontal FOV: 86??, vertical FOV: 46??, diagonal FOV: 102??
Lens MountM12

Illuminator
IR RangeUp to 30 m
Wavelength850 nm

Video
Max. Resolution1920 ?? 1080
Video CompressionMain stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 8 Mbps
Smart Feature-Set
Region Of Interest1 fixed region for main stream and sub-stream

Image EnhancementBLC, 3D DNR
Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule
Main Stream Max. Frame Rate50Hz: 25fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720);60Hz: 30fps (1920 ?? 1080, 1280 ?? 960, 1280 ?? 720)
Sub-Stream Max. Frame Rate50Hz: 25fps (640 ?? 480, 640 ?? 360, 320 ?? 240);60Hz: 30fps (640 ?? 480, 640 ?? 360, 320 ?? 240)

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users,3 levels: Administrator, Operator, and User
ClientiVMS-4200, Hik-Connect, iVMS-5200
Web BrowserIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Alarm TriggerMotion detection, video tampering alarm, illegal login

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General
Firmware Version5.5.83
General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions-30 ??C to 60 ??C (-22 ??F to 140 ??F), humidity 95% or less (non-condensing)
Power Supply12 VDC ?? 25%, ?? 5.5 mm coaxial power plug; PoE (802.3af, class 0)
MaterialCamera body: metal, bottom base : plastic
DimensionsCamera: 94.4 ?? ??110 mm (3.7" ?? ??4.3") ;With package: 150 ?? 150 ?? 141 mm (5.9" ?? 5.9" ?? 5.6")
WeightCamera: Approx. 354 g (0.8 lb.) ;With package: Approx. 681 g (1.5 lb.)
Power Consumption And Current12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6.5 W
Interface ProtectionIngress protection: IP66 (IEC 60529-2013)
