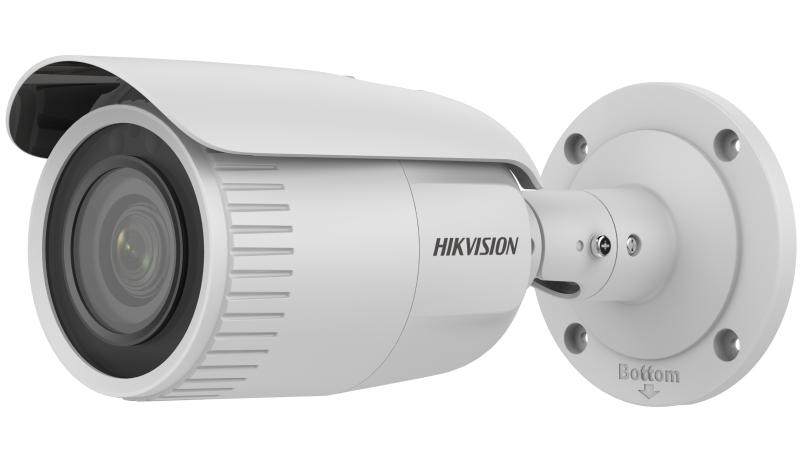

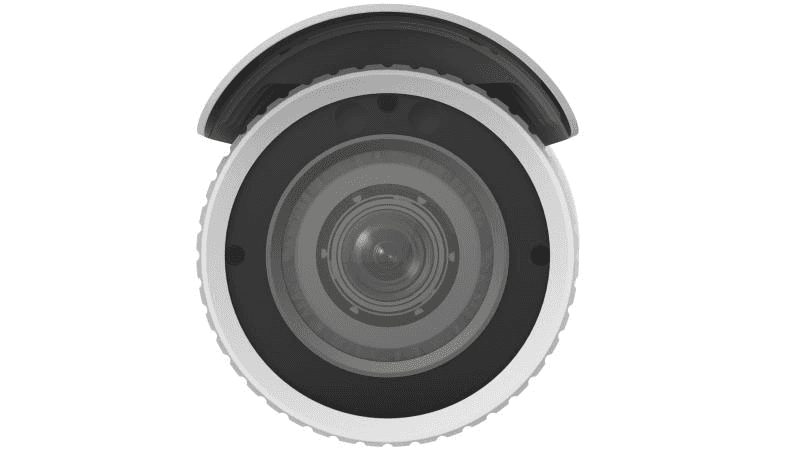

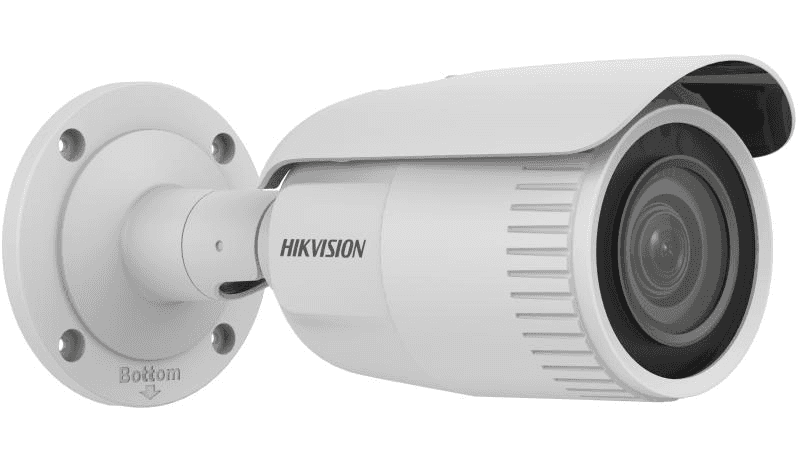

HIKVISION DS-2CD1643G0-IZ 4 MP Varifocal Bullet Network Camera, Varifocal lens, motor-driven lens, 2.8 to 12 mm, Fixed Iris Type, Up to 6 channels, Water and dust resistant (IP67)
Model :
SKU : DS-2CD1643G0-IZ VARIFOCL
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
HIKVISION DS-2CD1643G0-IZ 4 MP Varifocal Bullet Network Camera, Varifocal lens, motor-driven lens, 2.8 to 12 mm, Fixed Iris Type, Up to 6 channels, Water and dust resistant (IP67)
| Feature | Specification |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 ?? 1440 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotation: 0?? to 360?? |
| Lens Type | Varifocal lens, motor-driven lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm: horizontal FOV 102?? to 31??, vertical FOV 55?? to 18??, diagonal FOV 122?? to 36?? |
| Lens Mount | ??14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Illuminator | IR Wavelength: 850 nm IR Range: Up to 50 m |
| Video | Main Stream: 50 Hz: 20 fps (2560 ?? 1440), 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 20 fps (2560 ?? 1440), 30 fps (1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile |
| Audio | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Environment Noise Filtering: Yes |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP???, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live View: Up to 6 channels API: Open Network Video Interface, ISAPI User/Host: Up to 32 users. 3 levels: administrator, operator and user Client: iVMS-4200, Hik-Connect Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch: Auto, Schedule, Day, Night Image Enhancement: BLC, 3D DNR |
| Interface | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K??, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium Alarm: 1 input,1 output, max. 12 VDC, 30 mA Reset Key: Yes |
| Event | Basic Event: Motion detection, video tampering alarm, exception Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture |
| General | Power: 12 VDC ?? 25%, 0.9 A, max. 11 W, ??5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W Camera Material: Metal Camera Dimension: ??105 mm ?? 244.4 mm (??4.1" ?? 9.6") Package Dimension: 315 mm ?? 137 mm ?? 141 mm (12.4" ?? 5.4" ?? 5.6") Camera Weight: Approx. 1035 g (2.3 lb.) With Package Weight: Approx. 1550 g (3.4 lb.) Storage Conditions: -30 ??C to 60 ??C (22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Language: English, Ukrainian General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Approval: EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Electrical Safety Protection: IP67 (IEC 60529-2013) |
Specification
HIKVISION DS-2CD1643G0-IZ 4 MP Varifocal Bullet Network Camera, Varifocal lens, motor-driven lens, 2.8 to 12 mm, Fixed Iris Type, Up to 6 channels, Water and dust resistant (IP67)
| Feature | Specification |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 ?? 1440 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotation: 0?? to 360?? |
| Lens Type | Varifocal lens, motor-driven lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm: horizontal FOV 102?? to 31??, vertical FOV 55?? to 18??, diagonal FOV 122?? to 36?? |
| Lens Mount | ??14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Illuminator | IR Wavelength: 850 nm IR Range: Up to 50 m |
| Video | Main Stream: 50 Hz: 20 fps (2560 ?? 1440), 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 20 fps (2560 ?? 1440), 30 fps (1920 ?? 1080, 1280 ?? 720) Sub-Stream: 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile |
| Audio | Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz Environment Noise Filtering: Yes |
| Network | Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP???, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live View: Up to 6 channels API: Open Network Video Interface, ISAPI User/Host: Up to 32 users. 3 levels: administrator, operator and user Client: iVMS-4200, Hik-Connect Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch: Auto, Schedule, Day, Night Image Enhancement: BLC, 3D DNR |
| Interface | Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K??, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium Alarm: 1 input,1 output, max. 12 VDC, 30 mA Reset Key: Yes |
| Event | Basic Event: Motion detection, video tampering alarm, exception Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture |
| General | Power: 12 VDC ?? 25%, 0.9 A, max. 11 W, ??5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W Camera Material: Metal Camera Dimension: ??105 mm ?? 244.4 mm (??4.1" ?? 9.6") Package Dimension: 315 mm ?? 137 mm ?? 141 mm (12.4" ?? 5.4" ?? 5.6") Camera Weight: Approx. 1035 g (2.3 lb.) With Package Weight: Approx. 1550 g (3.4 lb.) Storage Conditions: -30 ??C to 60 ??C (22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Startup And Operating Conditions: -30 ??C to 60 ??C (22 ??F to 140 ??F). Humidity 95% or less (non-condensing) Language: English, Ukrainian General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Approval: EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Electrical Safety Protection: IP67 (IEC 60529-2013) |
