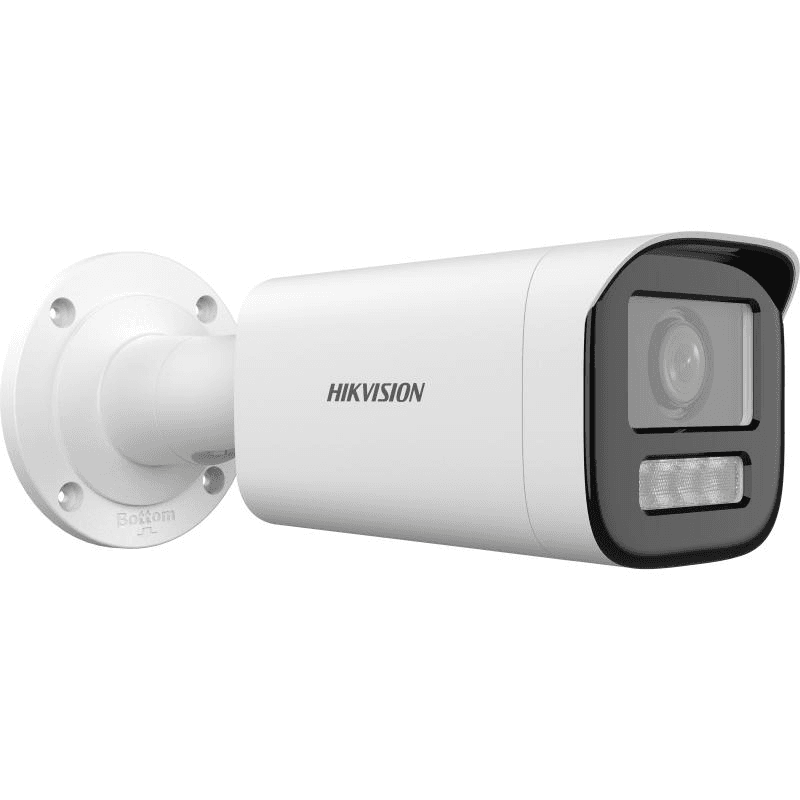

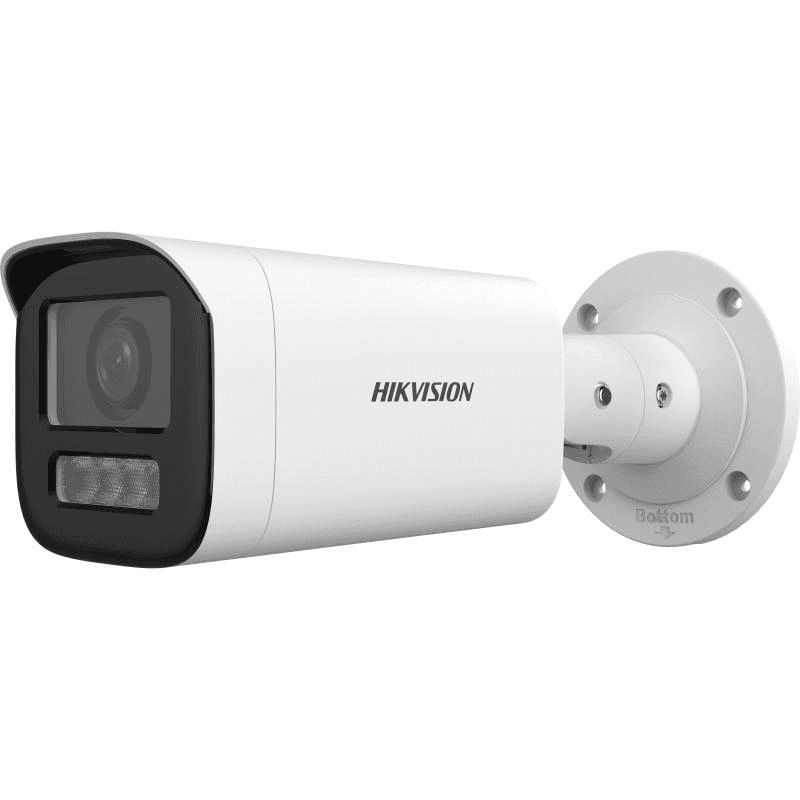

Hikvision DS-2CD1643G2-LIZ(S)U 4 MP Smart Hybrid Light Varifocal Bullet Network Camera, 1/3" Progressive Scan CMOS, Motorized Lens, Up to 50 m, Built-in microphone, H.265+, Human & Vehicle Detection, IP67
Model :
SKU : DS-2CD1643G2-LIZSU(2.8-12
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 ?? 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 360??, Tilt: 0?? to 90??, Rotate: 0?? to 360?? |
Lens
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 96.7?? to 29.7??, vertical FOV 51.7?? to 16.7??, diagonal FOV 114.3?? to 34?? |
| Lens Mount | ??14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
DORI
| DORI | D: 64.0 to 198.0 m, O: 25.4 to 78.6 m, R: 12.8 to 39.6 m, I: 6.4 to 19.8 m |
Illuminator
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 50 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 20 fps (2560 ?? 1440), 25 fps (1920 ?? 1080, 1280 ?? 720) 60 Hz: 20 fps (2560 ?? 1440), 24 fps (1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) 60 Hz: 24 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream |
Audio
| Audio Type | Mono sound |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 160 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
Network
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ??? 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Microphone | Yes, 1 built-in microphone |
| Audio | -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K??, interface type: non-equilibrium -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ??, interface type: non-equilibrium |
| Alarm | -S: 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, (-S model) trigger alarm output |
General
| Power | 12 VDC ?? 25%, 0.9 A, max. 11 W, ??5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 12.9 W |
| Material | Metal & Plastic |
| Dimension | ??105 mm ?? 252 mm (??4.13" ?? 9.92") |
| Package Dimension | 315 mm ?? 137 mm ?? 141 mm (12.40" ?? 5.39" ?? 5.55") |
| Weight | Approx. 585 g (1.3 lb.) |
| With Package Weight | Approx. 910 g (2.0 lb.) |
| Storage Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, mirror, password reset via email, password protection, anti-banding |
Approval
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
